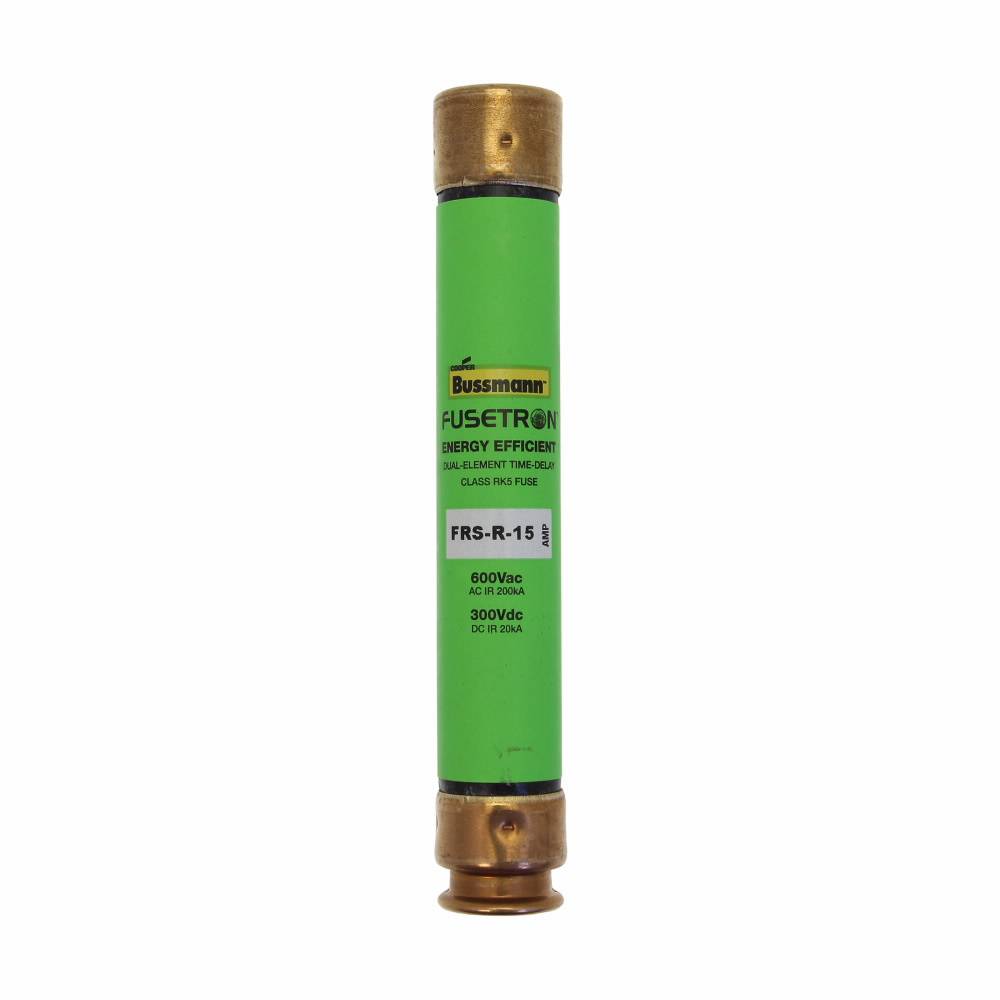

PrintBussmann Fusetron™ FRS-R-15 Current Limiting Time Delay Fuse, 15 A, 600 VAC/300 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Time delay affords the same excellent overload protection as low peak fuses of motors and other type loads and circuits having temporary inrush currents such as those caused by transformers and solenoids. (In such circuits, Limitron fuses can only provide short circuit protection). Fusetron™ fuses are not as Fast-Acting on short circuits as low peak fuses and therefore cannot give as high a degree of component short circuit protection. Like the Low-Peak™ fuse, Fusetron™ fuses permit the use of smaller size and less costly switches. Fusetron™ fuses fit rejection type fuse holders and can also be installed in holders for Class H fuses. They can physically and electrically replace Class H, K5, and other Class RK5 fuses.
Bussmann Fusetron™ Time Delay Fuse, Current Limiting, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 0.81 in Dia x 5 in L Body Size
EECO #: BUFRSR15
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $16.19 |
|
Slqt |
|
| 1 | $16.19 |
|
Stpk |
|
| 1 | $161.90 |
|
Unit |
|
| 1 | $16.19 |
