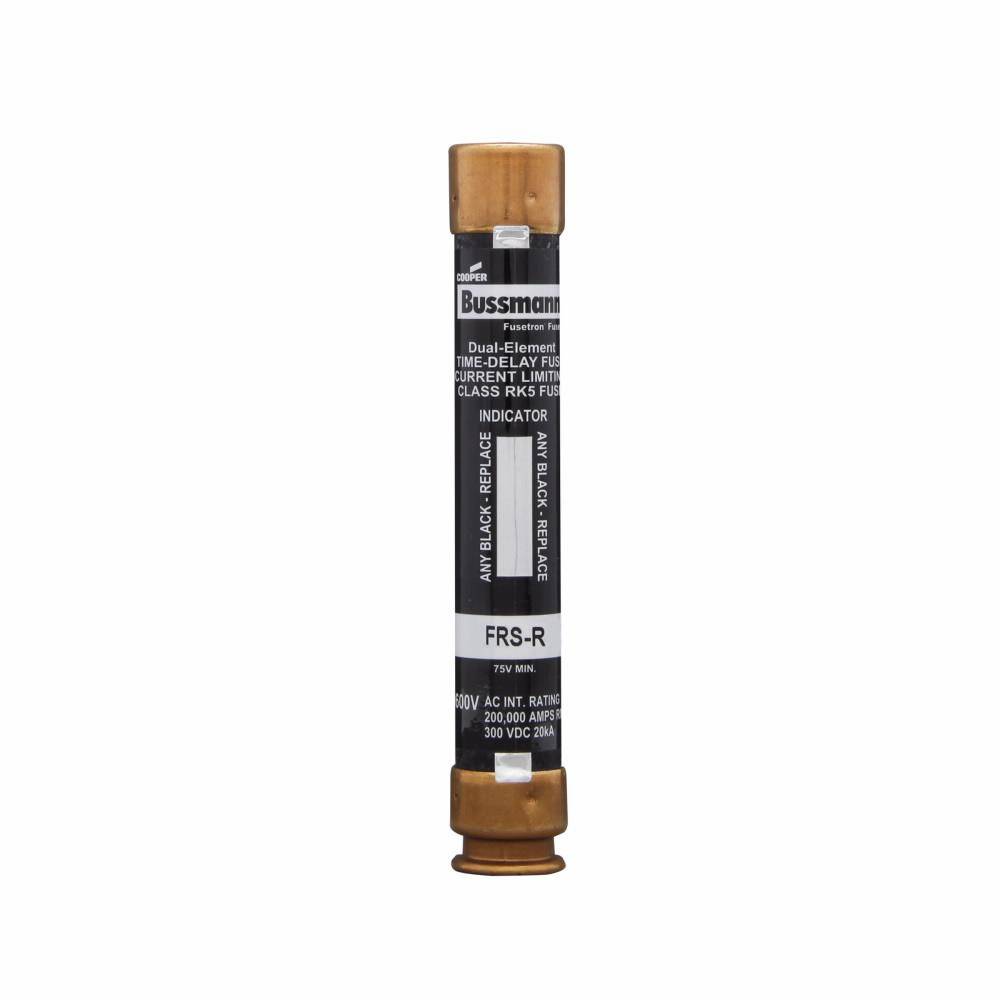

Bussmann Fusetron™ FRS-R-12ID Current Limiting Time Delay Fuse, 12 A, 600 VAC/300 VDC, 200/20 kAIC Interrupt, RK5 Class

Short Description

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).

Bussmann Fusetron™ Fuse, Current Limiting Time Delay, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 12 A, 600 VAC/300 VDC, 200/20 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Holder Mount, Dual Element, Fiberglass
MFG #: FRS-R-12ID

EECO #: BUFRSR12ID

Brand: Bussmann
UPC #: 051712204552
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
Industrial Facilities and Factories, Safety and Security Systems, Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Clip
Voltage Rating
600 VAC/300 VDC
Type
Current Limiting Time Delay
Series
FRS-R
Amperage Rating
12
Features
  • Package Type: Standard
  • Weight: 0.15 lbs
  • Width: 0.81 in
  • Length: 0.81 in
  • Height: 5 in
  • Number of Elements: 2
  • Indicator: Non-Indicating
FRS_R_12ID_Specification_Sheet
