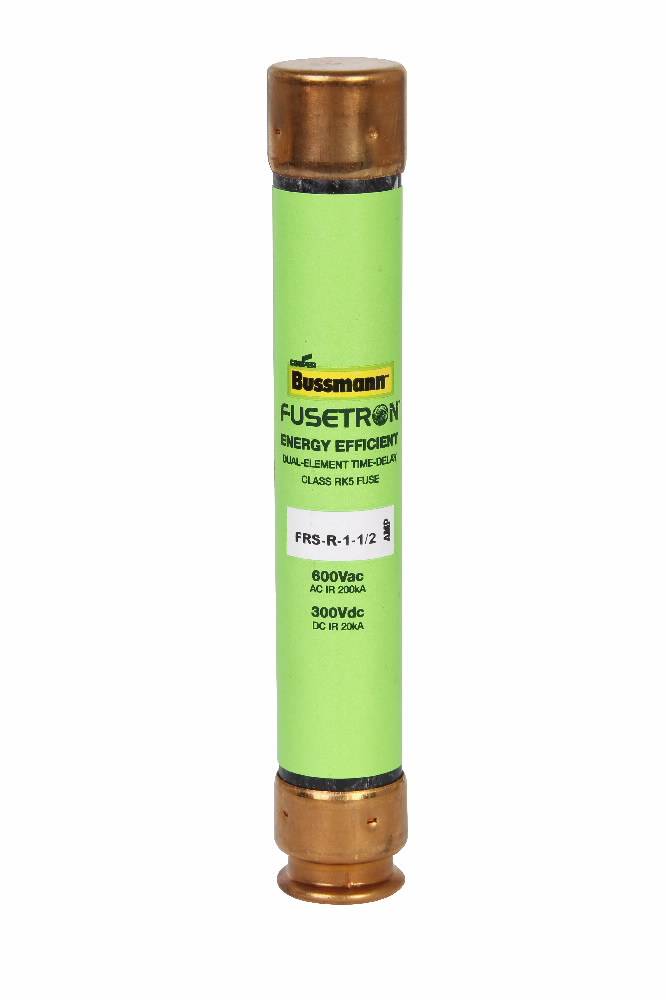

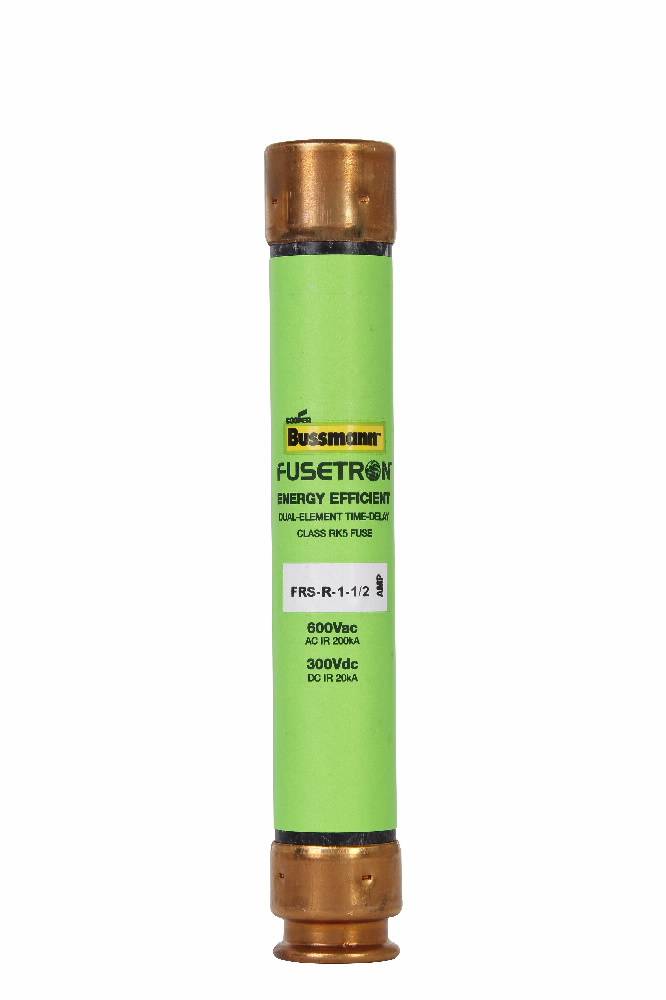

Bussmann Fusetron™ FRS-R-1-1/2 Current Limiting Time Delay Renewable Fuse, 1.5 A, 600 VAC/300 VDC, 200/20 kAIC Interrupt, RK5 Class, Cylindrical Body

Short Description

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).

Bussmann Fusetron™ Renewable Fuse, Current Limiting Time Delay, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 1.5 A, 600 VAC/300 VDC, 200/20 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body, Dual Element, Fiberglass, 0.81 in Dia x 5 in L Body Size
MFG #: FRS-R-1-1/2

EECO #: BUFRSR11/2

Brand: Bussmann
UPC #: 051712507967
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
Industrial Facilities and Factories, Safety and Security Systems, Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Ferrule End
Voltage Rating
600 VAC/300 VDC
Type
Current Limiting Time Delay
Series
FRS-R
Amperage Rating
1.5
Features
  • Dual element feature provides the best time delay performance, allowing closer sizing and superior protection of motors and transformers
  • Closer sizing allows for smaller fuses and less costly switches
  • Class RK5 fuses with a 200 kA interrupt rating for use in a broad range of applications
  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads and 1 ph when sized properly
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • Offers a 10 s time delay at 5 times the rated current
  • The time delay feature makes it possible to use fuse amp ratings which are much smaller than those of non-time delay fuses
  • Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
  • Provides current limitation to help protect downstream components from high fault currents
  • Gives motor running back-up protection to motors without extra costs
