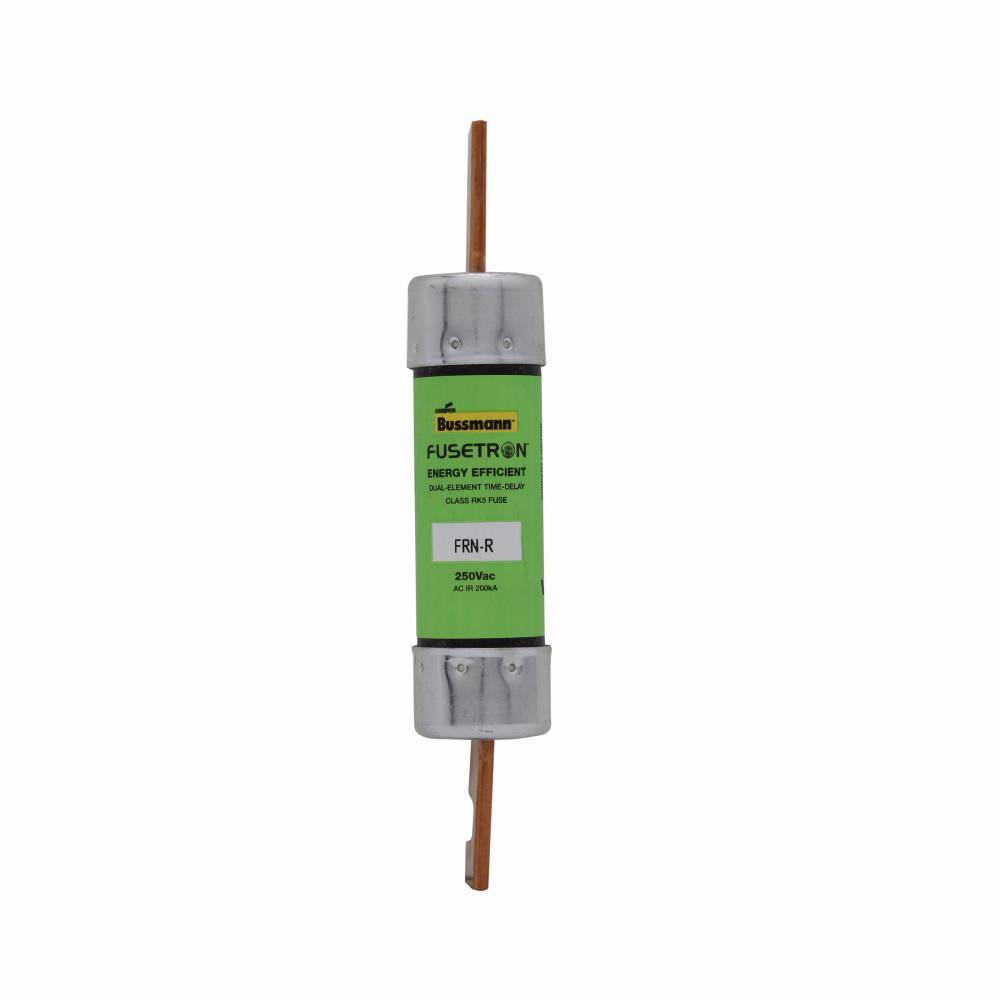

Bussmann Fusetron™ FRN-R-75 FRN-R Advanced Protection Current Limiting Energy Efficient Low Voltage Time Delay Fuse, 75 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Share Share Print Print
Eaton

Bussmann Fusetron™ FRN-R-75 FRN-R Advanced Protection Current Limiting Energy Efficient Low Voltage Time Delay Fuse, 75 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body

Short Description

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).

Bussmann Fusetron™ Time Delay Fuse, Advanced Protection Current Limiting Energy Efficient Low Voltage, Series: FRN-R, Non-Indicating, Rejection, 75 A, 250 VAC/125 VDC, 20/200 kA Interrupt, Class: RK5, 10 s Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 1.06 in Dia x 5.88 in L Body Size
MFG #: FRN-R-75

EECO #: BUFRNR75

Brand: Bussmann
UPC #: 051712506939
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
Branch Circuit, Power Panelboard, Motor Control Centers, Combination Starter and Machinery Disconnects
Mounting Type
Holder
Response Time
10
Terminal Type
Blade
Voltage Rating
250 VAC/125 VDC
Type
Advanced Protection Current Limiting Energy Efficient Low Voltage
Series
FRN-R
Amperage Rating
75
Features
  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads, 1-phasing on 1-phase systems
  • Simplifies and improves blackout prevention (selective co-ordination ratios)
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 s at 500% of rated current
  • 200 kA at 250 VAC RMS symmetrical, 20 kA at 125 VDC interrupt rating
