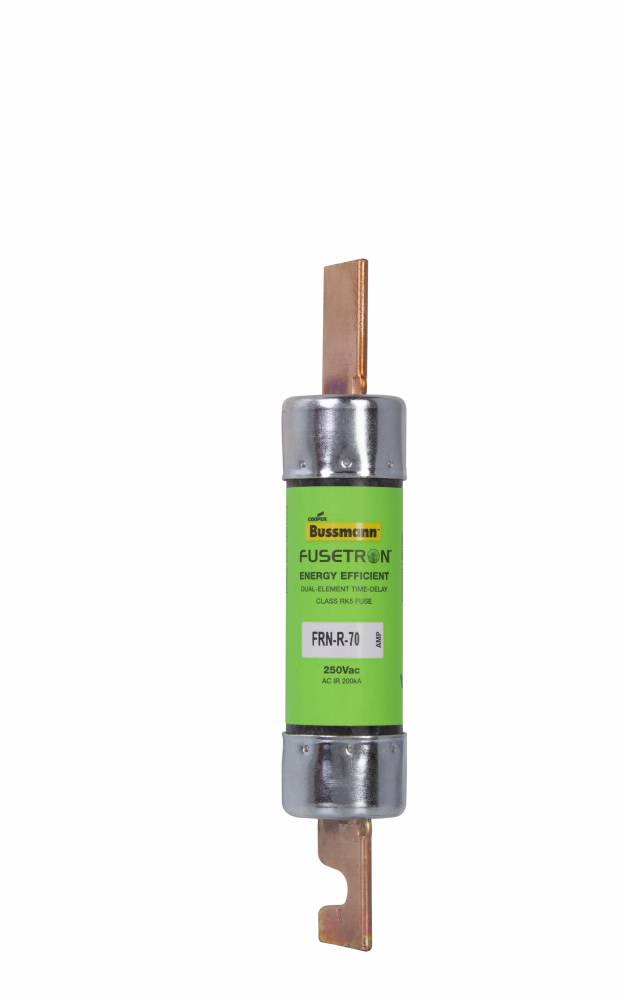

Bussmann Fusetron™ FRN-R-70 Advanced Protection Current Limiting Energy Efficient Low Voltage Time Delay Fuse, 70 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body

Short Description

EATON Bussmann series advanced protection, energy efficient FRN-R class RK5 dual element, current limiting, time delay fuses. Time delay 10 sec (minimum) at 500% of rated current.

Bussmann Fusetron™ Time Delay Fuse, Advanced Protection Current Limiting Energy Efficient Low Voltage, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 70 A, 250 VAC/125 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 1.06 in Dia x 5.88 in L Body Size

MFG #: FRN-R-70

EECO #: BUFRNR70

Brand: Bussmann
UPC #: 051712507400
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Approval
UL, CSA C22.2, CE
Material
Fiberglass
Application
Branch Circuit, Power Panelboard, Motor Control Centers, Combination Starter and Machinery Disconnects, Safety and Security Systems
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Blade
Current Rating
70 amp
Voltage Rating
250 VAC/125 VDC
Characteristics
10 Second Time Delay (at 500 Percent Rated Current), Dual Element, Non-Indicating, Current Limiting
Interrupting Rating
200 Kiloamp (Symmetrical), 20 Kiloamp (DC)
Type
Advanced Protection Current Limiting Energy Efficient Low Voltage
Series
FRN-R
Diameter
1.06 Inch
Amperage Rating
70
Features
  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads, single phasing on 1 ph systems
  • Simplifies and improves blackout prevention (selective co-ordination ratios)
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 s at 500% of rated current
  • 200 kA at 250 VAC rms symmetrical, 20 kA at 125 VDC interrupt rating
Eaton_Bussmann_00084_1_4_DATA
Eaton_Bussmann_00093_1_29_CAT
Qty Unit price
Ea
1 $30.21

Slqt
1 $30.21

Stpk
1 $151.05

Unit
1 $30.21
