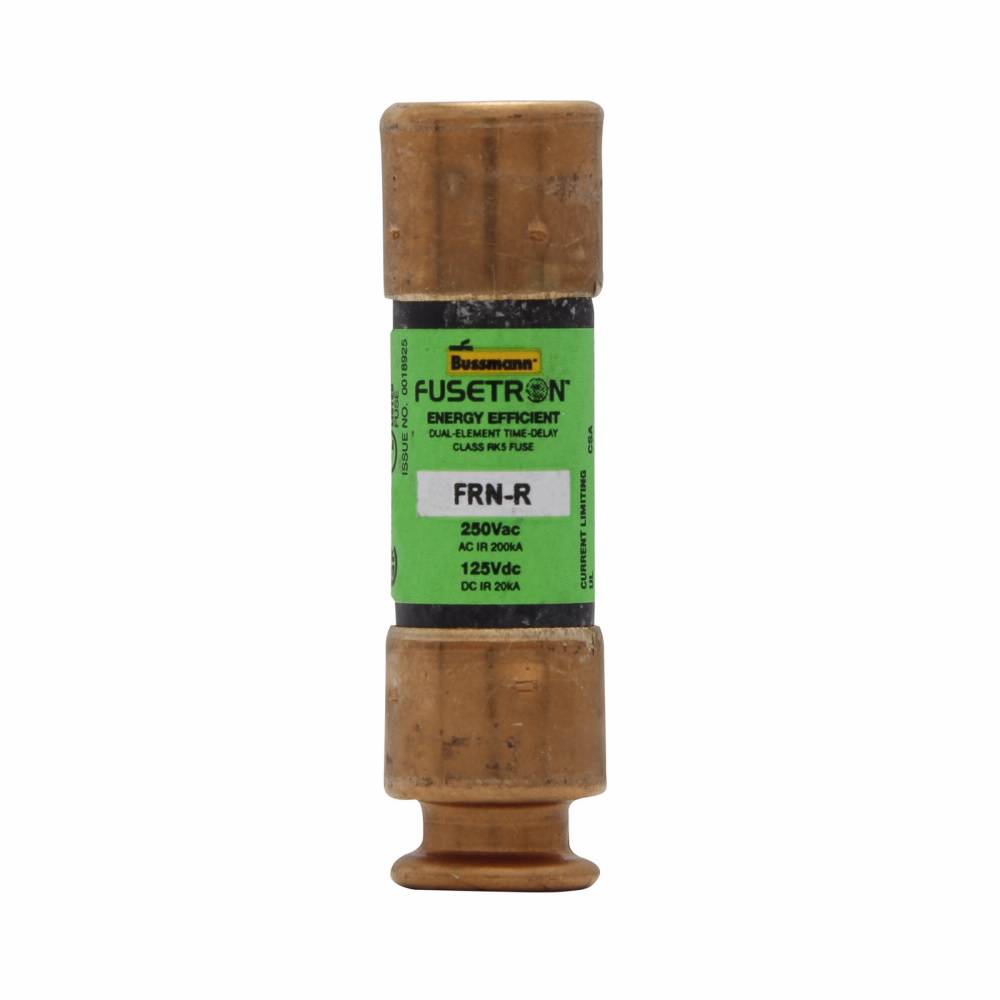

Bussmann Fusetron™ FRN-R-7 FRN-R Advanced Protection Current Limiting Energy Efficient Low Voltage Time Delay Fuse, 7 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body

Short Description

EATON Bussmann series advanced protection, energy efficient FRN-R class RK5 dual element, current limiting, time delay fuses with optional open fuse indication on select ratings. Time delay 10 sec (minimum) at 500% of rated current (8 sec for 1/10-30 A sizes).

Bussmann Fusetron™ Time Delay Fuse, Advanced Protection Current Limiting Energy Efficient Low Voltage, Series: FRN-R, Non-Indicating, Rejection, 7 A, 250 VAC/125 VDC, 20/200 kA Interrupt, Class: RK5, 10 s Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size

MFG #: FRN-R-7

EECO #: BUFRNR7

Brand: Bussmann
UPC #: 051712507257
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Approval
UL 248-12, CSA C22.2, CE
Material
Fiberglass
Application
Branch Circuit, Power Panelboard, Motor Control Centers, Combination Starter and Machinery Disconnects
Mounting Type
Holder
Response Time
10
Terminal Type
Ferrule
Current Rating
7 Amp
Voltage Rating
250 VAC/125 VDC
Characteristics
8 Second Time Delay (at 500 Percent Rated Load), Dual Element, Non-Indicating
Interrupting Rating
200 Kiloamp Symmetrical (AC), 20 Kiloamp (DC)
Type
Advanced Protection Current Limiting Energy Efficient Low Voltage
Series
FRN-R
Diameter
0.56 Inch
Amperage Rating
7
Features
  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads, 1-phasing on 1-phase systems
  • Simplifies and improves blackout prevention (selective co-ordination ratios)
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 8 s at 500% of rated current
  • 200 kA at 250 VAC RMS symmetrical, 20 kA at 125 VDC interrupt rating
COBUSSE02753_1_6
COBUSSE03278_1_1_1_3_1_23_1_24
Qty Unit price
Ea
1 $10.78

Slqt
1 $10.78

Stpk
1 $107.80

Unit
1 $10.78
