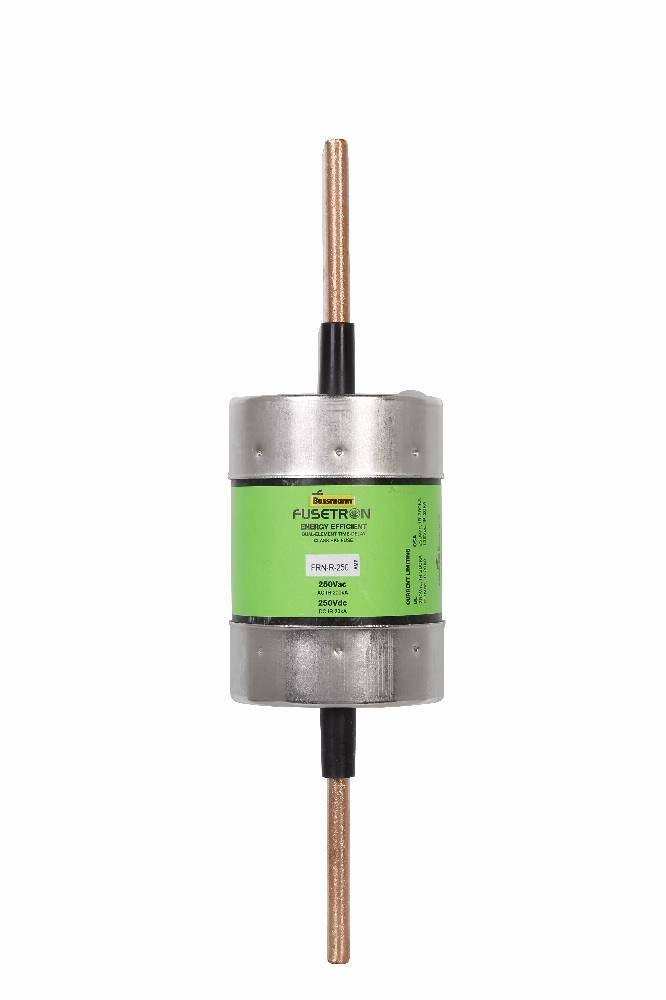

Bussmann Fusetron™ FRN-R-250 Current Limiting Time Delay Fuse, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Bussmann Fusetron™ FRN-R-250 Current Limiting Time Delay Fuse, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Bussmann Fusetron™ FRN-R-250 Current Limiting Time Delay Fuse, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Bussmann Fusetron™ FRN-R-250 Current Limiting Time Delay Fuse, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Bussmann Fusetron™ FRN-R-250 Current Limiting Time Delay Fuse, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Bussmann Fusetron™ FRN-R-250 Current Limiting Time Delay Fuse, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Bussmann Fusetron™ FRN-R-250 Current Limiting Time Delay Fuse, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Bussmann Fusetron™ FRN-R-250 Current Limiting Time Delay Fuse, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Bussmann Fusetron™ FRN-R-250 Current Limiting Time Delay Fuse, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Bussmann Fusetron™ FRN-R-250 Current Limiting Time Delay Fuse, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Share Share Print Print
Eaton

Bussmann Fusetron™ FRN-R-250 Current Limiting Time Delay Fuse, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body

Short Description

EATON Bussmann series advanced protection, energy efficient FRN-R class RK5 dual element, current limiting, time delay fuses. Time delay 10 sec (minimum) at 500% of rated current.

Bussmann Fusetron™ Time Delay Fuse, Current Limiting, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 250 A, 250 VAC/125 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 2.38 in Dia x 8.63 in L Body Size
MFG #: FRN-R-250

EECO #: BUFRNR250

Brand: Bussmann
UPC #: 051712507509
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security Systems
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Blade
Voltage Rating
250 VAC/125 VDC
Type
Current Limiting
Series
FRN-R
Amperage Rating
250
Features
  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads
  • Helps protect motors against burnout from single phasing on 3 ph systems
  • Simplifies and improves blackout prevention (selective co-ordination ratios)
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 s
