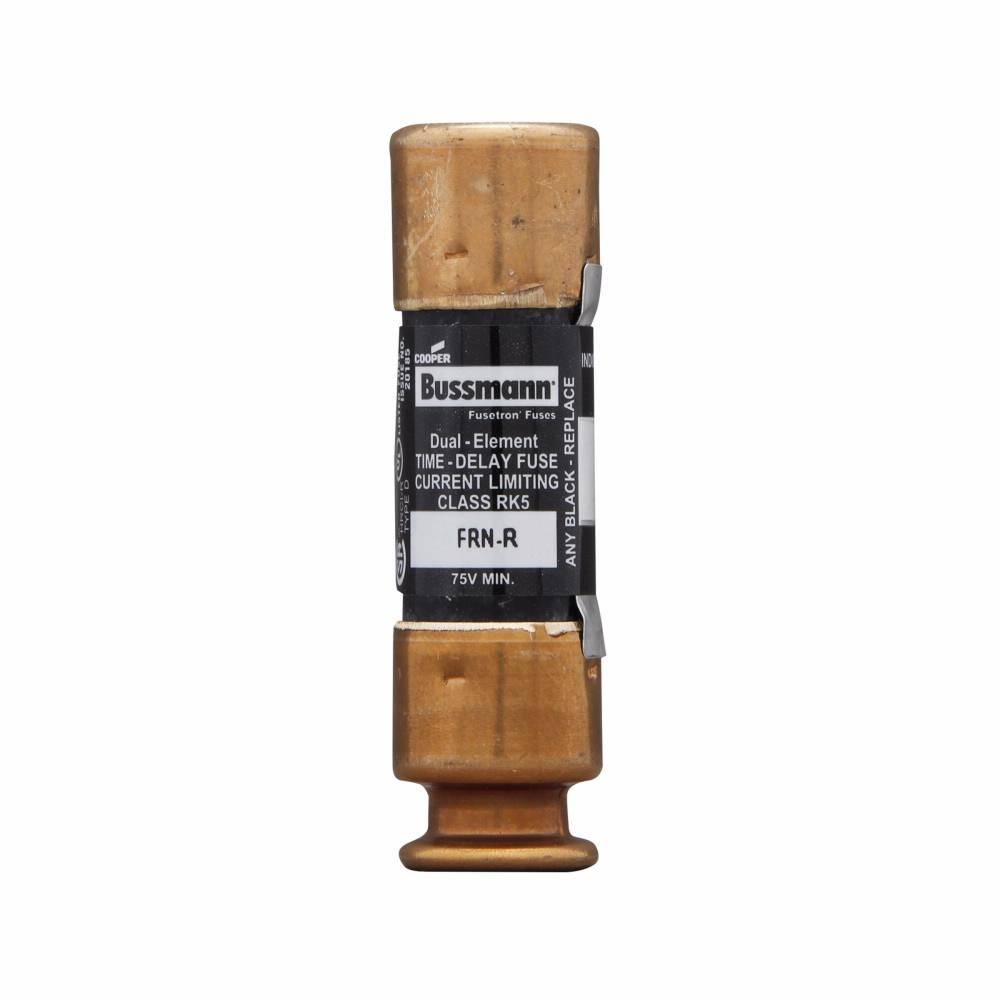

Bussmann Fusetron™ FRN-R-15ID Current Limiting Time Delay Fuse, 15 A, 250 VAC/125 VDC, 200/20 kAIC Interrupt, RK5 Class, Cylindrical Body

Short Description

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).

Bussmann Fusetron™ Fuse, Current Limiting Time Delay, Series: FRN-R, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Rejection, 15 A, 250 VAC/125 VDC, 200/20 kAIC Interrupt, Class: RK5, 8 s at 500% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size
MFG #: FRN-R-15ID

EECO #: BUFRNR15ID

Brand: Bussmann
UPC #: 051712204378
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
Industrial Facilities and Factories, Safety and Security Systems, Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications
Mounting Type
Holder
Response Time
8 s at 500%
Terminal Type
Ferrule End
Voltage Rating
250 VAC/125 VDC
Type
Current Limiting Time Delay
Series
FRN-R
Amperage Rating
15
Features
  • Open fuse indicator
  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads
  • Helps protect motors against burnout from 1 ph on 3 ph systems
  • Simplifies and improves blackout prevention (selective co-ordination ratios)
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • The overload element provides protection against low level overcurrent of overloads and will hold an overload which is 5X the amp rating of the fuse for a minimum of 8 s
