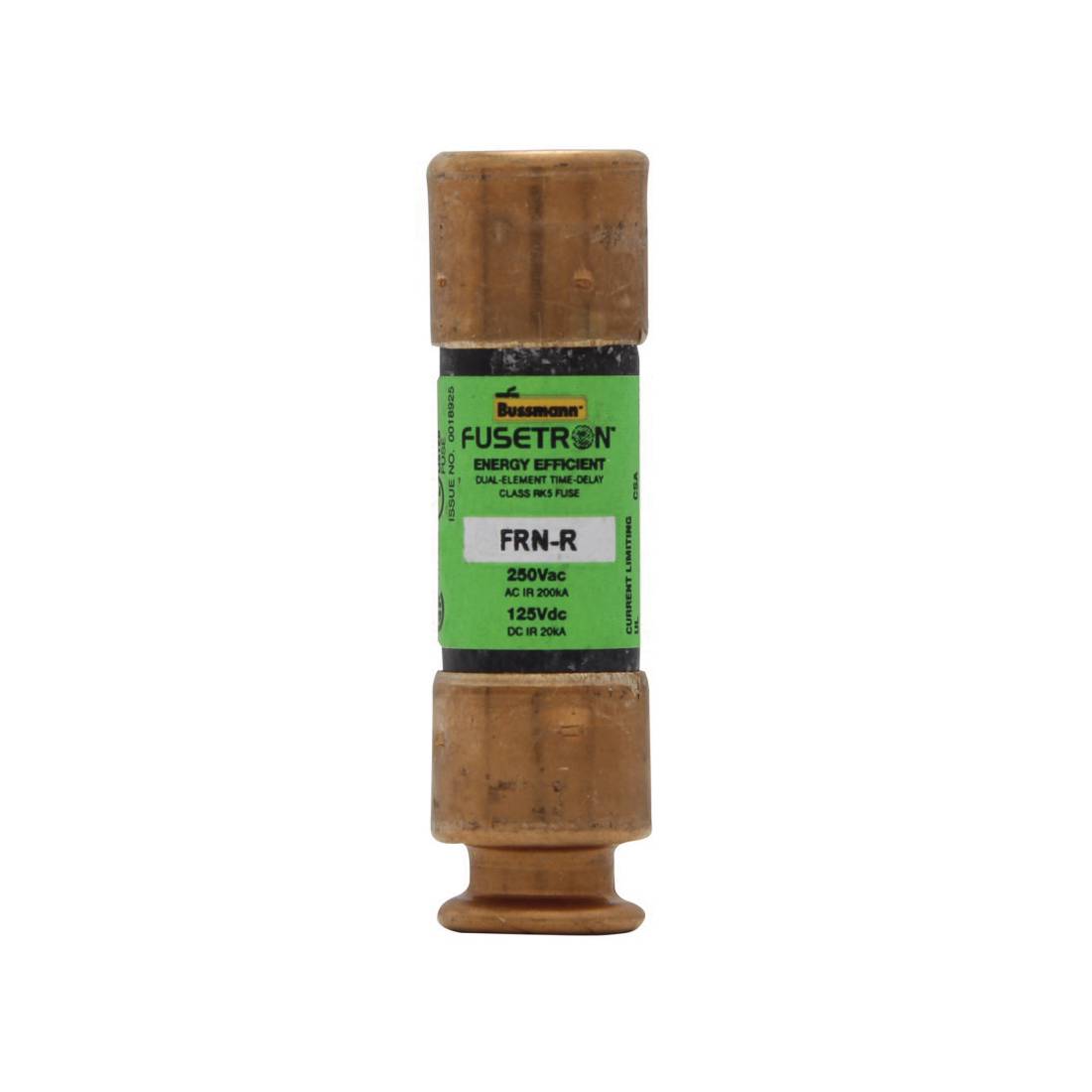

Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
Share Share Print Print
Eaton

Bussmann Fusetron™ FRN-R-12 Current Limiting Time Delay Fuse, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body

Short Description

250 VAC, 125 VDC, 12 A, Ferrule with Grooved Ring Terminal, Class RK5, 8 Sec Time Delay, UL Power Fuse

Bussmann Fusetron™ Time Delay Fuse, Current Limiting, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 12 A, 250 VAC/125 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size

MFG #: FRN-R-12

EECO #: BUFRNR12

Brand: Bussmann
UPC #: 051712507295
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Approval
UL 248-12, CSA C22.2, CE
Material
Fiberglass
Application
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security Systems
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Ferrule
Current Rating
12 Amp
Voltage Rating
250 VAC/125 VDC
Characteristics
8 Second Time Delay (at 500 Percent Rated Load), Dual Element, Non-Indicating
Interrupting Rating
200 Kiloamp Symmetrical (AC), 20 Kiloamp (DC)
Type
Current Limiting
Series
FRN-R
Diameter
0.56 Inch
Amperage Rating
12
Features
  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads
  • Helps protect motors against burnout from single phasing on 3 ph systems
  • Simplifies and improves blackout prevention (selective co-ordination ratios)
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 s
