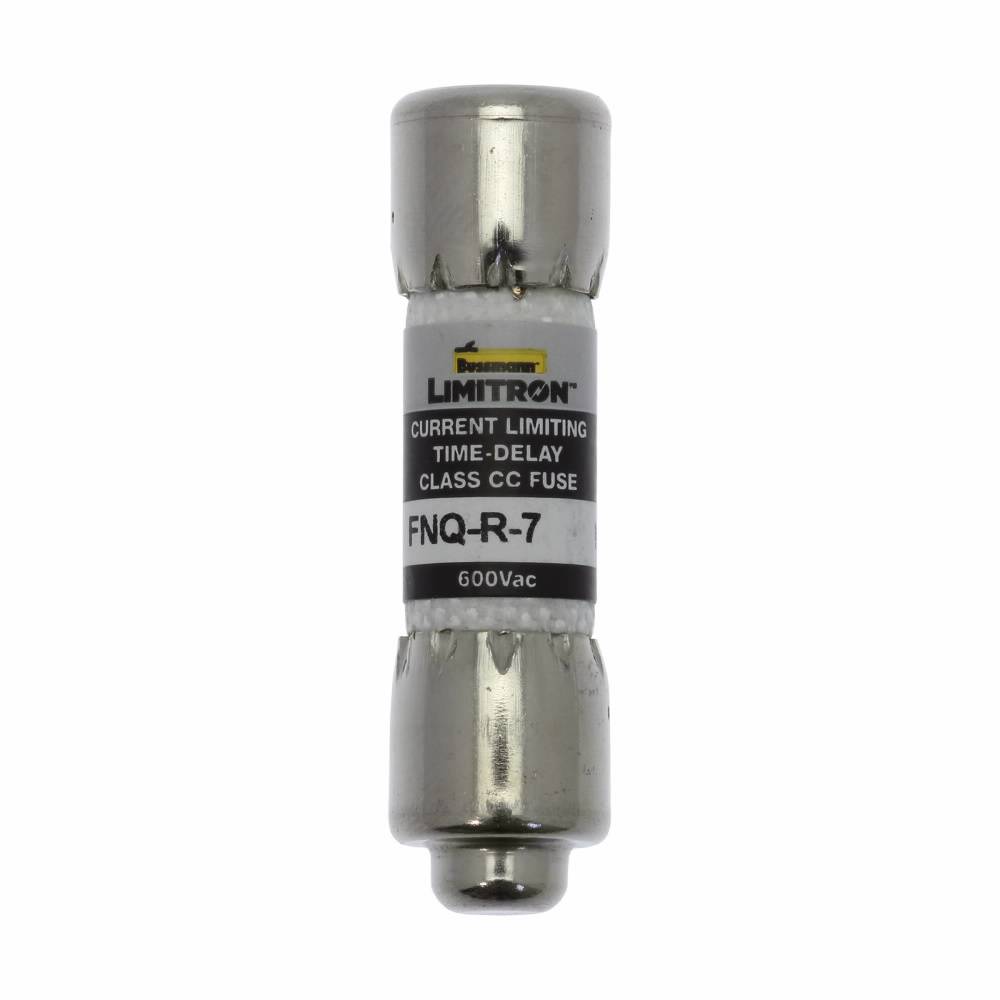

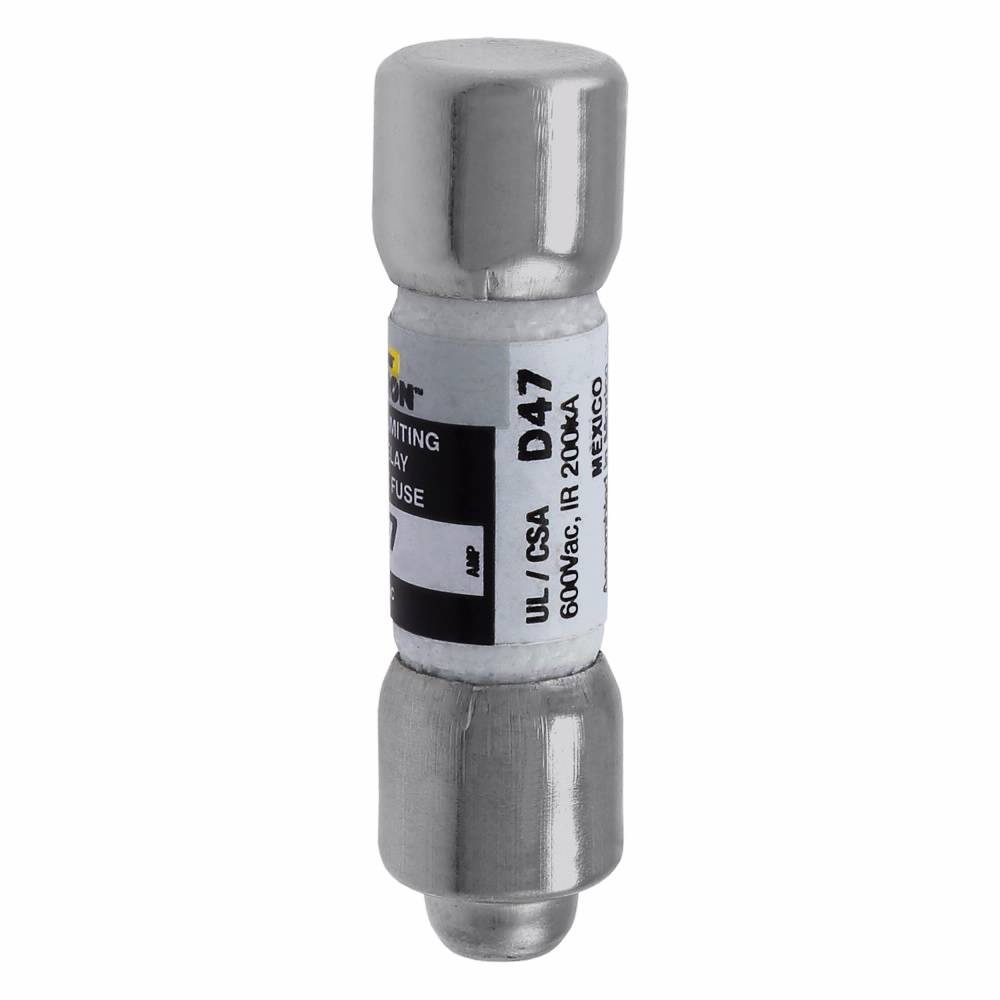

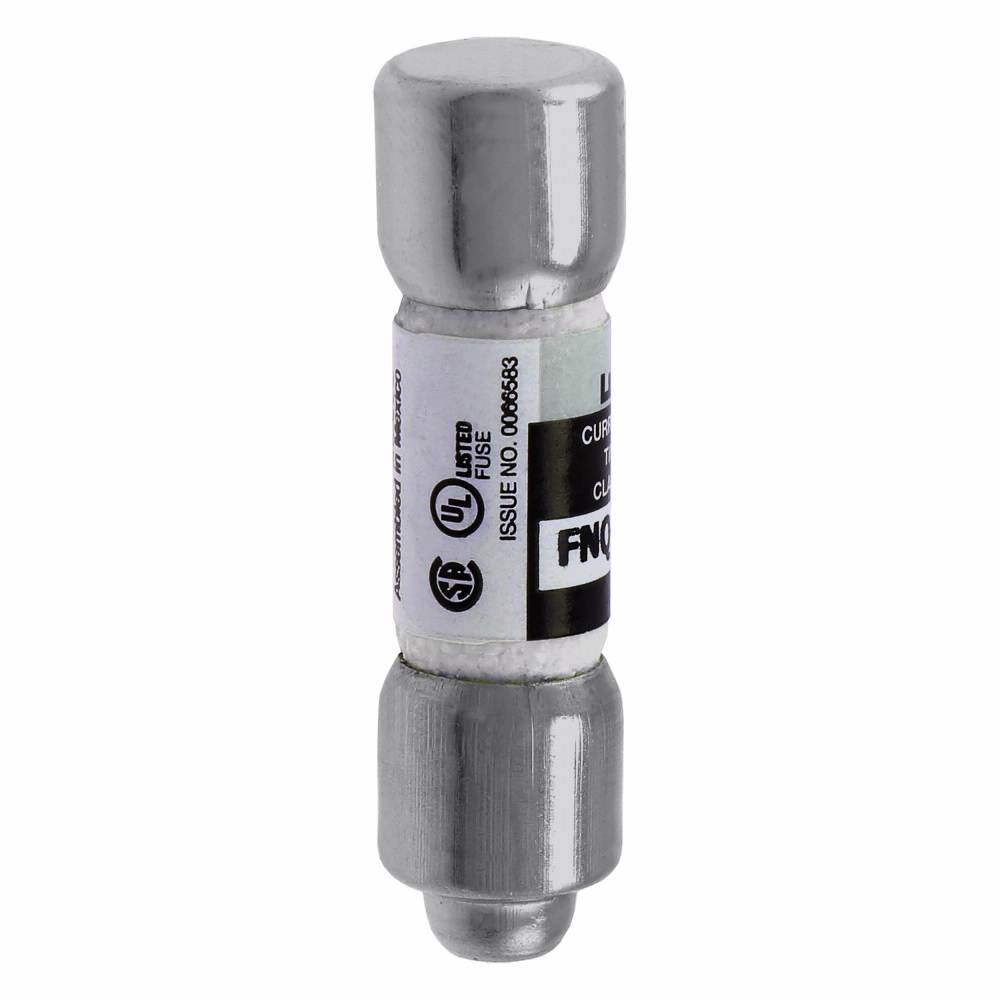

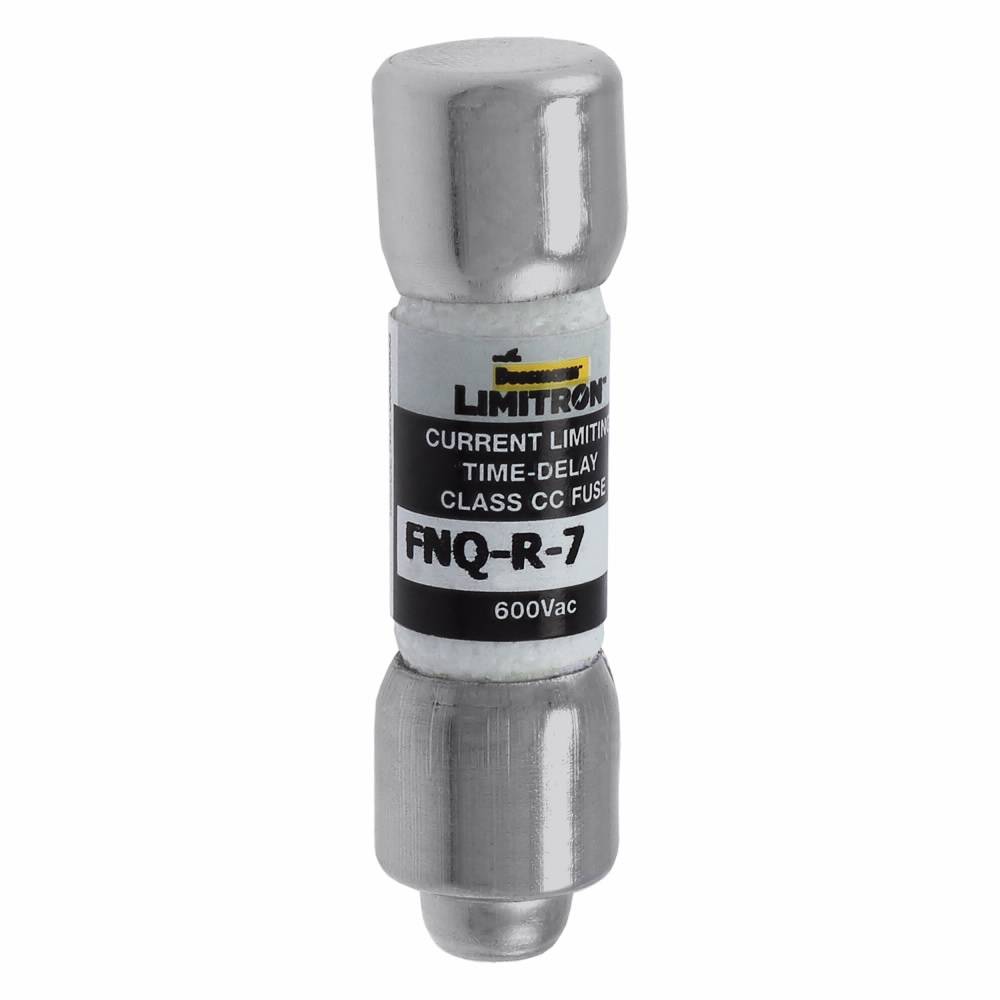

Bussmann Limitron™ CC-Tron® FNQ-R-7 Advanced Protection Current Limiting High Inrush Low Voltage Time Delay Fuse, 7 A, 600 V, 200 kA Interrupt, CC Class, Cartridge Body

Short Description

600 VAC, 32 VDC, 7 A, Ferrule Terminal, Class CC Rejection, Time Delay, Midget Fuse

Bussmann Limitron™ CC-Tron® Time Delay Fuse, Advanced Protection Current Limiting High Inrush Low Voltage, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 7 A, 600 V, 200 kA Interrupt, Class: CC, 12 s Minimum at 200% Response, Clip Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: FNQ-R-7

EECO #: BUFNQR7

Brand: Bussmann
UPC #: 051712558259
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121606
Approval
UL 248-4, CSA, CE
Material
Melamine
Application
Branch Circuit, Line Protection, Small Control Transformers and Industrial Control, Isolated, In-Line Fuse Holders, Safety and Security Systems
Mounting Type
Holder
Response Time
12 s Minimum at 200%
Terminal Type
Clip
Current Rating
7 Amp
Voltage Rating
600
Characteristics
Time Delay
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Advanced Protection Current Limiting High Inrush Low Voltage
Series
FNQ-R
Diameter
13/32 Inch
Amperage Rating
7
Features
  • Time delay compatible with inrush characteristic of small control transformers
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • 200 kA interrupt rating provides high ratings for control circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Rejection type fuse fits both standard and rejection style holders
  • Ideal for critical industrial or commercial applications that have specific current limitation requirements
  • 200 kA at 600 VAC rms symmetrical interrupt rating
  • Response time 12 s minimum at 200%
  • Melamine tube, nickel plated brass end caps
