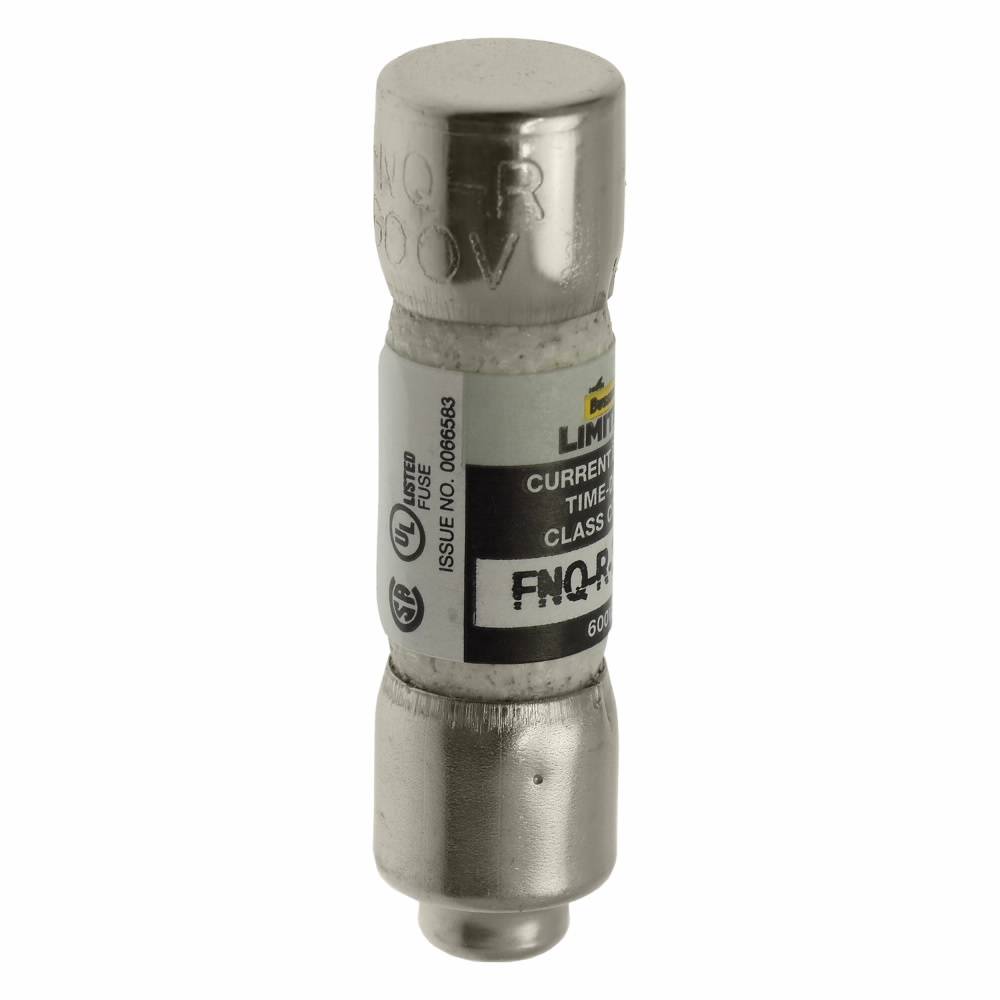

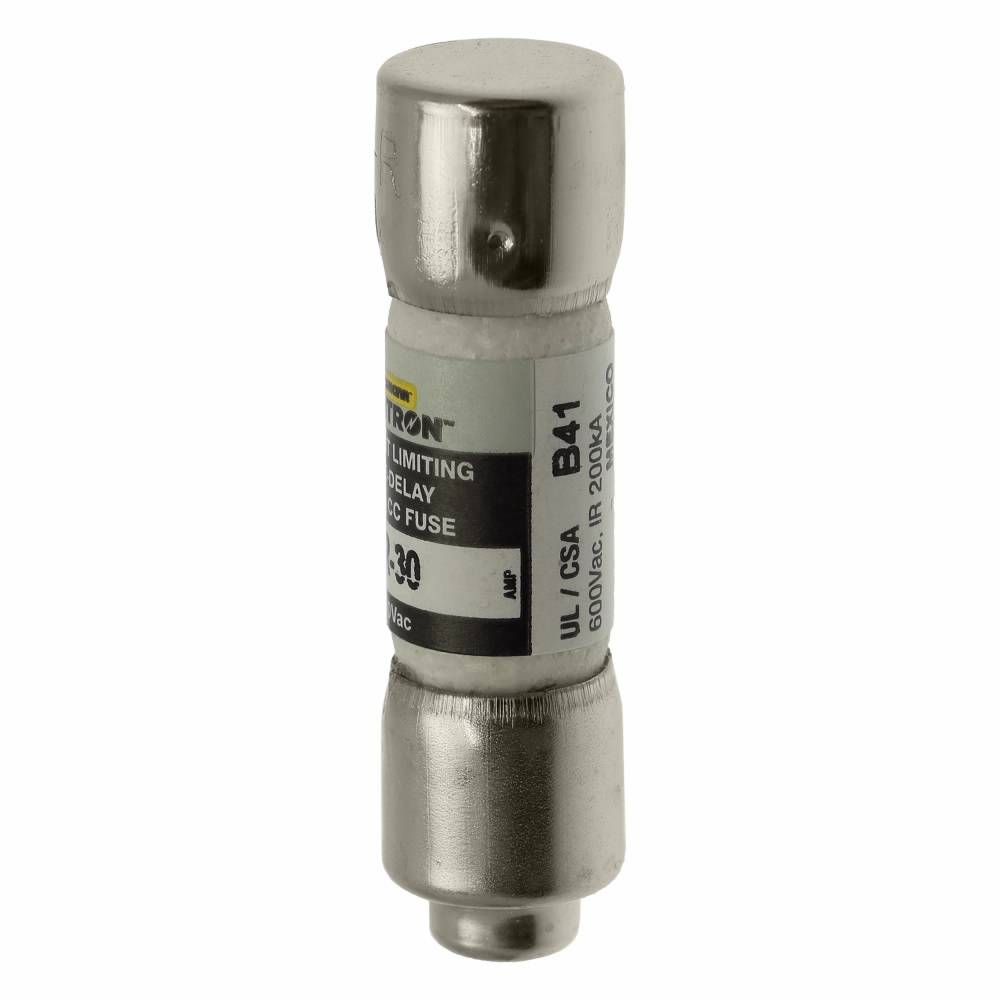

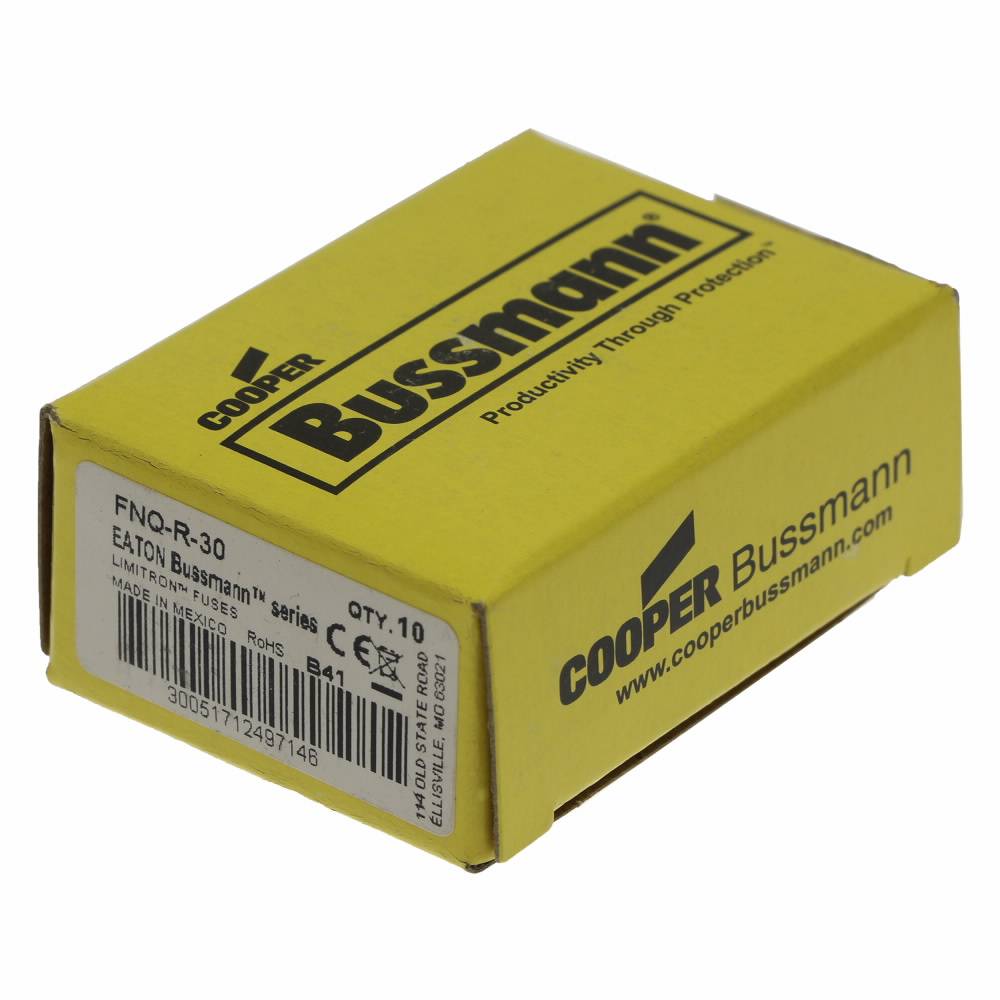

Bussmann CC-Tron® FNQ-R-30 Time Delay Fuse, 30 A, 600 V, 200 kA Interrupt, CC Class, Cylindrical Body

Short Description

600 VAC, 30 A, Ferrule Terminal, Class CC Rejection, Time Delay, Midget Fuse

Bussmann CC-Tron® Time Delay Fuse, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 30 A, 600 V, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: FNQ-R-30

EECO #: BUFNQR30

Brand: Bussmann
UPC #: 051712497145
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121606
Approval
UL 248-4, CSA, CE
Material
Melamine
Application
Line Protection, Small Control Transformers, Industrial Control and Isolated/In-Line Fuse Holders Applications, Safety and Security Systems
Mounting Type
Holder
Response Time
12 s at 200%
Terminal Type
Ferrule
Current Rating
30 Amp
Voltage Rating
600
Characteristics
Time Delay
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Advanced Protection Current Limiting High Inrush Low Voltage
Series
FNQ-R
Diameter
13/32 Inch
Amperage Rating
30
Features
  • Time delay compatible with inrush characteristic of small control transformers
  • Current limitation at class CC levels provides maximum component short circuit current rating protection
  • 200 kA interrupt rating provides high ratings for control circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Nickel plated brass end caps
COBUSSE02632_1_6
COBUSSE03278_1_2_1_6
Qty Unit price
Ea
1 $22.30

Slqt
1 $22.30

Stpk
1 $223.00

Unit
1 $22.30
