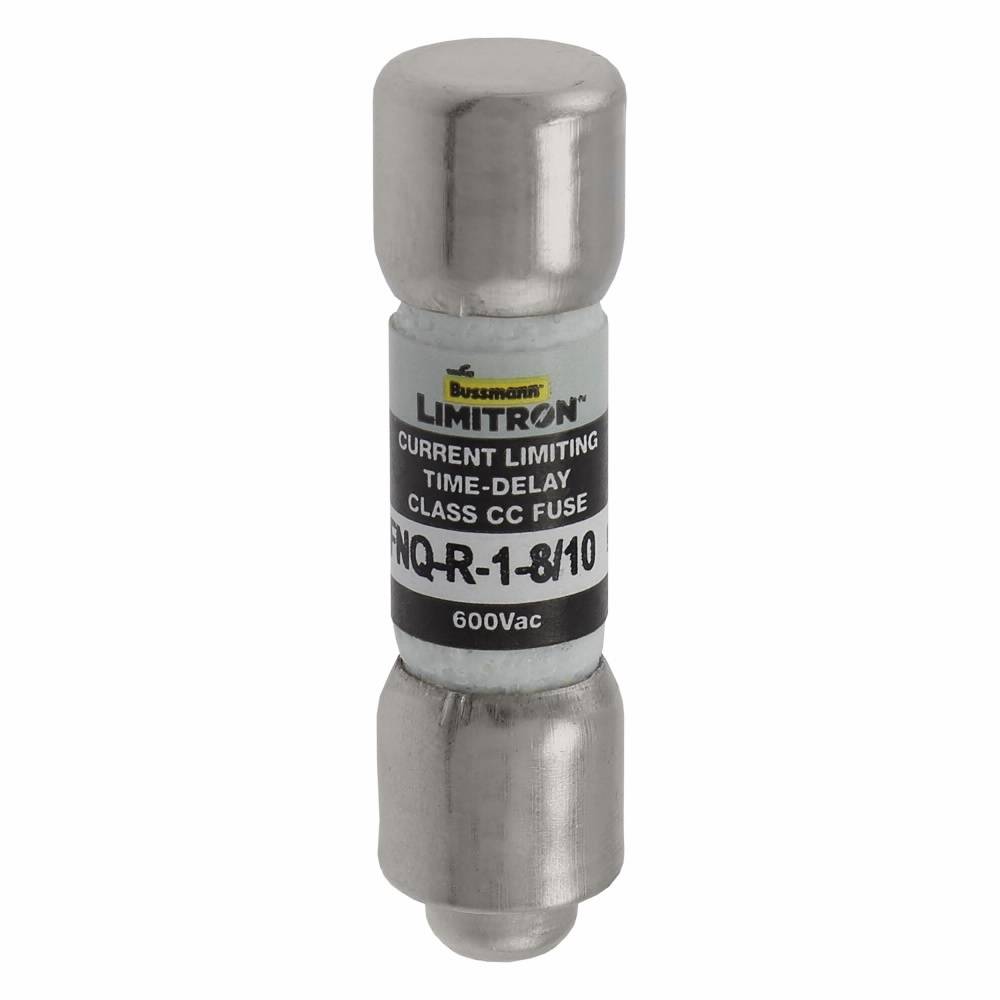

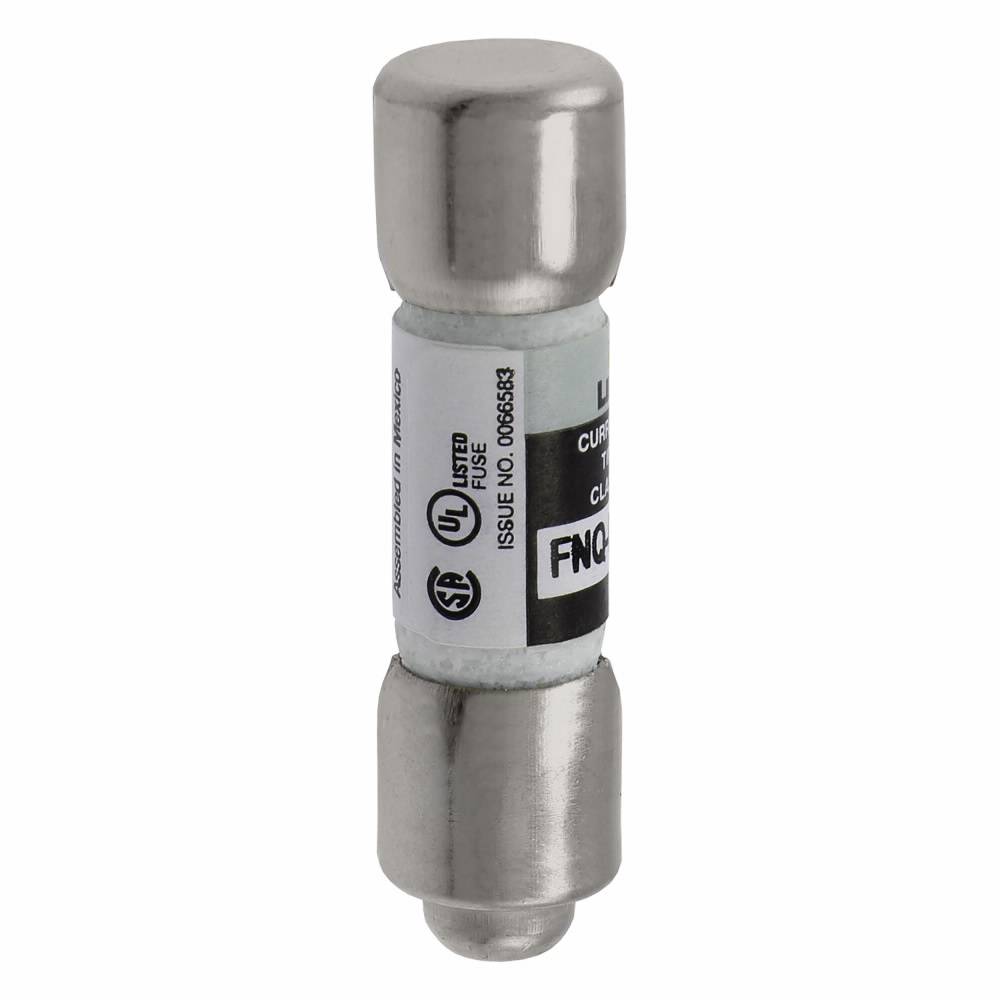

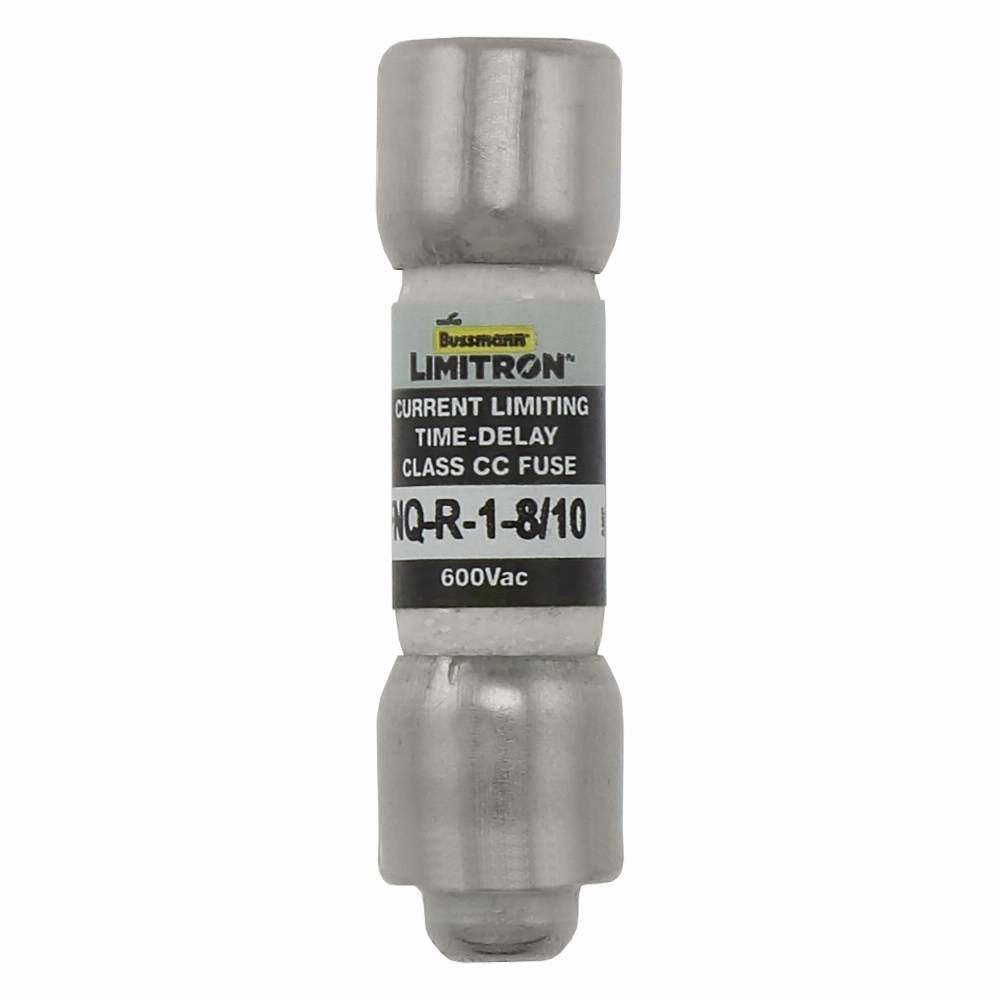

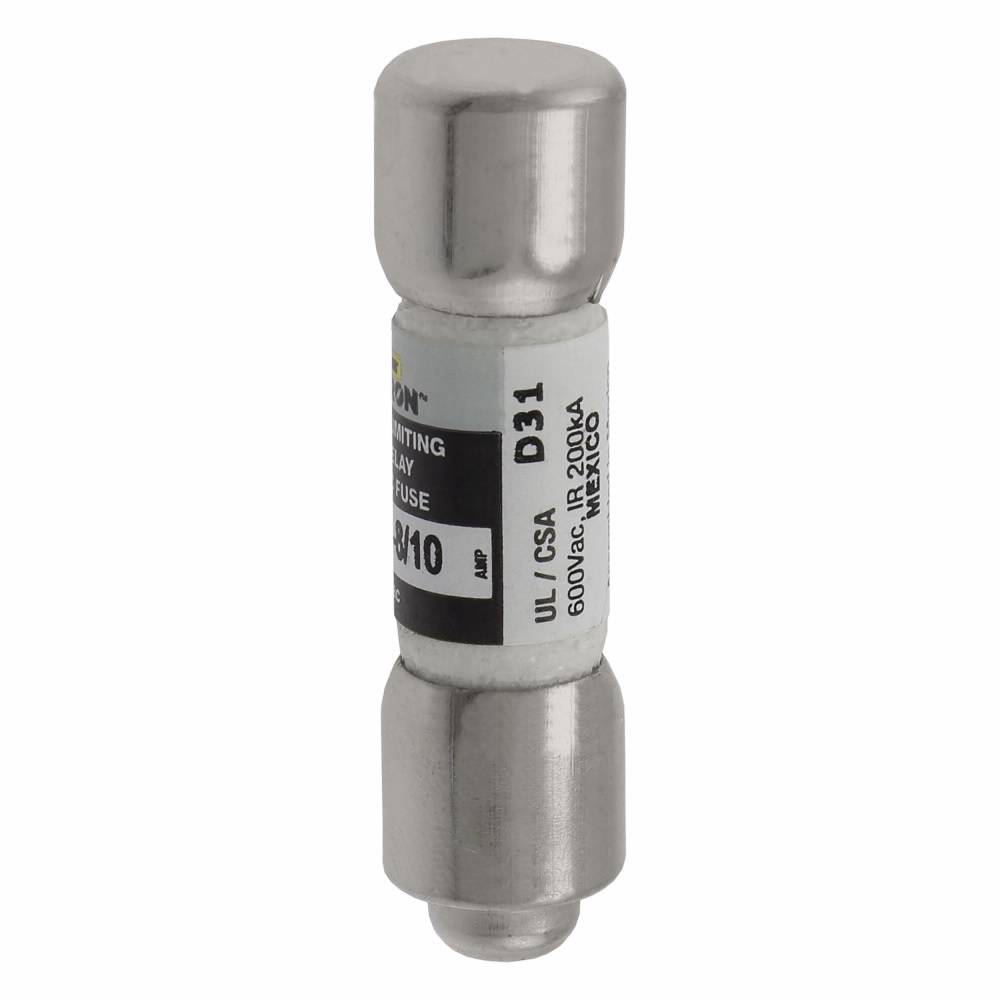

Bussmann CC-Tron® FNQ-R-1-8/10 Time Delay Fuse, 1.8 A, 600 V, 200 kA Interrupt, CC Class, Cylindrical Body

Short Description

0.41" x 1.5", 600 VAC, 1-8/10 A, 200 kA Symmetrical/20 kA DC, Ferrule Terminal, Non-Indicating, Class CC Rejection, Time Delay Fuse

Bussmann CC-Tron® Time Delay Fuse, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 1.8 A, 600 V, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: FNQ-R-1-8/10

EECO #: BUFNQR18/10

Brand: Bussmann
UPC #: 051712147132
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121606
Approval
UL 248-4, CSA, CE
Material
Melamine
Application
Line Protection, Small Control Transformers, Industrial Control and Isolated/In-Line Fuse Holders Applications, Safety and Security Systems
Mounting Type
Holder
Response Time
12 s at 200%
Terminal Type
Ferrule
Current Rating
1-8/10 Amp
Voltage Rating
600
Characteristics
12 Second Time Delay (at 200 Percent Rated Current), Non-Indicating, Current Limiting
Interrupting Rating
200 Kiloamp (Symmetrical), 20 Kiloamp (DC)
Type
Current Limiting High Inrush Time Delay
Series
FNQ-R
Diameter
0.41 Inch
Amperage Rating
1.8
Features
  • Time delay compatible with inrush characteristic of small control transformers
  • Current limitation at class CC levels provides maximum component short circuit current rating protection
  • 200 kA interrupt rating provides high ratings for control circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Nickel plated brass end caps
Eaton_Bussmann_00093_1_6_CAT
Eaton_Bussmann_00108_1_6_DATA
Qty Unit price
Ea
1 $27.74

Slqt
1 $27.74

Stpk
1 $277.40

Unit
1 $27.74
