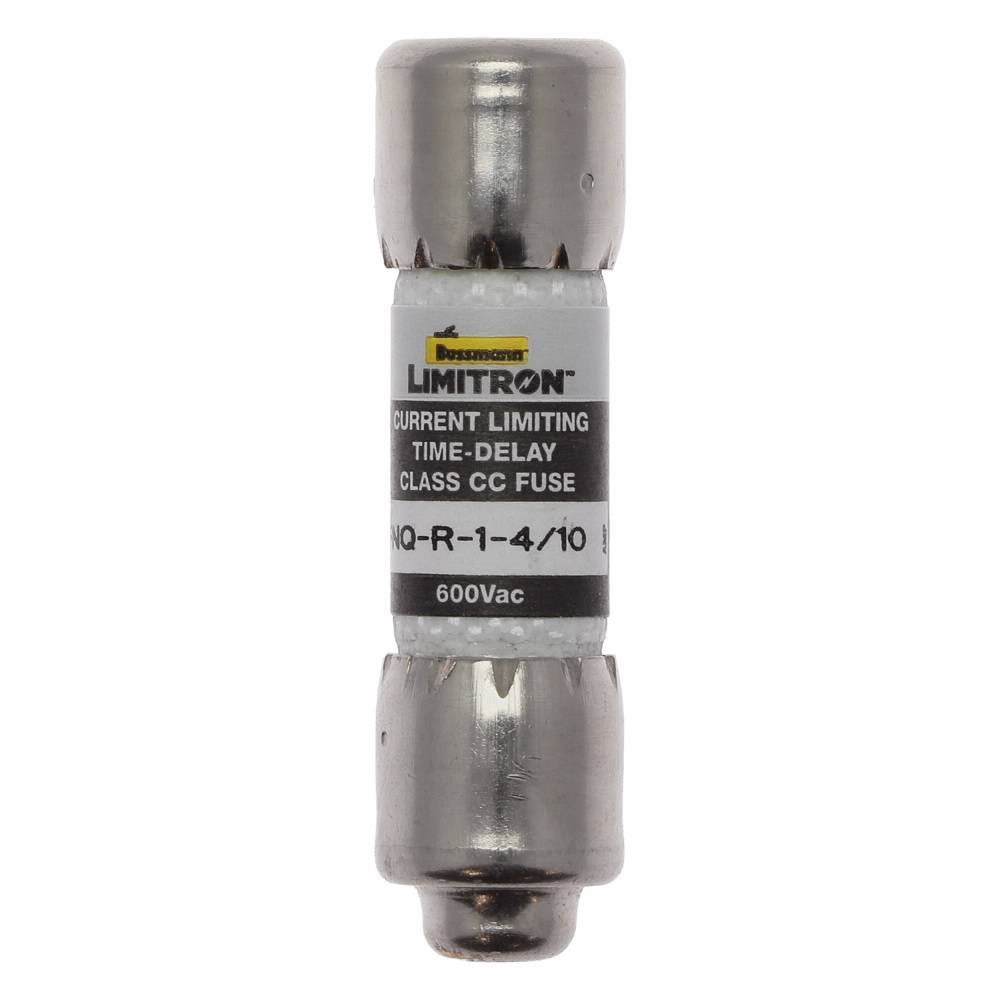

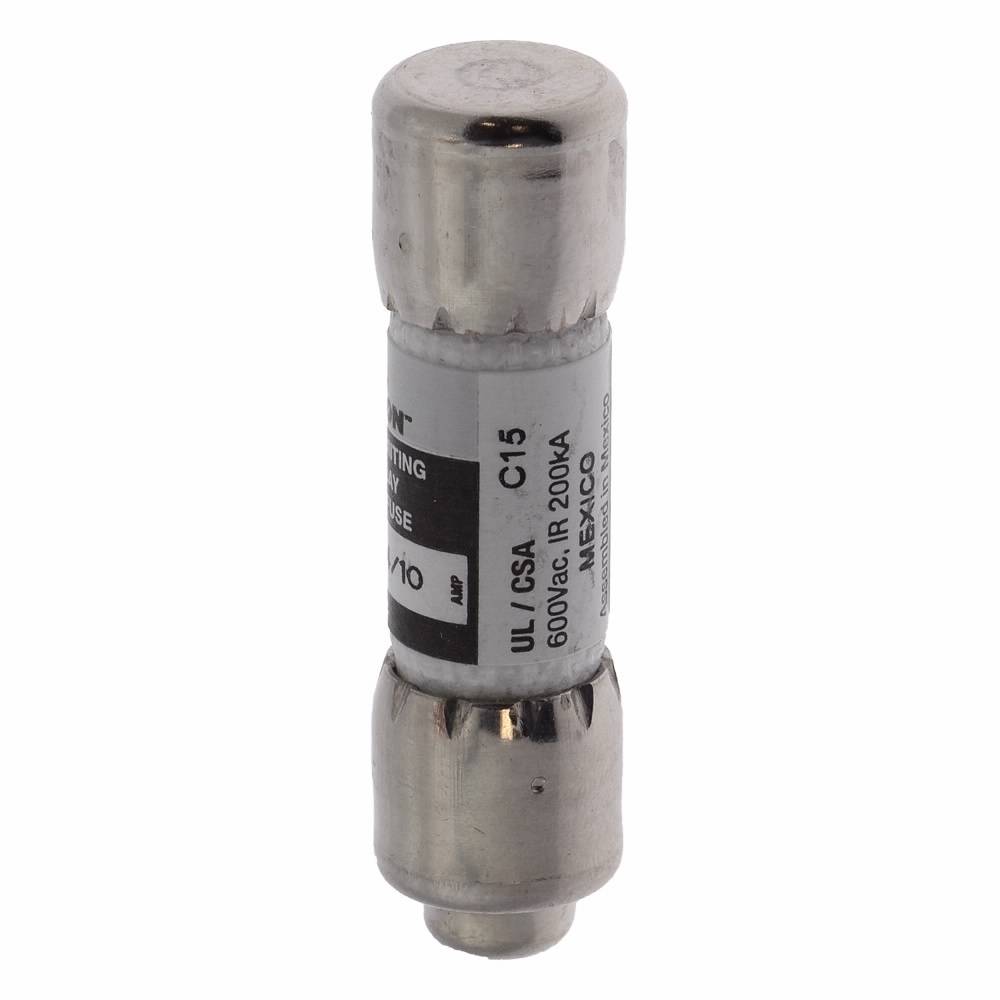

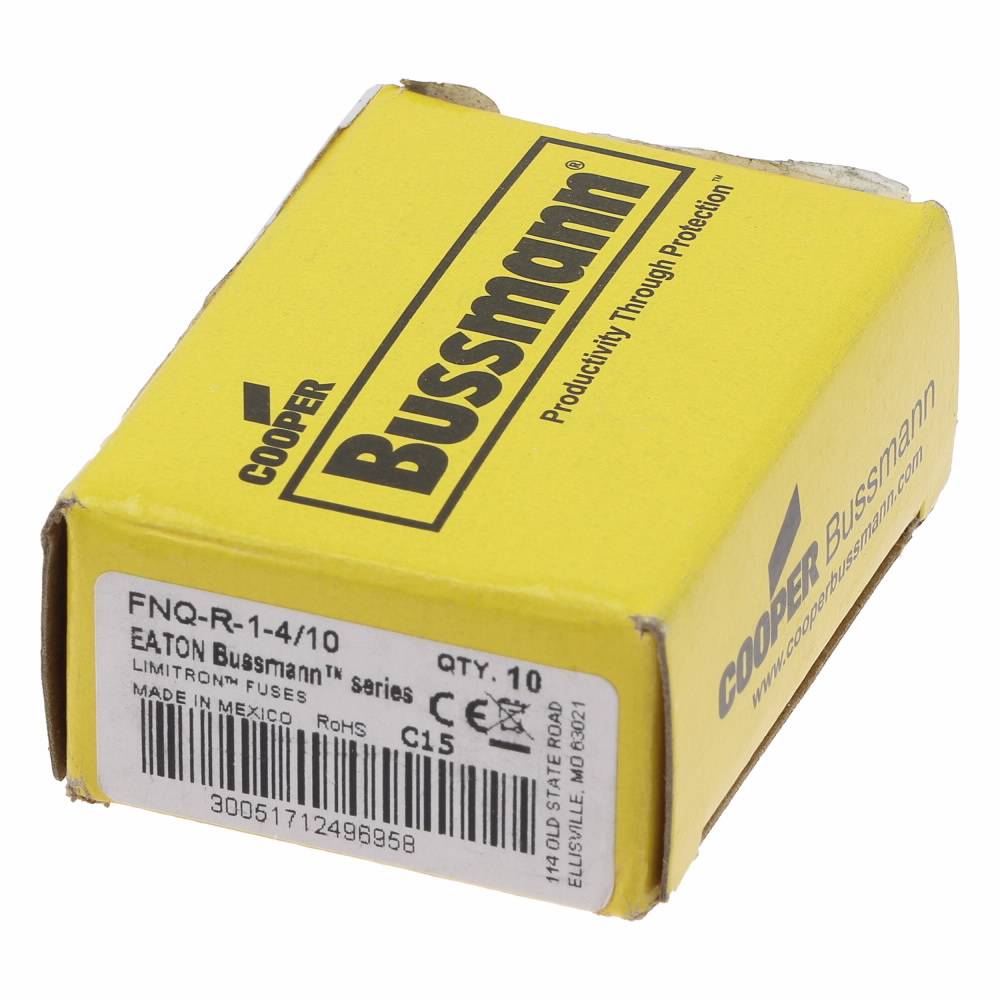

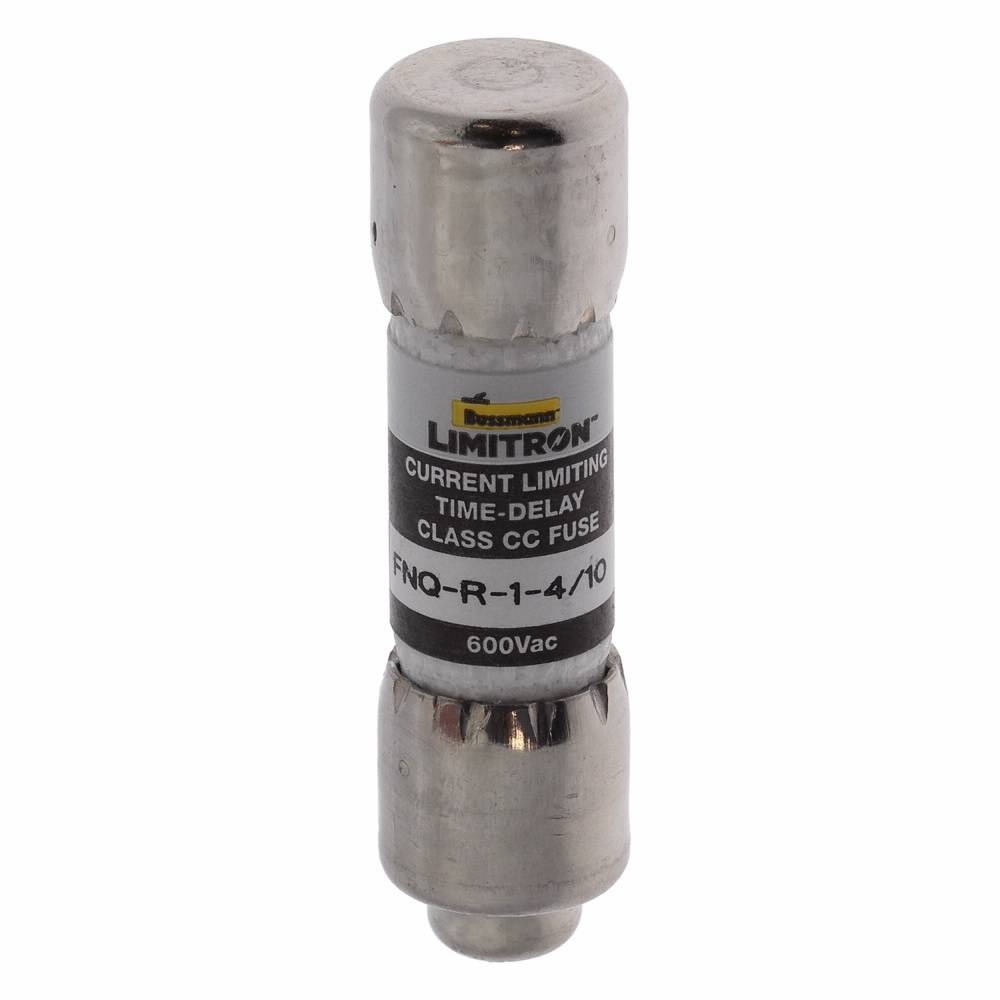

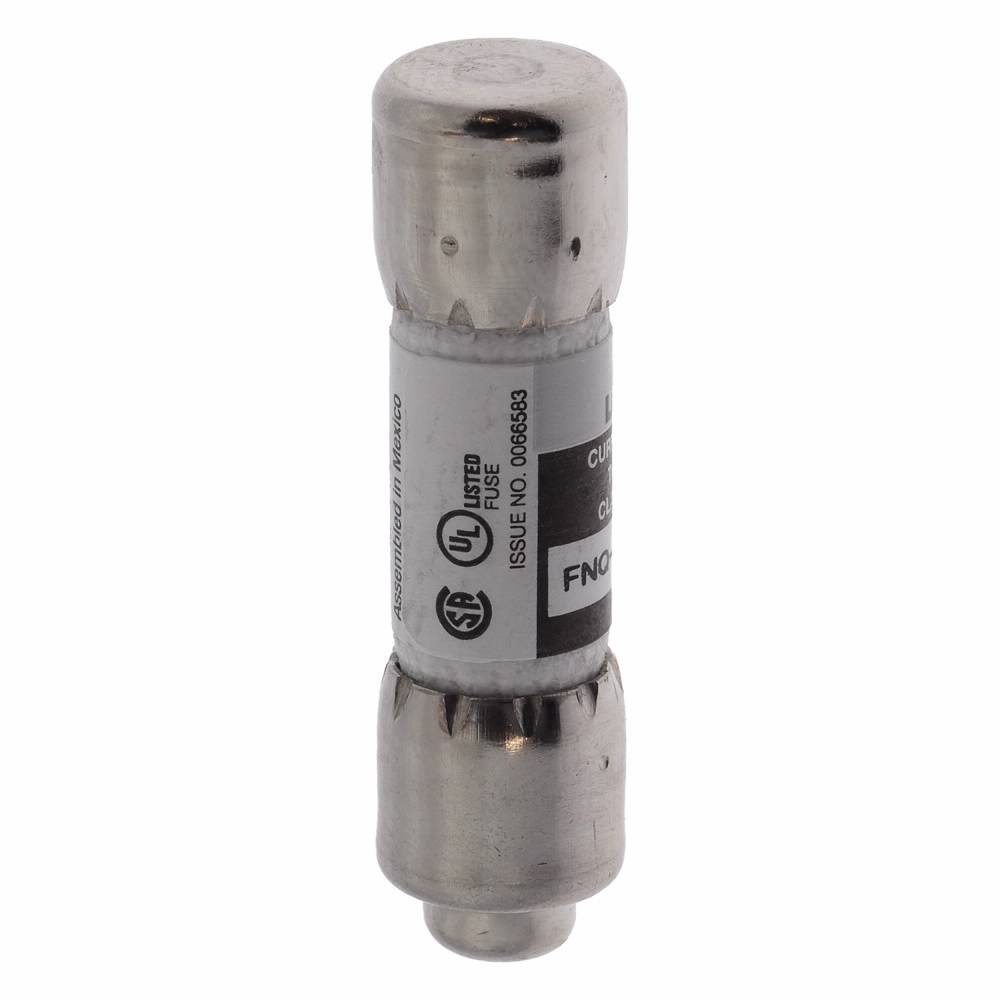

Bussmann CC-Tron® FNQ-R-1-4/10 Current Limiting Time Delay Fuse, 1.4 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body

Short Description

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection

Bussmann CC-Tron® Fuse, Current Limiting Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 1.4 A, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
MFG #: FNQ-R-1-4/10

EECO #: BUFNQR14/10

Brand: Bussmann
UPC #: 051712496957
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121606
Material
Melamine Tube
Application
Industrial Facilities and Factories, Safety and Security Systems, Line Protection, Small Control Transformers, Isolated and In-Line Fuse Holders Applications
Mounting Type
Holder
Response Time
12 s at 200%
Terminal Type
Ferrule End
Voltage Rating
600
Type
Current Limiting Time Delay
Series
FNQ-R
Amperage Rating
1.4
Features
  • Time delay compatible with inrush characteristic of small control transformers
  • Current limitation at class CC levels provides maximum component short circuit current protection
  • 200 kA interrupt rating provides high ratings at all circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Nickel plated brass end caps
