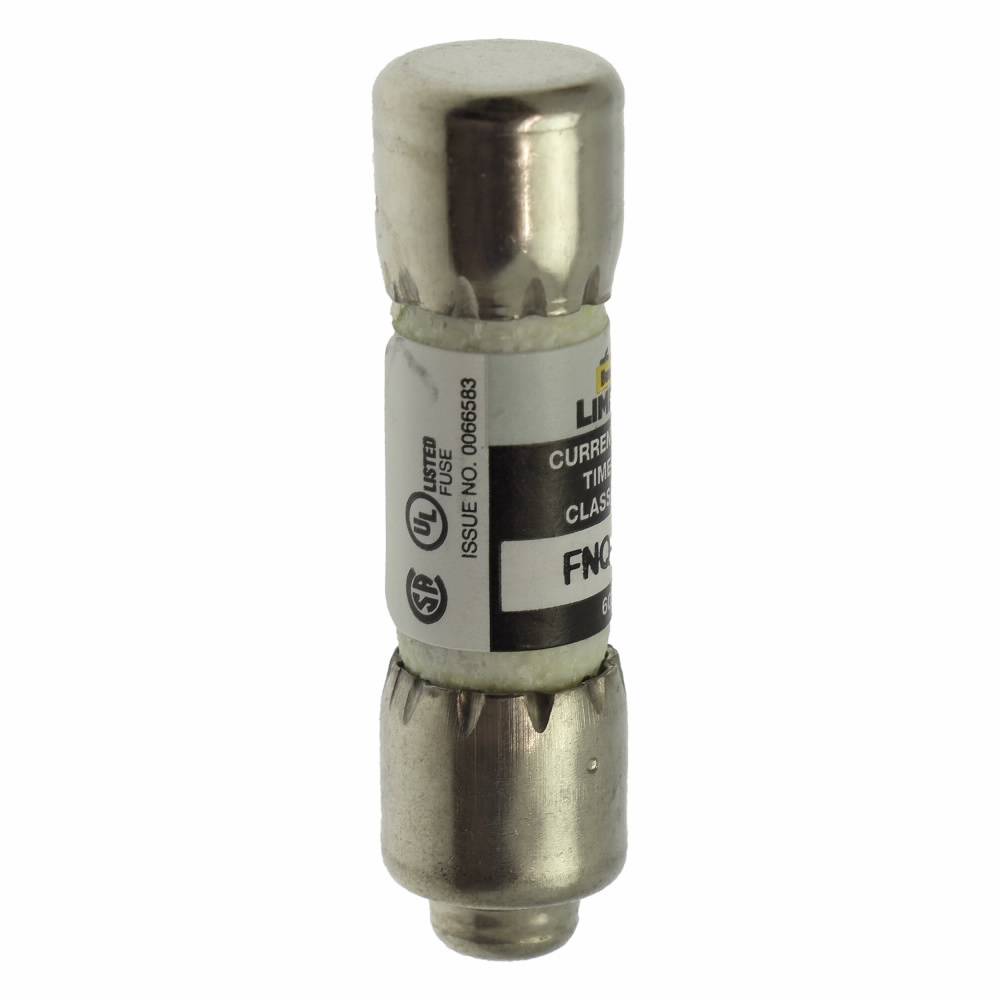

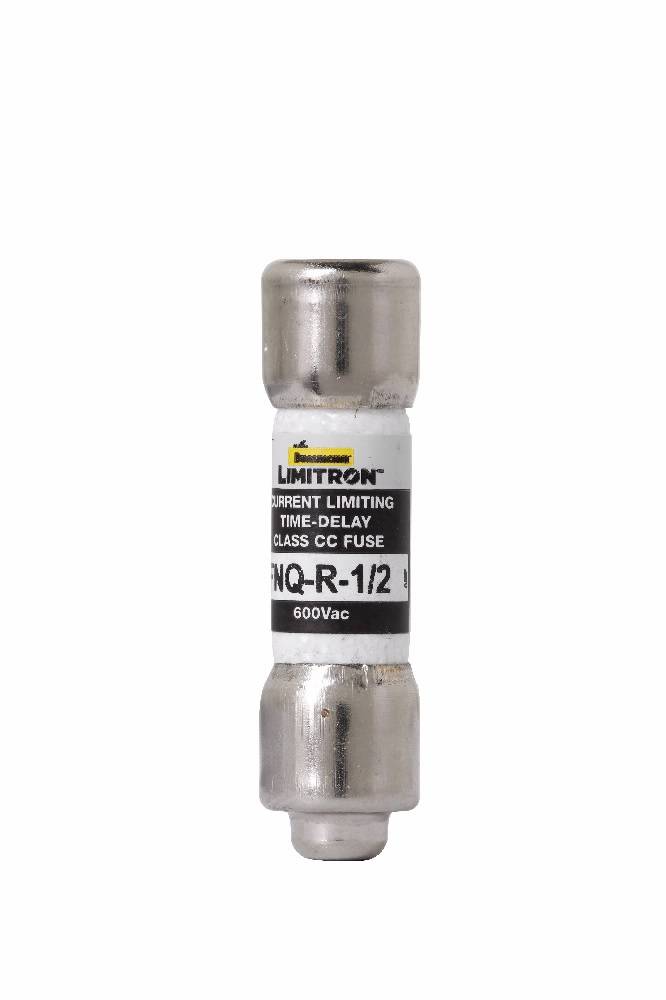

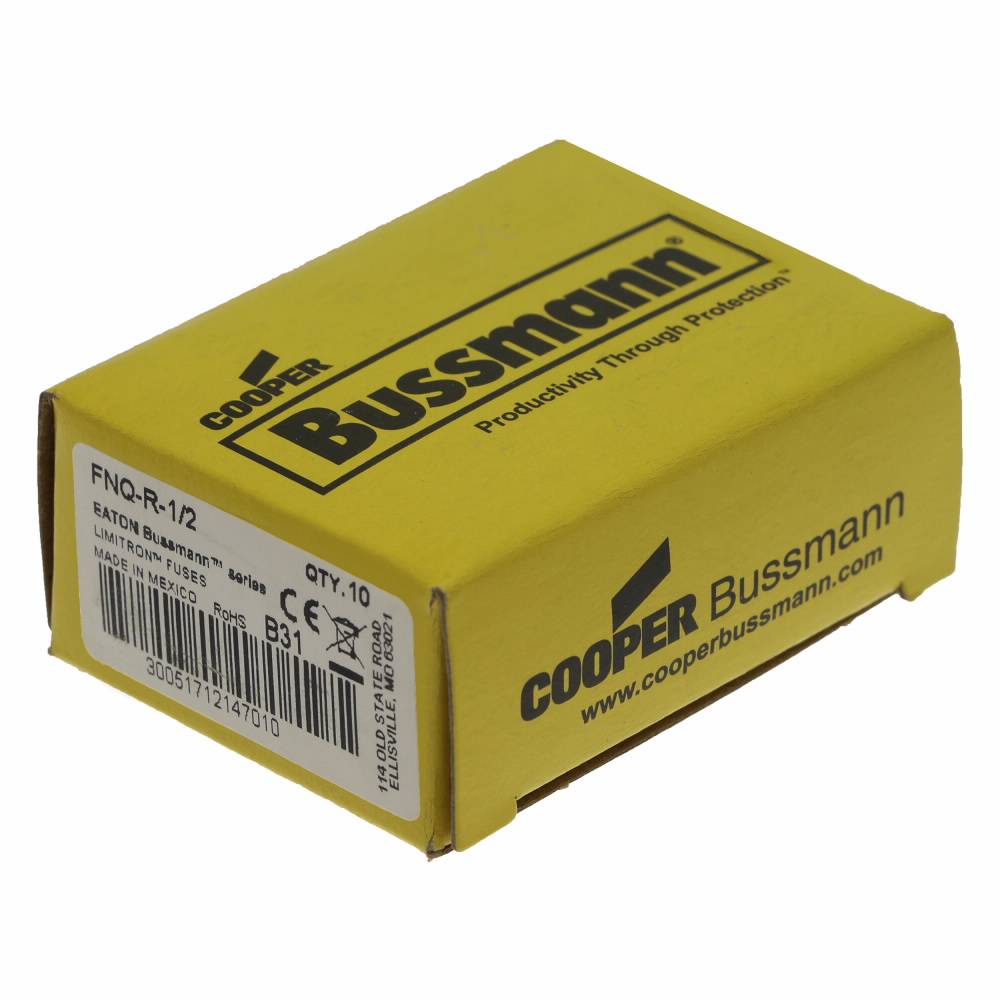

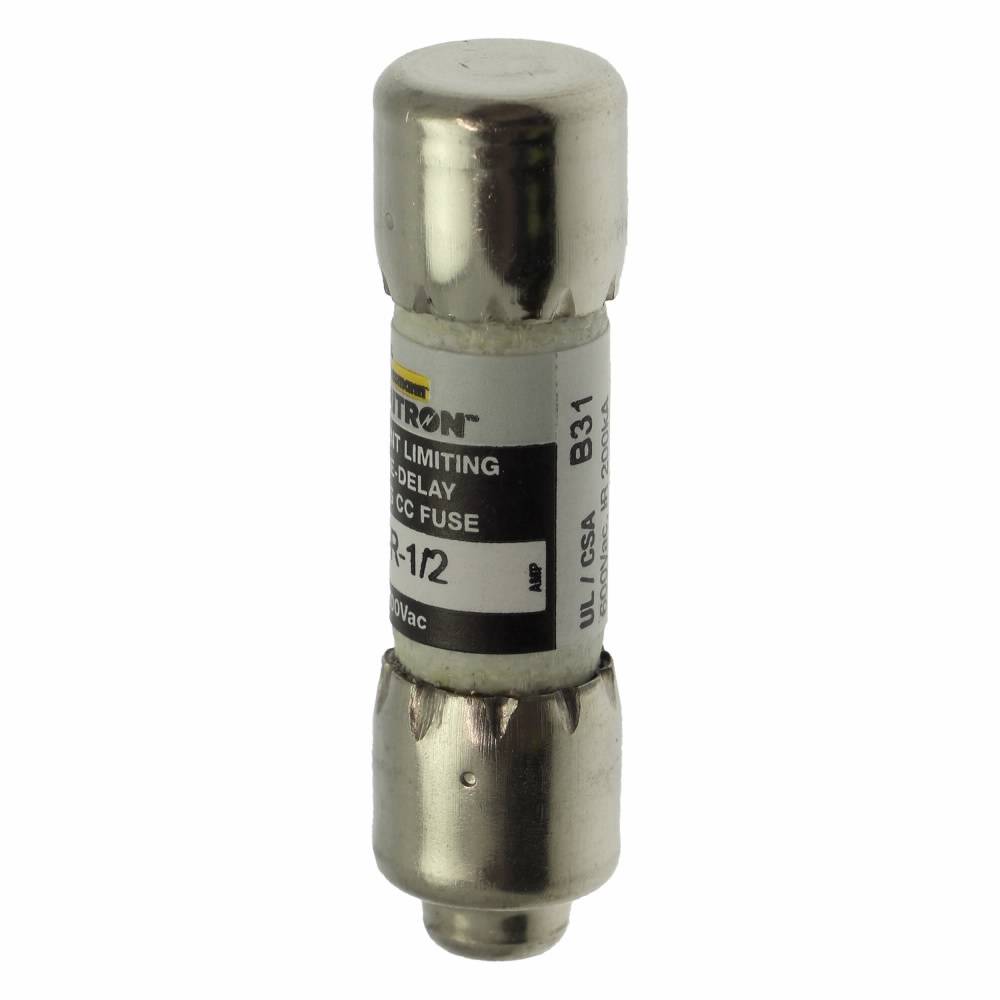

Bussmann Limitron™ CC-Tron® FNQ-R-1/2 Advanced Protection Current Limiting High Inrush Low Voltage Time Delay Fuse, 500 mA, 600 V, 200 kAIC Interrupt, CC Class, Cartridge Body

Short Description

600 VAC, 1/2 A, Ferrule Terminal, Class CC Rejection, Time Delay, Midget Fuse

Bussmann Limitron™ CC-Tron® Fuse, Advanced Protection Current Limiting High Inrush Low Voltage Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 500 mA, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: FNQ-R-1/2

EECO #: BUFNQR1/2

Brand: Bussmann
UPC #: 051712147019
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121606
Approval
UL 248-4, CSA, CE
Material
Melamine Tube
Application
Industrial Facilities and Factories, Safety and Security Systems, Branch Circuits, Line Protection, Small Control Transformers, Isolated and In-Line Fuse Holders Applications
Mounting Type
Holder
Response Time
12 s at 200%
Terminal Type
Ferrule End
Current Rating
1.2 Amp
Voltage Rating
600
Characteristics
Time Delay
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Advanced Protection Current Limiting High Inrush Low Voltage Time Delay
Series
FNQ-R
Diameter
13/32 Inch
Amperage Rating
500
Features
  • Time delay compatible with inrush characteristic of small control transformers
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • 200 kA interrupt rating provides high ratings at all circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Rejection type fuse fits both standard and rejection style holders
  • Ideal for critical industrial or commercial applications that have specific current limitation requirements
  • 200 kA at 600 VAC RMS symmetrical interrupt rating
  • Melamine tube, nickel plated brass end caps
COBUSSE02632_1_6
COBUSSE03278_1_2_1_6
COBUSSE03288_1
Qty Unit price
Ea
1 $21.65

Slqt
1 $21.65

Stpk
1 $216.50

Unit
1 $21.65
