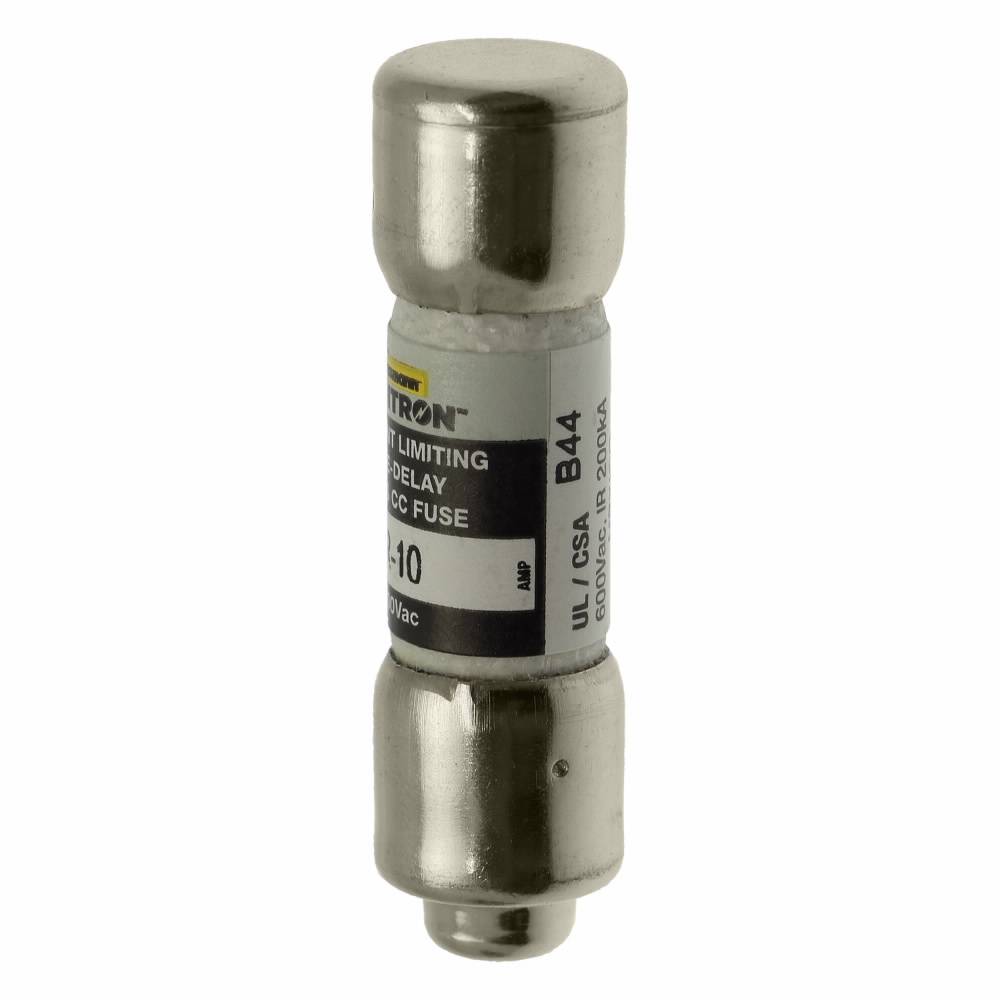

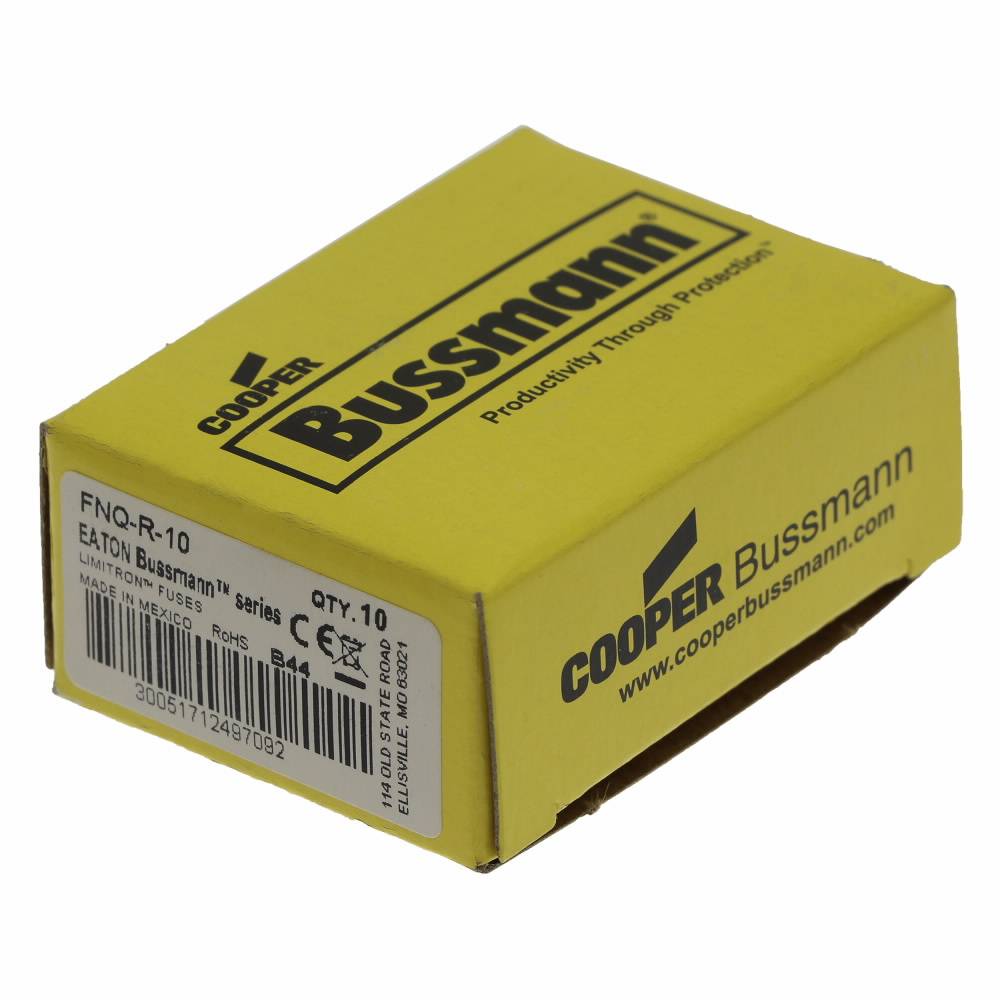

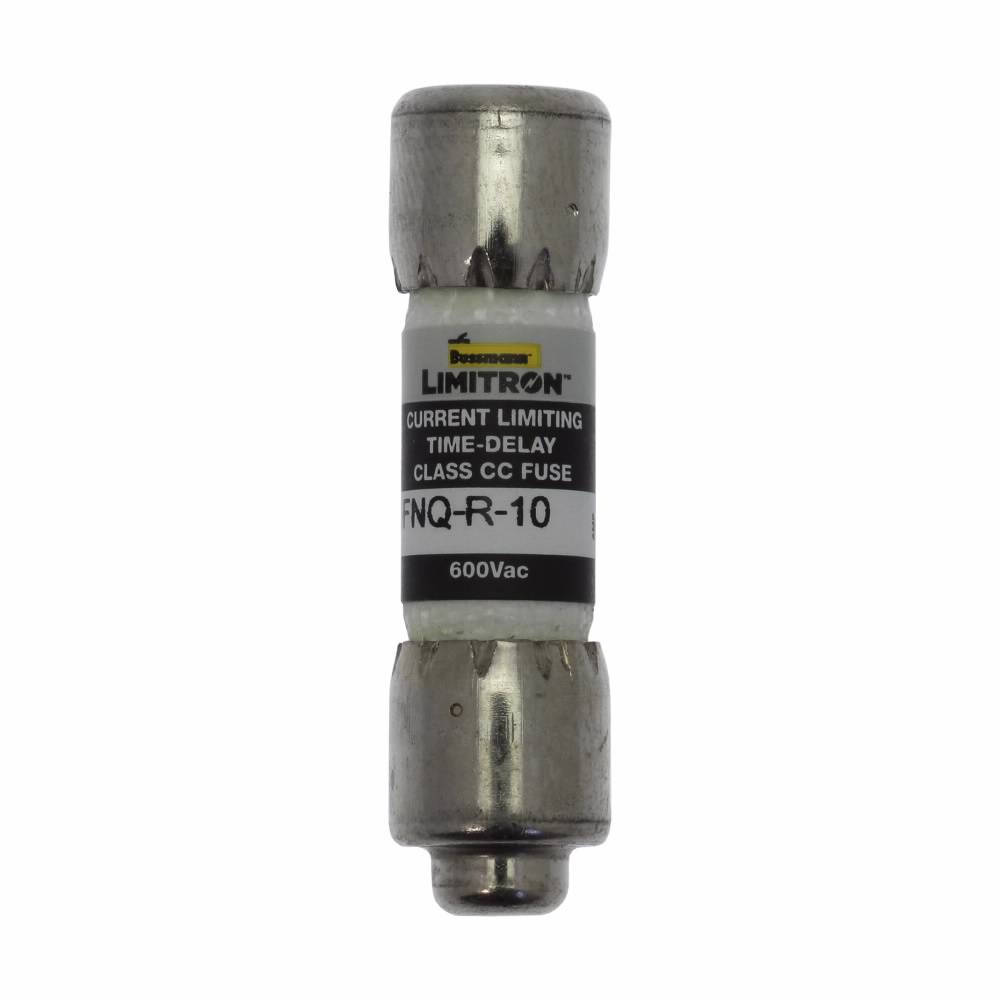

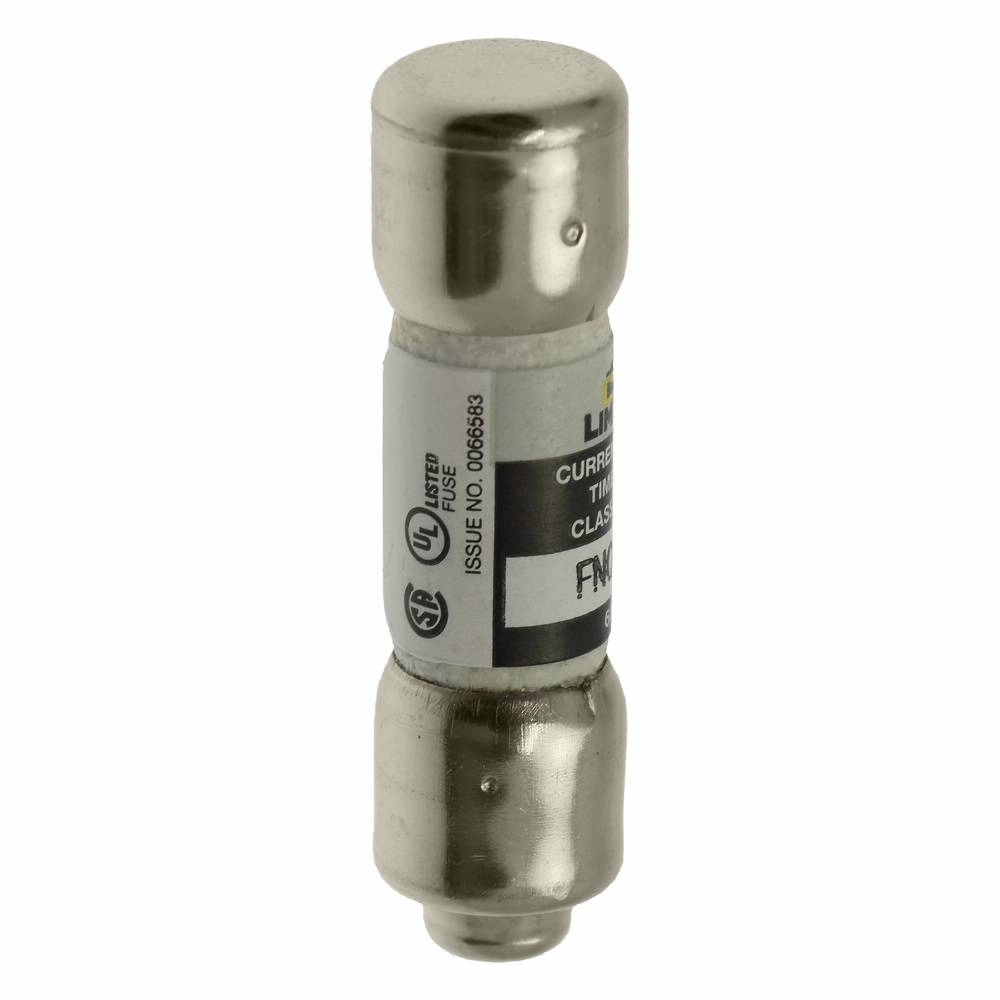

Bussmann Limitron™ FNQ-R-10 Current Limiting Time Delay Fuse, 10 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body

Short Description

Eaton Bussmann series Limitron™ fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses. These current-limiting UL and CSA Listed fuses are available in Class CC, J, R, and T - all with a 200 kA interrupting rating.

Bussmann Limitron™ Fuse, Current Limiting Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 10 A, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: FNQ-R-10

EECO #: BUFNQR10

Brand: Bussmann
UPC #: 051712497091
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121606
Approval
UL 248-4, CSA, CE
Material
Melamine Tube
Application
Industrial Facilities and Factories, Safety and Security Systems, Branch Circuits, Line Protection and Small Control Transformers Applications
Mounting Type
Holder
Response Time
12 s at 200%
Terminal Type
Ferrule End
Current Rating
10 Amp
Voltage Rating
600
Characteristics
Time Delay
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Current Limiting Time Delay
Series
FNQ-R
Diameter
13/32 Inch
Amperage Rating
10
Features
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • 200 kA interrupt rating complies with NEC section 110.9 for todays large capacity systems
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Rejection type fuse fits both standard and rejection style holders
  • The class CC FNQ-R Limitron fuse meets the needs of control circuit transformer protection
  • FNQ-R fuses can be sized according to NEC and UL requirements and still allow the high inrush currents, with significantly more time delay than the UL minimum value of 12 s at 200% for class CC fuses
  • Nickel plated brass end caps
  • 200 kA AC (RMS symmetrical)
COBUSSE02632_1_6
COBUSSE03278_1_2_1_6
EATCORE55178_1
Qty Unit price
Ea
1 $22.84

Slqt
1 $22.84

Stpk
1 $228.40

Unit
1 $22.84
