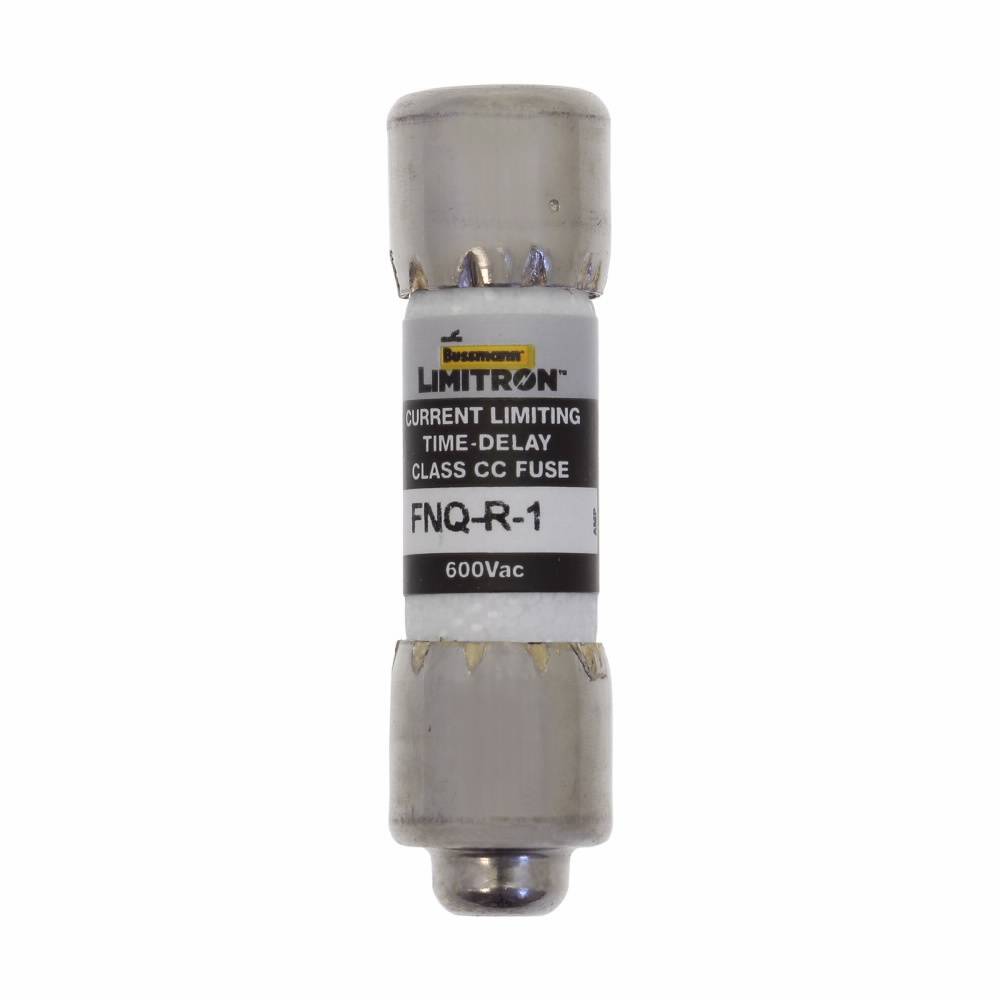

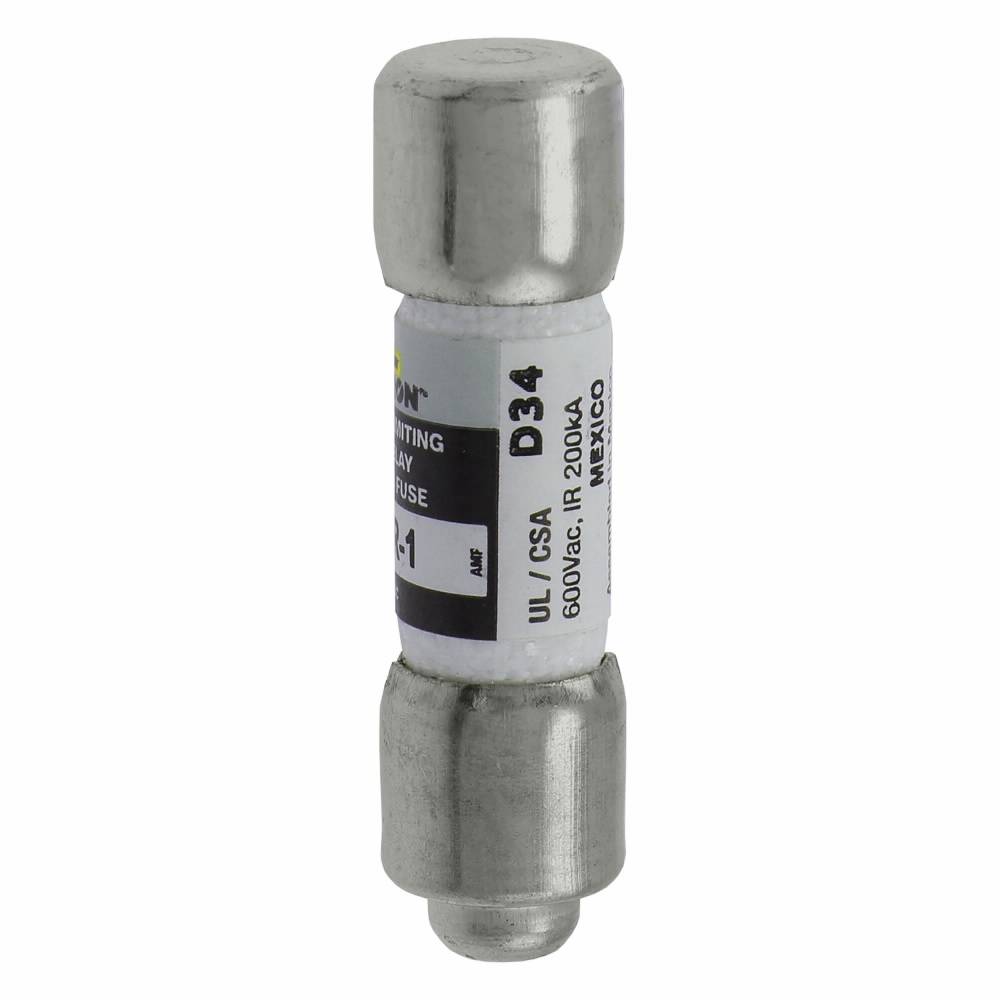

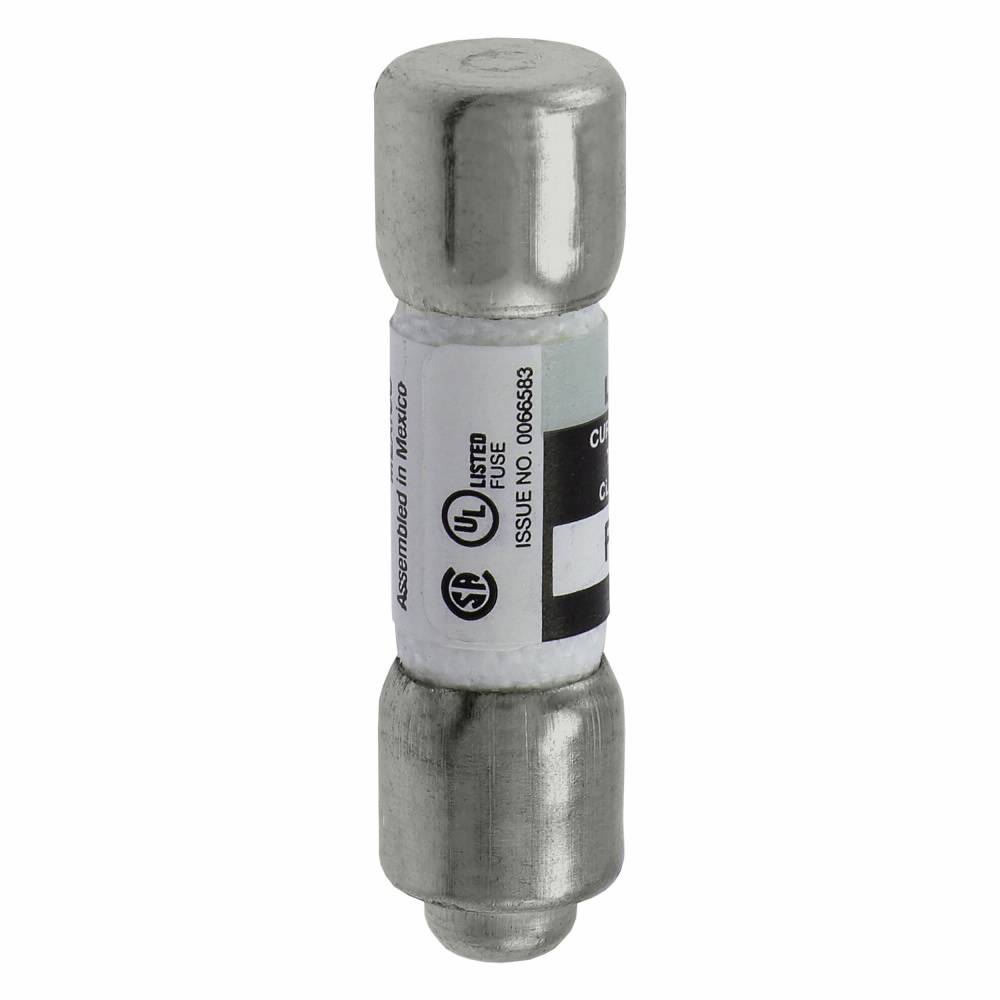

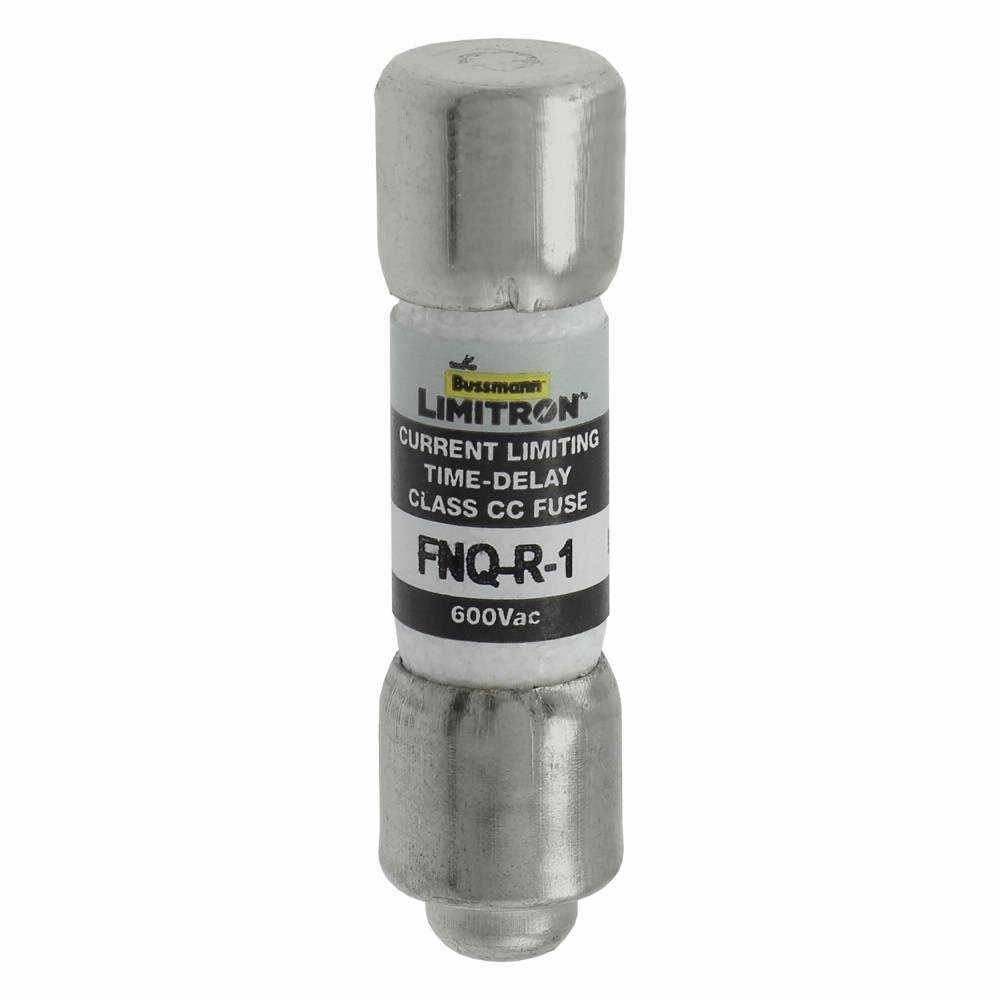

Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Share Share Print Print
Eaton

Bussmann CC-Tron® FNQ-R-1 Current Limiting High Inrush Time Delay Fuse, 1 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body

Short Description

600 VAC, 1 A, Ferrule Terminal, Class CC Rejection, Time Delay, Midget Fuse

Bussmann CC-Tron® Fuse, Current Limiting High Inrush Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 1 A, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: FNQ-R-1

EECO #: BUFNQR1

Brand: Bussmann
UPC #: 051712147033
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121606
Approval
UL 248-4, CSA, CE
Material
Melamine Tube
Application
Industrial Facilities and Factories, Safety and Security Systems, Branch Circuits, Line Protection and Small Control Transformers Applications
Mounting Type
Holder
Response Time
12 s at 200%
Terminal Type
Ferrule End
Current Rating
1 Amp
Voltage Rating
600
Characteristics
Time Delay
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Current Limiting High Inrush Time Delay
Series
FNQ-R
Diameter
13/32 Inch
Amperage Rating
1
Features
  • Time delay compatible with inrush characteristic of small control transformers
  • Current limitation at class CC levels provides maximum component short circuit current rating protection
  • 200 kA interrupt rating provides high ratings for control circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Nickel plated brass end caps
COBUSSE02632_1_6
COBUSSE03278_1_2_1_6
EATCORE55176_1
Qty Unit price
Ea
1 $21.20

Slqt
1 $21.20

Stpk
1 $212.00

Unit
1 $21.20
