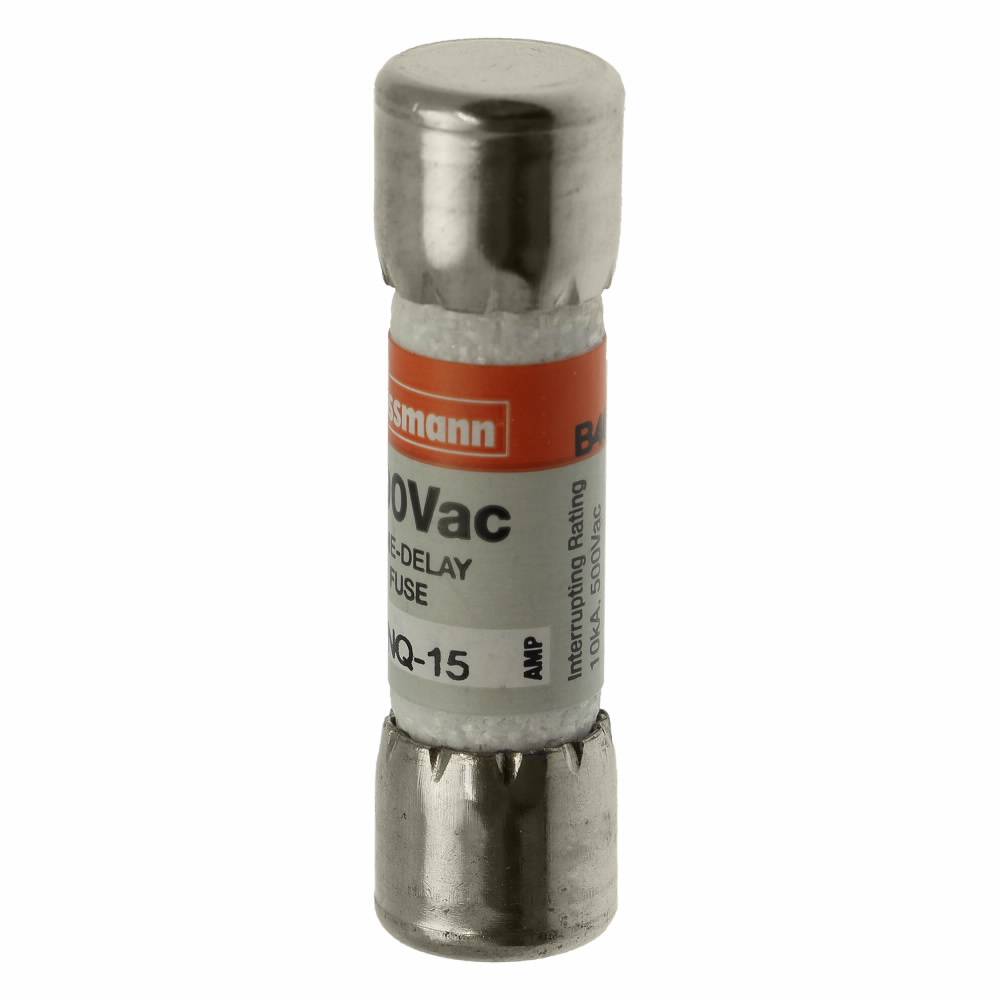

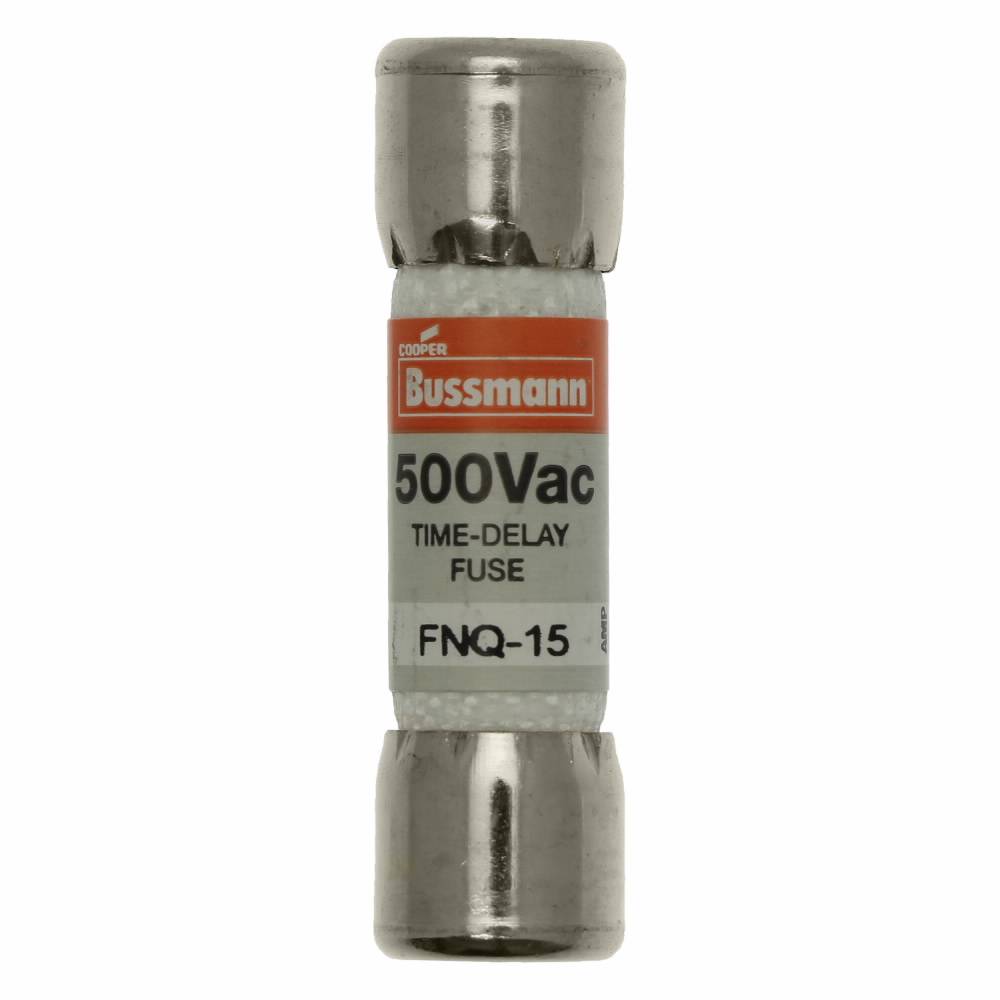

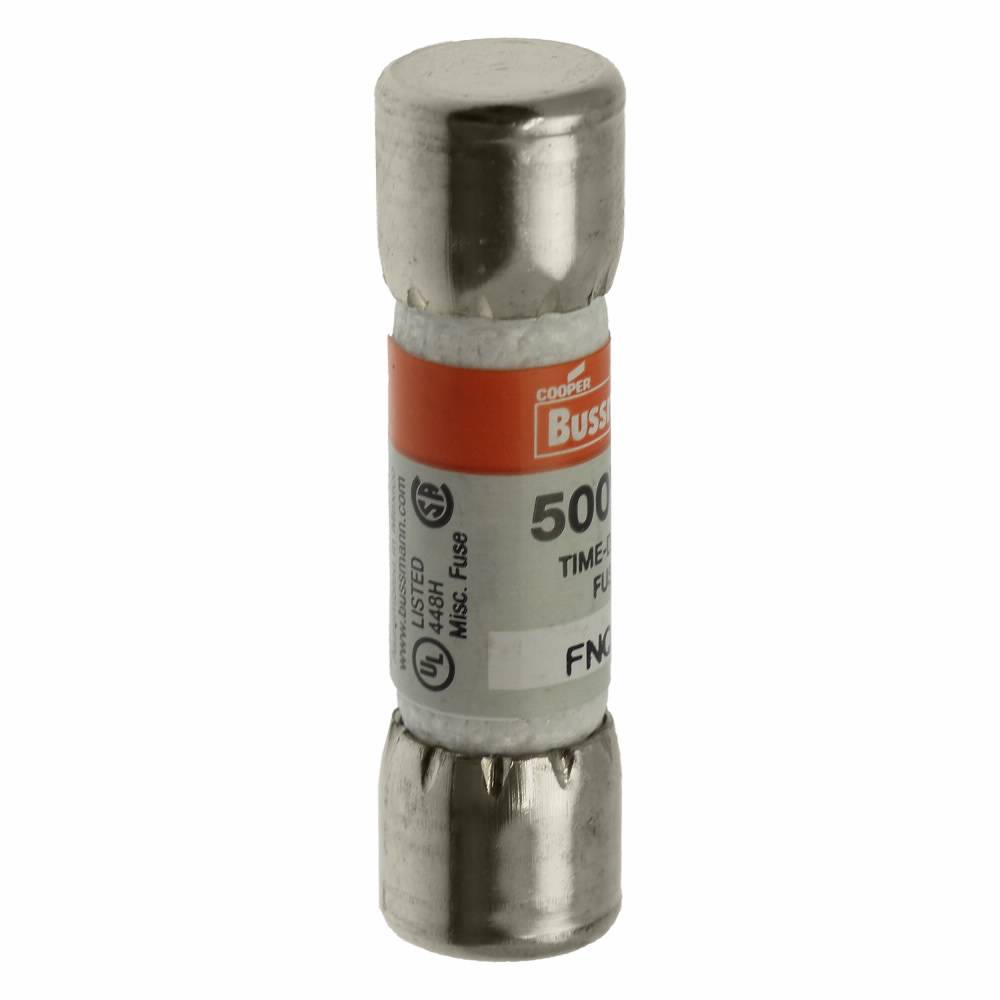

Bussmann Tron® FNQ-15 Low Voltage Supplemental Time Delay Midget Fuse, 15 A, 500 VAC, 10000 A Interrupt, Class: Supplemental, Cartridge Body

Short Description

500 VAC, 15 A, Ferrule Terminal, Time Delay, Midget Fuse

Bussmann Tron® Midget Fuse, Low Voltage Supplemental Time Delay, Series: FNQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 15 A, 500 VAC, 10000 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Bronze/Fiberglass, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: FNQ-15

EECO #: BUFNQ15

Brand: Bussmann
UPC #: 051712786157
Attributes
Features
Documents
Product Information
Attributes
Class
Supplemental
Color
orange
UNSPSC
39121609
Approval
UL 248-14, CSA C22.2, CE
Material
Bronze/Fiberglass
Application
Motor Control Transformer 480 VAC Primary Protection, Circuits with In-Rush Currents, Lighting Circuit Protection and Meter Circuits, Safety and Security Systems
Mounting Type
Holder
Terminal Type
Ferrule
Current Rating
15 amp
Voltage Rating
500
Characteristics
Time Delay
Interrupting Rating
10 Kiloamp (Symmetrical)
Type
Low Voltage Supplemental Time Delay
Series
FNQ
Diameter
13/32 Inch
Amperage Rating
15
Features
  • Orange color coded for 500 VAC maximum voltage rating
  • Fiber tube, nickel plated brass end caps
  • Low cost supplemental protection of transformers and relays at 500 VAC or less
  • 10 kA at 500 VAC rms symmetrical interrupt rating
COBUSSE02776_1_2
COBUSSE03278_2_2_2_6
Qty Unit price
Ea
1 $20.48

Slqt
1 $20.48

Stpk
1 $204.80

Unit
1 $20.48
