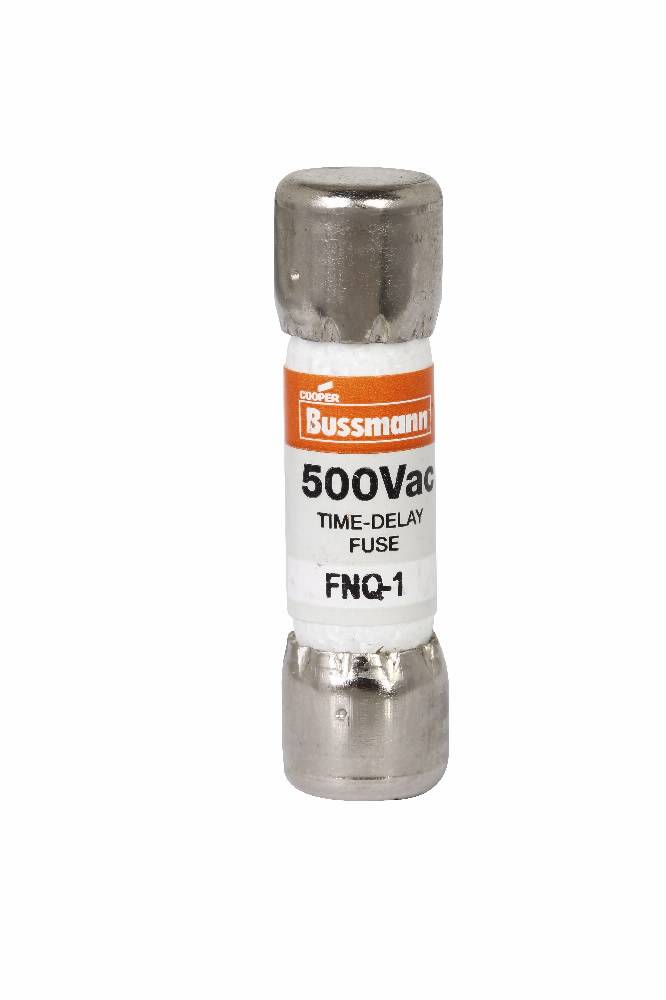

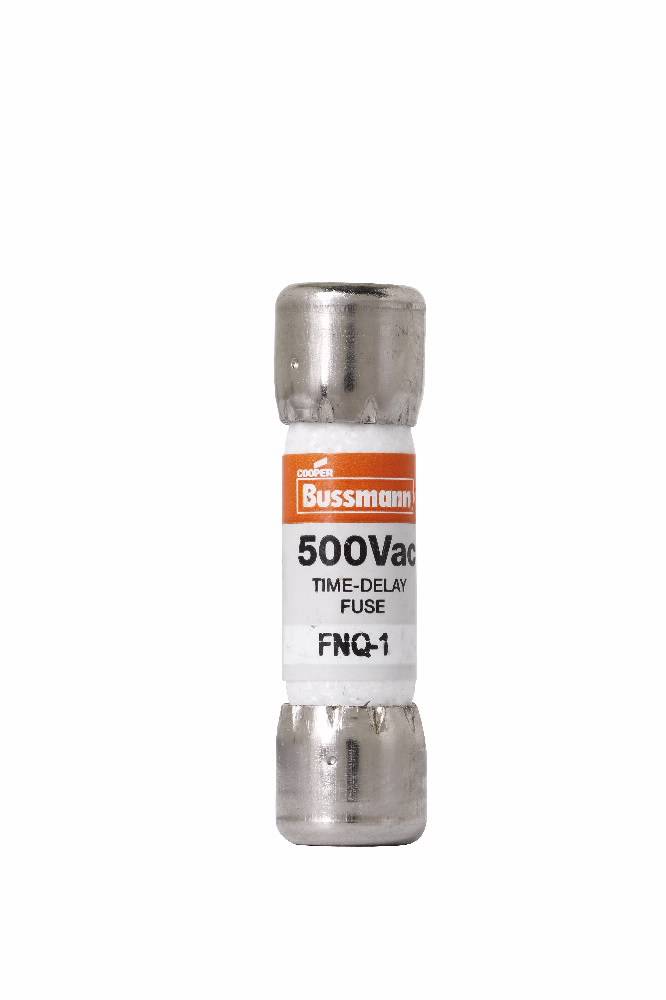

Bussmann Tron® FNQ-1 Low Voltage Supplemental Time Delay Midget Fuse, 1 A, 500 VAC, 10000 A Interrupt, Class: Supplemental, Cartridge Body

Short Description

500 VAC, 1 A, Ferrule Terminal, Time Delay, Midget Fuse

Bussmann Tron® Midget Fuse, Low Voltage Supplemental Time Delay, Series: FNQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1 A, 500 VAC, 10000 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body, Dual Element, Bronze/Fiberglass, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: FNQ-1

EECO #: BUFNQ1

Brand: Bussmann
UPC #: 051712786133
Attributes
Features
Documents
Product Information
Attributes
Class
Supplemental
Color
orange
UNSPSC
39121609
Approval
UL 248-14, CSA C22.2, CE
Material
Bronze/Fiberglass
Application
Motor Control Transformer 480 VAC Primary Protection, Circuits with In-Rush Currents, Lighting Circuit Protection and Meter Circuits, Safety and Security Systems
Mounting Type
Holder
Terminal Type
Ferrule
Current Rating
1 Amp
Voltage Rating
500
Characteristics
Time Delay
Interrupting Rating
10 Kiloamp (Symmetrical)
Type
Low Voltage Supplemental Time Delay
Series
FNQ
Diameter
13/32 Inch
Amperage Rating
1
Features
  • Orange color coded for 500 VAC maximum voltage rating
  • Fiber tube, nickel plated brass end caps
  • Low cost supplemental protection of transformers and relays at 500 VAC or less
  • 10 kA at 500 VAC rms symmetrical interrupt rating
COBUSSE02776_1_2
COBUSSE03278_2_2_2_6
Qty Unit price
Ea
1 $20.48

Slqt
1 $204.80

Stpk
1 $204.80

Unit
1 $204.80
