Bussmann CUBEFuse™ FCF20RN Fast Acting Non-Indicating Fuse, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Square Blade Body
Bussmann CUBEFuse™ FCF20RN Fast Acting Non-Indicating Fuse, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Square Blade Body
Bussmann CUBEFuse™ FCF20RN Fast Acting Non-Indicating Fuse, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Square Blade Body
Bussmann CUBEFuse™ FCF20RN Fast Acting Non-Indicating Fuse, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Square Blade Body
Bussmann CUBEFuse™ FCF20RN Fast Acting Non-Indicating Fuse, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Square Blade Body
Bussmann CUBEFuse™ FCF20RN Fast Acting Non-Indicating Fuse, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Square Blade Body
Bussmann CUBEFuse™ FCF20RN Fast Acting Non-Indicating Fuse, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Square Blade Body
Bussmann CUBEFuse™ FCF20RN Fast Acting Non-Indicating Fuse, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Square Blade Body
Share Share Print Print
Eaton

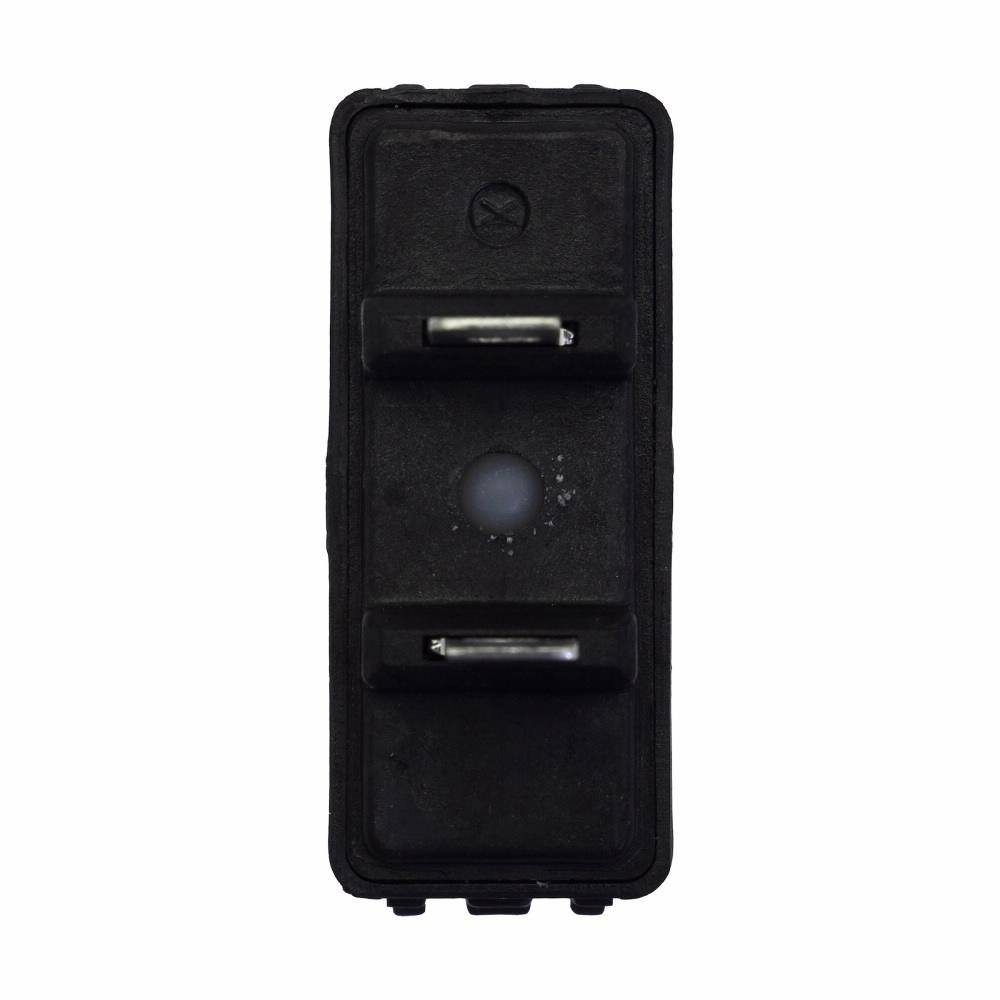

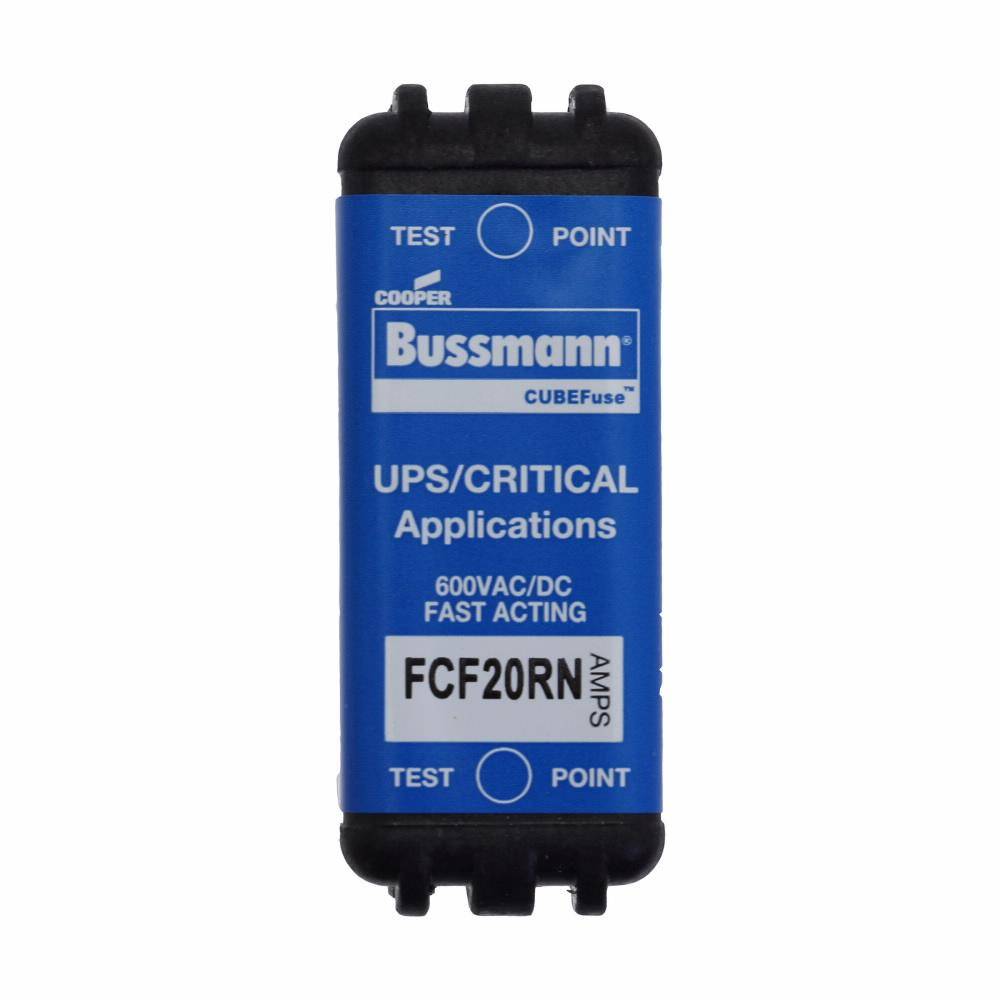

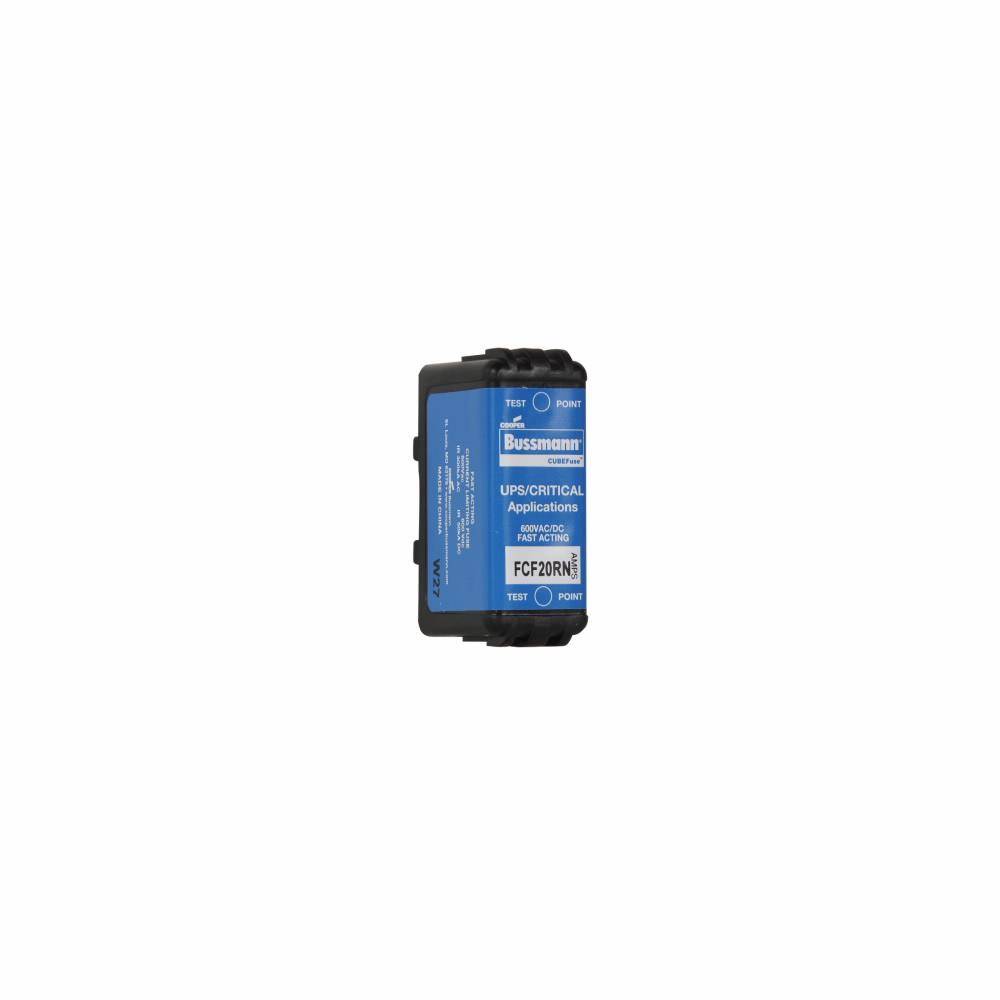

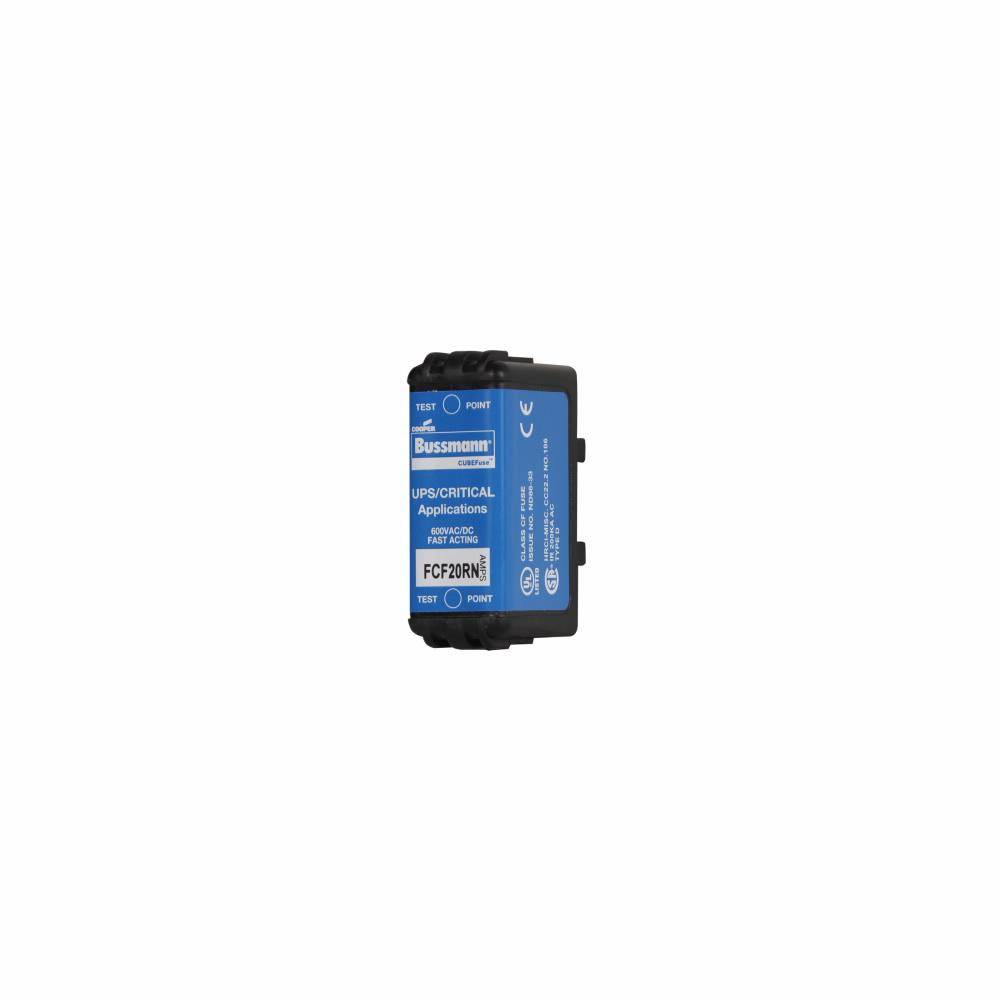

Bussmann CUBEFuse™ FCF20RN Fast Acting Non-Indicating Fuse, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Square Blade Body

Short Description

Eaton's Bussmann series fast-acting CUBEFuse™ delivers a faster response to damaging faults to help reduce to help reduce destructive thermal and magnetic forces. It is ideally suited for UPS and other critical applications. The industry - first finger safe CUBEFuse is a Class CF fuse that provides the same electrical performance as a Class J fuse, but with a significantly smaller footprint.

Bussmann CUBEFuse™ Fuse, Fast Acting Non-Indicating, Series: FCF, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, 50/60 Hz, 4 min at 200% Response, Blade Terminal, Holder Mount, Square Blade Body Type, Single Element, Glass Filled Polyethersulfone, Black, 1.88 in L x 0.75 in W Body Size
MFG #: FCF20RN

EECO #: BUFCF20RN

Brand: Bussmann
UPC #: 051712362467
Attributes
Features
Documents
Product Information
Attributes
Class
CF
Color
Black
UNSPSC
39121606
Material
Glass Filled Polyethersulfone
Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, UPS and Critical Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory
Mounting Type
Holder
Response Time
4 min at 200%
Terminal Type
Blade
Voltage Rating
600
Frequency Rating
50/60
Type
Fast Acting Non-Indicating
Series
FCF
Amperage Rating
20
Features
  • Class CF meets class J fast acting electrical performance requirements
  • Faster response to damaging faults to help reduce destructive thermal and magnetic forces
  • True fast acting fuse construction
  • High interrupt rating to safely interrupt faults up to 300 kA
  • No venting of arc or molten metal and gases during opening
  • Low let through currents under fault conditions
  • Smallest footprint of any class fuse including class J, CC, T and RK
  • The world's first finger safe power fuse system
