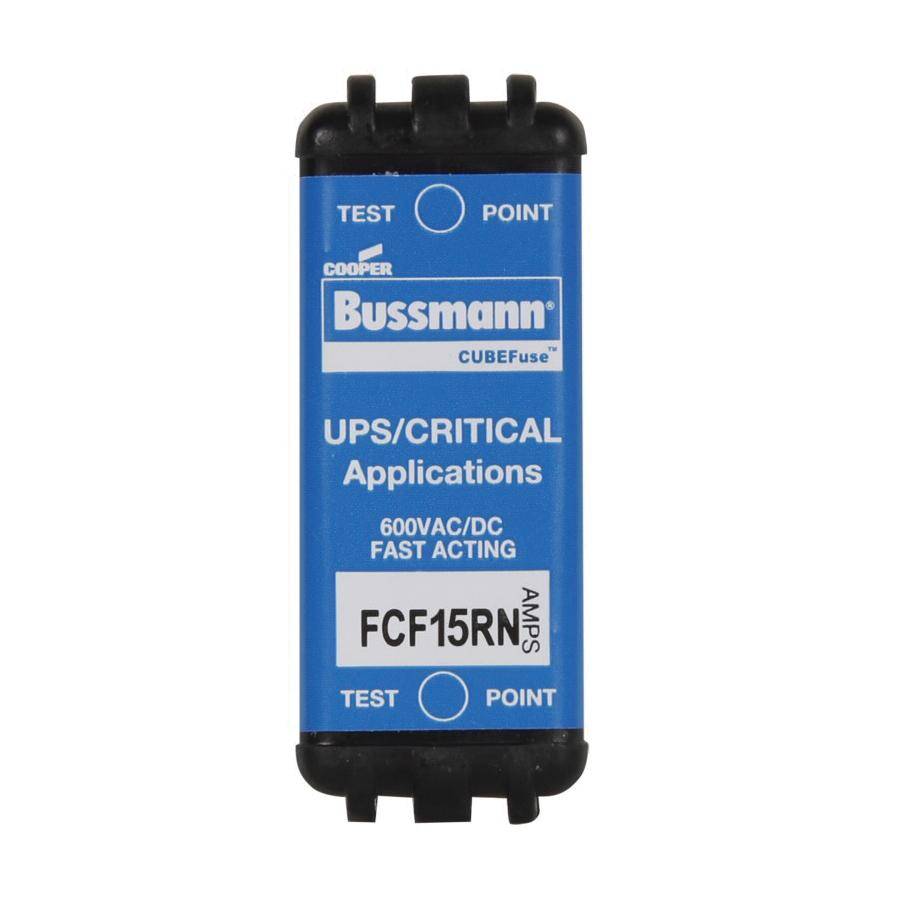

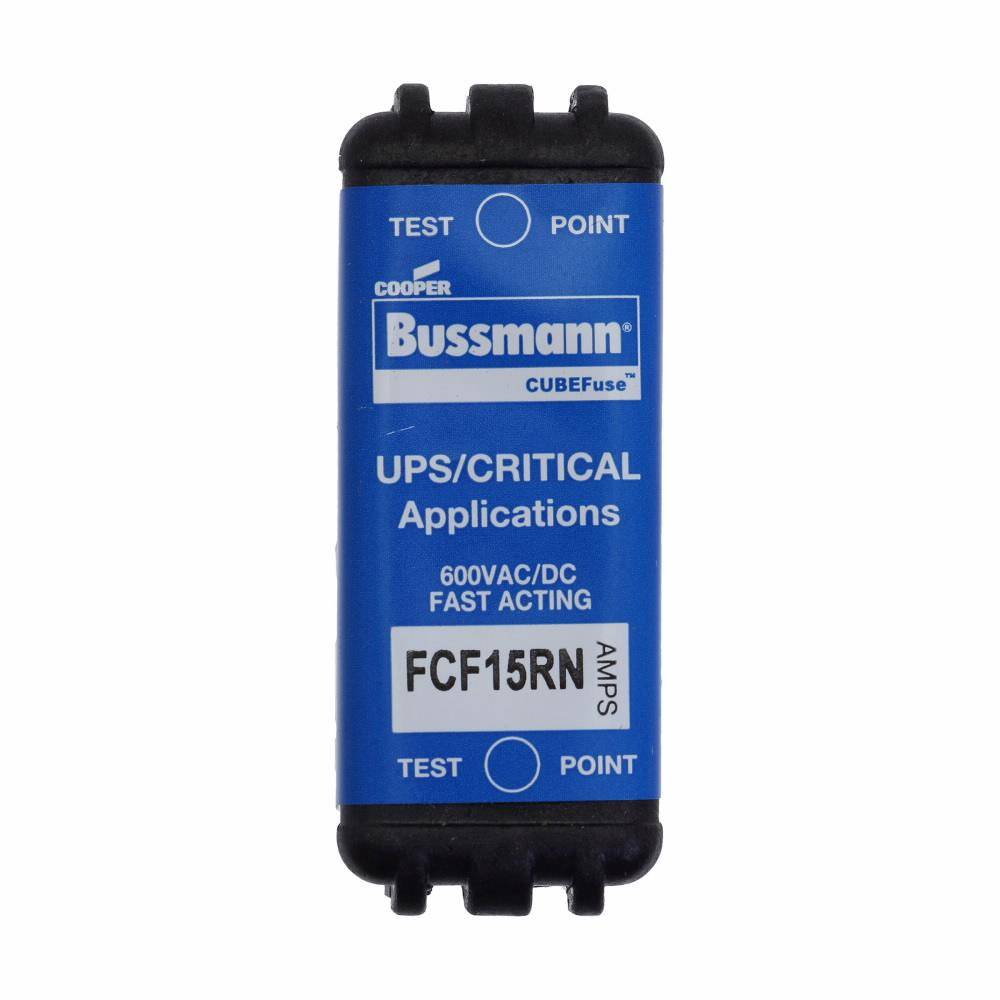

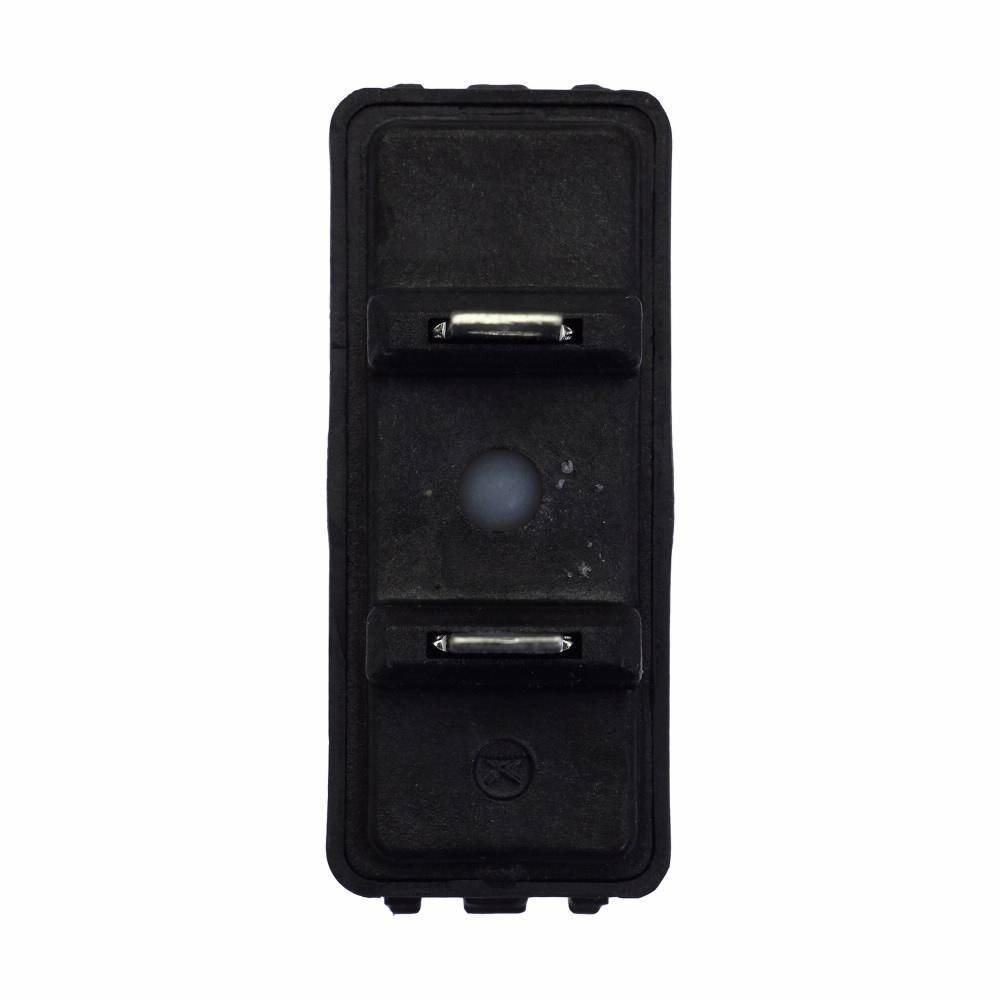

Bussmann CUBEFuse™ FCF15RN Fast Acting Non-Indicating Fuse, 15 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Cartridge Body

Short Description

The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution requiring up to 70% less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.

Bussmann CUBEFuse™ Fuse, Fast Acting Non-Indicating, Series: FCF, 15 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, 4 min at 200% Response, Blade Terminal, Cartridge Body Type, Glass Filled Polyethersulfone, 2.13 in L x 1 in W Body Size
MFG #: FCF15RN

EECO #: BUFCF15RN

Brand: Bussmann
UPC #: 051712362450
Attributes
Features
Documents
Product Information
Attributes
Class
CF
Color
Black
UNSPSC
39121606
Material
Glass Filled Polyethersulfone
Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory
Mounting Type
Holder
Response Time
4 min at 200%
Terminal Type
Blade
Voltage Rating
600
Frequency Rating
50/60
Type
Fast Acting Non-Indicating
Series
FCF
Amperage Rating
15
Features
  • Finger safe fuses minimize exposure to live parts, reducing hazard to personnel
  • Integral use with compact circuit Protector (CCP_CF) or CUBEFuse™ holder (TCFH_N) minimizes panel space
  • Minimizes incident energy and reduces arc flash hazards utilizing class J electrical characteristics
  • Mountable in Cooper Bussmann QSCP for easy installation in the industry's smallest fusible panel board
  • 300 kA, 200 kA at 600 VAC, 50 kA at 600 VDC interrupt rating
  • Glass filled polyethersulfone case, electroless tin plated copper alloy terminal
  • 4 min at 200% of ampere rating response time
  • 3.48 W power loss
IDW_DOCUMENT_cbe4630275ec2ca156792cc9a381a7bf4b933a33e38053480db3e18cf8822546
FCF15RN_Specification_Sheet
