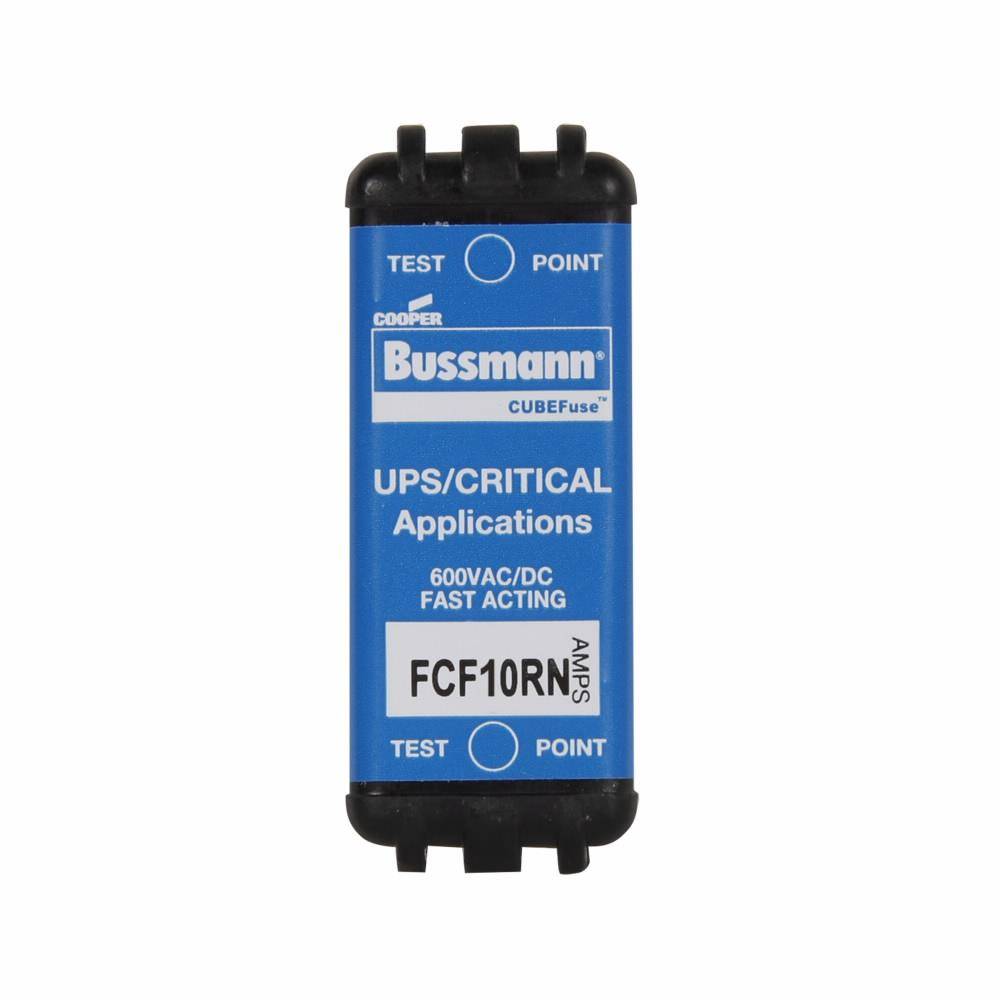

Bussmann CUBEFuse™ FCF10RN Fast Acting Current Limiting Finger Safe Non-Indicating Fuse, 10 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Square Blade Body
Share Share Print Print
Eaton

Bussmann CUBEFuse™ FCF10RN Fast Acting Current Limiting Finger Safe Non-Indicating Fuse, 10 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, Square Blade Body

Short Description

EATON Bussmann series fast acting CUBEFuse™ delivers a faster response to damaging faults to help reduce to help reduce destructive thermal and magnetic forces. It is ideally suited for UPS and other critical applications. The industry's first finger safe CUBEFuse™ is A class CF fuse that provides the same electrical performance as A class J fuse, but with a significantly smaller footprint.

Bussmann CUBEFuse™ Fuse, Fast Acting Current Limiting Finger Safe Non-Indicating, Series: FCF, 10 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, 50/60 Hz, 4 min at 200% Response, Blade Terminal, Holder Mount, Square Blade Body Type, Single Element, Glass Filled Polyethersulfone, Black, 1.88 in L x 0.75 in W x 1 in H Body Size
MFG #: FCF10RN

EECO #: BUFCF10RN

Brand: Bussmann
UPC #: 051712362443
Attributes
Features
Documents
Product Information
Attributes
Class
CF
Color
Black
UNSPSC
39121606
Material
Glass Filled Polyethersulfone
Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, UPS and Critical Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory
Mounting Type
Holder
Response Time
4 min at 200%
Terminal Type
Blade
Voltage Rating
600
Frequency Rating
50/60
Type
Fast Acting Current Limiting Finger Safe Non-Indicating
Series
FCF
Amperage Rating
10
Features
  • The world's first finger safe power fuse system
  • Smallest footprint of any class fuse including class J, CC, T and RK
  • Class CF meets class J fast acting electrical performance requirements
  • Faster response to damaging faults to help reduce destructive thermal and magnetic forces
  • True fast acting fuse construction
  • High interrupt rating to safely interrupt over currents up to 300 kA
  • No venting of arc or molten metal and gases during opening
  • Low let through currents under fault conditions
  • 4 min at 200% response time
