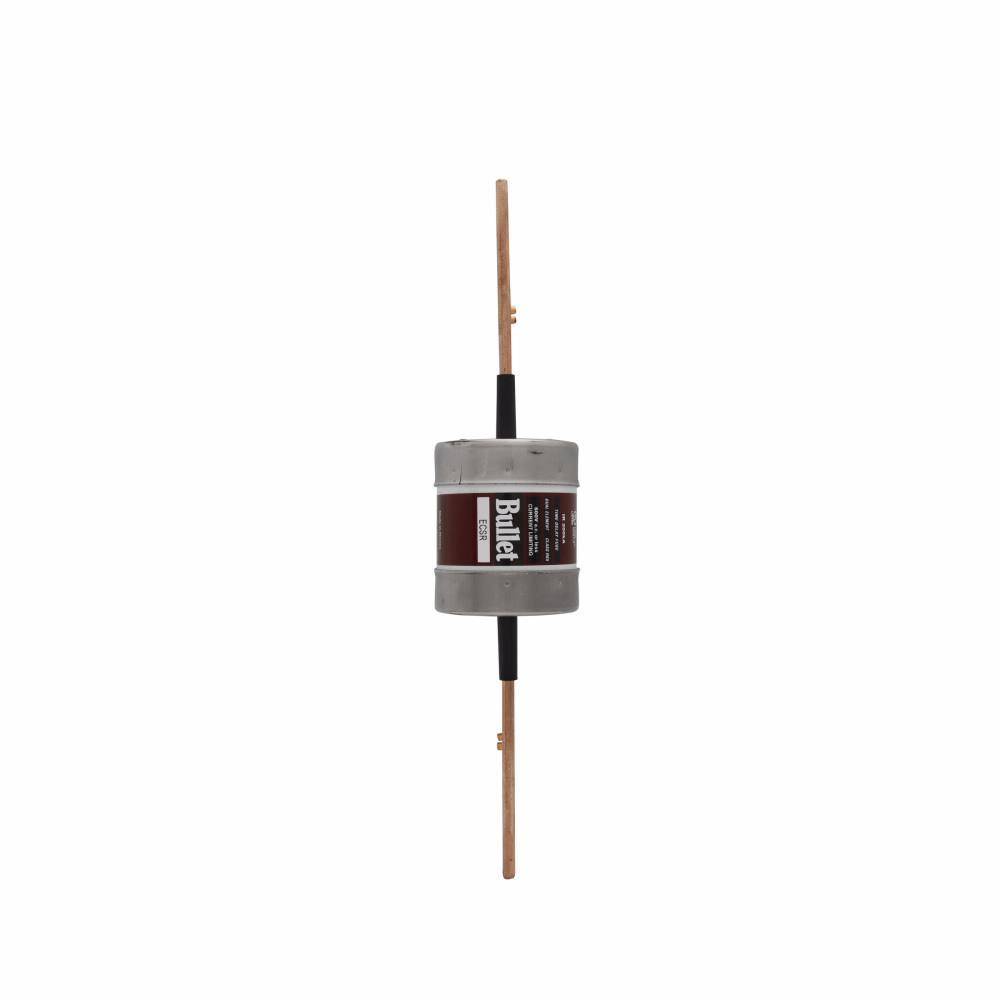

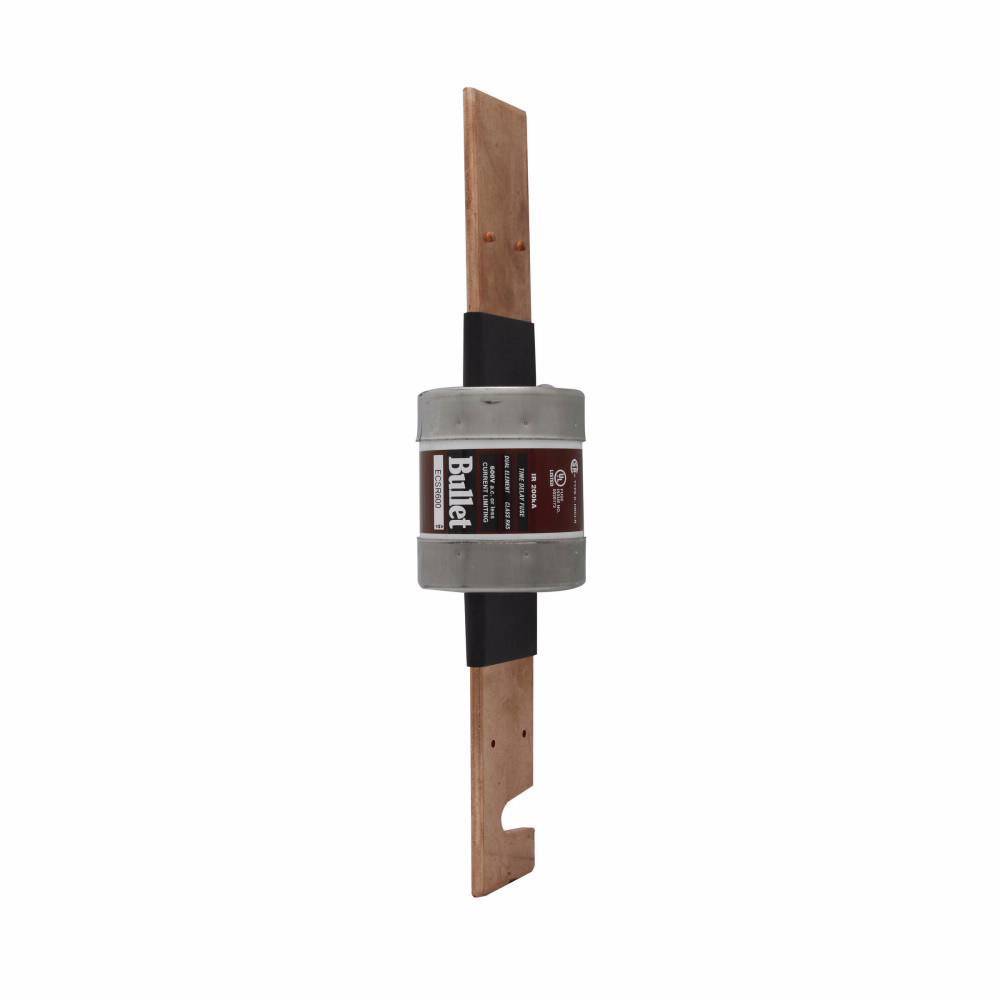

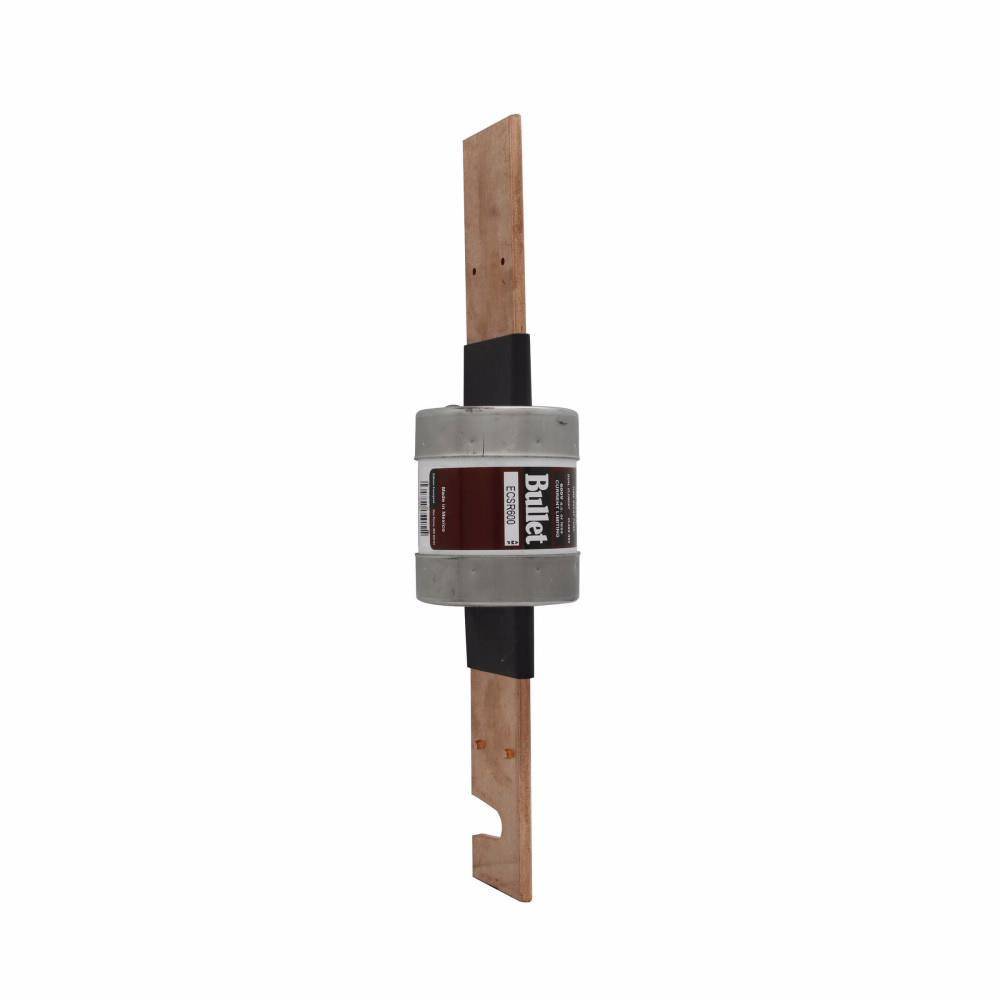

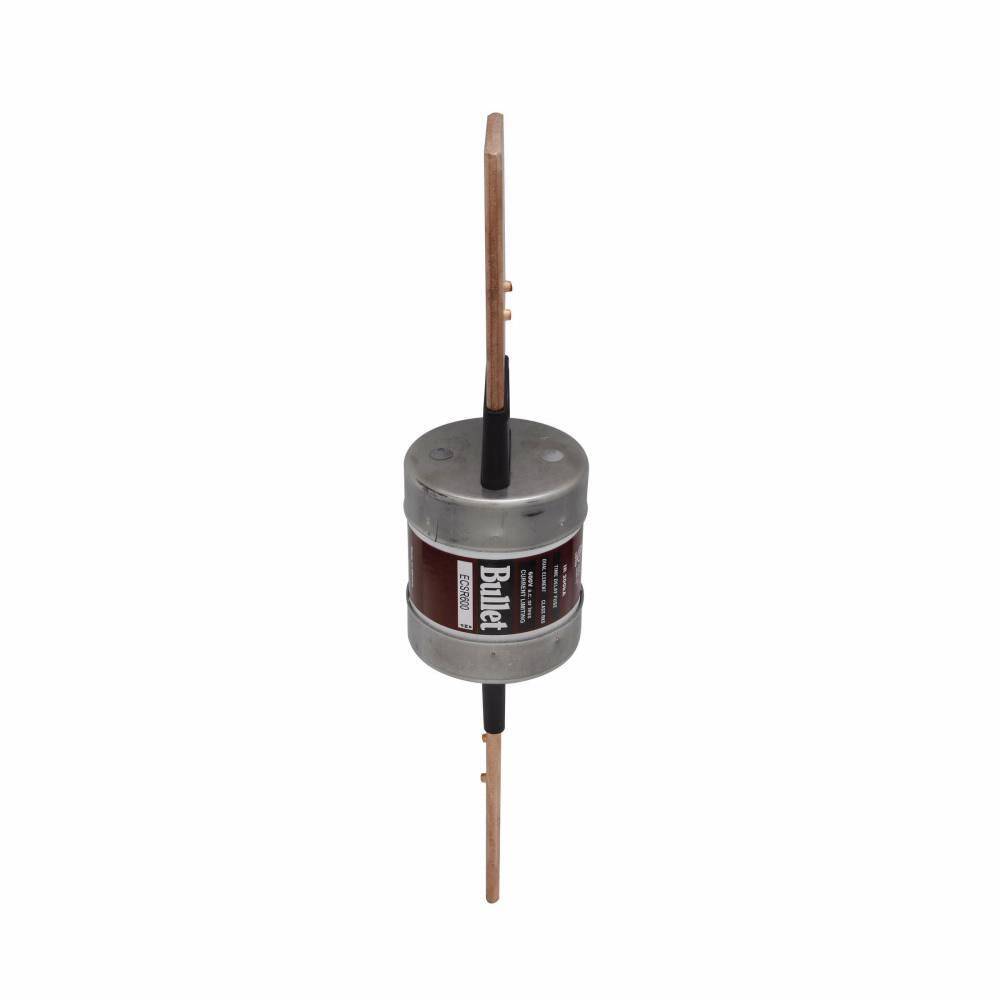

Edison ECSR500 ECSR Current Limiting Time Delay Fuse, 500 A, 600 V, 200 kAIC Interrupt, Class: RK5, Cylindrical Body

Short Description

Edisons UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

Edison, ECSR500, Fuse, Current Limiting Time Delay, Series: ECSR, Non-Indicating, 500 A, 600 V, 200 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Blade End Terminal, Cylindrical Body, Dual Element, Fiberglass, 2.88 in Dia x13.38 in L Body
MFG #: ECSR500

EECO #: BUECSR500

Brand: Edison
UPC #: 782634508557
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
Industrial Facilities and Factories, Safety and Security Systems, AC Power Distribution System Mains, Feeders and Branch Circuits, Protection Of Motor and Motor Branch Circuits, Transformers and Other Inductive Loads, Lighting, Heating and Other Non-inductive Loads Applications
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Blade End
Voltage Rating
600
Type
Current Limiting Time Delay
Series
ECSR
Amperage Rating
500
Features
  • Superior overload and cycling capabilities
