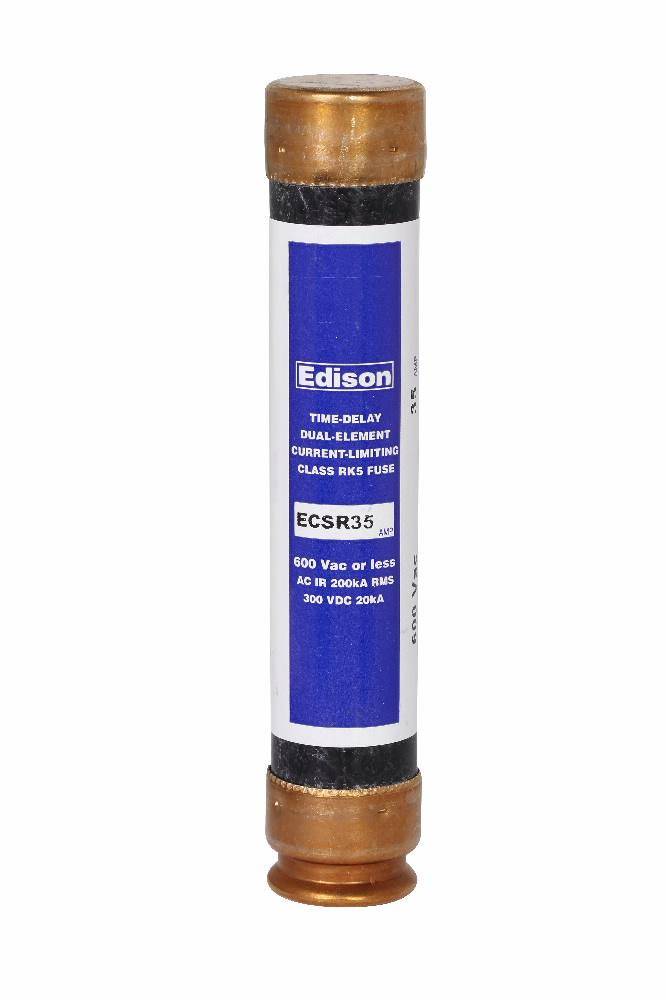

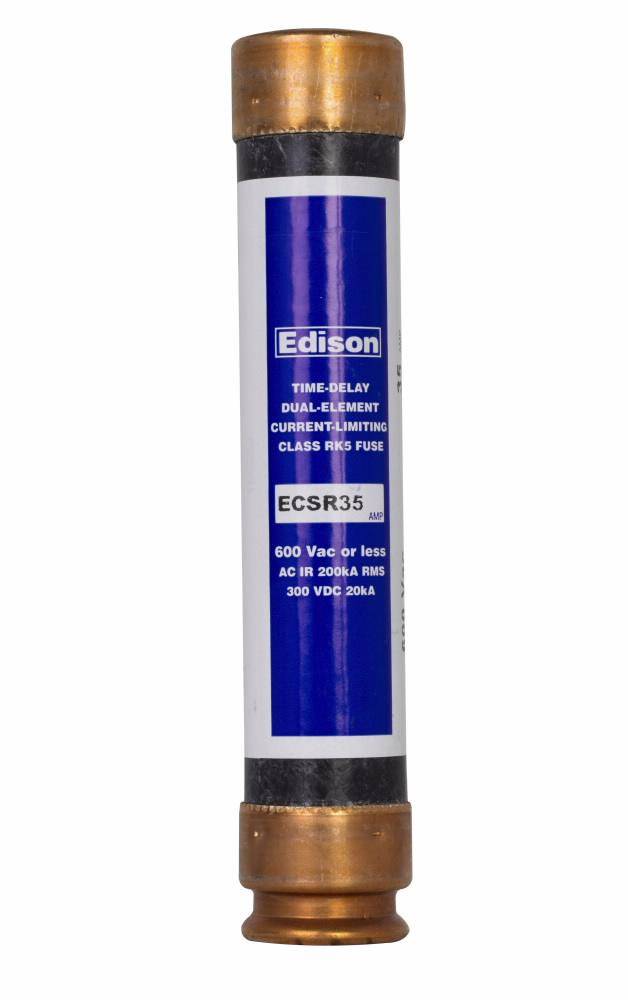

PrintBussmann Bullet™ ECSR35 Current Limiting Time Delay Fuse, 35 A, 600 V, 200 kAIC Interrupt, RK5 Class
These fuses are recommended for AC power distribution system mains, feeders and branch circuits having inductive loads (motors, transformers) or non-inductive loads (lighting, heating) where the available short-circuit current does not exceed 200000 RMS symmetrical amps. These "dual-element, time-delay" fuses have minimum industry standard time-delay of 10 s at 5 times the fuse rating (8 s minimum for 250 V, 30 A and less). The time-delay characteristics of these fuses typically allows them to be sized closer to the running ampacity of inductive loads to reduce cost and provide improved overcurrent protection. These fuses will override normal equipment current surges to reduce unnecessary fuse openings. They are the most popular fuses used in the industry and the most economical for most applications, especially motors and transformers. They have moderate current limitation.
Bussmann Bullet™ Fuse, Current Limiting Time Delay, Series: ECSR, Indicating/Non-Indicating: Non-Indicating, 35 A, 600 V, 200 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Ferrule End Terminal, Dual Element, Fiberglass, 1.06 in Dia x 5.5 in L Body SizeEECO #: BUECSR35
