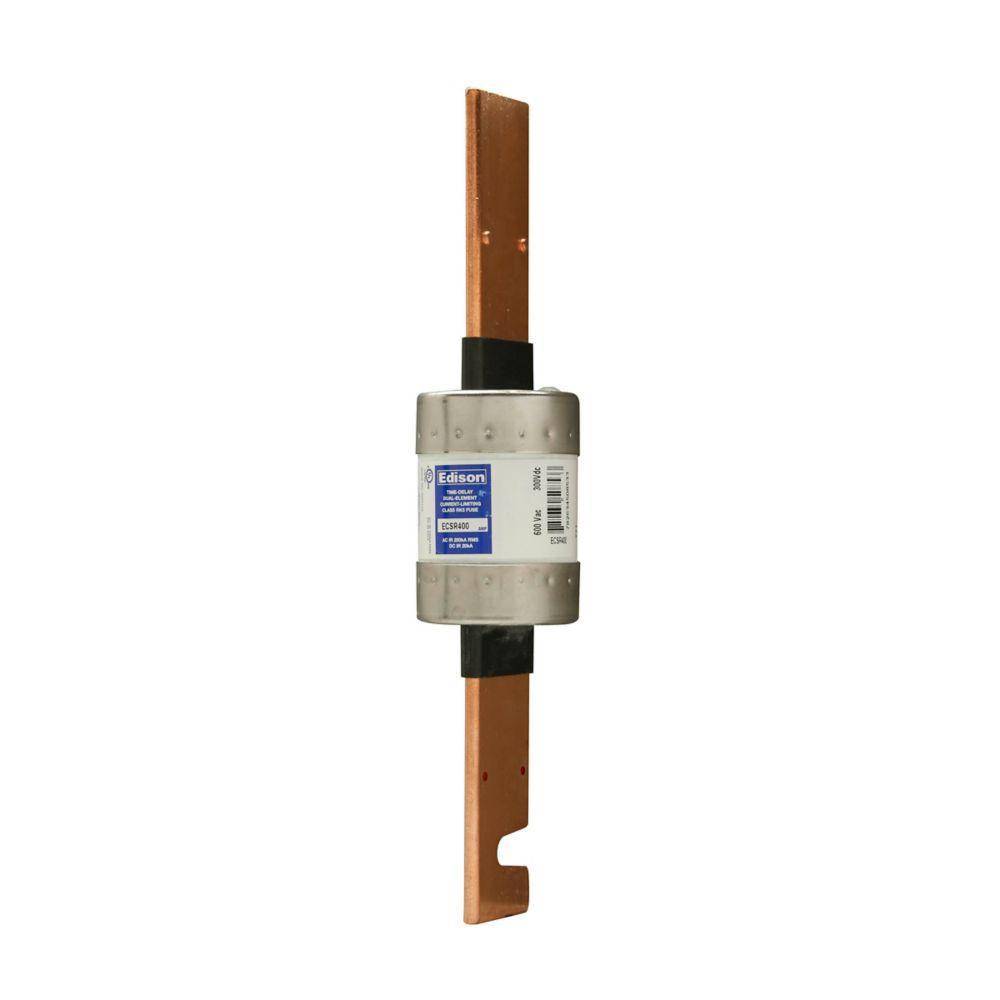

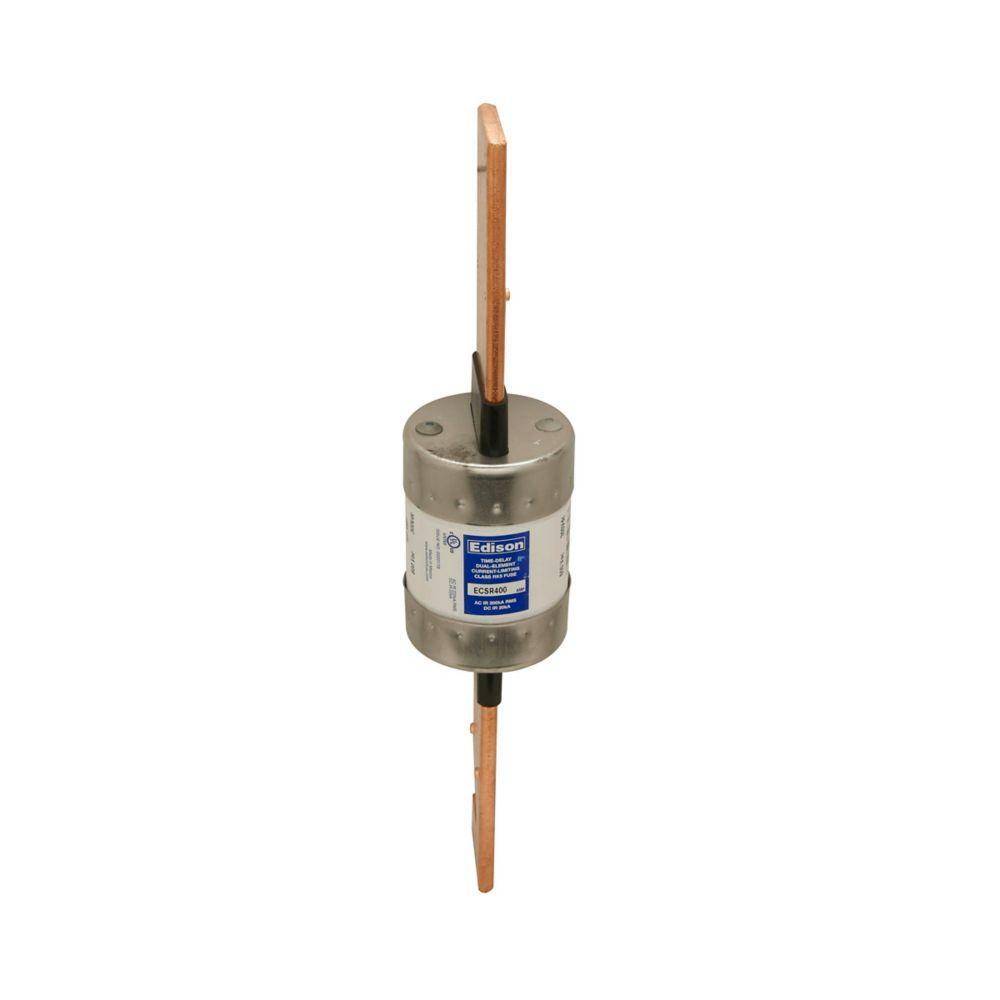

Bussmann Edison ECSR225 Current Limiting Time Delay Fuse, 225 A, 600 V, 200 kAIC Interrupt, RK5 Class

Short Description

Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

Bussmann Edison Fuse, Current Limiting Time Delay, Series: ECSR, Indicating/Non-Indicating: Non-Indicating, 225 A, 600 V, 200 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Blade End Terminal, Dual Element, Fiberglass, 2.34 in Dia x 11.63 in L Body Size
MFG #: ECSR225

EECO #: BUECSR225

Brand: Edison
UPC #: 782634508496
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
Industrial Facilities and Factories, Safety and Security Systems, AC Power Distribution System Mains, Feeders and Branch Circuits, Protection Of Motor and Motor Branch Circuits, Transformers and Other Inductive Loads, Lighting, Heating and Other Non-inductive Loads Applications
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Blade End
Voltage Rating
600
Type
Current Limiting Time Delay
Series
ECSR
Amperage Rating
225
Features
  • Superior overload and cycling capabilities
