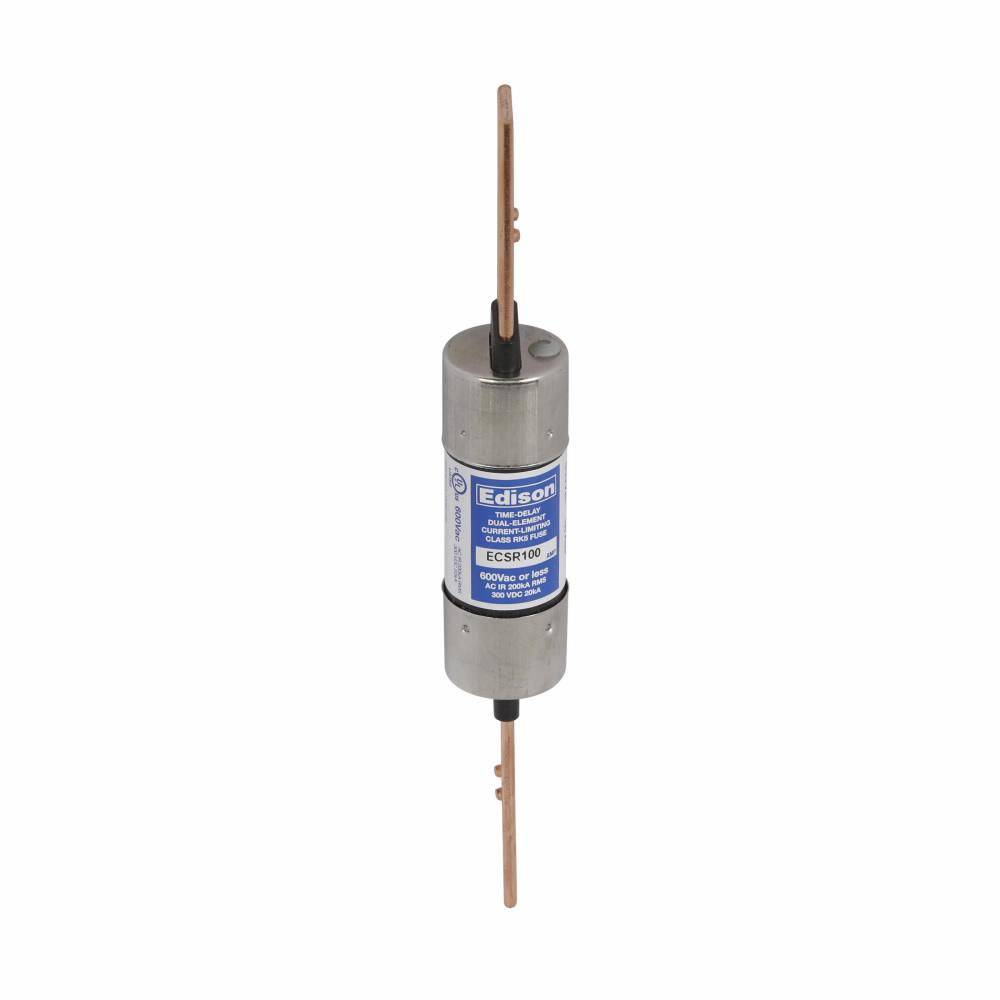

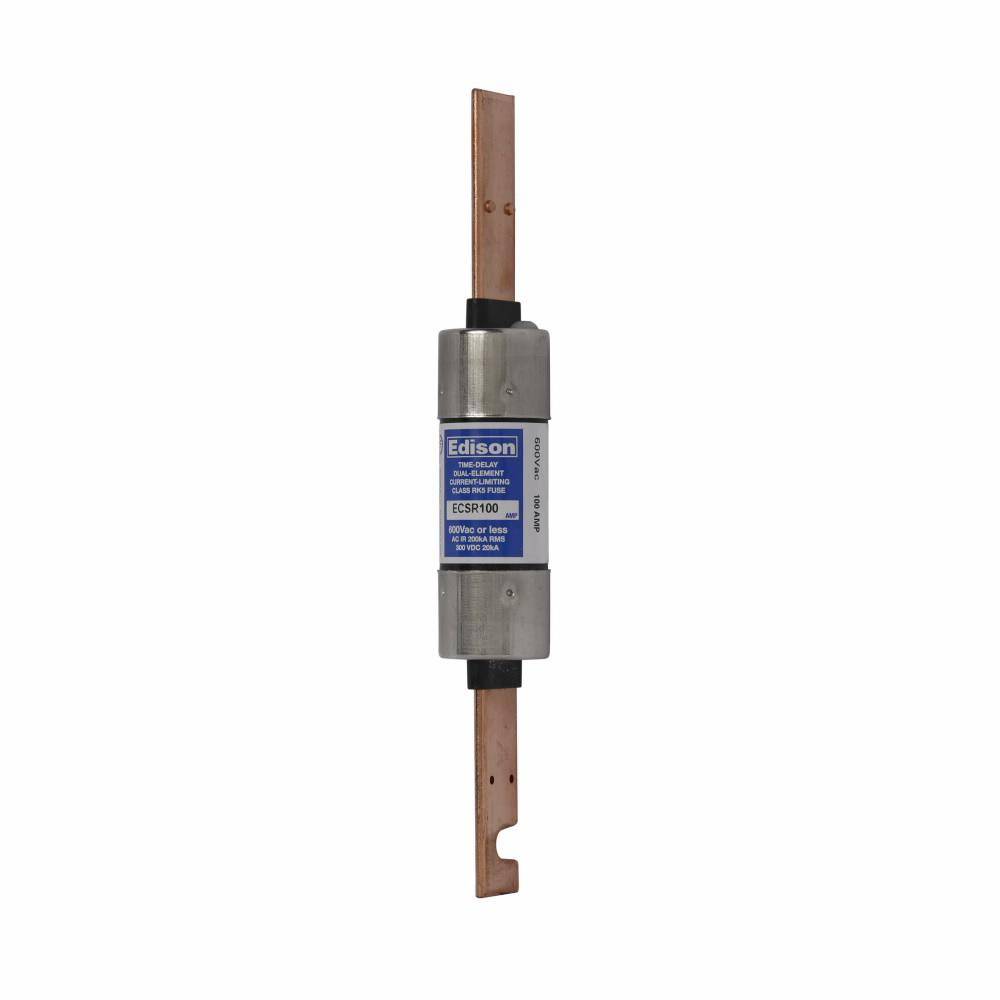

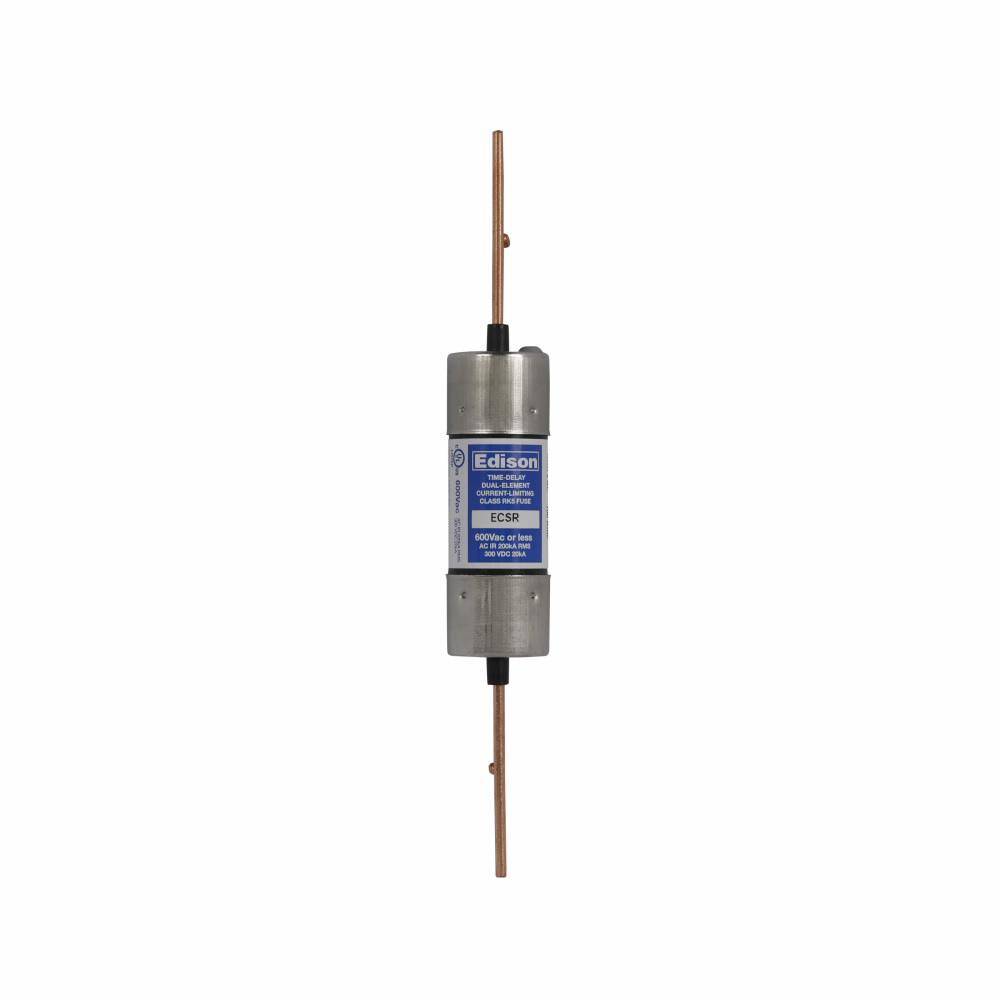

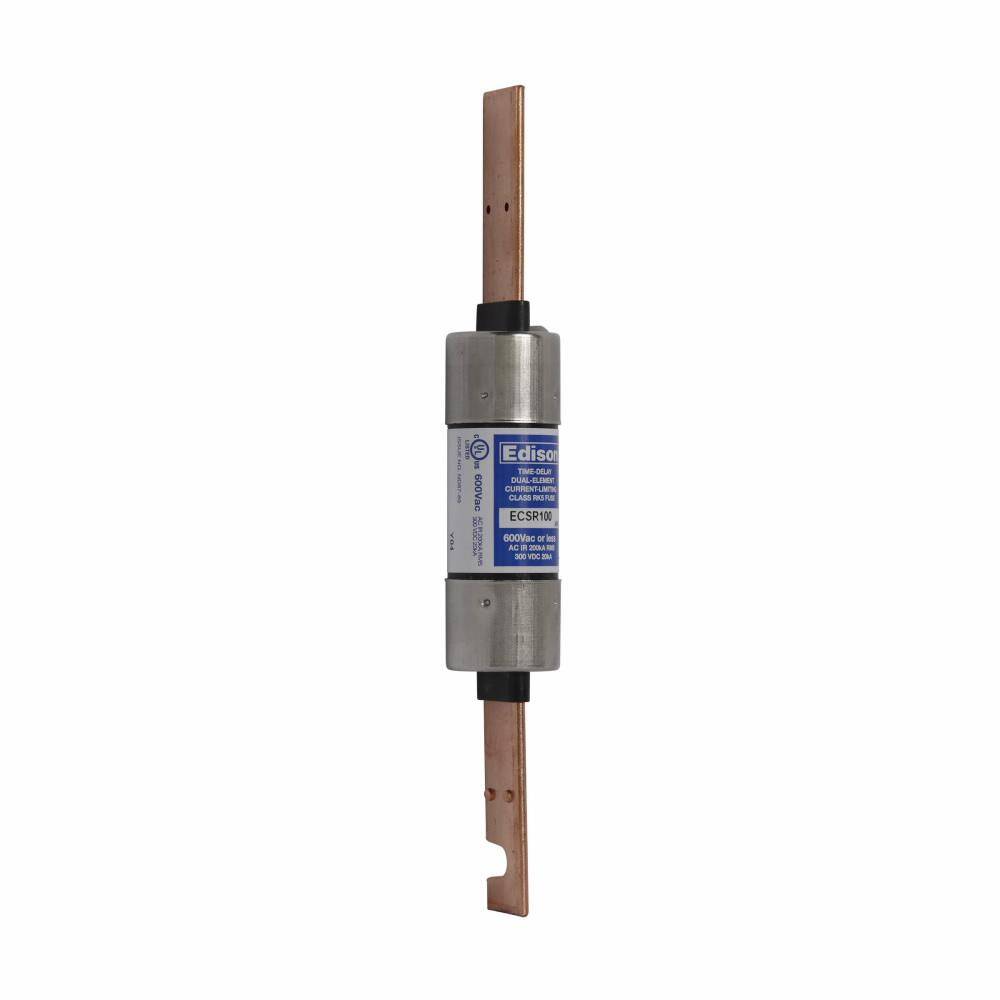

Bussmann ECSR100 Current Limiting Time Delay Fuse, 100 A, 600 V, 200 kA Interrupt, RK5 Class, Cylindrical Body

Short Description

Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

Bussmann Time Delay Fuse, Current Limiting, Series: ECSR, Indicating/Non-Indicating: Non-Indicating, 100 A, 600 V, 200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cylindrical Body Type, Dual Element, 1.11 in Dia x 7.88 in L Body Size
MFG #: ECSR100

EECO #: BUECSR100

Brand: Bussmann
UPC #: 782634508434
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
AC Power Distribution System Mains, Feeders and Branch Circuit, Protection of Motors and Motor Branch Circuit, Protection of Transformers and Other Inductive Loads, General Purpose, Lighting, Heating and Other Non-Inductive Loads, Safety and Security Systems
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Blade
Voltage Rating
600
Type
Current Limiting
Series
ECSR
Amperage Rating
100
Features
  • True dual element construction allows sizing of 125% FLA for motor backup protection
  • Superior overload and cycling capabilities
  • Current limiting provides component short circuit protection
  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads and single phasing when sized properly
  • The time delay characteristics of these fuses typically allows them to be sized closer to the running ampacity of inductive loads to reduce cost and provide improved over current protection
  • These fuses will override normal equipment current surges to reduce unnecessary fuse openings
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • 10 s minimum at 500% of ampere rating response time
