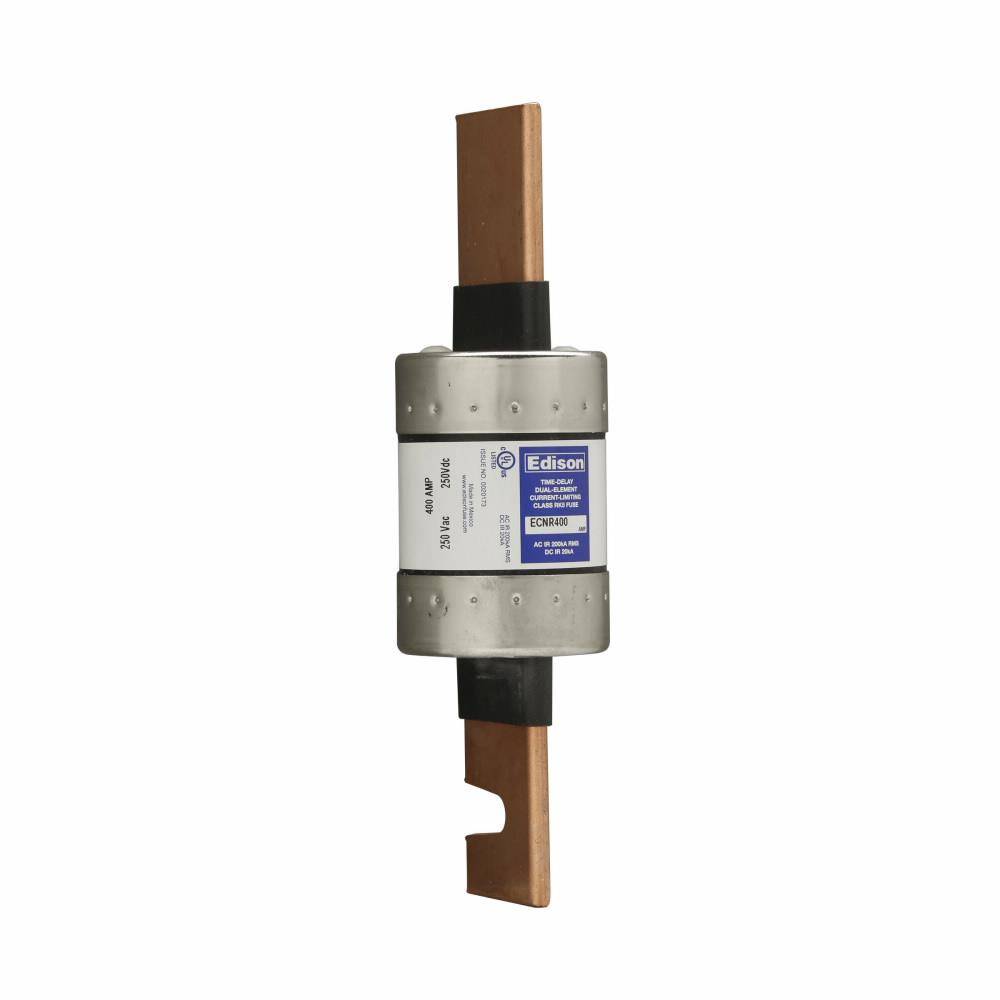

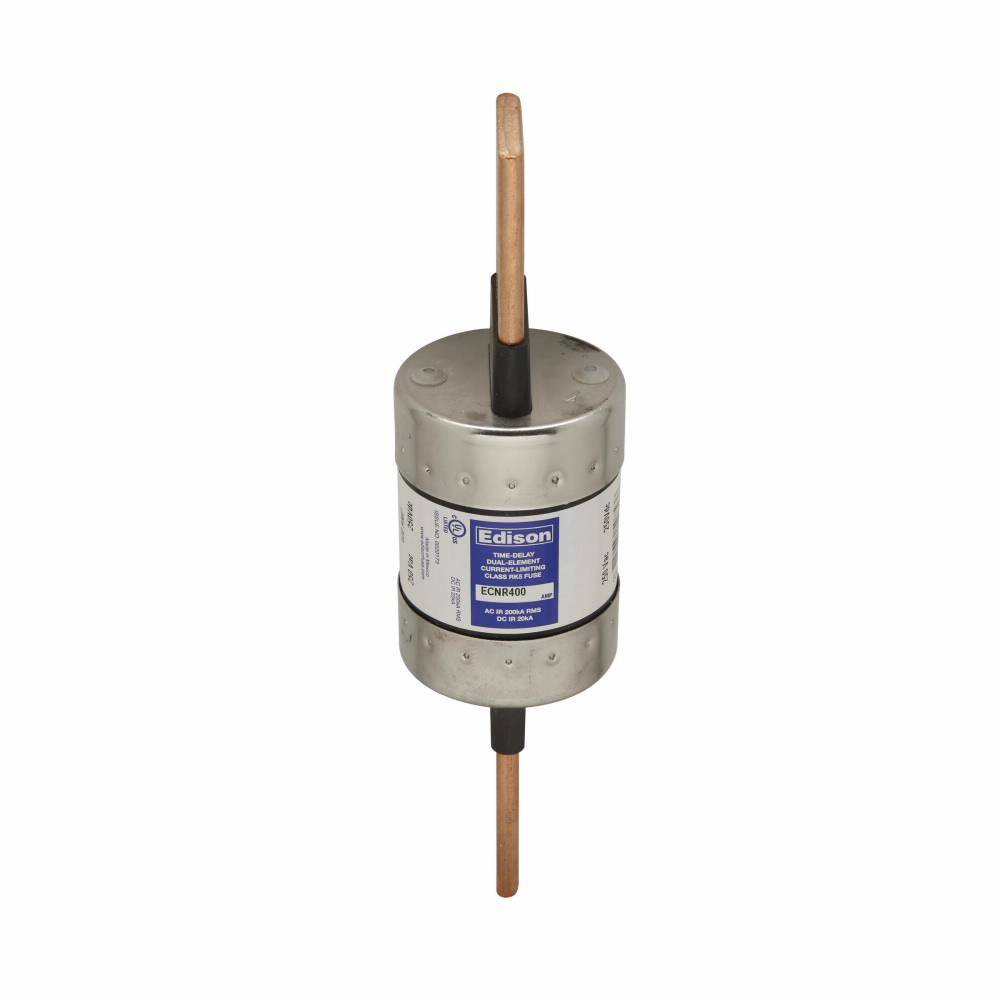

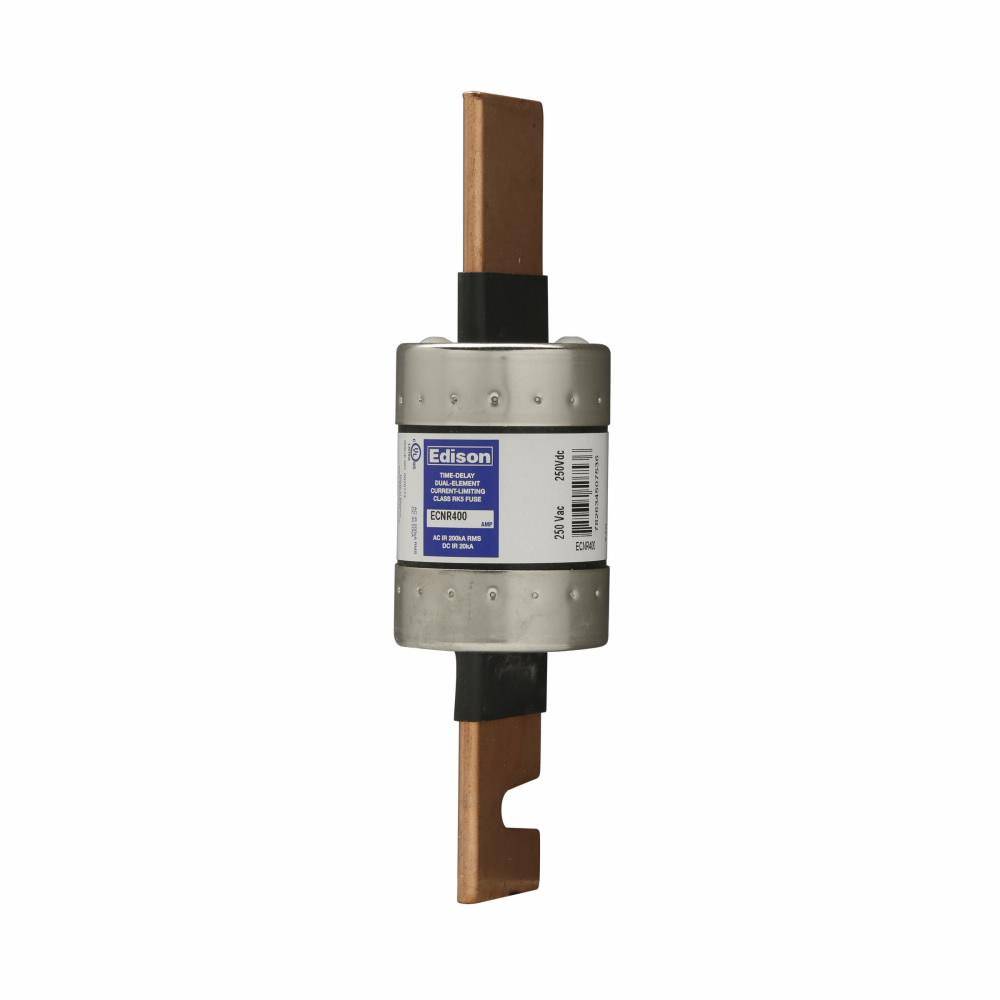

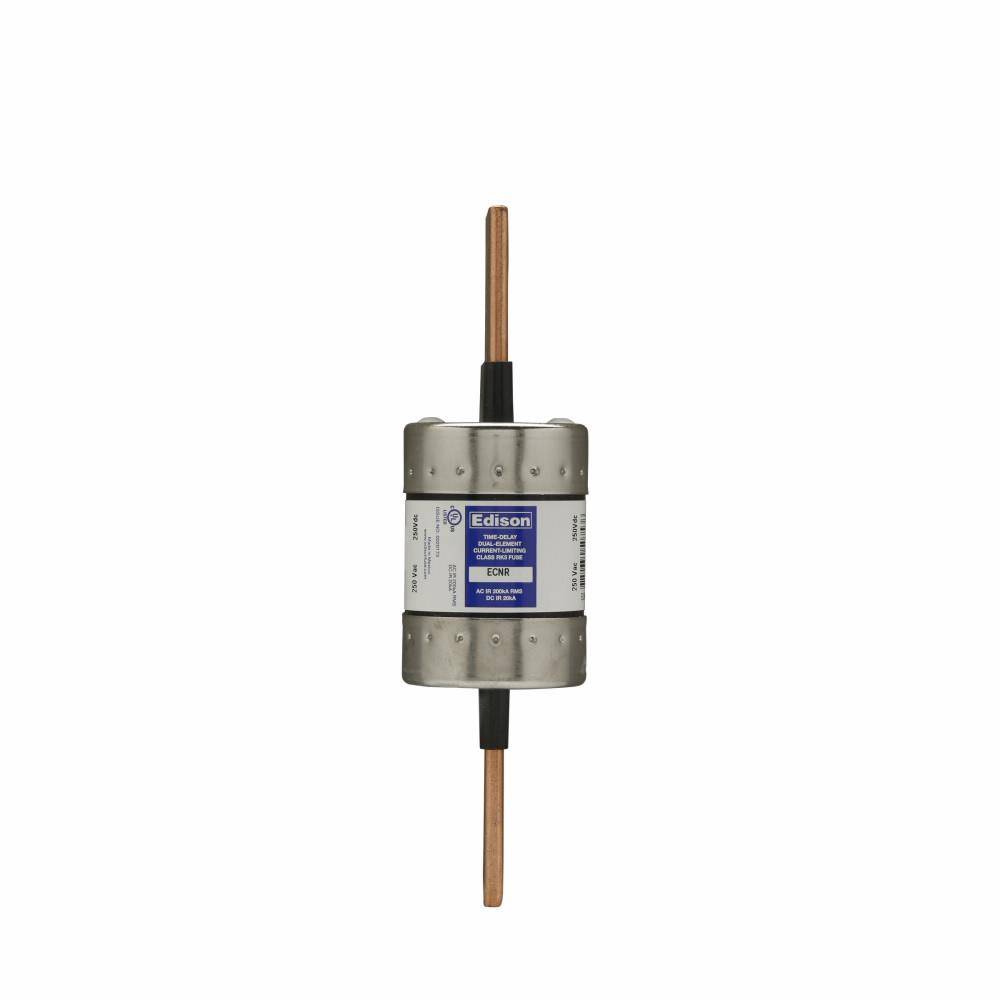

EATON Edison ECNR400 Current Limiting Time Delay Fuse, 400 A, 250 VAC/VDC, 200 kA Interrupt, Class: RK5, Cartridge Body

Short Description

Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

EATON Edison Time Delay Fuse, Current Limiting, Non-Indicating, 400 A, 250 VAC/VDC, 200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade End x Blade End Terminal, Cartridge Body, Dual Element, 2.38 in Dia x 8.63 in L Body
MFG #: ECNR400

EECO #: BUECNR400

Brand: Eaton
UPC #: 782634507536
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
AC Power Distribution System Mains, Feeders, Branch Circuits, Motors and Motor Branch Circuits, Transformers and Inductive Loads, Lighting, Heating and Non-inductive Loads Applications
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Blade End x Blade End
Voltage Rating
250
Type
Current Limiting
Series
ECNR
Amperage Rating
400
Features
  • True dual element construction allows sizing of 125% FLA for motor backup protection
  • Superior overload and cycling capabilities
  • Current limiting provides component short-circuit protection
  • Recommended upgrade - class RK1 (LENRK/LESRK) for greater degree of short circuit protection
  • Blade end connection
