Eaton

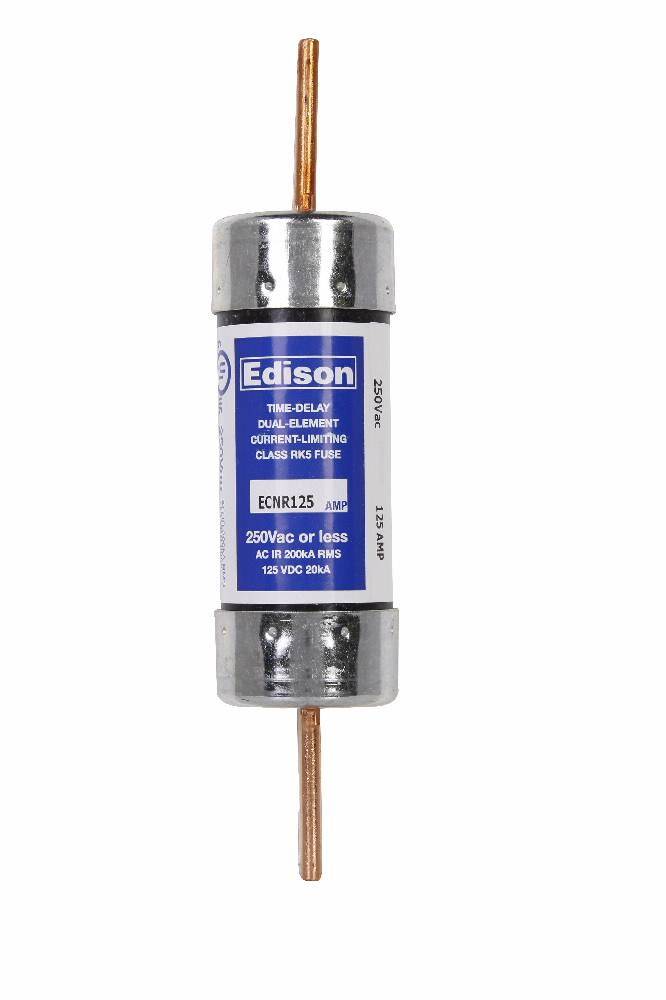

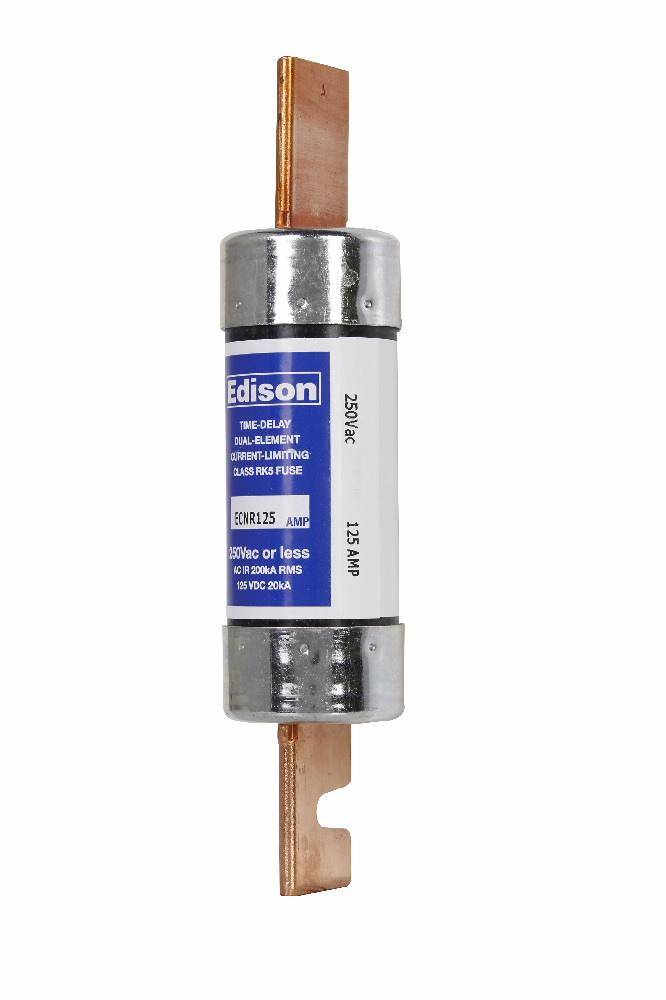

Edison ECNR125 ECNR Current Limiting Time Delay Fuse, 125 A, 250 VAC/125 VDC, 200 kAIC Interrupt, Class: RK5, Cylindrical Body

Short Description

Edisons UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

Edison, ECNR125, Fuse, Current Limiting Time Delay, Series: ECNR, Non-Indicating, 125 A, 250 VAC/125 VDC, 200 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Blade End Terminal, Cylindrical Body, Dual Element, Fiberglass, 1.56 in Dia x 7.13 in L Body
MFG #: ECNR125

EECO #: BUECNR125

Brand: Edison
UPC #: 782634507451
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
Industrial Facilities and Factories, Safety and Security Systems, AC Power Distribution System Mains, Feeders and Branch Circuits, Protection Of Motor and Motor Branch Circuits, Transformers and Other Inductive Loads, Lighting, Heating and Other Non-inductive Loads Applications
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Blade End
Voltage Rating
250 VAC/125 VDC
Type
Current Limiting Time Delay
Series
ECNR
Amperage Rating
125
Features
  • Superior overload and cycling capabilities
ECNR125_Specification_Sheet
Edison_ECNR125_Specification_Sheet
