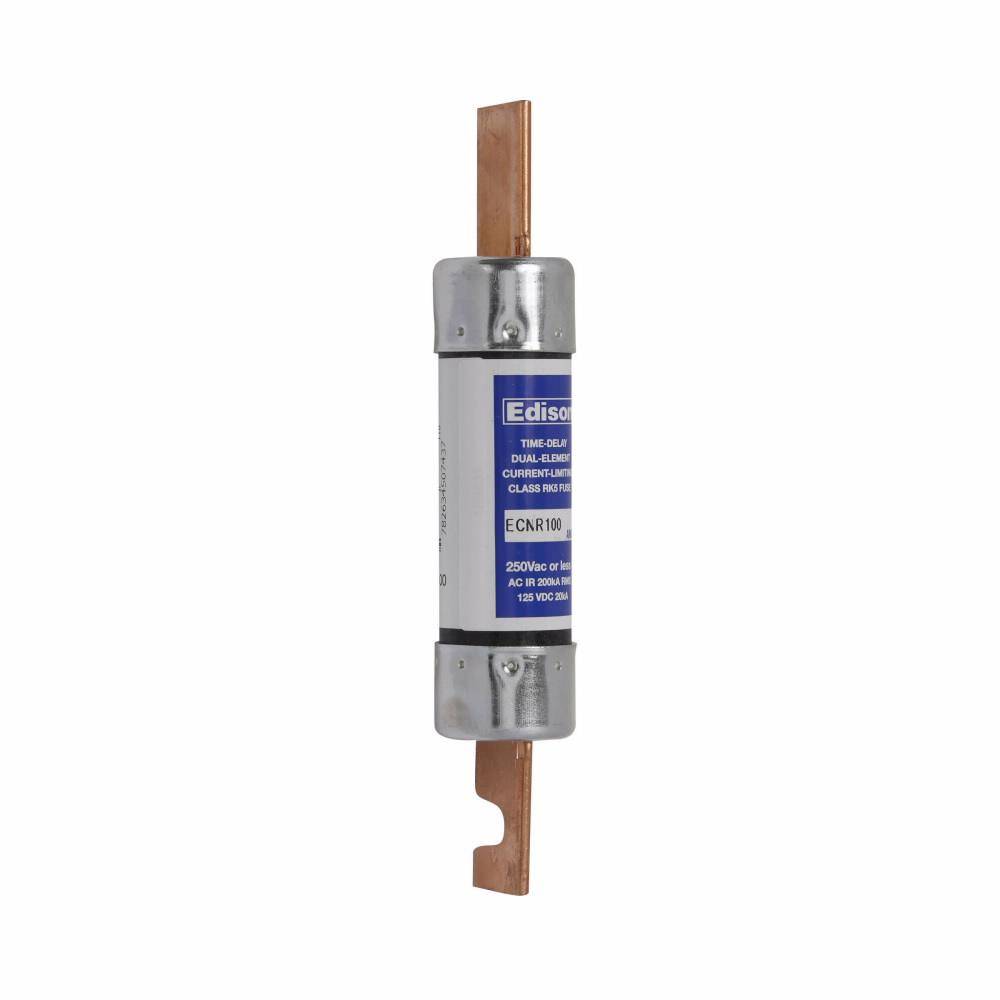

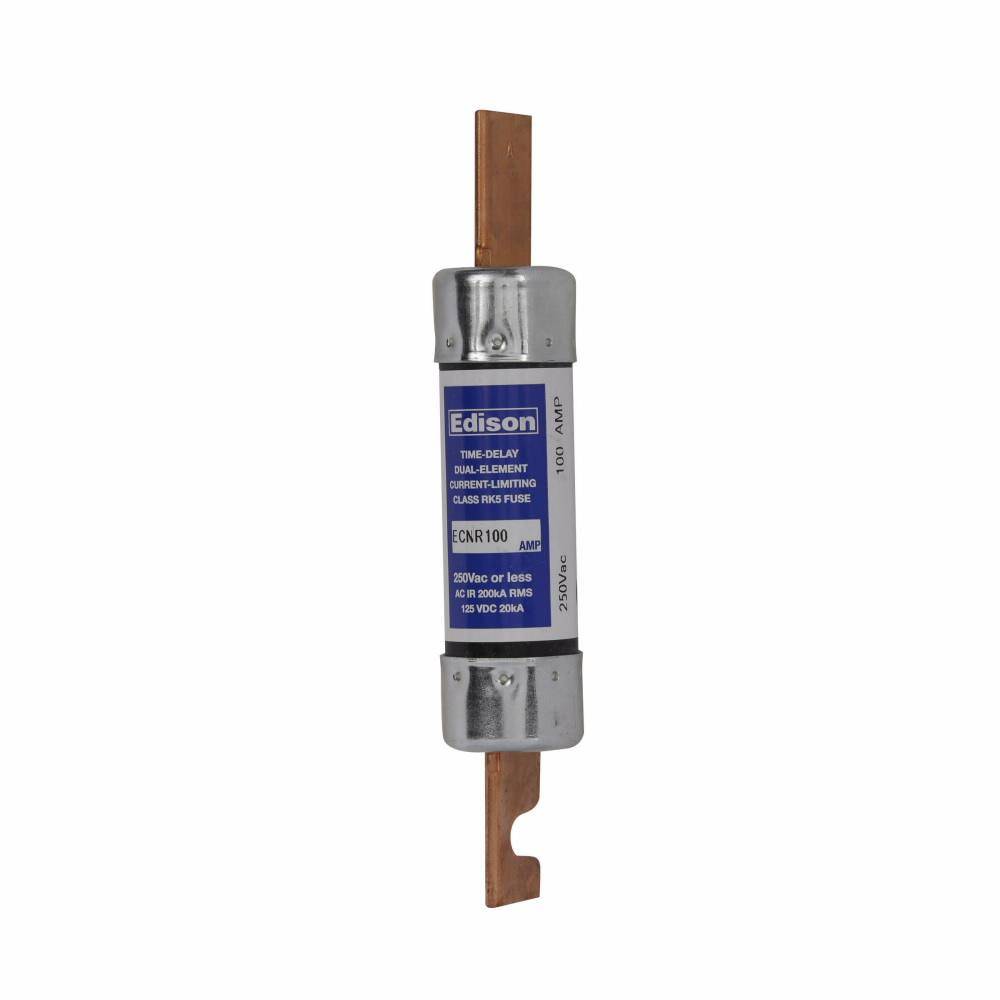

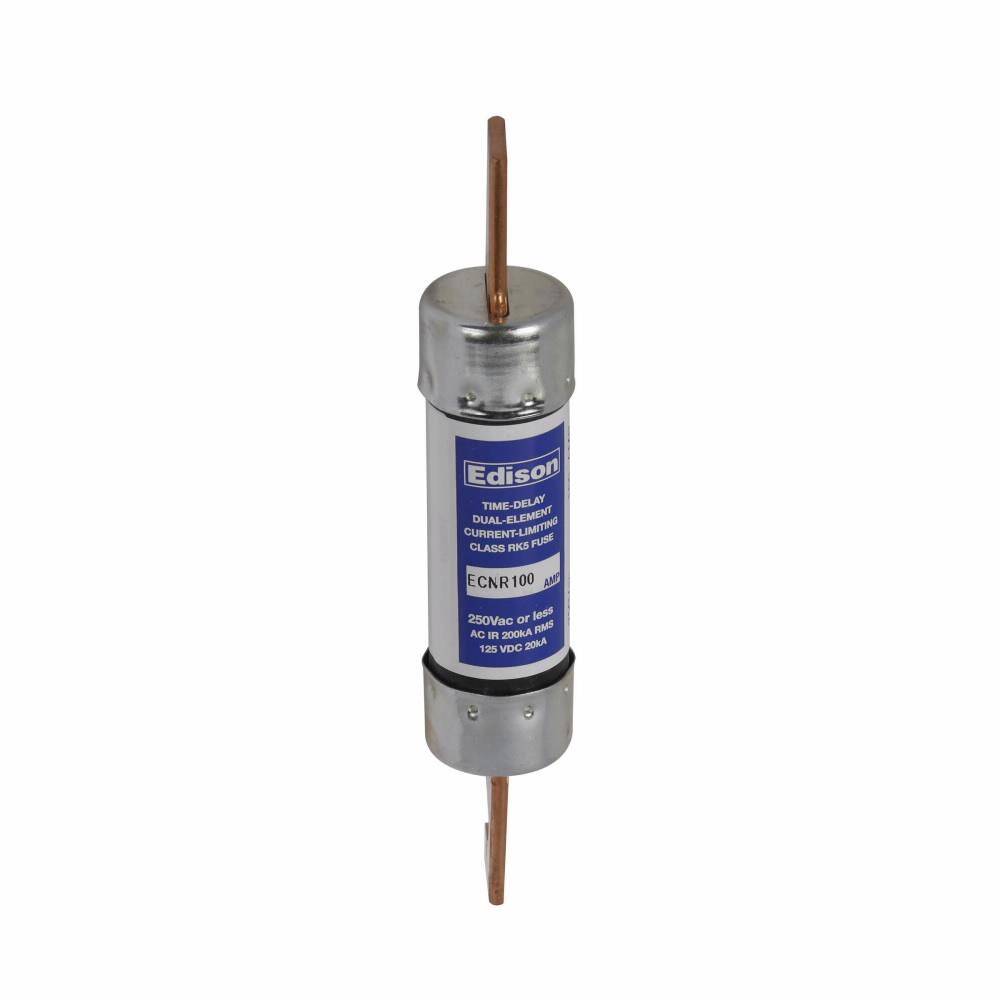

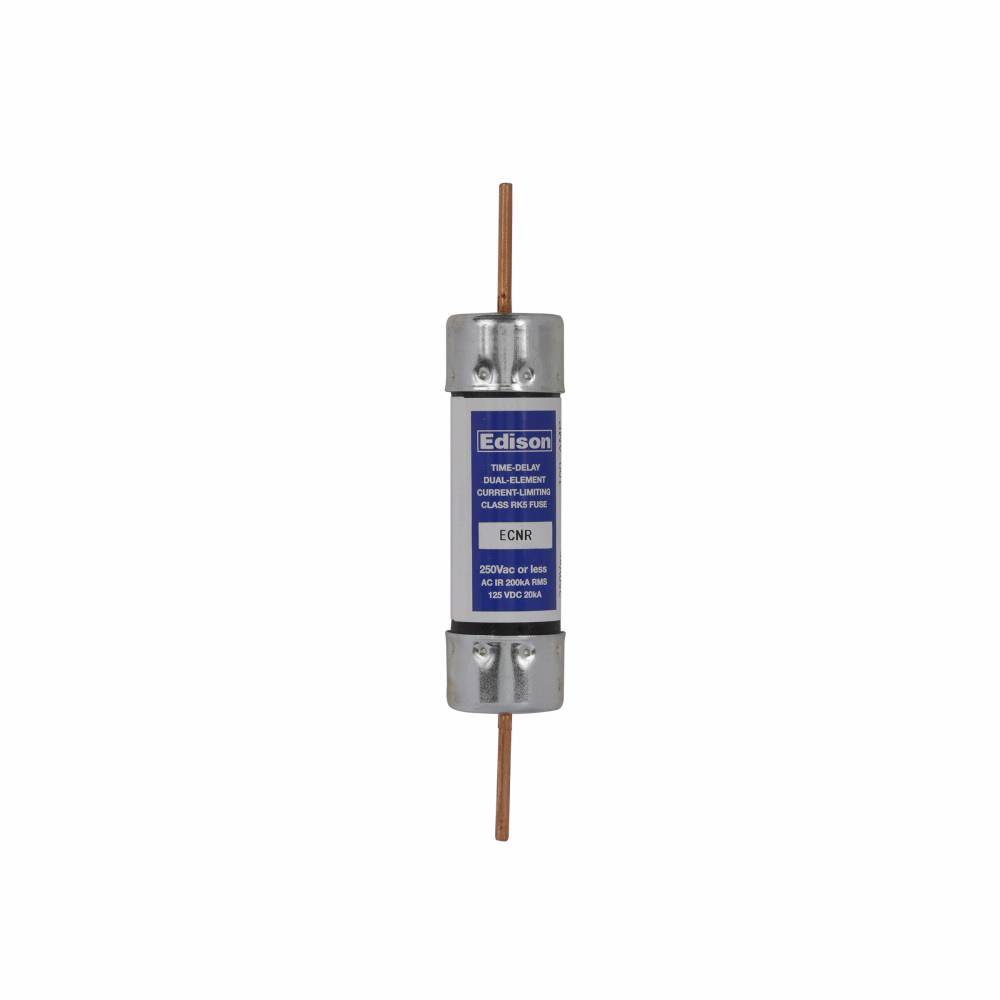

Bussmann Bullet™ ECNR100 Current Limiting Time Delay Fuse, 100 A, 250 VAC/125 VDC, 200 kAIC Interrupt, RK5 Class, Cylindrical Body

Short Description

Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

Bussmann Bullet™ Fuse, Current Limiting Time Delay, Series: ECNR, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 100 A, 250 VAC/125 VDC, 200 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Blade End Terminal, Cylindrical Body Type, Dual Element, Fiberglass, 1.06 in Dia x 5.88 in L Body Size
MFG #: ECNR100

EECO #: BUECNR100

Brand: Edison
UPC #: 782634507437
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
Industrial Facilities and Factories, Safety and Security Systems, AC Power Distribution System Mains, Feeders, Branch Circuits, Motor, Motor Branch Circuits, Lighting, Heating, Transformers and Inductive Loads Applications
Mounting Type
Holder
Response Time
10 s at 500%
Terminal Type
Blade End
Voltage Rating
250 VAC/125 VDC
Type
Current Limiting Time Delay
Series
ECNR
Amperage Rating
100
Features
  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads and 1 ph when sized properly
  • Simplifies and improves blackout prevention (selective co-ordination ratios)
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • The overload element provides protection against low level overcurrent of overloads and will hold an overload which is 5X greater than the amperage rating of the fuse for a minimum of 10 s
  • Superior overload and cycling capabilities
