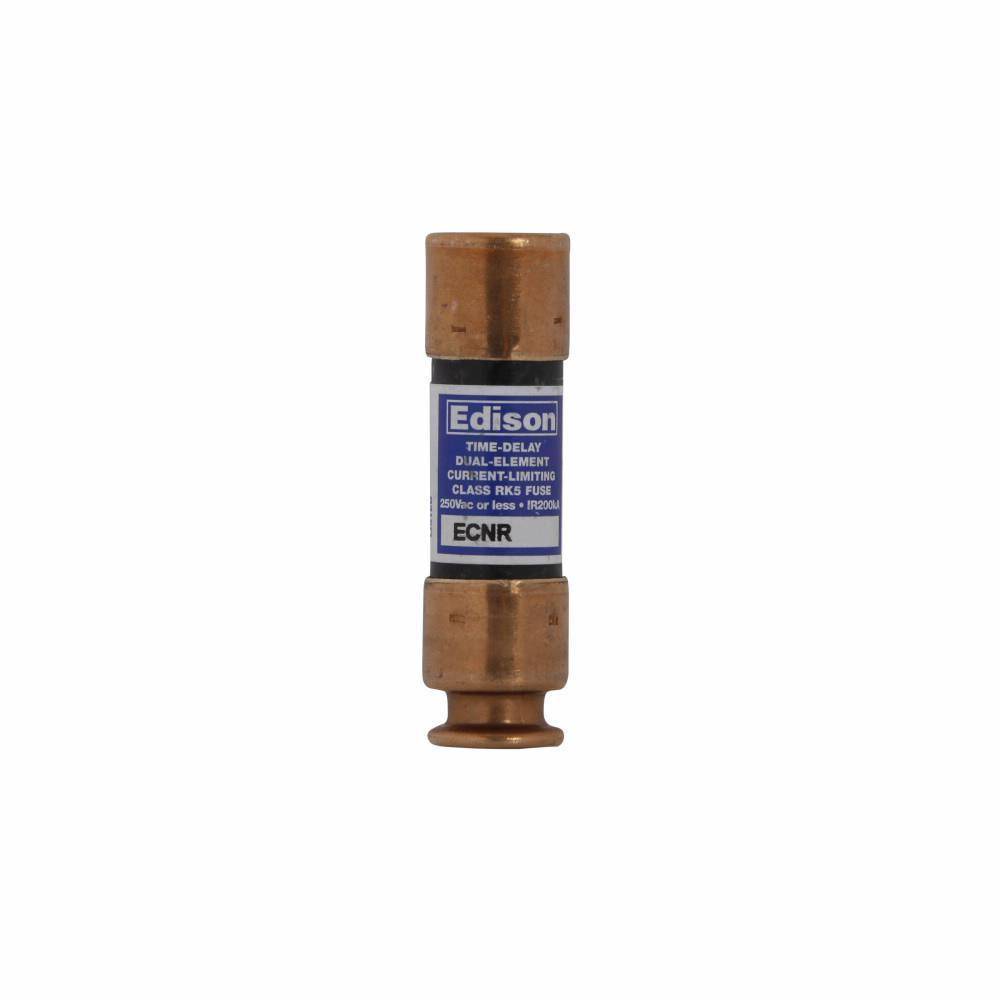

Edison ECNR.1 ECNR Current Limiting Time Delay Fuse, 0.1 A, 250 VAC/125 VDC, 200 kAIC Interrupt, Class: RK5

Short Description

Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

Edison, ECNR.1, Fuse, Current Limiting Time Delay, Series: ECNR, Non-Indicating, 0.1 A, 250 VAC/125 VDC, 200 kAIC Interrupt, Class: RK5, 8 s at 500% Response, Ferrule Terminal, Clip Mounting, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body
MFG #: ECNR.1

EECO #: BUECNR.1

Brand: Edison
UPC #: 782634507000
Attributes
Features
Documents
Product Information
Attributes
Class
RK5
UNSPSC
39121606
Material
Fiberglass
Application
Industrial Facilities and Factories, Safety and Security Systems and Lighting, Heating and Other Non-Inductive Loads General Purpose Applications
Mounting Type
Clip
Response Time
8 s at 500%
Terminal Type
Ferrule
Voltage Rating
250 VAC/125 VDC
Type
Current Limiting Time Delay
Series
ECNR
Warranty
12 months
Amperage Rating
0.1
Features
  • True dual-element construction allows sizing of 125% FLA for motor backup protection
  • Superior overload and cycling capabilities
  • Current limiting provides component short-circuit protection
  • Recommended for AC power distribution system mains, feeders and branch circuits
  • Protection of motors and motor branch circuits
  • Protection of transformers and other inductive loads
