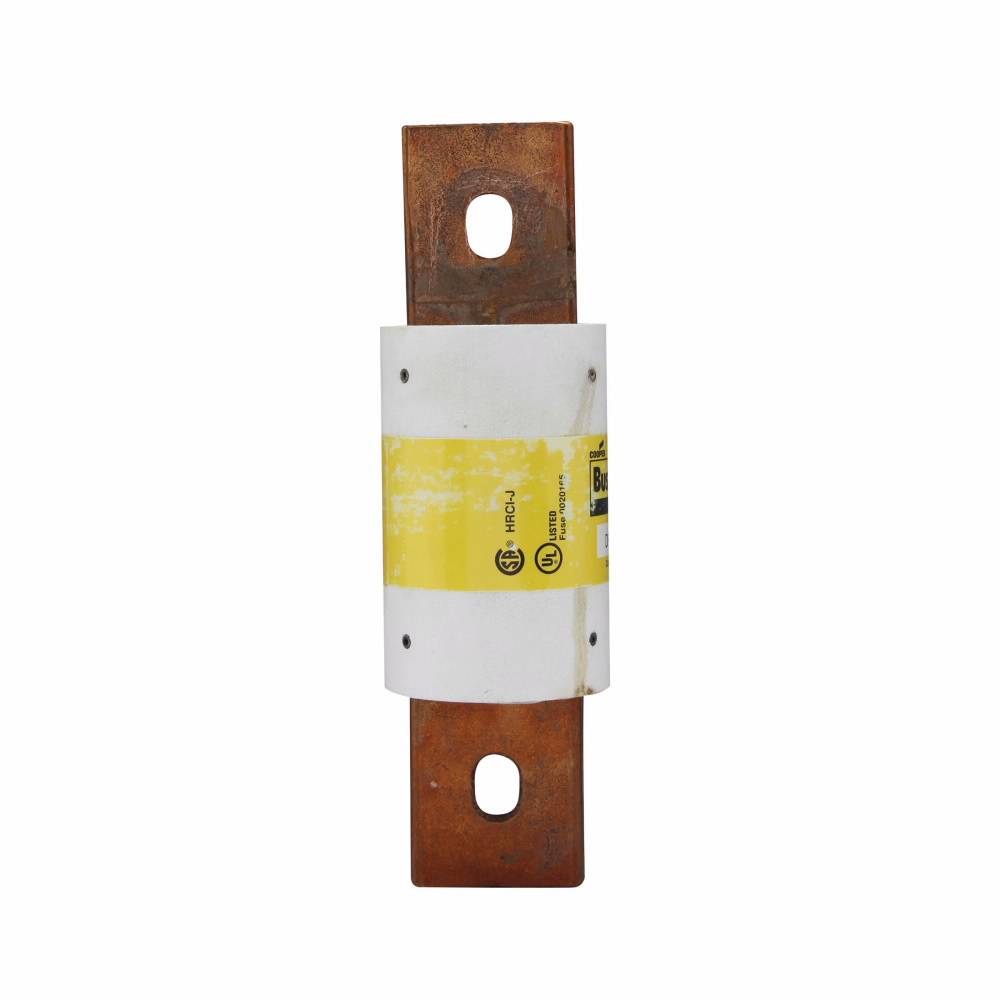

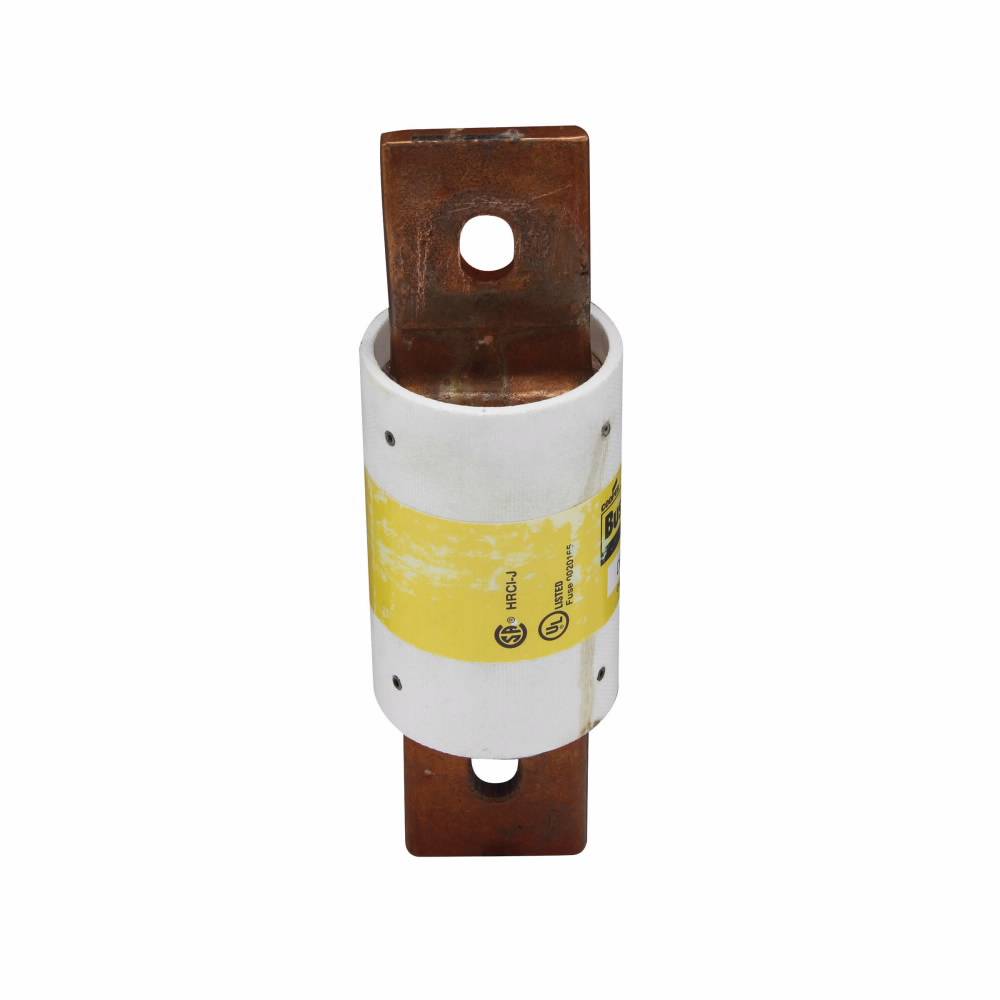

Bussmann DFJ-225 Current Limiting High Speed Drive Fuse, 225 A, 600 VAC/450 VDC, 200/100 kAIC Interrupt, J Class, Cartridge Body

Short Description

The Bussmann series DFJ drive fuse is a high speed, current limiting fuse that provides maximum protection for AC and DC drives and controllers and meet NEC branch circuit protection requirements. The drive fuse has the lowest I2t of any branch circuit fuse to protect power semiconductor devices that utilize diodes, GTOs, SCRs and SSRs.

Bussmann High Speed Drive Fuse, Current Limiting, Series: DFJ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 225 A, 600 VAC/450 VDC, 200/100 kAIC Interrupt, Class: J, Blade End Terminal, Stud Mount, Cartridge Body Type, Silver Element, Melamine, 2.11 in Dia x 7.13 in L Body Size
MFG #: DFJ-225

EECO #: BUDFJ225

Brand: Bussmann
UPC #: 051712653473
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121626
Material
Melamine
Application
Industrial Facilities and Factories, Safety and Security Systems, AC/DC Drives and Equipment Power Semiconductor Devices Protection Applications
Mounting Type
Stud
Terminal Type
Blade End
Voltage Rating
600 VAC/450 VDC
Type
Current Limiting
Series
DFJ
Amperage Rating
225
Features
  • Easily coordinated with existing and new variable speed drives and electric controllers
  • Standard class J dimensions allow using readily available fuse blocks, holders and switches
  • Allows the lowest let through energy of any branch circuit overcurrent protective device
  • Silver fuse element
