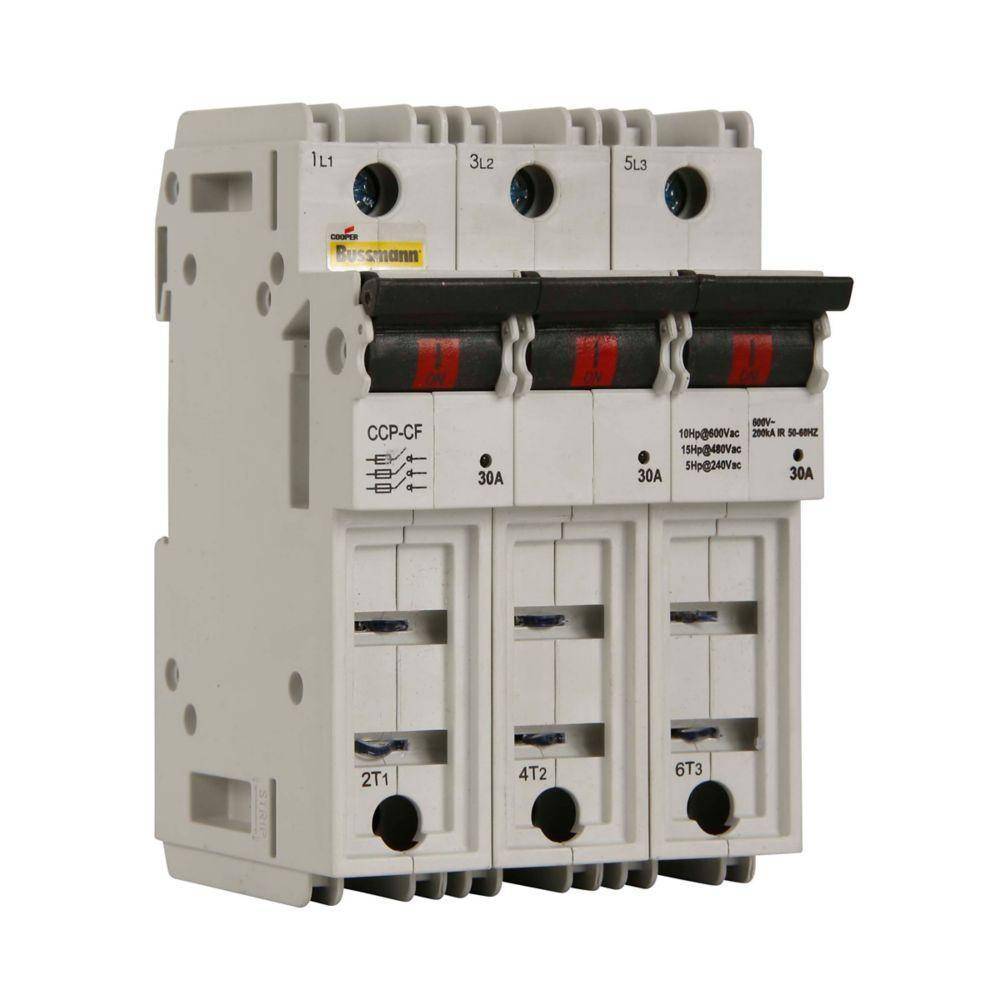

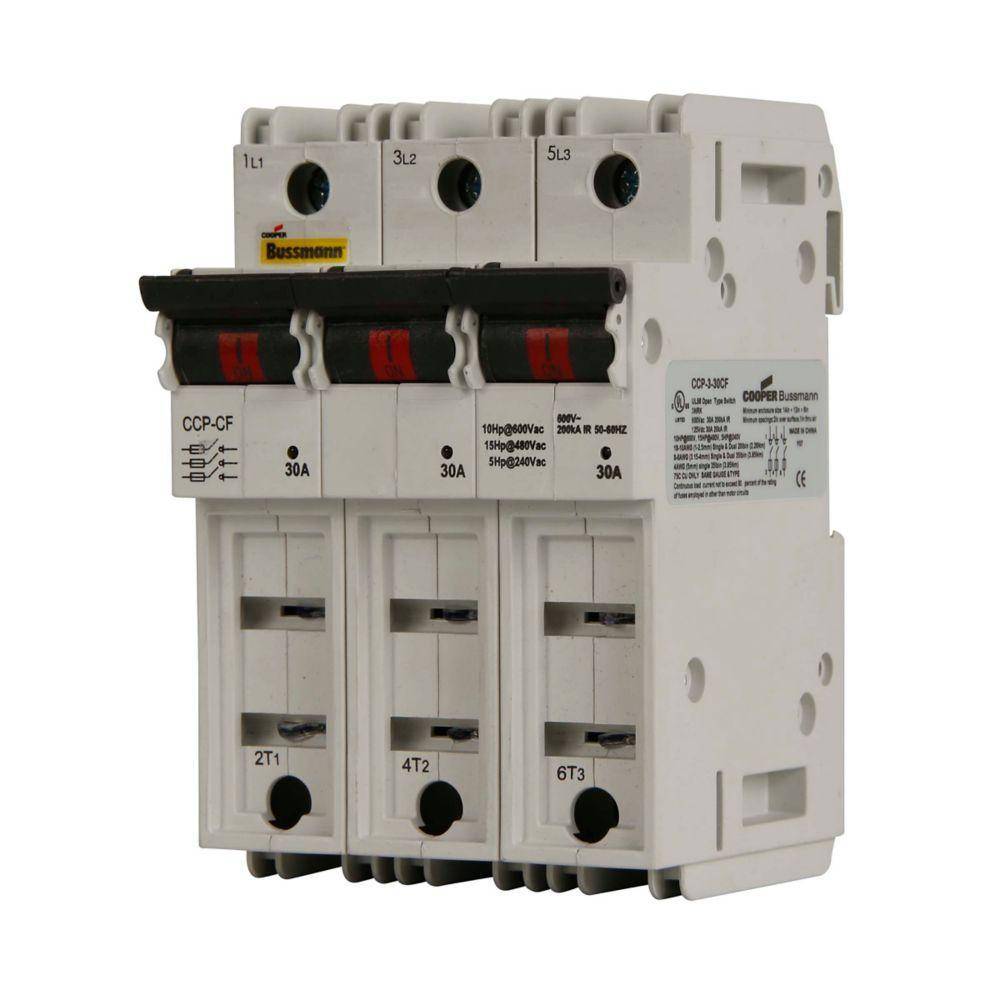

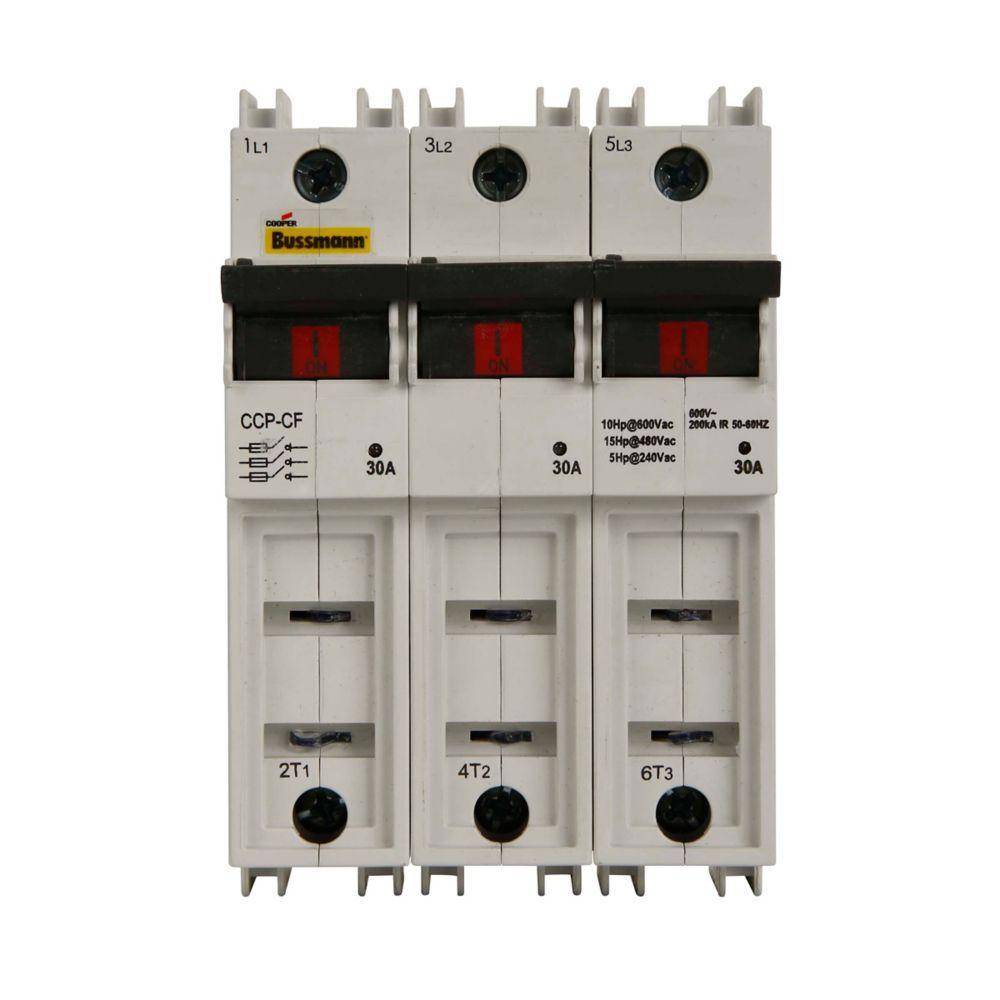

Bussmann CUBEFuse® CCP-3-30CF Compact Circuit Protector, 600 VAC, 30 A, 3 Poles, Class CF Fuse, 18 to 6 AWG Wire

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

The revolutionary Cooper Bussmann CCP is 1/3 the footprint of a molded case circuit breaker. The level of protection provided by the CCP is up to three times the Short Circuit Current Rating (SCCR) at full voltage than a molded case circuit breaker while providing disconnecting means.

Bussmann CUBEFuse® Compact Circuit Protector, Series: CCP, 600 VAC, 30 A, 3 Pole, Class CF Fuse, 18 to 6 AWG Wire, Solid/Stranded Copper Wire, DIN Rail Mounting, -20 to 75 deg C Operating, 3 in Width, 4-1/2 in Height, 3 in Depth
MFG #: CCP-3-30CF

EECO #: BUCCP330CF

Brand: Bussmann
UPC #: 051712201483
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122233
Wire Size
18 to 6
Application
For branch circuit disconnect and branch circuit protection
Mounting Type
DIN Rail
Voltage Rating
600
Operating Temperature
-20 to 75
Depth
3
Width
3
Height
4-1/2
Series
CCP
Operator
Padlockable Handle
Fuse Type
Class CF
Wire Type
Solid/Stranded Copper
Amperage Rating
30
Features
  • Extremely compact design at 25.4 mm (1 in) wide per pole
  • High short circuit current ratings up to 200 kA
  • Disconnect rated to provide means for load isolation
  • Full voltage rated 600 VAC
  • Uses finger-safe class CF CUBEFuse with class J performance
  • Additional open fuse indication can be provided by the CUBEFuse
  • Open fuse indication
  • IP20 finger safe construction with 10 AWG wire or larger
  • Built-in switch interlock capability prohibits removing the fuse under load
  • Padlockable handle for lock-out/tag-out procedures
  • Box lug connection
  • 35 mm DIN rail mounting
Bussmann_CCP_3_30CF_Specification_Sheet
Qty Unit price
Ea
1 $116.53

Slqt
1 $116.53

Stpk
1 $233.06

Unit
1 $116.53
