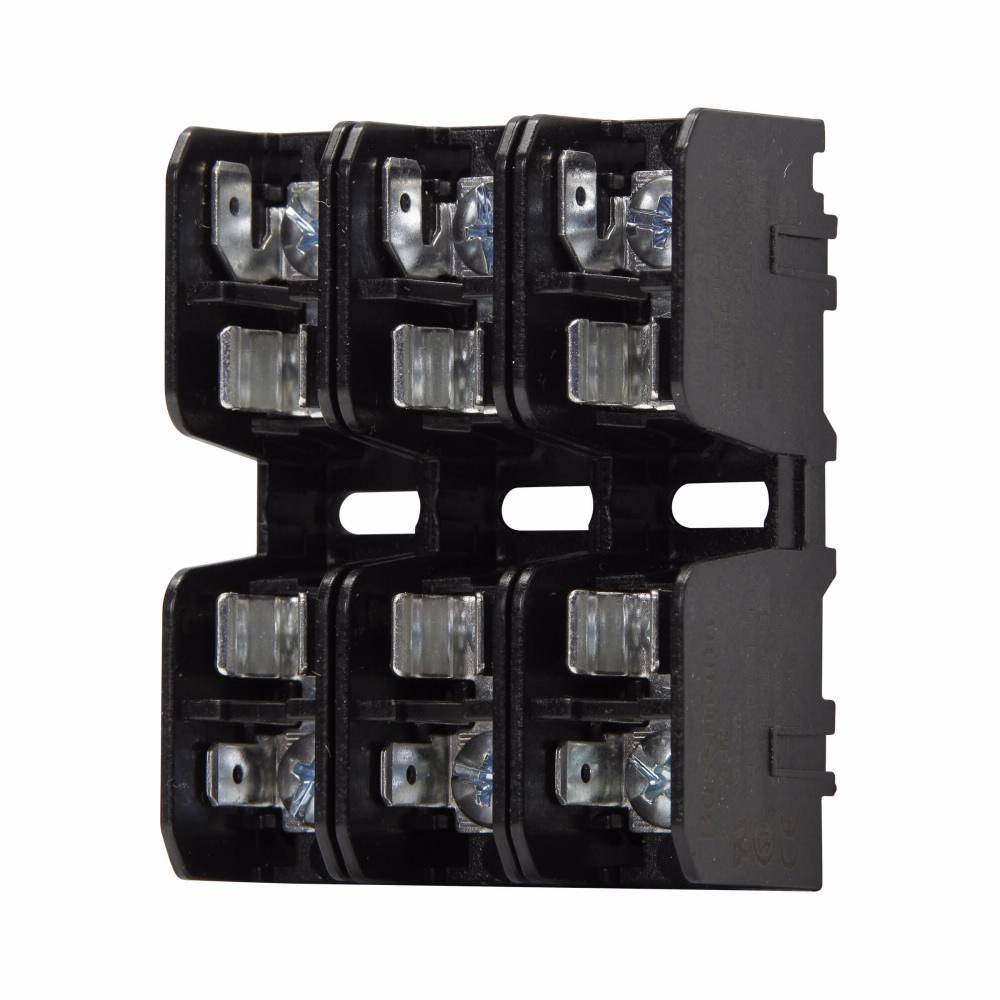

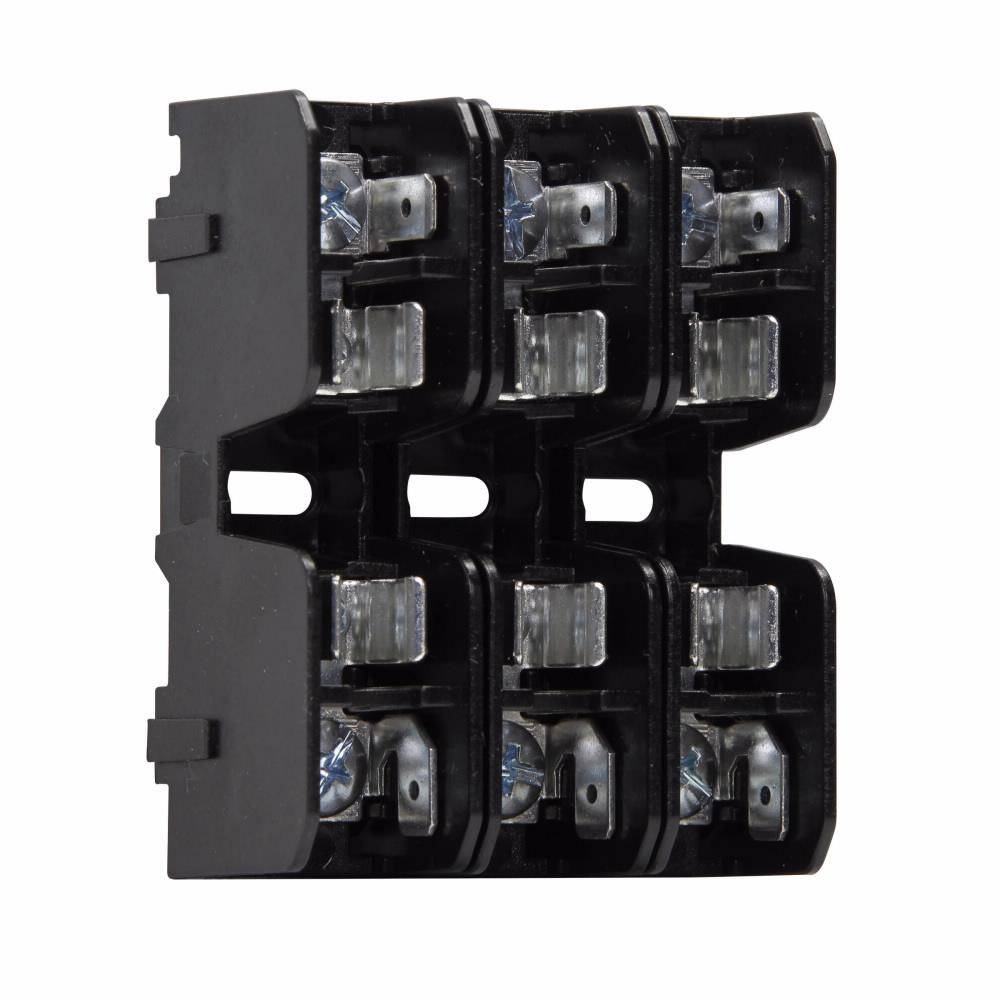

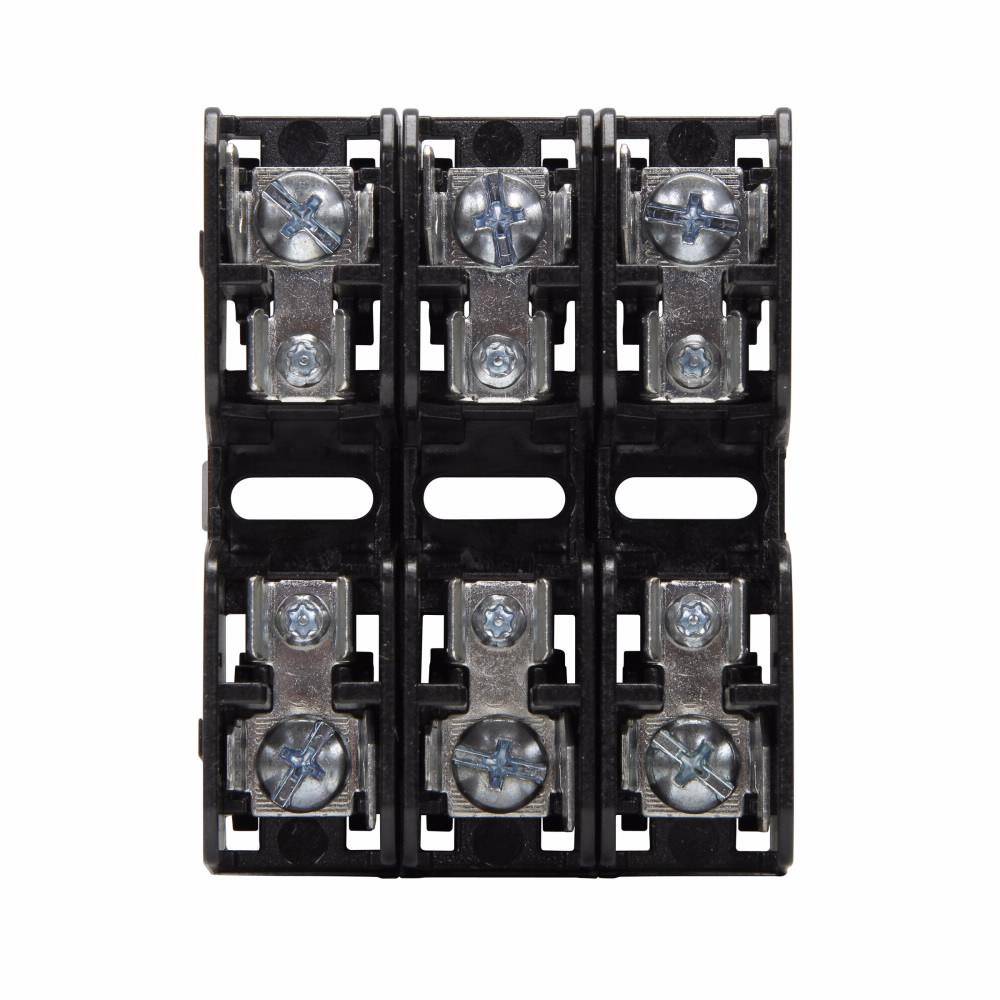

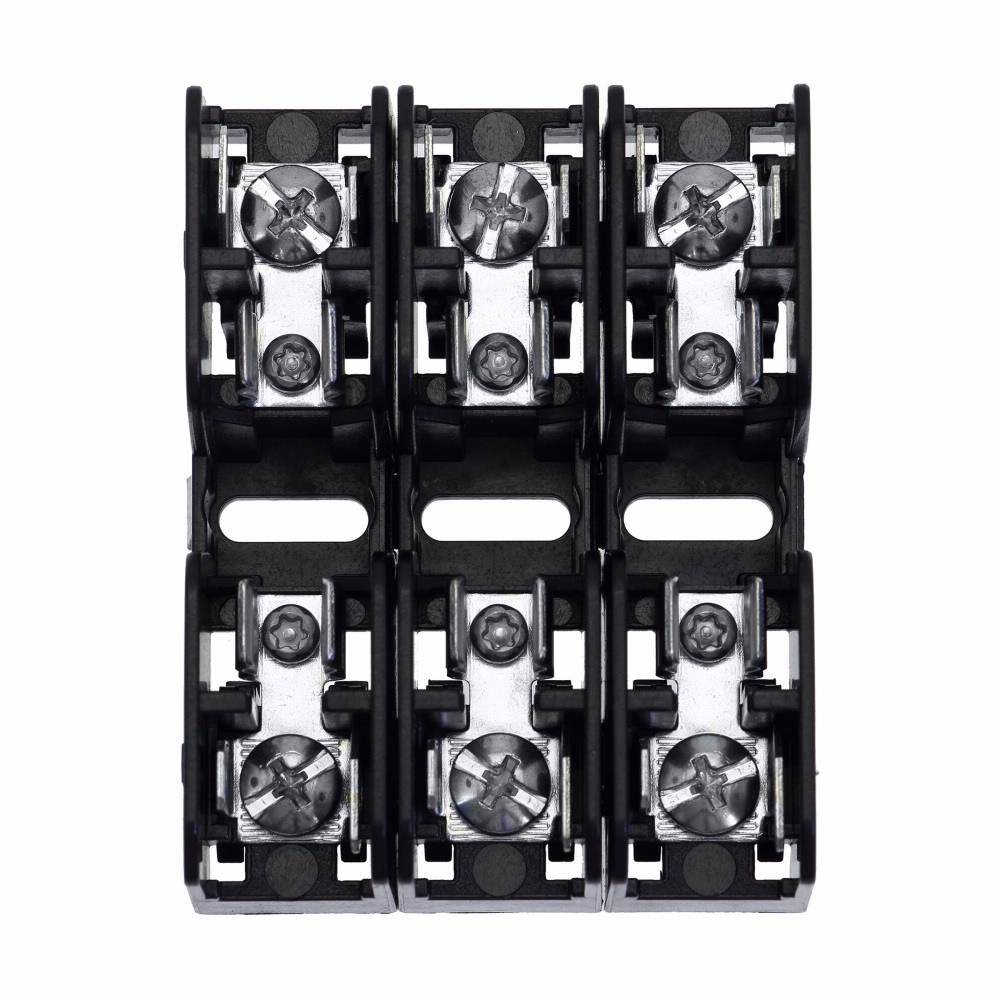

Bussmann BMM603-3SQ Modular Fuse Block, 600 V, 30 A, 18 to 10 AWG Wire, 3 Poles

Short Description

These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

Bussmann Fuse Block, Modular, Series: BMM, 600 V, 30 A, 3 Pole, Class: CC/Midget, 1/4 in Quick-Connect/Screw, 18 to 10 AWG Wire, DIN Rail/Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses, Thermoplastic, 3 in L x 2.4 in W x 1.3 in H
MFG #: BMM603-3SQ

EECO #: BUBMM6033SQ

Brand: Bussmann
UPC #: 051712486477
Attributes
Features
Documents
Product Information
Attributes
Class
CC/Midget
UNSPSC
39121624
Material
Thermoplastic
Wire Size
18 to 10
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail/Panel
Voltage Rating
600
Connection Type
1/4 in Quick-Connect/Screw
Temperature Rating
-40 to 120
Type
Modular
Series
BMM
Dimensions
3 in L x 2.4 in W x 1.3 in H
Amperage Rating
30
Suitable For Use With
BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses
Features
  • Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Compact footprint consumes minimal panel space
  • Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
