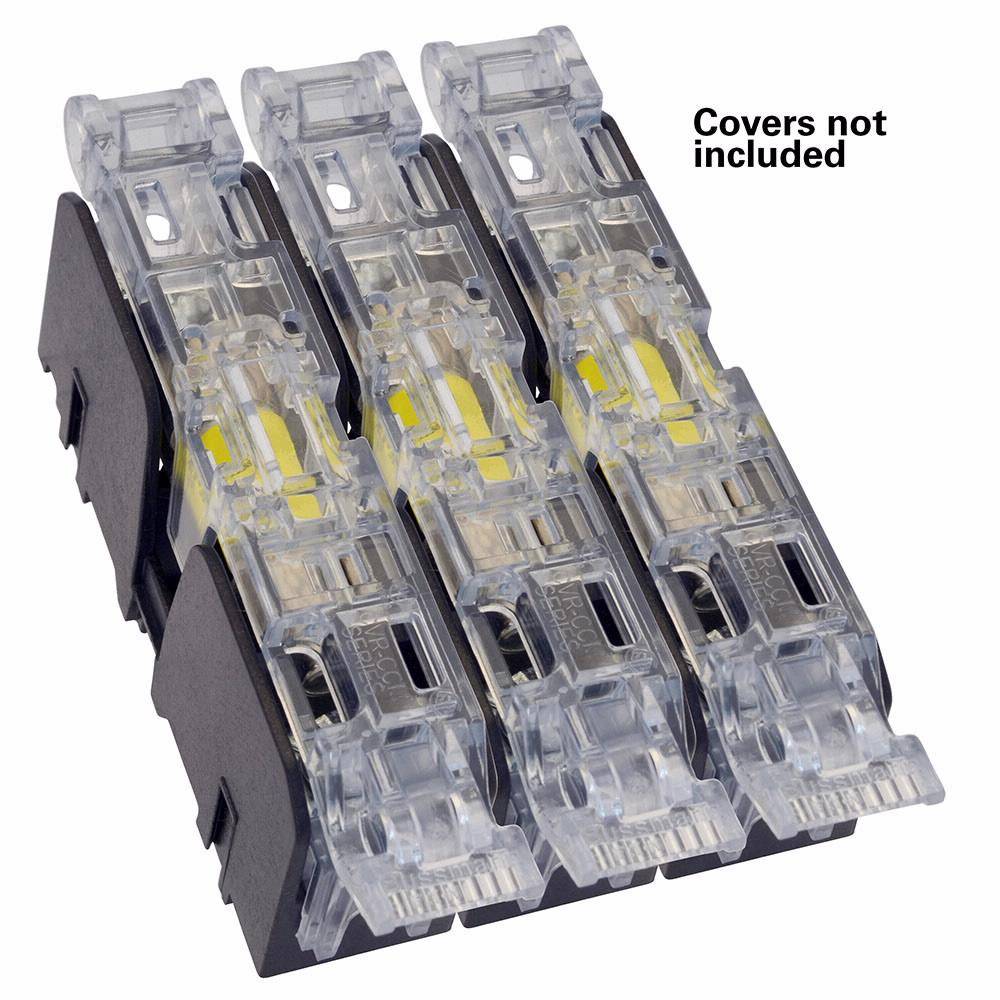

Bussmann BMM603-3S Supplemental Modular Ferrule Fuse Block, 600 V, 30 A, 18 to 11 AWG Wire, 3 Poles
Share Share Print Print
Eaton

Bussmann BMM603-3S Supplemental Modular Ferrule Fuse Block, 600 V, 30 A, 18 to 11 AWG Wire, 3 Poles

Short Description

Enhance your electrical systems with the Bussmann BMM603-3S Supplemental Modular Ferrule Fuse Block. Designed for reliability and efficiency, this 600 V, 30 A fuse block accommodates a range of wire sizes and is perfect for industrial applications.Enhanced by AI

Bussmann Fuse Block, Supplemental Modular Ferrule, Series: BMM, 600 V, 30 A, 3 Pole, Class: Midget, Phil-Slot Screw Connection, 18 to 11 AWG Wire, DIN Rail/Panel Mounting, 1-1/2 in Fuse Length, 13/32 in Diameter Fuse, -40 to 120 deg F, For Use With: BAF/KTK/KLM/FNM/FNQ Fast Acting and Class aM and gG/gL IEC Industrial Fuses, Thermoplastic, 2.4 in L x 2.4 in W x 3.7 in H Dimensions

MFG #: BMM603-3S

EECO #: BUBMM6033S

Brand: Bussmann
UPC #: 051712694384
Attributes
Features
Documents
Product Information
Attributes
Class
Midget
UNSPSC
39121624
Material
Thermoplastic
Wire Size
18 to 11
Application
Electrical Assemblies, Panels and EOEMs
Mounting Type
DIN Rail/Panel
Voltage Rating
600
Connection Type
Phil-Slot Screw
Temperature Rating
-40 to 120
Type
Supplemental Modular Ferrule
Series
BMM
Dimensions
2.4 in L x 2.4 in W x 3.7 in H
Amperage Rating
30
Suitable For Use With
BAF/KTK/KLM/FNM/FNQ Fast Acting and Class aM and gG/gL IEC Industrial Fuses
Features
  • Supplemental fuse holders, clips and blocks to meet any type of application that may be out there
  • Blocks are fully modular with a snap-together design that provides tool-less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
  • DIN rail and panel mount versatility allows one product to be used for multiple applications, lowering inventory cost
  • Compact footprint consumes minimal panel space
  • Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
BMM603_3S_Specification_Sheet
