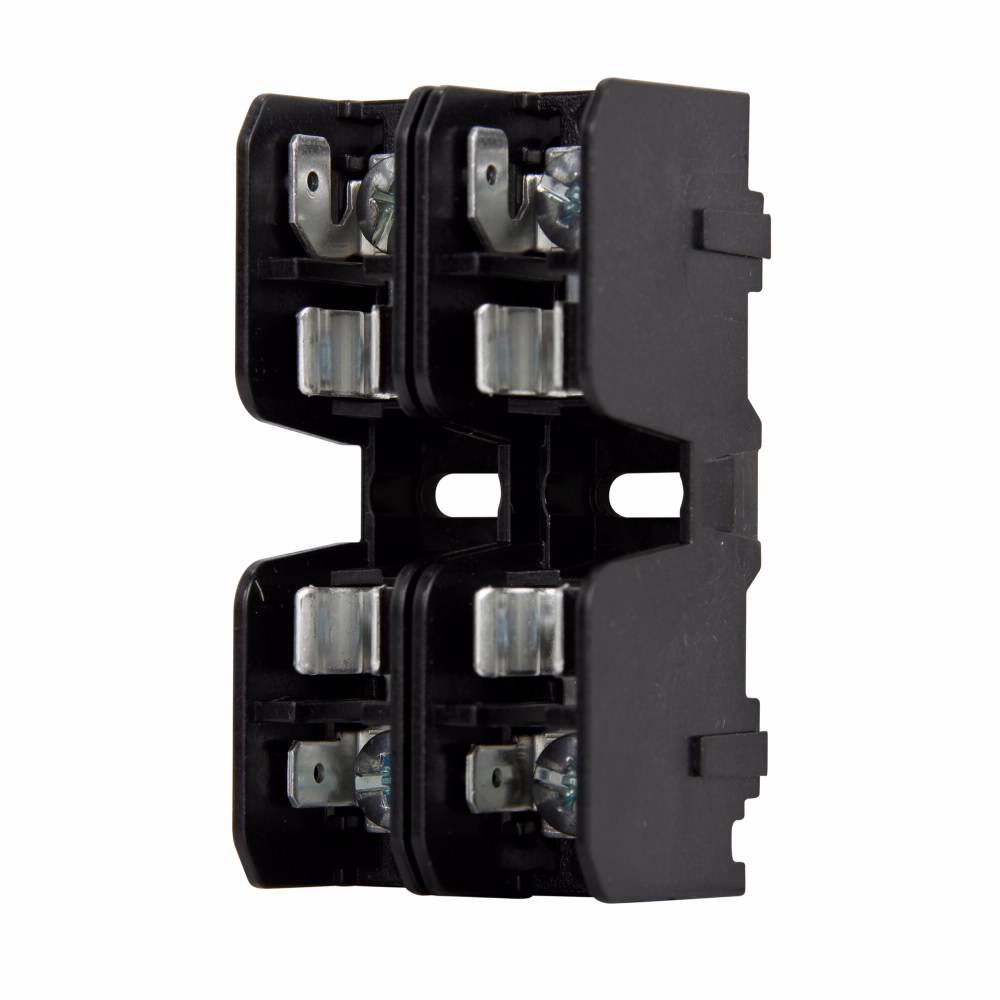

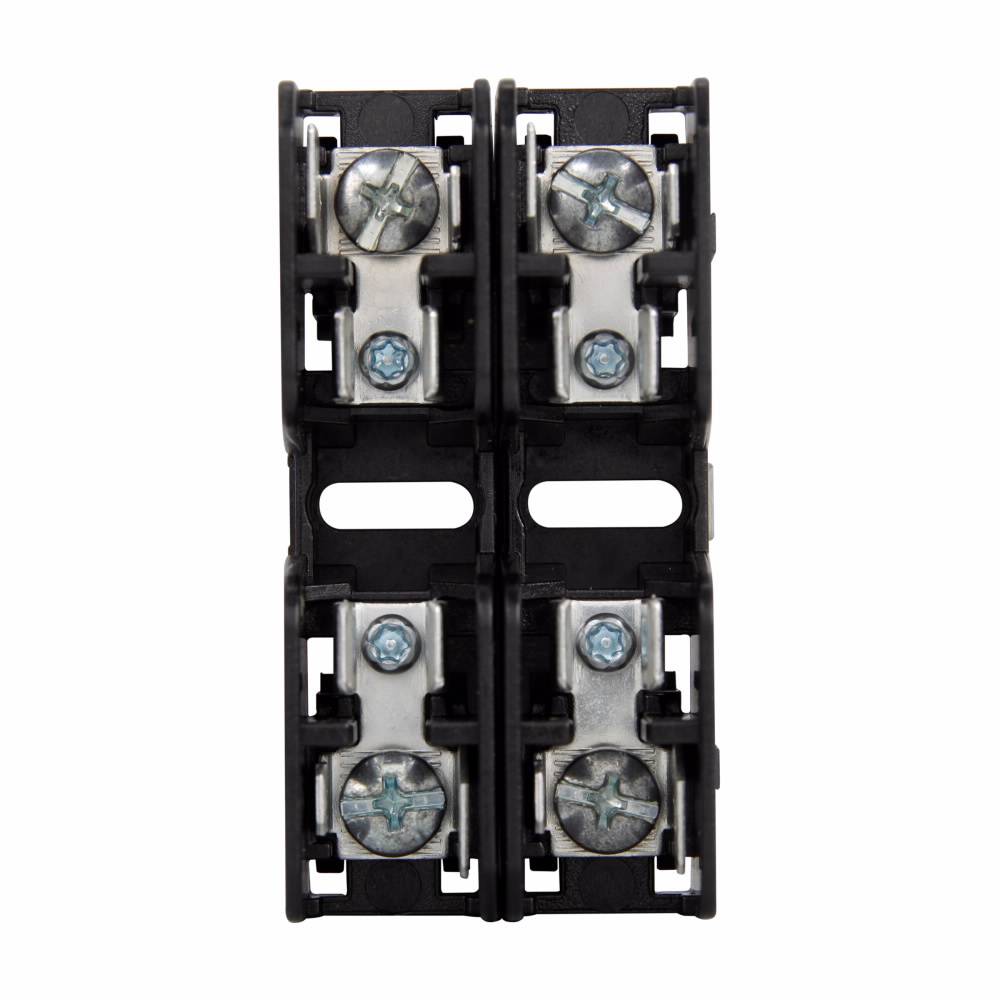

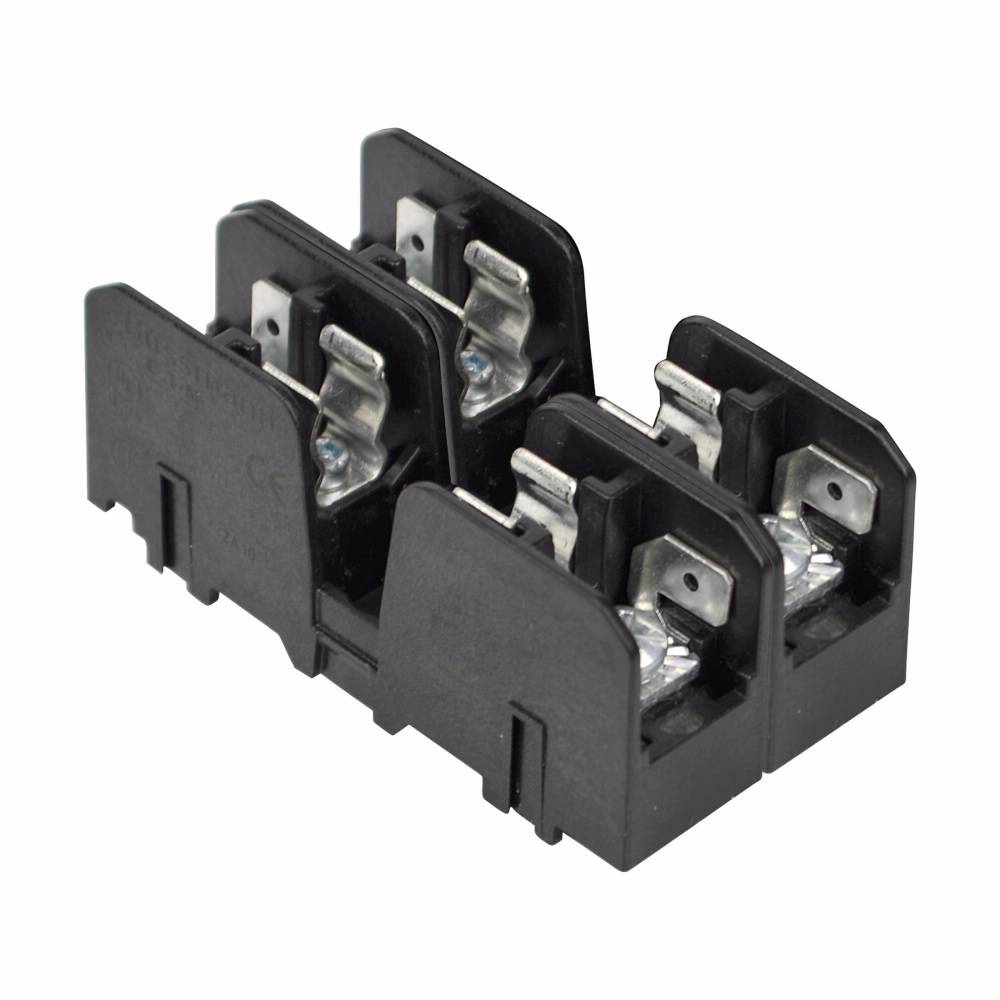

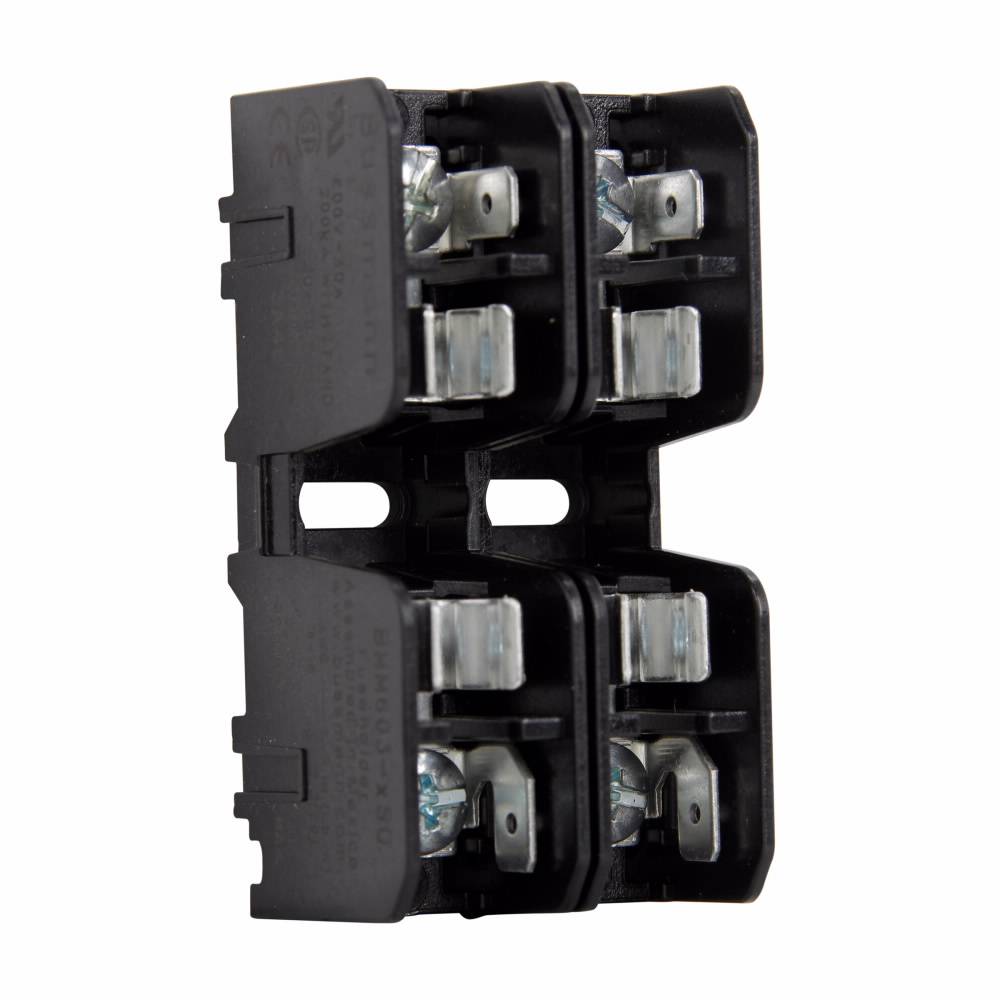

EATON Edison Bussmann BMM603-2SQ Modular Non-Indicating Fuse Block, 600 VAC, 30 A, 2 Poles

Short Description

These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

EATON Edison Bussmann Fuse Block, Modular Non-Indicating, Series: BMM, 600 VAC, 30 A, 2 Pole, Class: CC, Quick-Connect/Screw Connection, DIN Rail/Panel Mounting, 1-1/2 in Fuse Length, 13/32 in Diameter Fuse, -40 to 120 deg C, For Use With: Midget Fuse, Thermoplastic, 3.7 in H x 1.6 in W Dimensions

MFG #: BMM603-2SQ

EECO #: BUBMM6032SQ

Brand: Eaton
UPC #: 051712486460
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121624
Approval
UL, CSA, CE
Material
Thermoplastic
Wire Size
18 to 10
Application
Electrical Assemblies, Panels and EOEMs Applications
Body Material
Thermoplastic
Mounting Type
DIN Rail/Panel
Terminal Type
Screw with Quick Connect
Voltage Rating
600
Connection Type
Quick-Connect/Screw
Number Of Poles
2
Temperature Rating
-40 to 120
Fuse Voltage Rating
600 Volt AC/DC
Type
Modular Non-Indicating
Series
BMM
Clip Type
Tin Plated Bimetallic Copper
Fuse Type
Midget
Dimensions
3.7 in H x 1.6 in W
Amperage Rating
30
Fuse Current Rating
30 Amp
Suitable For Use With
Midget Fuse
Features
  • Blocks are fully modular with a snap together design that provides toolless assembly of multiple pole blocks at point of use to reduce inventory and save assembly time and labor
  • DIN-rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Compact footprint consumes minimal panel space
  • Cover enhances safety with IP20 finger safe protection, lockout/tagout capability and open circuit indication
  • Easy circuit identification with available universal marker labels for fuse block covers
  • Tin plated bi-metallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
  • Terminal options to meet application needs including 1/4 in spade quick-connect terminals for faster panel assembly
  • Patented rejection feature on class CC fuse blocks reduces temperature rise by up to 30%
Edison_BMM603_2SQ_Datasheet
Eaton_Bussmann_00093_8_6_8_7_CAT
Eaton_Bussmann_00101_1_3_DATA
Eaton_Bussmann_00130_1_2_CAD
Qty Unit price
Ea
1 $10.16

Slqt
1 $10.16

Stpk
1 $10.16

Unit
1 $10.16
