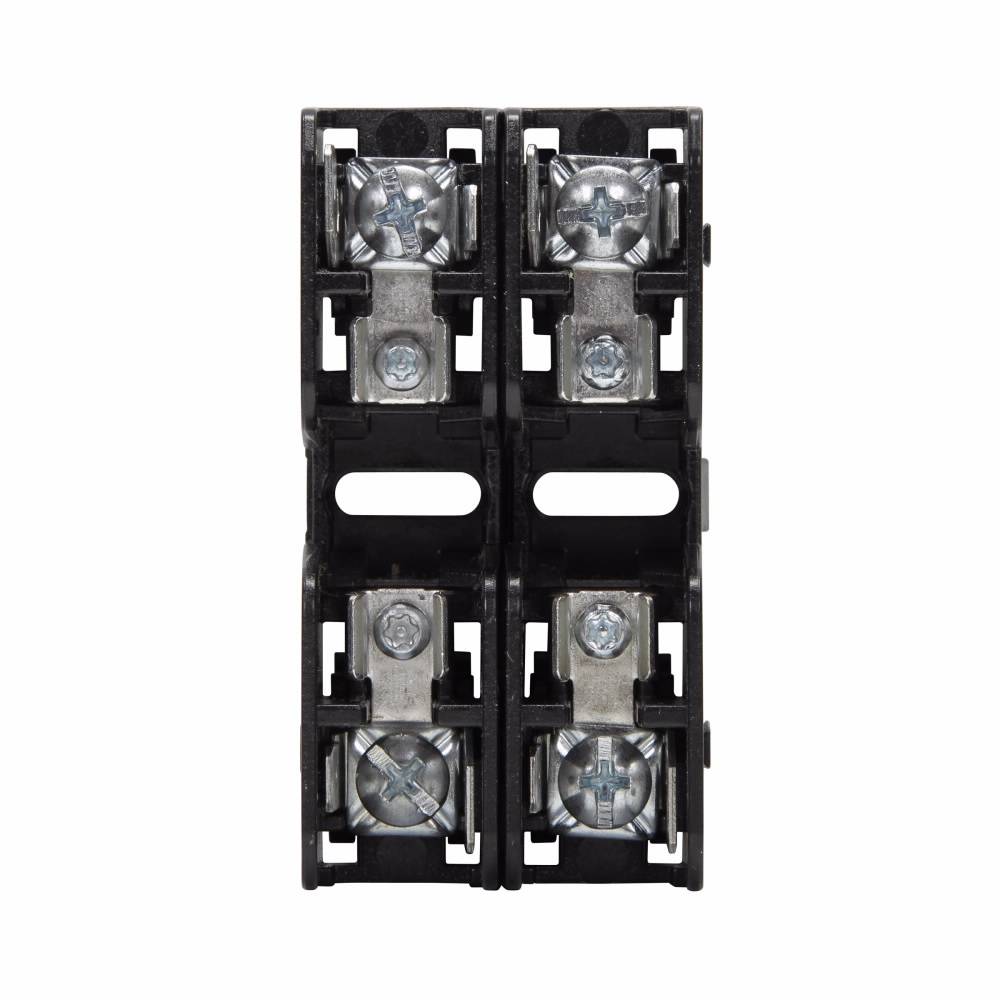

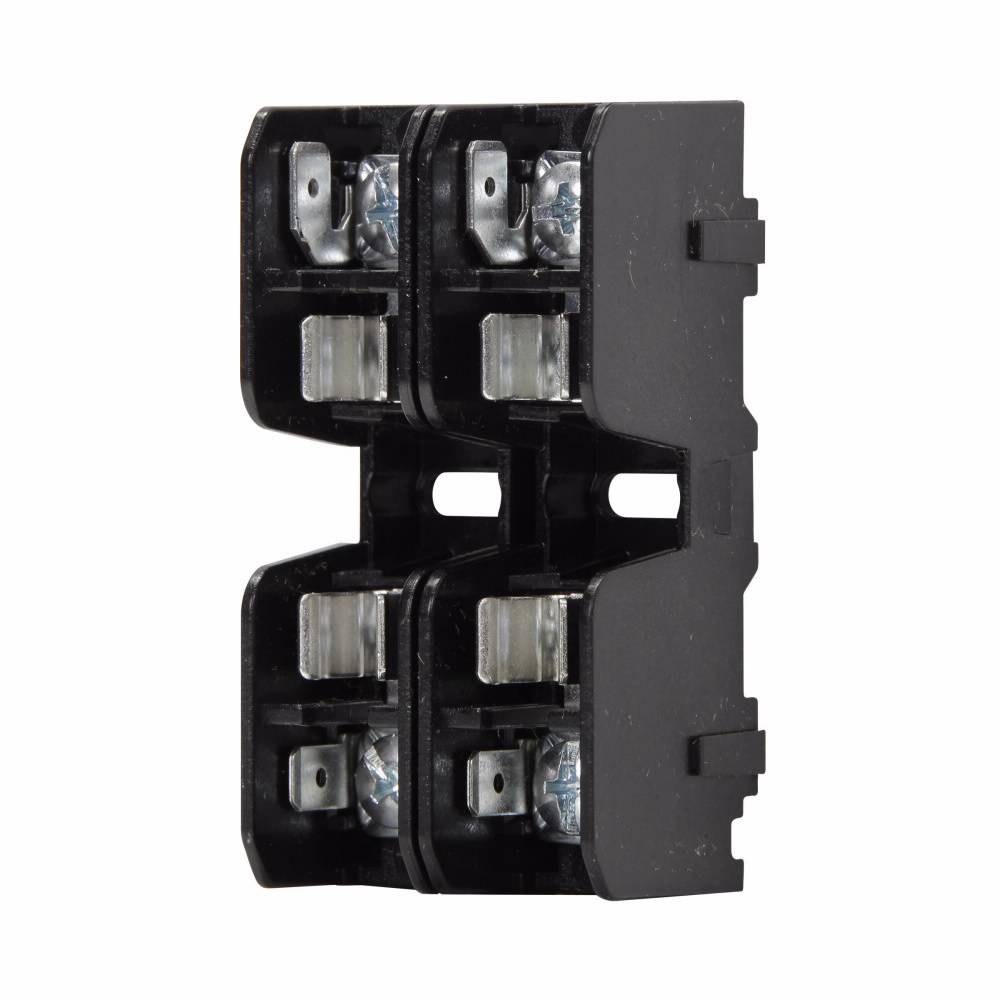

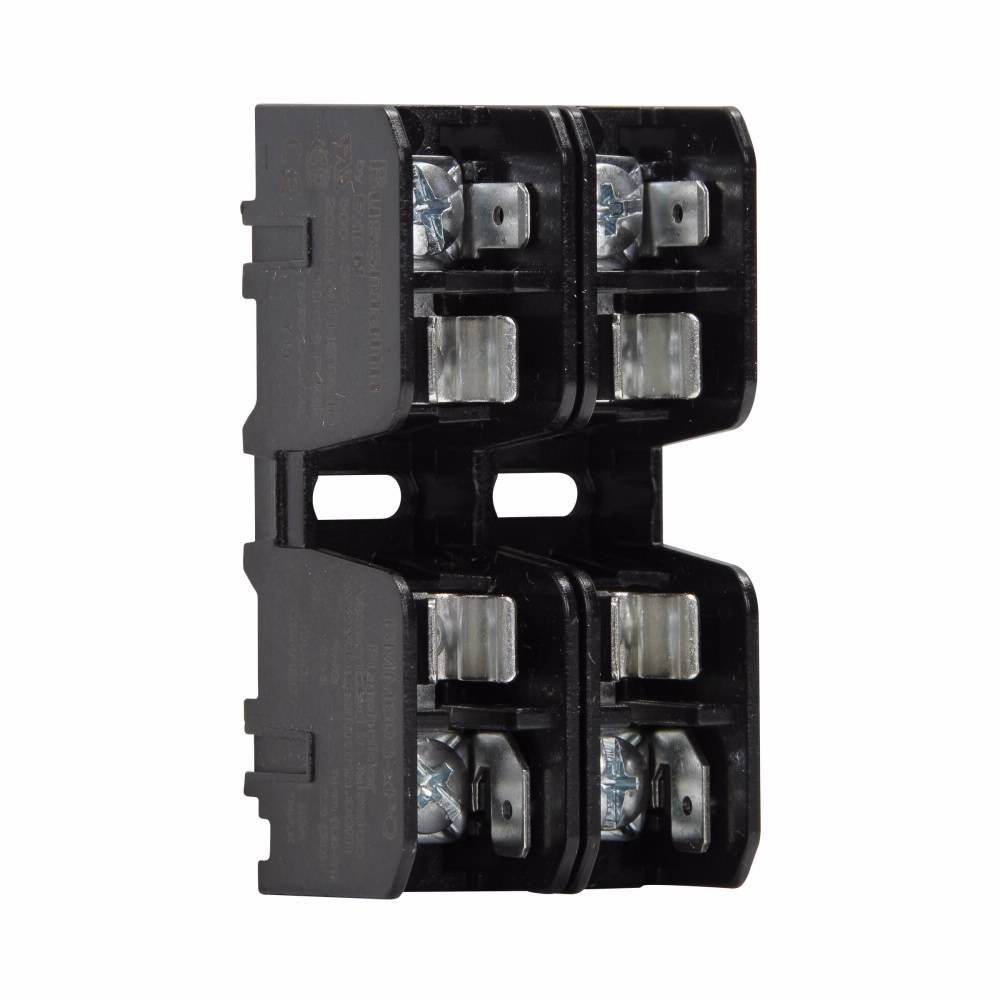

Edison BMM603-2PQ Modular Midget Fuse Block, 600 VAC, 30 A, 18 to 10 AWG Wire, 2 Poles

Short Description

These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

Edison Midget Fuse Block, Modular, Series: BMM, 600 VAC, 30 A, 2 Pole, Class: CC, 1/4 in Quick-Connect/Pressure Plate Connection, 18 to 10 AWG Wire, DIN Rail/Panel Mounting, 1-1/2 in Fuse Length, 13/32 in Diameter Fuse, -40 to 120 deg C, For Use With: Fast Acting 250 VAC BAF, Fast Acting 600 VAC KTK, Fast Acting 600 VAC/VDC KLM, Time Delay 250 VAC FNM, Time Delay 500 VAC FNQ, Class aM and gG/gL IEC Industrial Fuse, Thermoplastic, 3 in L x 1.6 in W x 1.3 in H Dimensions

MFG #: BMM603-2PQ

EECO #: BUBMM6032PQ

Brand: Edison
UPC #: 051712486422
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121624
Approval
UL, CSA, CE
Material
Thermoplastic
Wire Size
18 to 10
Application
Electrical Assemblies, Panels and EOEMs Applications
Body Material
Thermoplastic
Mounting Type
DIN Rail/Panel
Terminal Type
Pressure Plate with Quick Connect
Voltage Rating
600
Connection Type
1/4 in Quick-Connect/Pressure Plate
Number Of Poles
2
Temperature Rating
-40 to 120
Fuse Voltage Rating
600 Volt AC/DC
Type
Modular
Series
BMM
Clip Type
Tin Plated Bimetallic Copper
Fuse Type
Midget
Dimensions
3 in L x 1.6 in W x 1.3 in H
Amperage Rating
30
Fuse Current Rating
30 Amp
Suitable For Use With
Fast Acting 250 VAC BAF, Fast Acting 600 VAC KTK, Fast Acting 600 VAC/VDC KLM, Time Delay 250 VAC FNM, Time Delay 500 VAC FNQ, Class aM and gG/gL IEC Industrial Fuse
Features
  • Blocks are fully modular with a snap together design that provides tool less assembly of multiple-pole blocks at point-of-use to reduce inventory and save assembly time and labor
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Compact footprint consumes minimal panel space
  • Optional see through cover enhances safety with IP20 finger safe protection, lockout/ tag out capability and open circuit indication
  • Easy circuit identification with available universal marker labels for fuse block covers
  • Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
  • Terminal options to meet application needs including 1/4 in spade quick connect terminals for faster panel assembly
  • 18 to 10 AWG copper wire
Eaton_Bussmann_00093_8_6_8_7_CAT
Eaton_Bussmann_00101_1_3_DATA
Eaton_Bussmann_00130_1_2_CAD
Bussmann_BMM603_3C_Specification_Sheet
Qty Unit price
Ea
1 $13.36

Slqt
1 $13.36

Stpk
1 $13.36

Unit
1 $13.36
