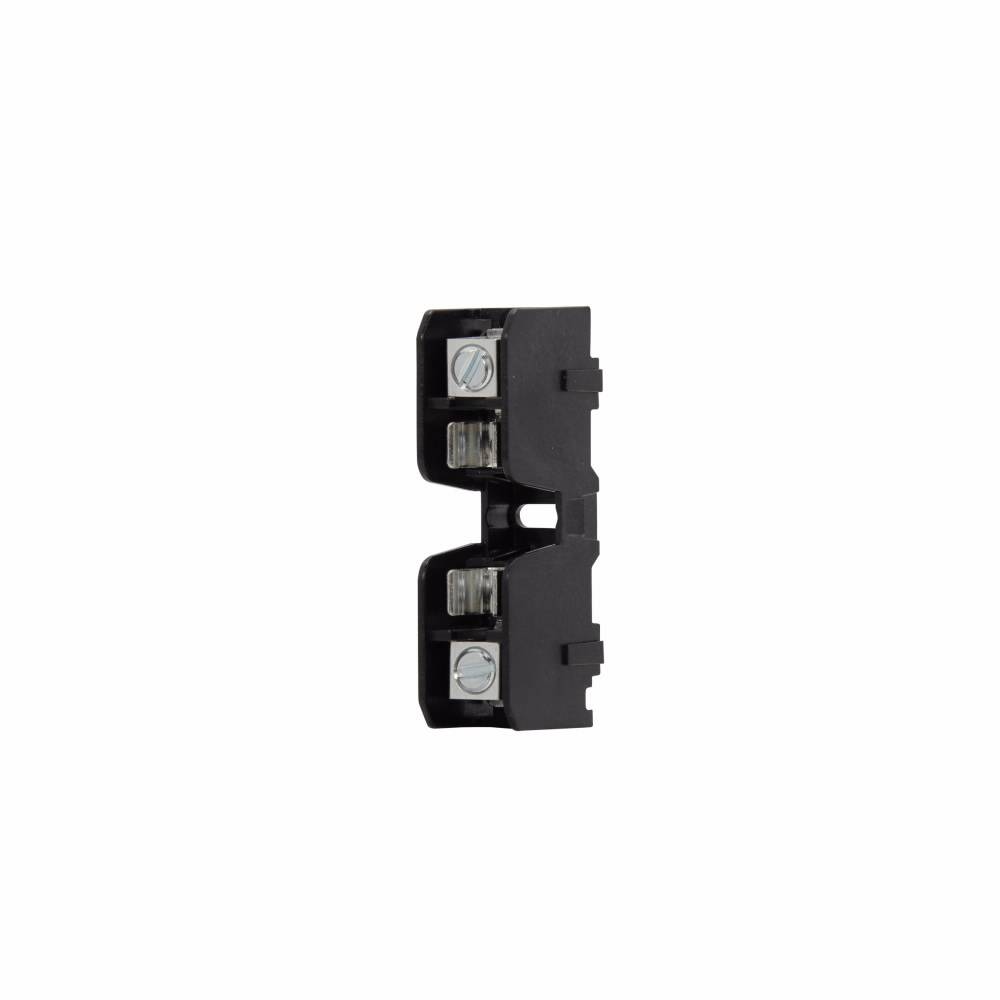

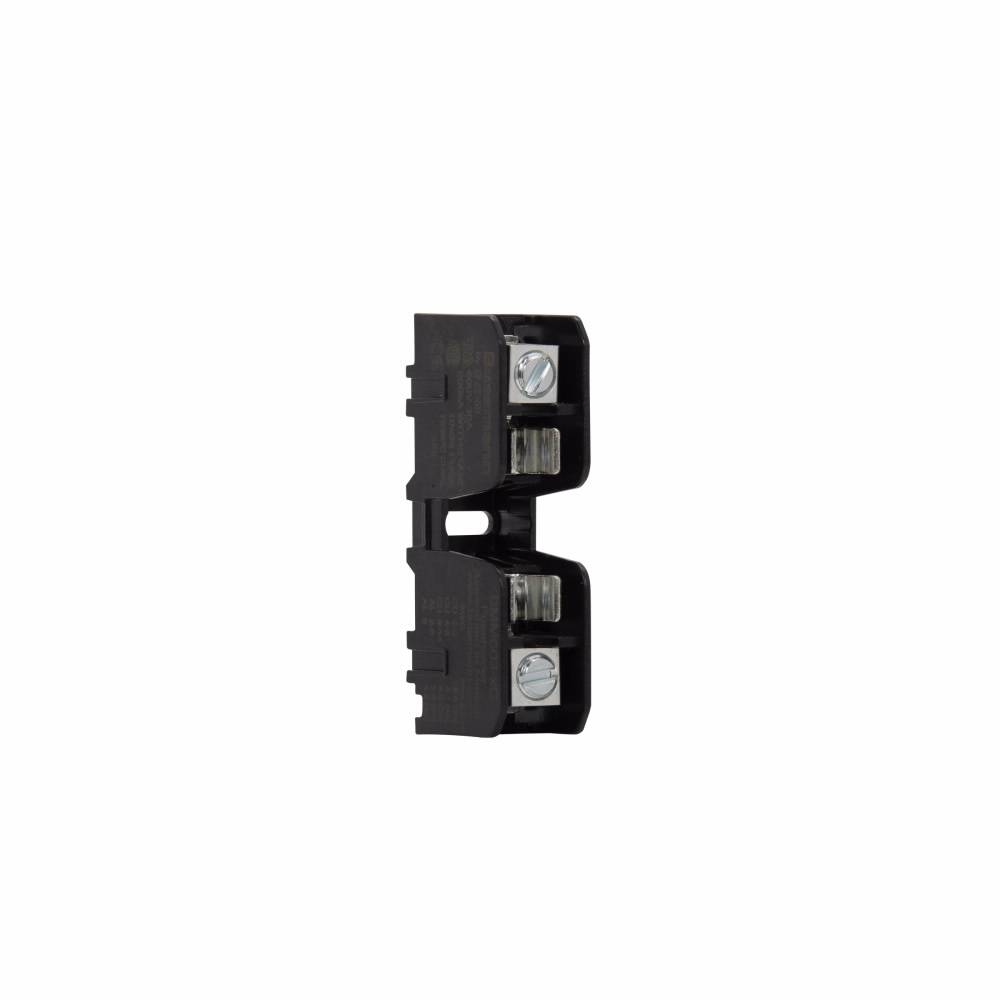

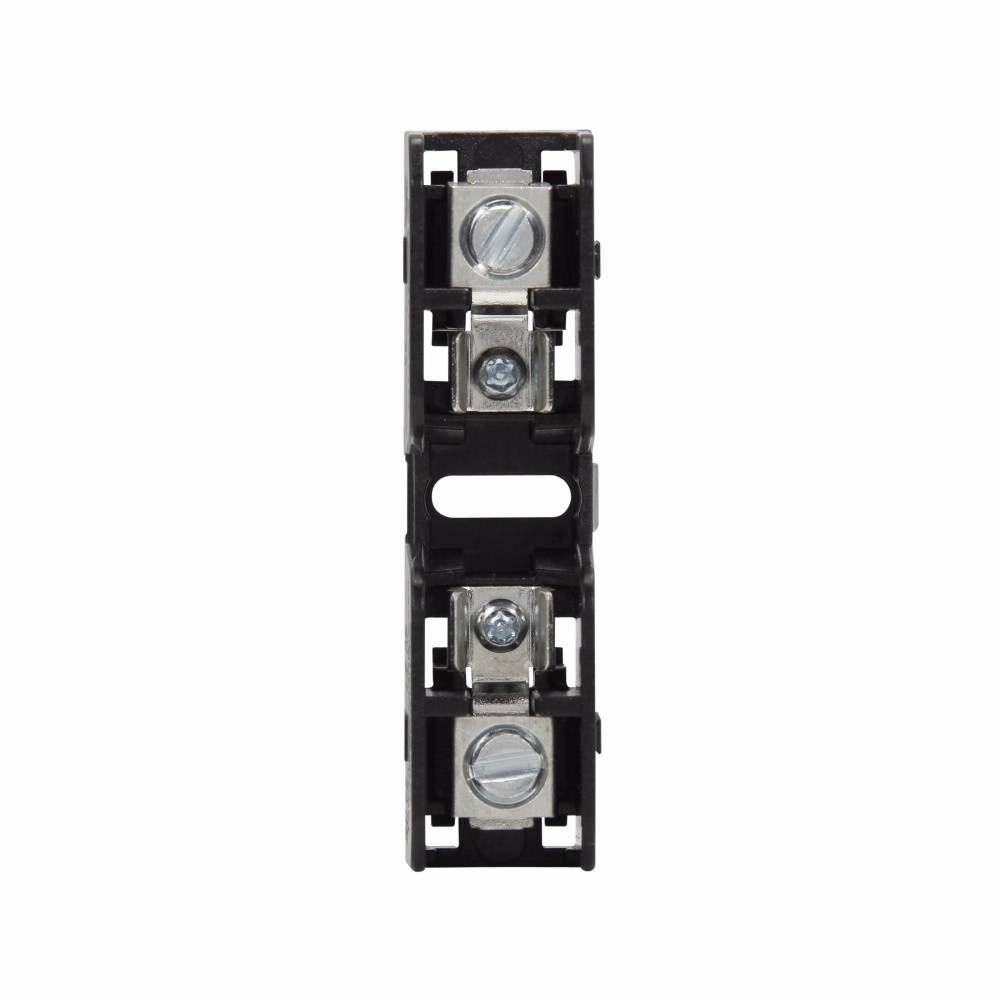

Edison BMM603-1C Modular Midget Fuse Block With Wire Connector, 600 VAC, 30 A, 14 to 2 AWG, 8 to 2 AWG Wire, 1 Pole

Short Description

These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

Edison Midget Fuse Block, Modular, Series: BMM, 600 VAC, 30 A, 1 Pole, Class: CC, Box Lug, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail/Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: Fast Acting 250 VAC BAF, Fast Acting 600 VAC KTK, Fast Acting 600 VAC/VDC KLM, Time Delay 250 VAC FNM, Time Delay 500 VAC FNQ, Class aM and gG/gL IEC Industrial Fuse, Thermoplastic, 3 in L x 0.8 in W x 1.3 in H

MFG #: BMM603-1C

EECO #: BUBMM6031C

Brand: Edison
UPC #: 051712486484
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121624
Approval
UL, CSA, CE
Material
Thermoplastic
Wire Size
14 to 2 AWG, 8 to 2 AWG
Application
Electrical Assemblies, Panels and EOEMs Applications
Body Material
Thermoplastic
Mounting Type
DIN Rail/Panel
Terminal Type
Box Lug
Voltage Rating
600
Connection Type
Box Lug
Number Of Poles
1
Temperature Rating
-40 to 120
Fuse Voltage Rating
600 Volt AC
Type
Modular
Series
BMM
Clip Type
Tin Plated Bimetallic Copper
Fuse Type
Midget
Dimensions
3 in L x 0.8 in W x 1.3 in H
Amperage Rating
30
Fuse Current Rating
30 Amp
Suitable For Use With
Fast Acting 250 VAC BAF, Fast Acting 600 VAC KTK, Fast Acting 600 VAC/VDC KLM, Time Delay 250 VAC FNM, Time Delay 500 VAC FNQ, Class aM and gG/gL IEC Industrial Fuse
Features
  • Blocks are fully modular with a snap together design that provides tool less assembly of multiple-pole blocks at point-of-use to reduce inventory and save assembly time and labor
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Compact footprint consumes minimal panel space
  • Optional see through cover enhances safety with IP20 finger safe protection, lockout/ tag out capability and open circuit indication
  • Easy circuit identification with available universal marker labels for fuse block covers
  • Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
  • Terminal options to meet application needs including 1/4 in spade quick connect terminals for faster panel assembly
  • 14 to 2 AWG copper, 8 to 2 AWG aluminum wire
