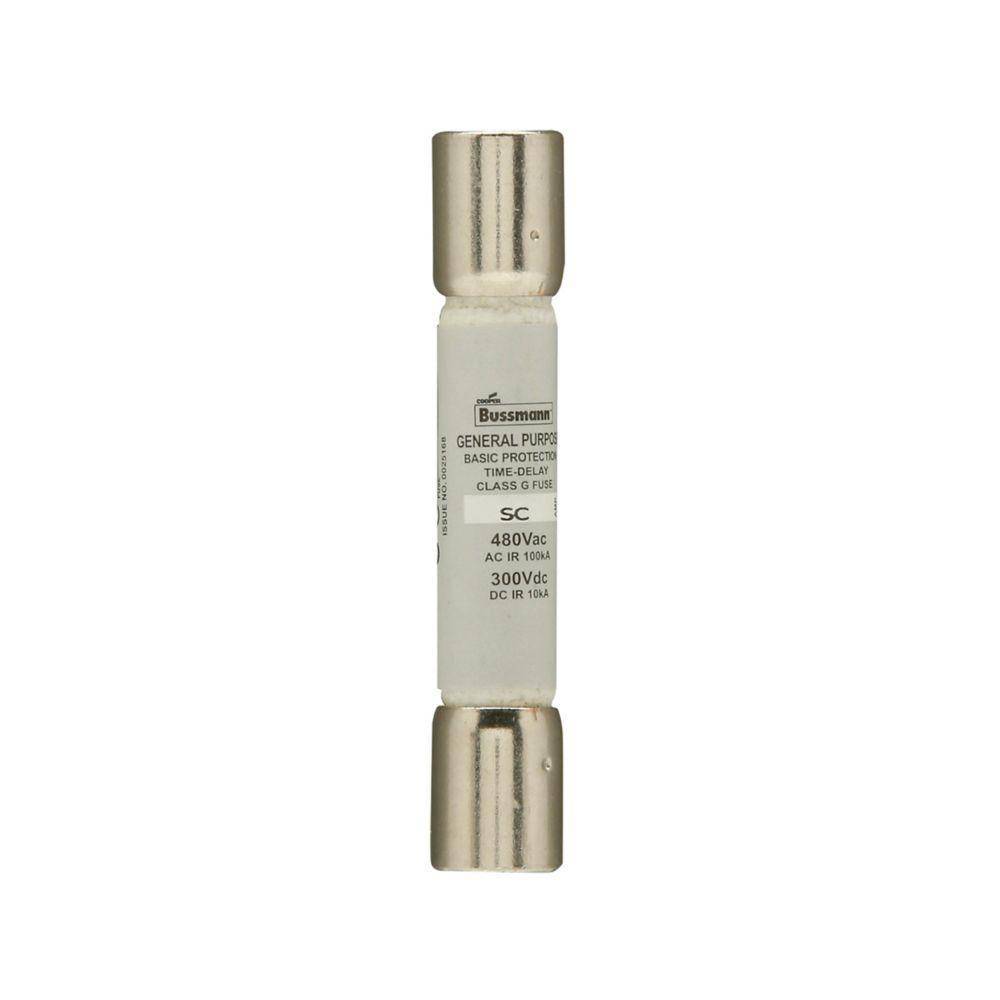

Bussmann BK/SC-40 Time Delay Fuse, 40 A, 480 VAC/300 VDC, 10/100 kA Interrupt, G Class
Bussmann BK/SC-40 Time Delay Fuse, 40 A, 480 VAC/300 VDC, 10/100 kA Interrupt, G Class
Bussmann BK/SC-40 Time Delay Fuse, 40 A, 480 VAC/300 VDC, 10/100 kA Interrupt, G Class
Bussmann BK/SC-40 Time Delay Fuse, 40 A, 480 VAC/300 VDC, 10/100 kA Interrupt, G Class
Share Share Print Print
Eaton

Bussmann BK/SC-40 Time Delay Fuse, 40 A, 480 VAC/300 VDC, 10/100 kA Interrupt, G Class

Short Description

Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing

Bussmann Time Delay Fuse, 40 A, 480 VAC/300 VDC, 10/100 kA Interrupt, Class: G, 12 s at 200% Response, Ferrule Terminal, 0.41 in Dia x 2.25 in L Body Size
MFG #: BK/SC-40

EECO #: BUBKSC40

Brand: Bussmann
UPC #: 051712750639
Attributes
Features
Documents
Product Information
Attributes
Class
G
UNSPSC
39121607
Application
Fusible Branch Panel Boards, HV Branch Circuit Protection, Safety and Security Systems Applications
Response Time
12 s at 200%
Terminal Type
Ferrule
Voltage Rating
480 VAC/300 VDC
Amperage Rating
40
Features
  • Type: Time Delay Fuse
  • Current Rating: 40 Amperes (A)
  • Voltage Ratings: 480 Volts AC (VAC) / 300 Volts DC (VDC)
  • Interrupt Rating: 10/100 kA
  • Class: G
  • Response Time: 12 seconds at 200% of rated current
  • Terminal Type: Ferrule Terminal
  • Body Size: 0.41 inches in diameter x 2.25 inches in length

Enhanced by AI

Bussmann_BK_SC_40_Specification_Sheet
