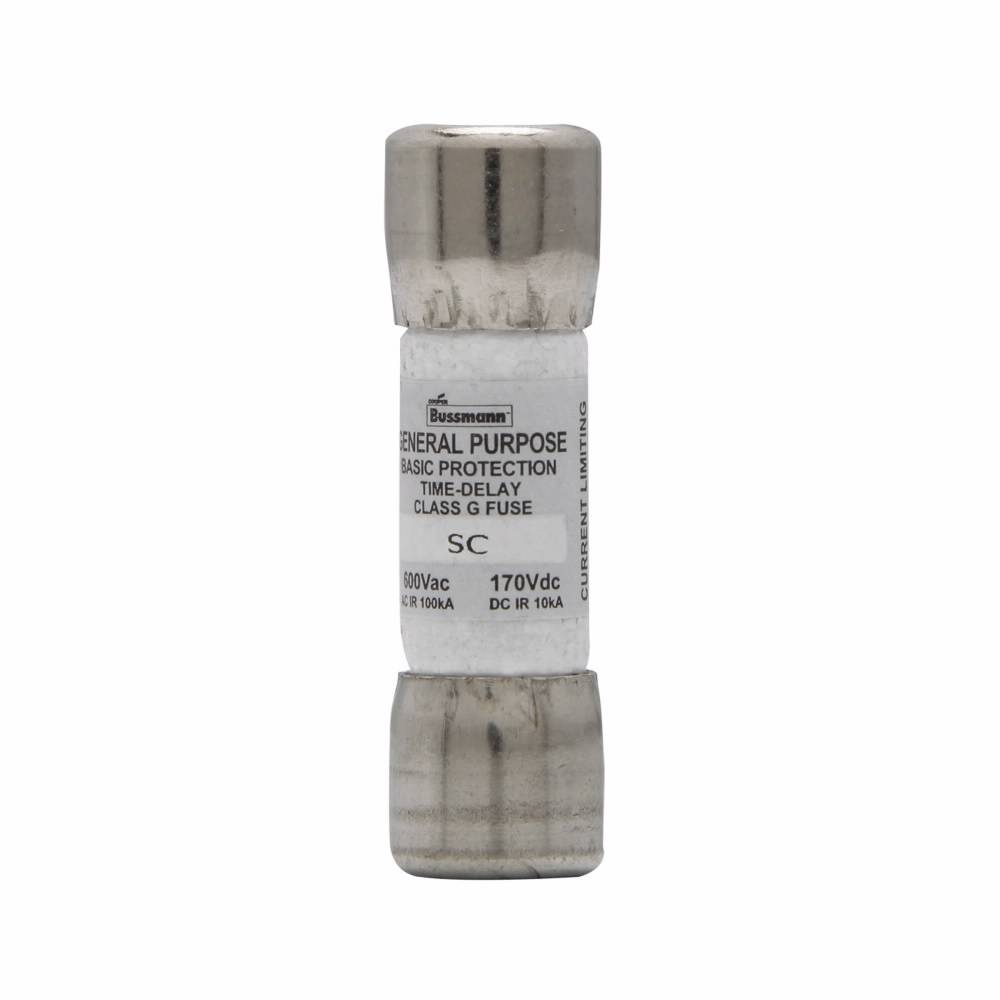

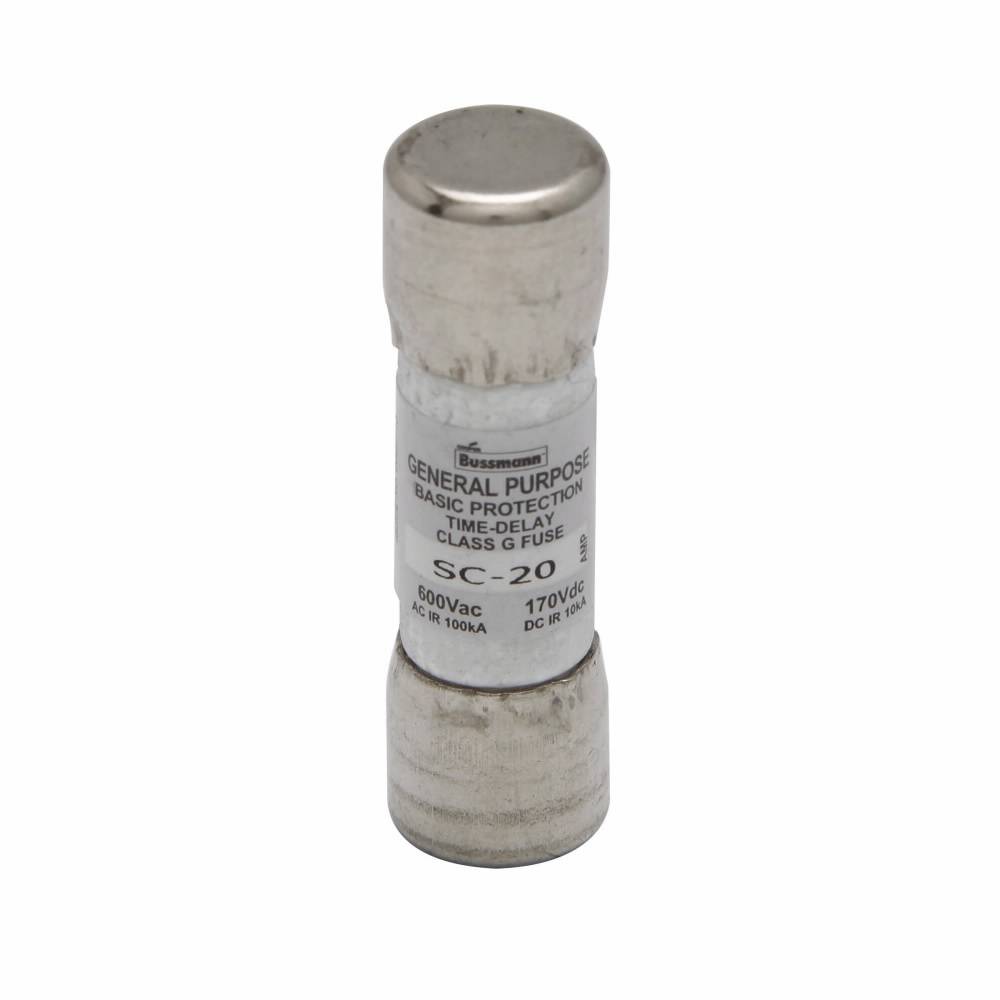

Bussmann BK/SC-20 Current Limiting Time Delay Fuse, 20 A, 600 VAC/170 VDC, 100/10 kAIC Interrupt, G Class

Short Description

Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing

Bussmann Fuse, Current Limiting Time Delay, Series: SC Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 20 A, 600 VAC/170 VDC, 100/10 kAIC Interrupt, Class: G, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Melamine, 0.41 in Dia x 1.41 in L Body Size
MFG #: BK/SC-20

EECO #: BUBKSC20

Brand: Bussmann
UPC #: 051712750110
Attributes
Features
Documents
Product Information
Attributes
Class
G
UNSPSC
39121607
Material
Melamine
Application
Industrial Facilities and Factories, Safety and Security Systems, Fusible Branch Panel Boards and HV Branch Circuit Protection Applications
Mounting Type
Holder
Response Time
12 s at 200%
Terminal Type
Ferrule End
Voltage Rating
600 VAC/170 VDC
Type
Current Limiting Time Delay
Series
SC Series
Amperage Rating
20
Features
  • Type: Current Limiting Time Delay Fuse
  • Series: SC Series
  • Current Rating: 20 A
  • Voltage Rating: 600 VAC / 170 VDC
  • Interrupt Rating: 100/10 kAIC
  • Class: G
  • Response Time: 12 seconds at 200% load
  • Indication: Non-Indicating
  • Rejection Type: Rejection
  • Body Size: 0.41 in diameter x 1.41 in length
  • Terminal Type: Ferrule End Terminal
  • Mounting: Holder Mount
  • Material: Melamine
