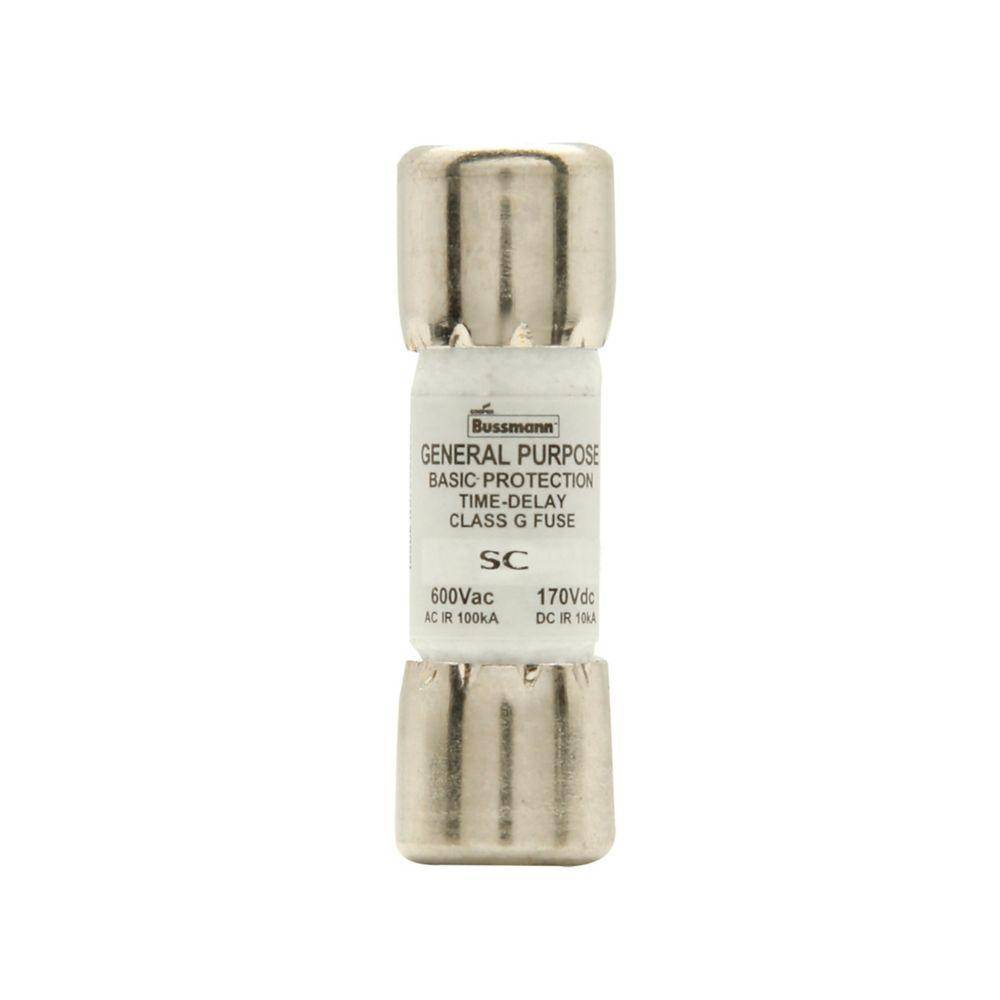

Bussmann BK/SC-10 Time Delay Fuse, 10 A, 600 VAC/170 VDC, 10/100 kA Interrupt, G Class

Short Description

Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing

Bussmann Time Delay Fuse, 10 A, 600 VAC/170 VDC, 10/100 kA Interrupt, Class: G, 12 s at 200% Response, Ferrule Terminal, 0.41 in Dia x 1.31 in L Body Size
MFG #: BK/SC-10

EECO #: BUBKSC10

Brand: Bussmann
UPC #: 051712750448
Attributes
Features
Documents
Product Information
Attributes
Class
G
UNSPSC
39121607
Application
Fusible Branch Panel Boards, HV Branch Circuit Protection, Safety and Security Systems Applications
Response Time
12 s at 200%
Terminal Type
Ferrule
Voltage Rating
600 VAC/170 VDC
Amperage Rating
10
Features
  • Type: Time Delay Fuse
  • Current Rating: 10 A
  • Voltage Rating: 600 VAC / 170 VDC
  • Interrupt Rating: 10/100 kA
  • Class: G
  • Response Time: 12 seconds at 200% of rated current
  • Terminal Type: Ferrule Terminal
  • Body Size: 0.41 inches in diameter x 1.31 inches in length

Enhanced by AI

Bussmann_BK_SC_10_Specification_Sheet
