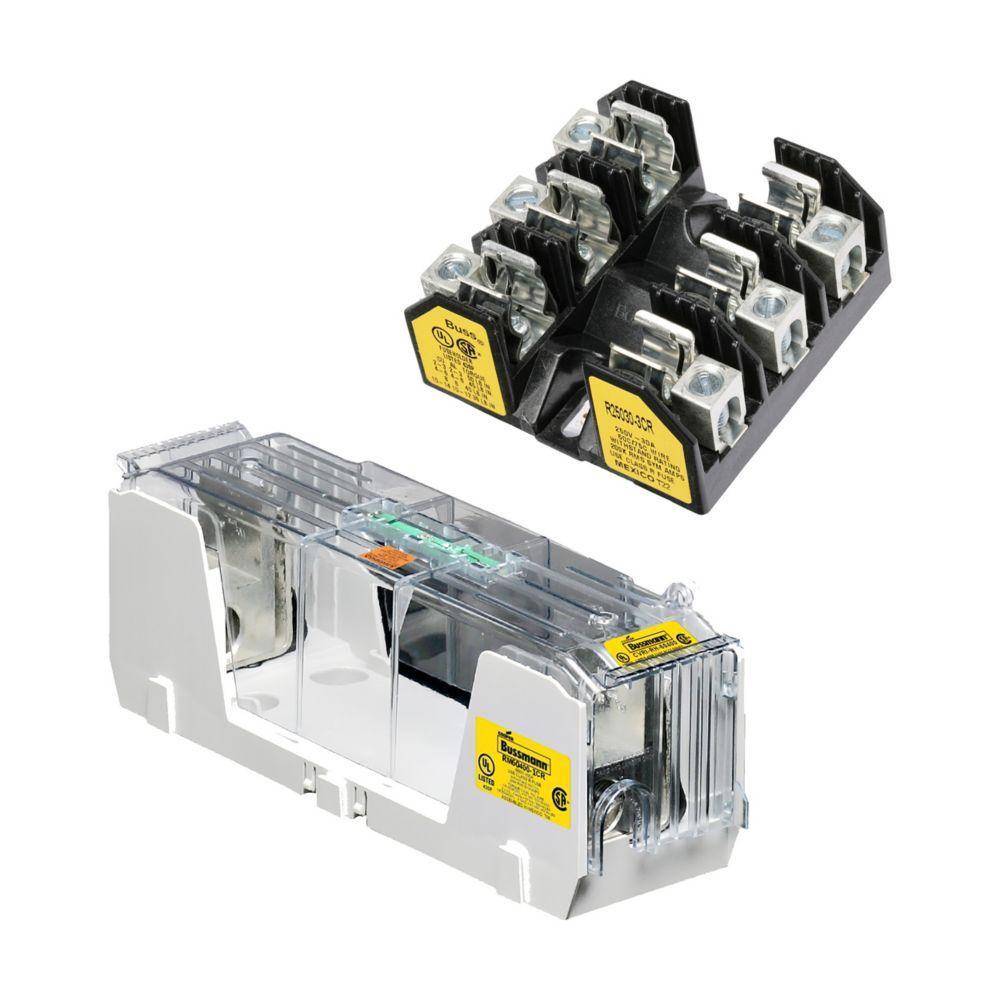

Bussmann BK/RM25600-1CR Modular Fuse Block, 250 V, 600 A, Class: R, (2) 4 AWG to 500 kcmil Wire, 1 Pole
Share Share Print Print
Eaton

Bussmann BK/RM25600-1CR Modular Fuse Block, 250 V, 600 A, Class: R, (2) 4 AWG to 500 kcmil Wire, 1 Pole

Short Description

Ensure reliable protection for your electrical systems with the Bussmann BK/RM25600-1CR Modular Fuse Block. Designed for high performance, this 250 V, 600 A Class R fuse block accommodates wire sizes from 4 AWG to 500 kcmil and features a durable thermoplastic construction. Perfect for use with Low-Peak and Limitron series fuses, it delivers exceptional safety and efficiency in a compact design.Enhanced by AI

Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 600 A, 1 Pole, Class: R, Box Lug, (2) 4 AWG to 500 kcmil Wire, Hole Mount, -40 to 120 deg C, For Use With: Low-Peak™ LPN-RK_SP, LPN-RK_SPI Series Time Delay, Limitron™ KTN-R Series Fast Acting, Fusetron™ FRN-R Series Time Delay Fuse, Thermoplastic, 11.4 in L x 6 in W x 4.9 in H

MFG #: BK/RM25600-1CR

EECO #: BUBKRM256001CR

Brand: Bussmann
UPC #: 051712519632
Attributes
Features
Documents
Product Information
Attributes
Class
R
UNSPSC
39121629
Material
Thermoplastic
Wire Size
(2) 4 AWG to 500 kcmil
Application
Datacenters and Power Distribution Applications
Mounting Type
Hole
Voltage Rating
250
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
Modular
Series
RM Series
Dimensions
11.4 in L x 6 in W x 4.9 in H
Amperage Rating
600
Suitable For Use With
Low-Peak™ LPN-RK_SP, LPN-RK_SPI Series Time Delay, Limitron™ KTN-R Series Fast Acting, Fusetron™ FRN-R Series Time Delay Fuse
Features
  • Integral dovetails allow snapping together multiple poles at point-of-use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Standard fuse clip reinforcing springs enhance electrical contact
Bussmann_BK_RM25600_1CR_Specification_Sheet
