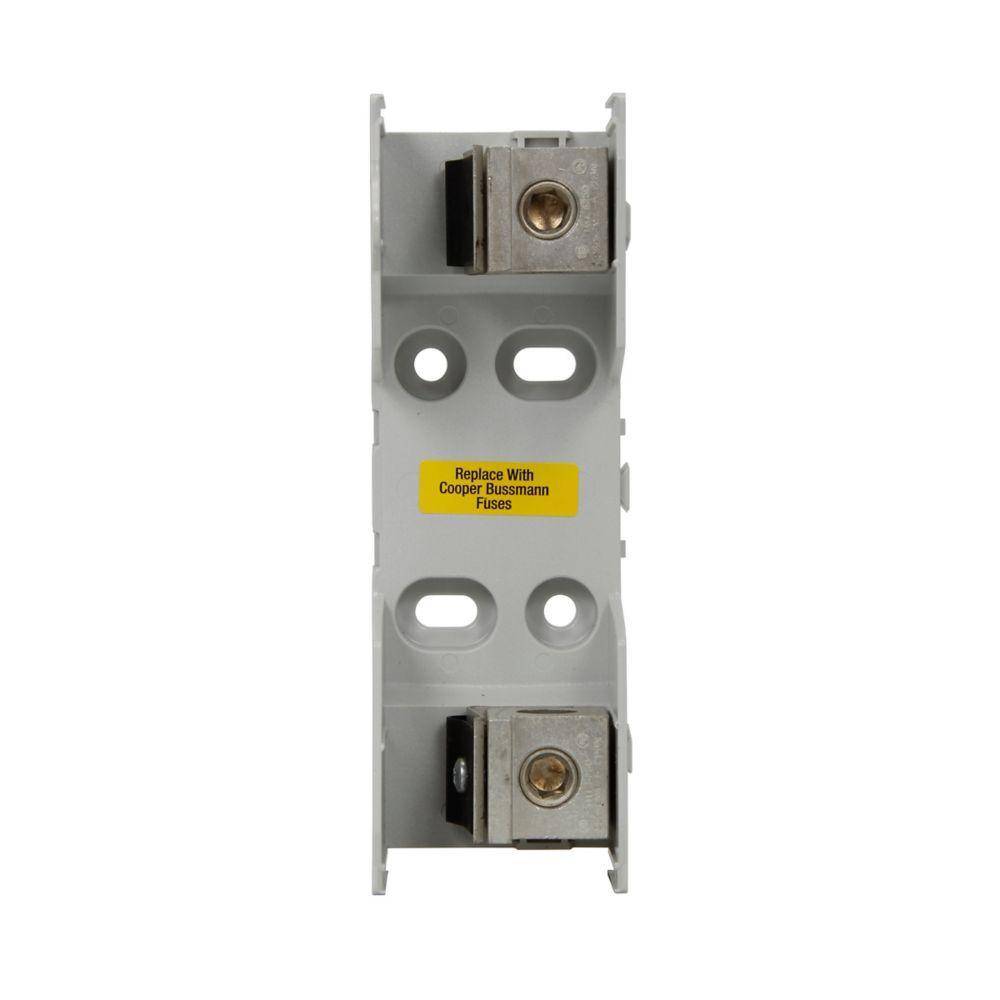

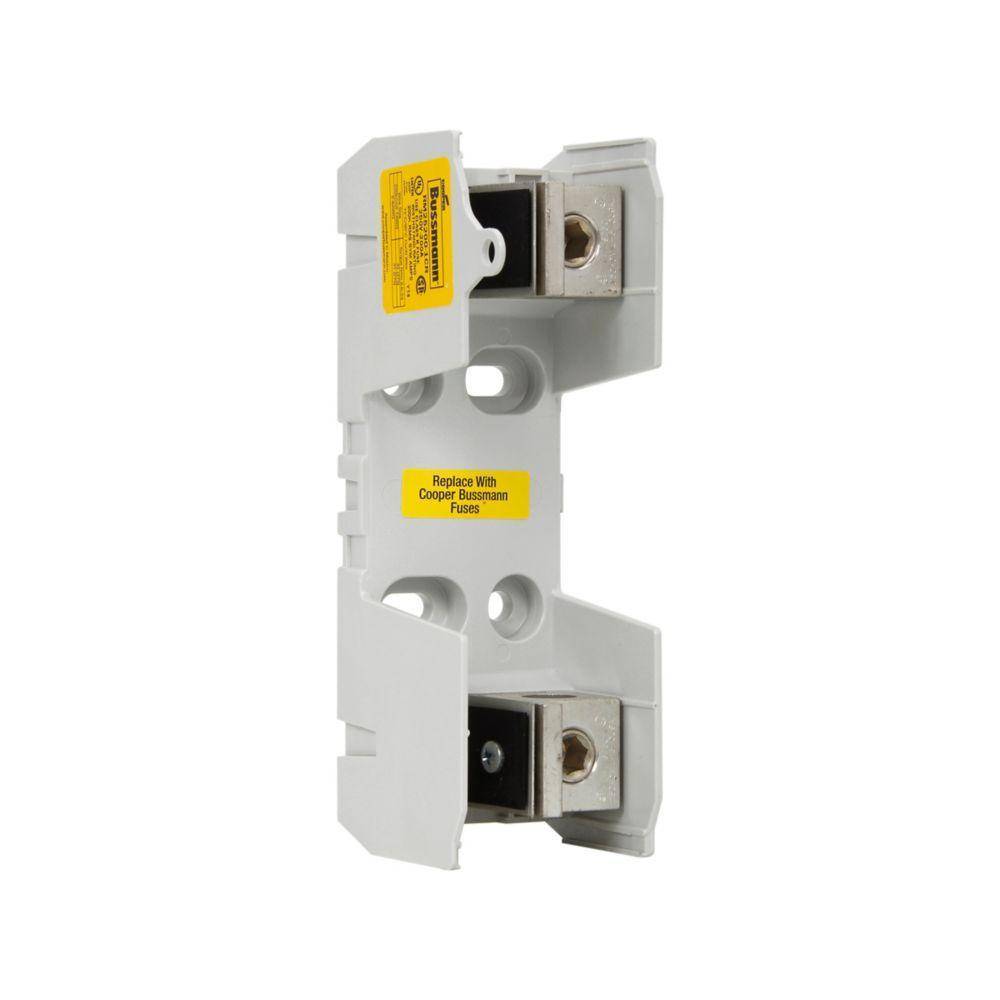

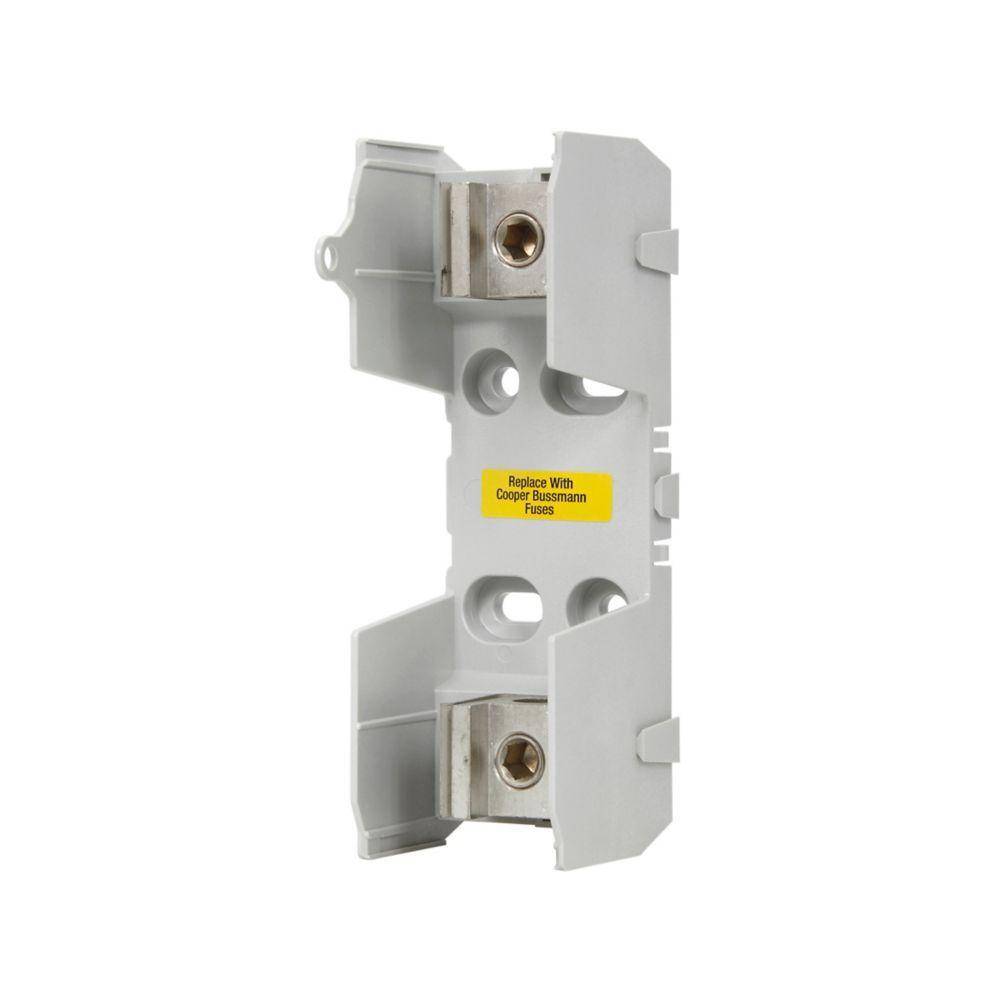

Bussmann BK/RM25200-1CR Modular Fuse Block, 250 V, 200 A, Class: R, 1 AWG to 250 kcmil, 6 to 2 AWG, 1 to 3/0 AWG Wire, 1 Pole

Short Description

Ensure optimal protection for your electrical systems with the Bussmann BK/RM25200-1CR Modular Fuse Block. Designed for high performance and versatility, this fuse block accommodates a wide range of wire sizes and is perfect for various applications. Experience reliability and safety with its robust construction and advanced features.Enhanced by AI

Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 200 A, 1 Pole, Class: R, Box Lug, 1 AWG to 250 kcmil, 6 to 2 AWG, 1 to 3/0 AWG Wire, Hole Mount, -40 to 120 deg C, For Use With: Low-Peak™ LPN-RK_SP, LPN-RK_SPI Series Time Delay, Limitron™ KTN-R Series Fast Acting, Fusetron™ FRN-R Series Time Delay Fuse, Thermoplastic, 8.1 in L x 3 in W x 2.7 in H

MFG #: BK/RM25200-1CR

EECO #: BUBKRM252001CR

Brand: Bussmann
UPC #: 051712519618
Attributes
Features
Documents
Product Information
Attributes
Class
R
UNSPSC
39121629
Material
Thermoplastic
Wire Size
1 AWG to 250 kcmil, 6 to 2 AWG, 1 to 3/0 AWG
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
Hole
Voltage Rating
250
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
Modular
Series
RM Series
Dimensions
8.1 in L x 3 in W x 2.7 in H
Amperage Rating
200
Suitable For Use With
Low-Peak™ LPN-RK_SP, LPN-RK_SPI Series Time Delay, Limitron™ KTN-R Series Fast Acting, Fusetron™ FRN-R Series Time Delay Fuse
Features
  • Integral dovetails allow snapping together multiple poles at point-of-use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Standard fuse clip reinforcing springs enhance electrical contact
  • 1 AWG to 250 kcmil, (2) 6 to 2 AWG, 1 to 3/0 AWG solid and stranded, 1 to 3/0 AWG, 6 to 2 AWG fine stranded copper wire
BK_RM25200_1CR_Specification_Sheet
