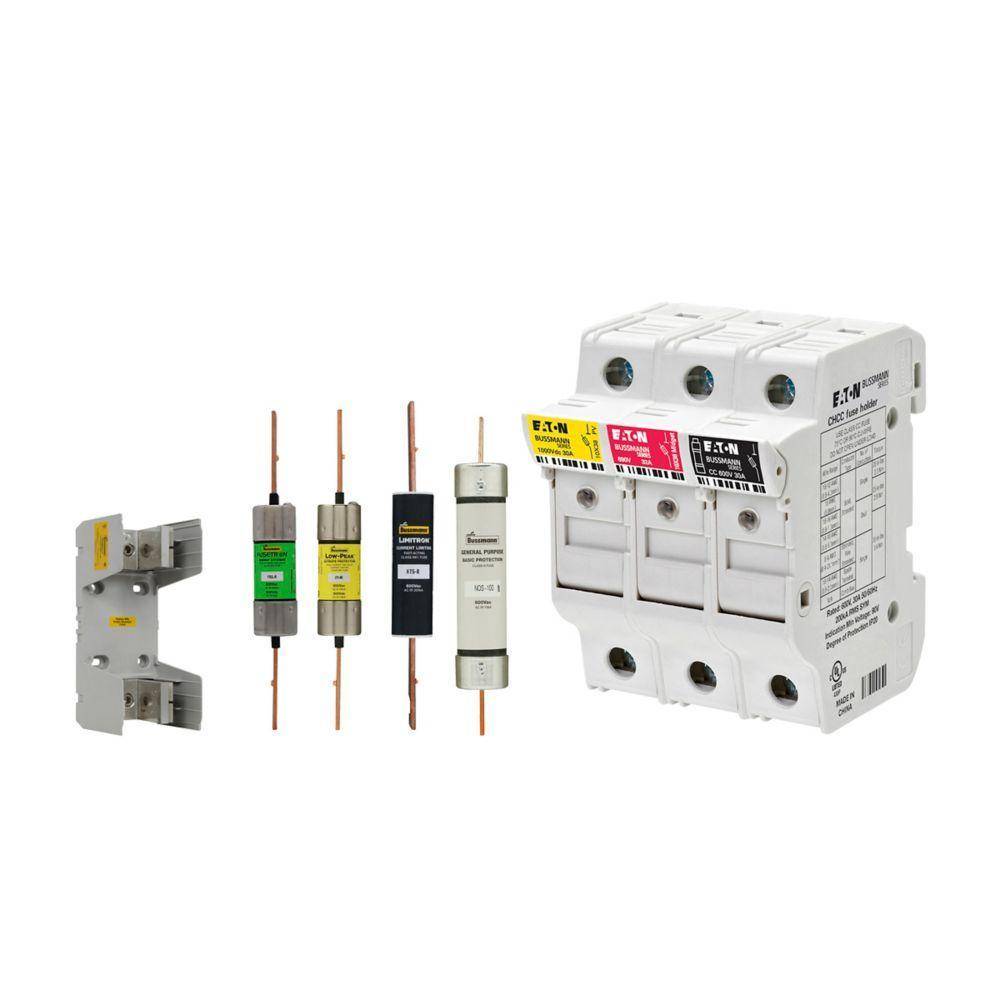

Bussmann BK/JM60400-1MW16 Modular Fuse Block, 600 VAC, 400 A, Class: J, 4 AWG to 600 kcmil, 14 to 2 AWG, 8 to 2 AWG, 14 to 8 AWG, 8 AWG Wire, 1 Pole
Share Share Print Print
Eaton

Bussmann BK/JM60400-1MW16 Modular Fuse Block, 600 VAC, 400 A, Class: J, 4 AWG to 600 kcmil, 14 to 2 AWG, 8 to 2 AWG, 14 to 8 AWG, 8 AWG Wire, 1 Pole

Short Description

Eaton's Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel

Bussmann Fuse Block, Modular, Series: JM Series, 600 VAC, 400 A, 1 Pole, Class: J, Wired, 4 AWG to 600 kcmil, 14 to 2 AWG, 8 to 2 AWG, 14 to 8 AWG, 8 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, Thermoplastic, 8 in L x 4.8 in W x 3.5 in H
MFG #: BK/JM60400-1MW16

EECO #: BUBKJM604001MW16

Brand: Bussmann
UPC #: 051712519533
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121629
Material
Thermoplastic
Wire Size
4 AWG to 600 kcmil, 14 to 2 AWG, 8 to 2 AWG, 14 to 8 AWG, 8 AWG
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail/Panel
Voltage Rating
600
Connection Type
Wired
Temperature Rating
-40 to 120
Type
Modular
Series
JM Series
Dimensions
8 in L x 4.8 in W x 3.5 in H
Amperage Rating
400
Features
  • Combination power distribution block and fuse block reduces wire connections and total panel components, using up to 57% less panel space and reducing installation time and labor by an average of 33% when compared with traditional fuse block/power distribution block solutions
  • A 200 kA withstand rating helps achieve a higher assembly short circuit current rating (SCCR) for compliance with NEC sections 110.10/409.110(4)/409.22/440.4(B)/670.3(A)(4)/670.5
  • To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
  • DIN rail and panel mount versatility allows one product to be used for multiple applications without incurring additional inventory cost
  • (1) 4 AWG to 600 kcmil copper/aluminum line side, (6) 14 to 2 AWG copper, 8 to 2 AWG aluminum, (12) 14 to 8 AWG copper, 8 AWG aluminum load side wire
