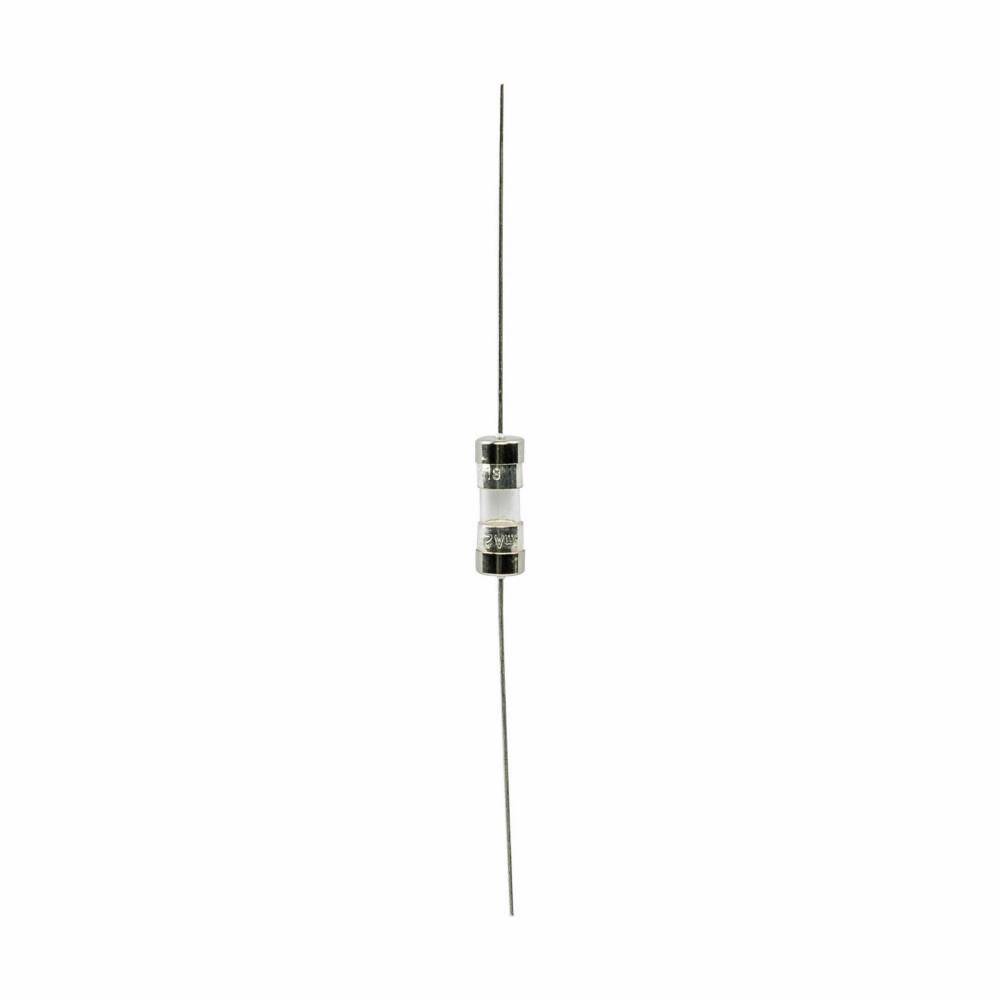

Bussmann BK/C518-125-R C518 Small Dimension Fast Acting Fuse, 125 mA, 250 VAC, 32 VDC, 35 A Interrupt, Cylindrical Body
Share Share Print Print
Eaton

Bussmann BK/C518-125-R C518 Small Dimension Fast Acting Fuse, 125 mA, 250 VAC, 32 VDC, 35 A Interrupt, Cylindrical Body

Short Description

Fast-Acting Fuses, 125A, Electronic circuits, printed circuit boards, Ferrule end X ferrule end, 35A at 250 VAC, 10 kAIC at 125 VAC, Bulk 100, .197 in Diameter X .591 in Length, Electronic, axial leads, 250 VAC, 32 VDC (self certified).

Bussmann Fast Acting Fuse, Small Dimension, Series: C518, Non-Indicating, 125 mA, 250 VAC, 32 VDC, 35 A Interrupt, 60 min, 2 s Response, Ferrule/Axial Lead Terminal, Board Mounting, Cylindrical Body, Glass, 5.5 mm Dia x 15.2 mm L Body
MFG #: BK/C518-125-R

EECO #: BUBKC518125R

Brand: Bussmann
UPC #: 051712640862
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121607
Material
Glass
Application
Electronic Circuits and Printed Circuit Boards
Mounting Type
Board
Response Time
60 min, 2 s
Terminal Type
Ferrule/Axial Lead
Voltage Rating
250 VAC, 32 VDC
Type
Small Dimension
Series
C518
Amperage Rating
125
Features
  • Small footprint saves space in equipment
  • Fast acting for maximum component protection
  • Nickel plated brass end caps
  • 60 min maximum at 135% of ampere rating, 2 s maximum at 200% of ampere rating response time
  • 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
