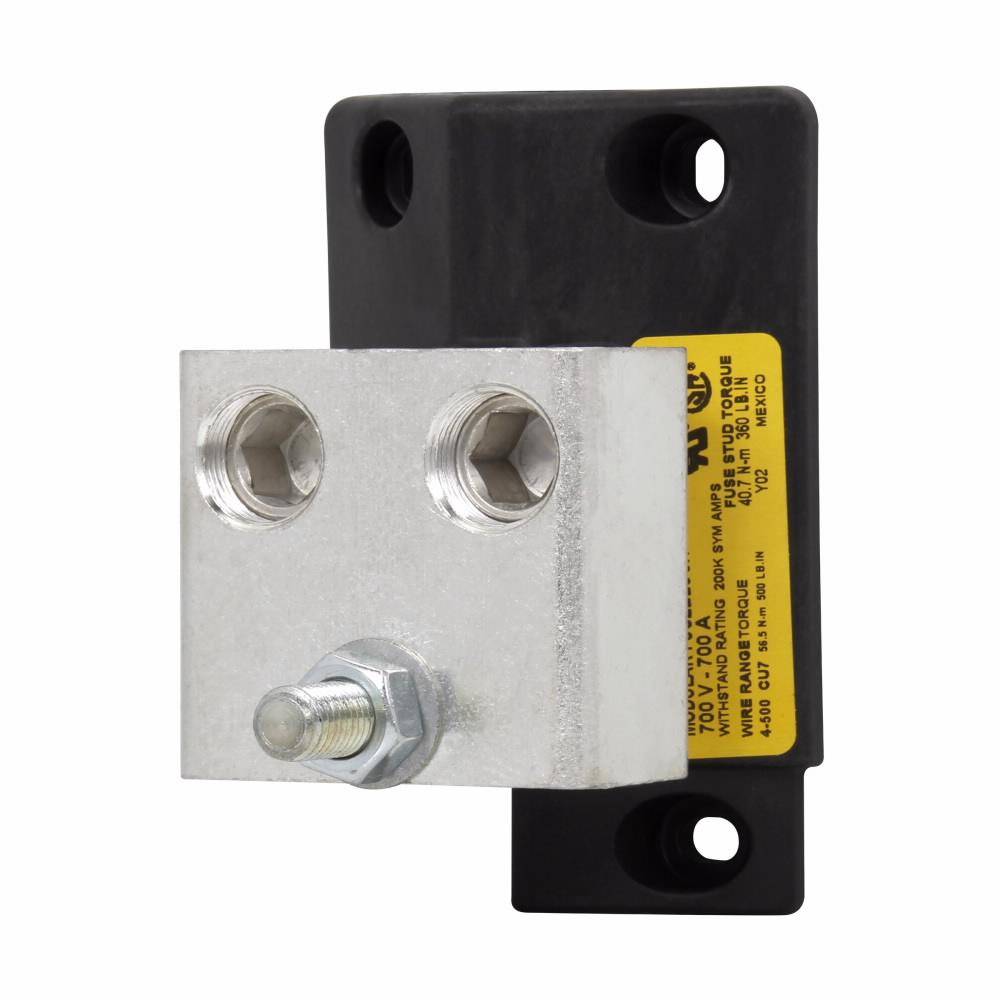

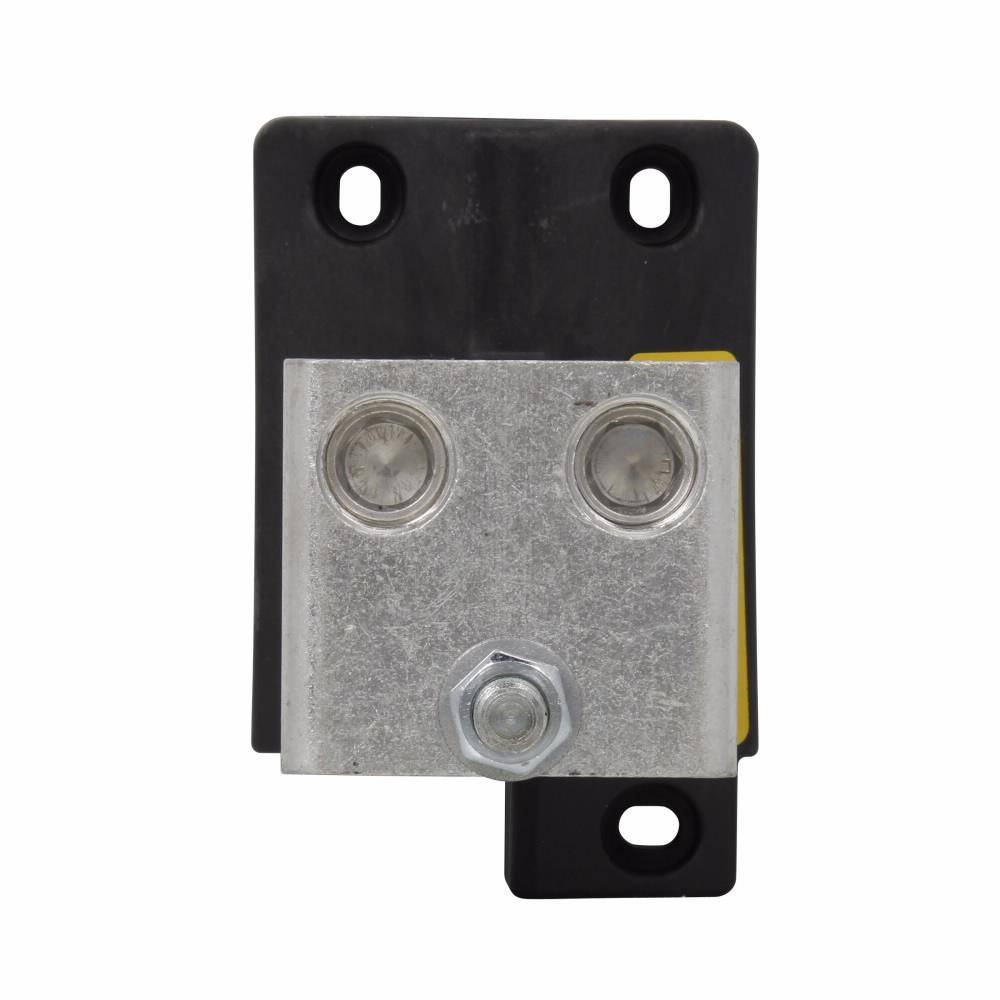

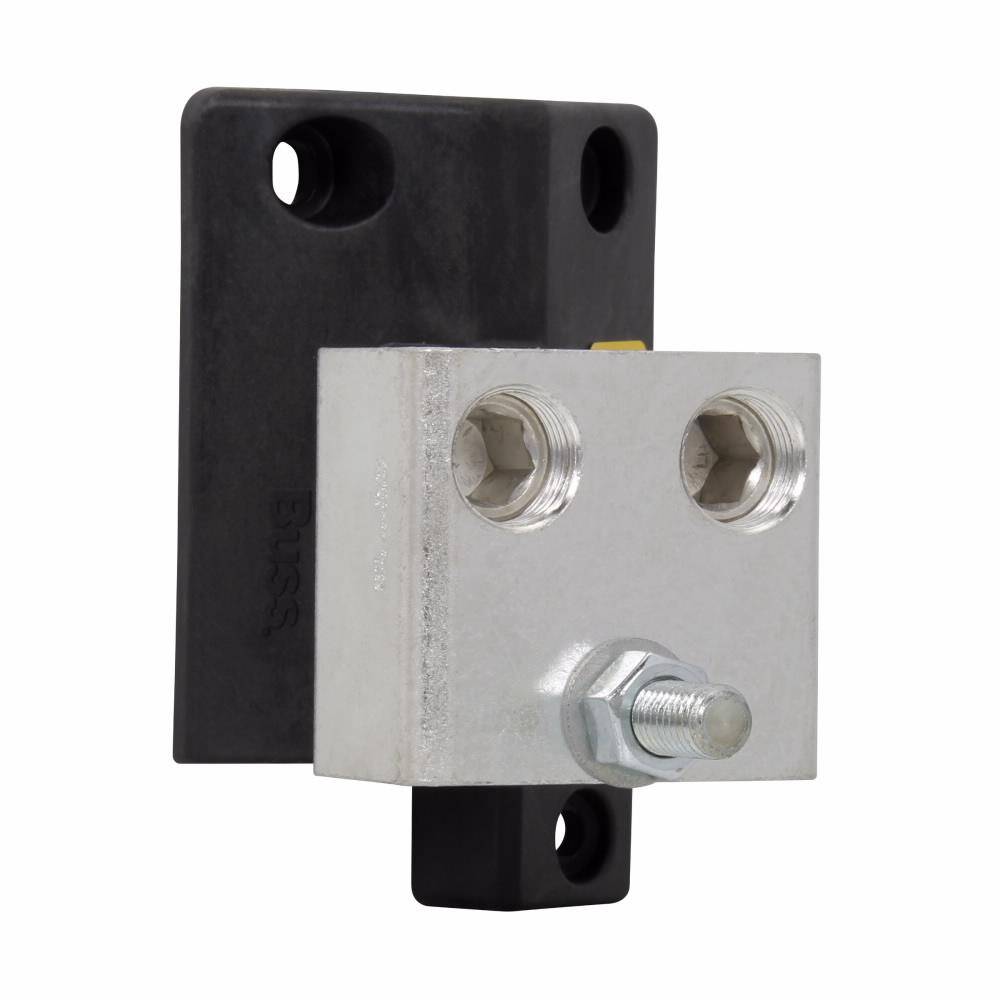

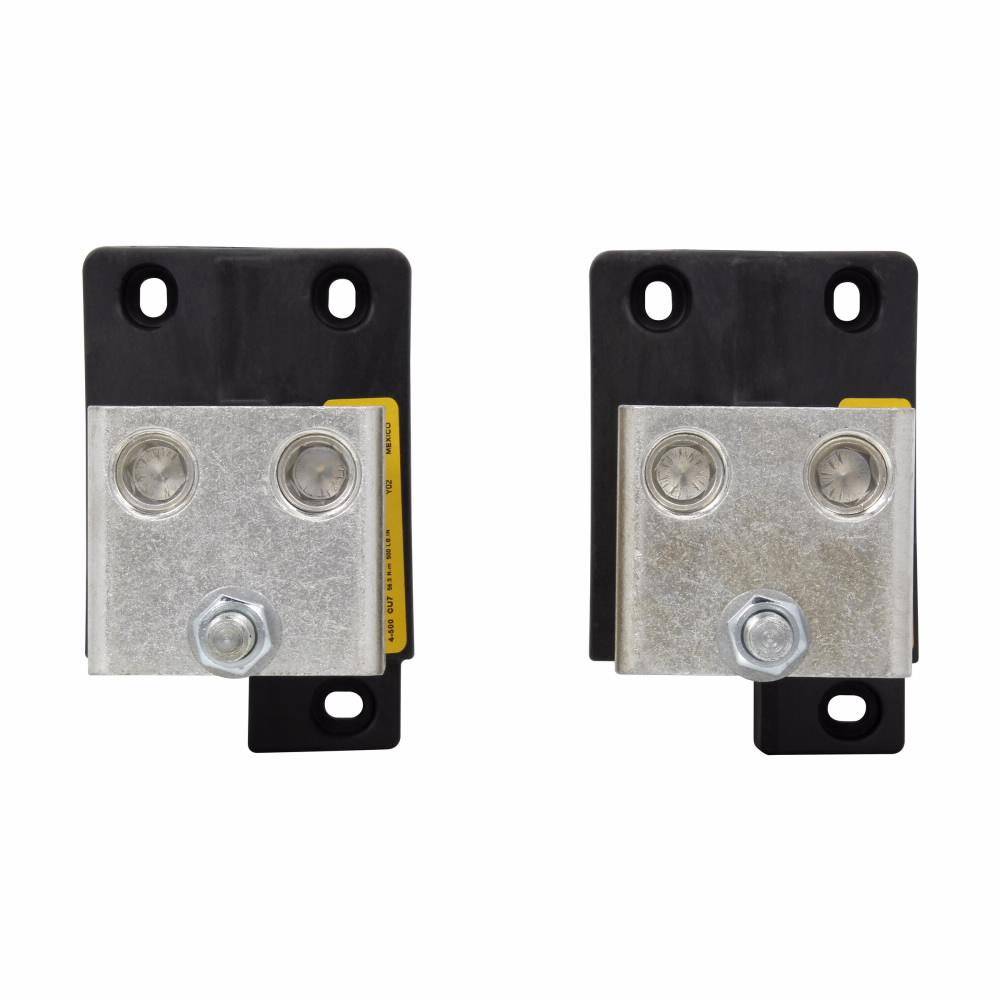

Edison BH-3144 High Speed Modular Fuse Block, 0 to 1250 VAC, 0 to 700 A, 4 AWG to 500 kcmil Wire, 1 Pole

Short Description

Enhance your electrical system's performance with the Edison BH-3144 High Speed Modular Fuse Block, designed for voltages up to 1250 VAC and currents up to 700 A. Compatible with a wide range of wire sizes, this reliable and robust fuse block ensures optimal protection and efficiency for your applications.Enhanced by AI

Edison Fuse Block, High Speed Modular, Series: BH-3, 0 to 1250 VAC, 0 to 700 A, 1 Poles, 7/16-14 Stud, 4 AWG to 500 kcmil Wire, Chassis Mount, For Use With: Bussmann High Speed Fuse, Thermoplastic, 11.34 in L x 3.25 in W x 3.882 in H

MFG #: BH-3144

EECO #: BUBH3144

Brand: Edison
UPC #: 051712350532
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121624
Material
Thermoplastic
Wire Size
4 AWG to 500 kcmil
Application
Solid State Control Circuits, VFDs and UPS Systems
Mounting Type
Chassis
Voltage Rating
0 to 1250
Connection Type
7/16-14 Stud
Type
High Speed Modular
Series
BH-3
Dimensions
11.34 in L x 3.25 in W x 3.882 in H
Amperage Rating
0 to 700
Suitable For Use With
Bussmann High Speed Fuse
Features
  • BH fuse blocks have a short circuit current rating of any installed fuse up to 200 kA rms symmetrical
