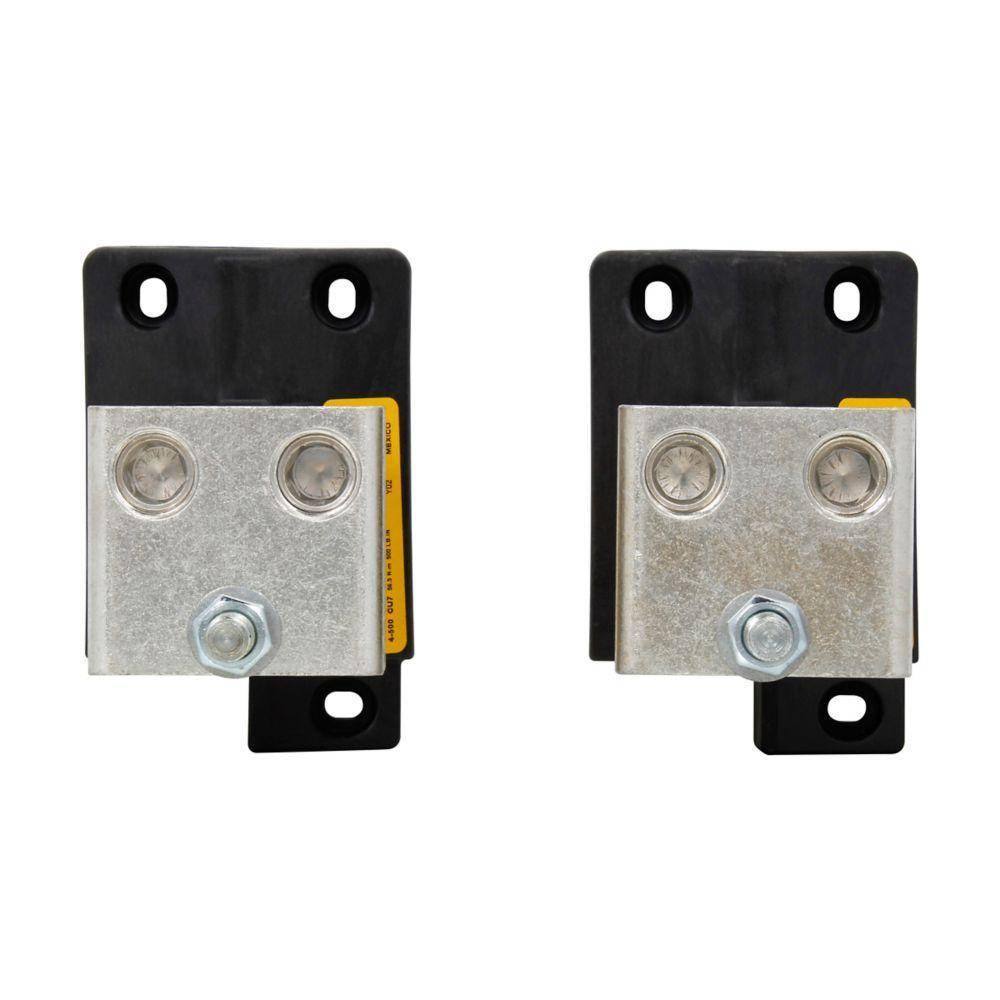

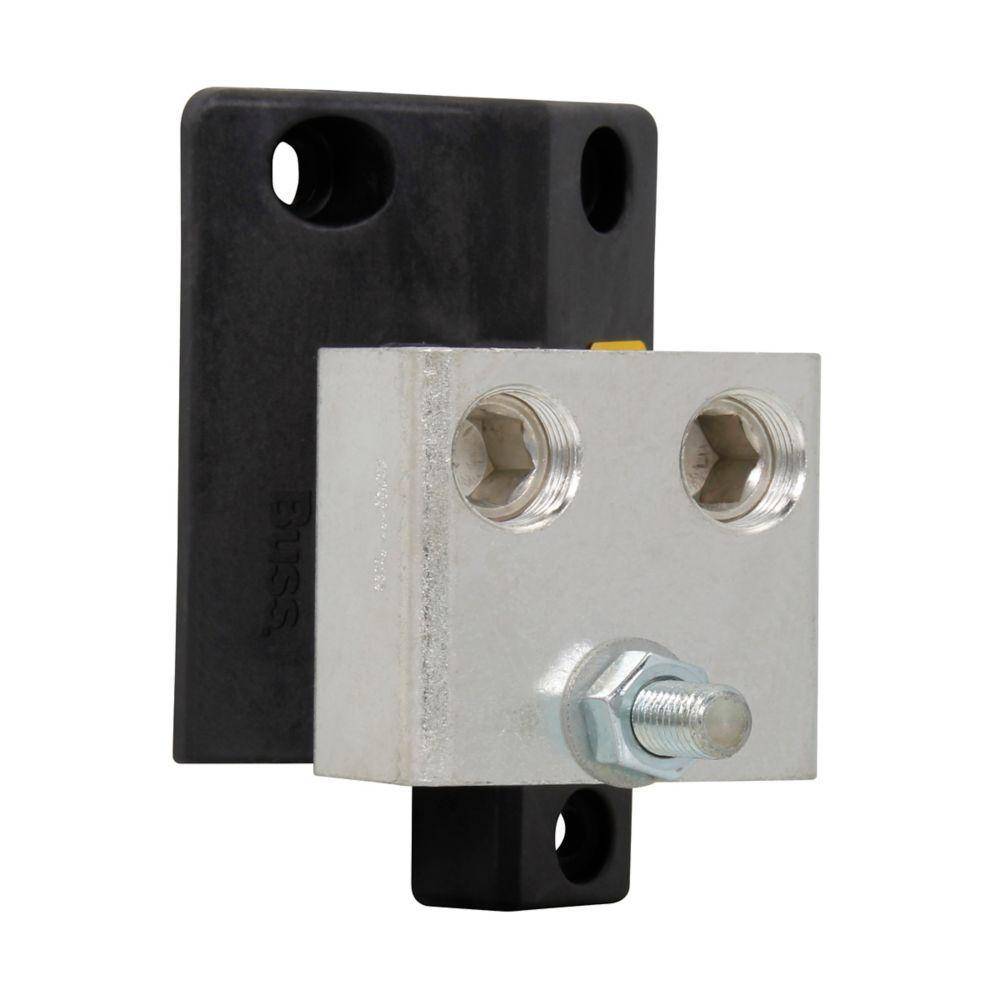

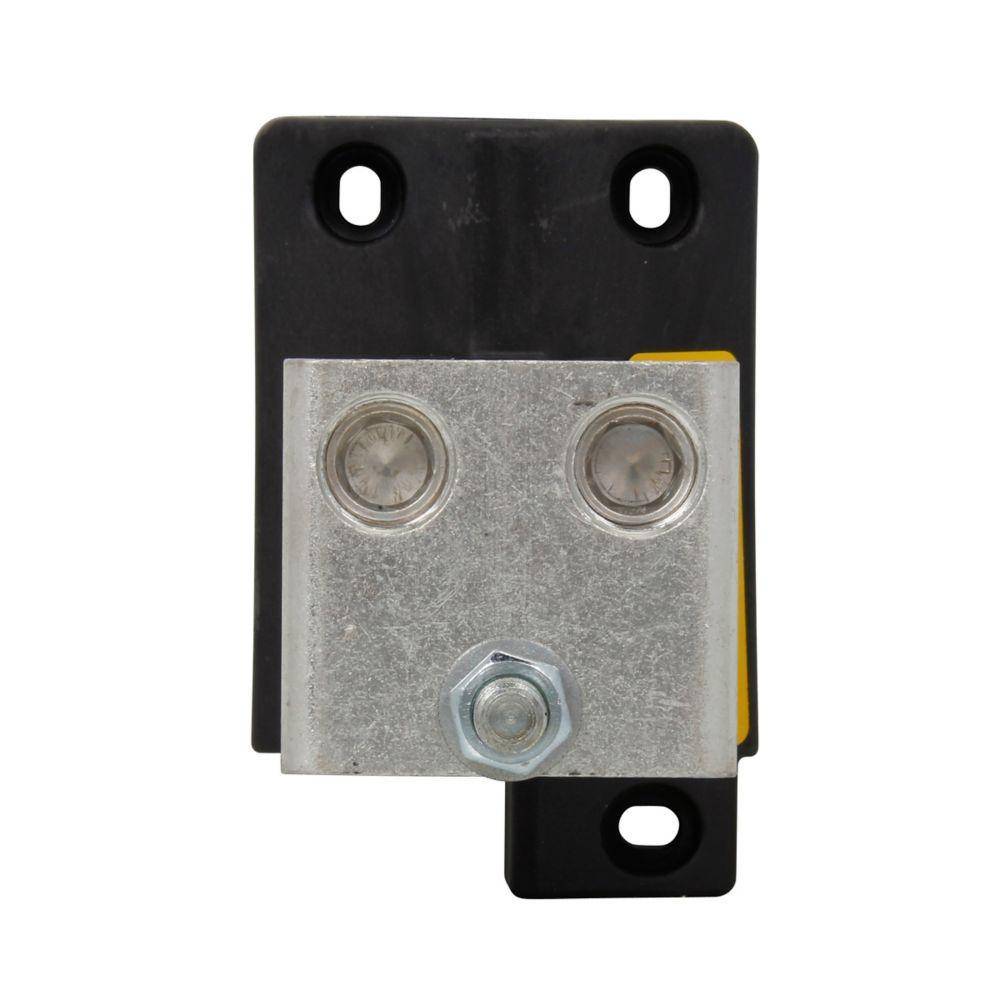

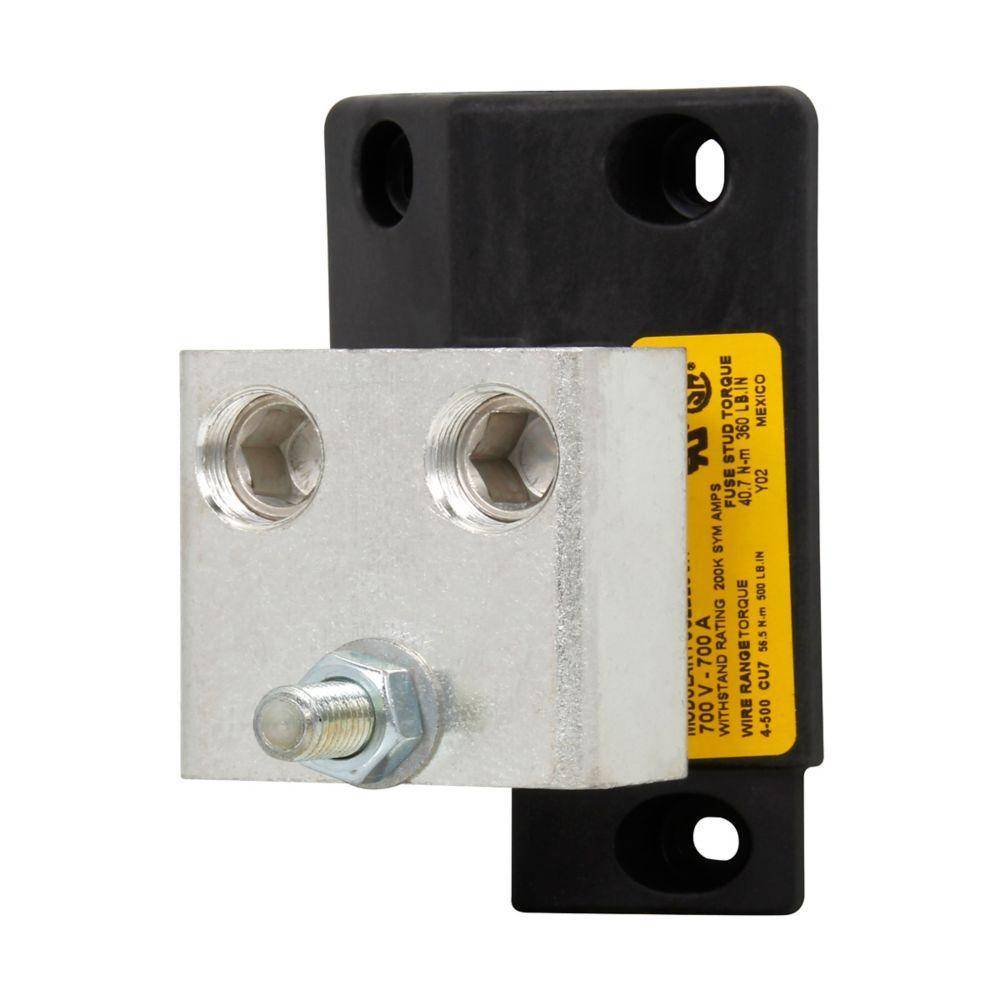

EATON BH-3033 Large Base Modular Fuse Block, 1250 V, 700 A, 6 to 250 Cu MCM Wire

Short Description

Upgrade your electrical system with the EATON BH-3033 Large Base Modular Fuse Block, designed for high performance and versatility. Rated for 1250 V and 700 A, it accommodates wire sizes from 6 to 250 Cu MCM, making it an ideal choice for your high-speed semiconductor and bolt-in fuse needs.Enhanced by AI

EATON Modular Fuse Block, Large Base, Series: BH Series, 1250 V, 700 A, 6 to 250 Cu MCM Wire, For Use With: EATON High Speed Semiconductor and Bolt-In Fuses, Thermoplastic

MFG #: BH-3033

EECO #: BUBH3033

Brand: Eaton
UPC #: 051712205719
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121624
Material
Thermoplastic
Wire Size
6 to 250 Cu MCM
Application
Solid State Control Circuits, VFDs and UPS Systems
Mounting Type
Hole
Voltage Rating
1250
Connection Type
3/8-16 Stud
Type
Large Base
Series
BH Series
Includes
3/8-16 Plated Steel Mounting Stud, Plated Steel Nut and Spring Steel Washer
Dimensions
3.92 in L x 2.62 in W x 5 in H
Amperage Rating
700
Suitable For Use With
Edison High Speed Semiconductor and Bolt-In Fuses
Features
  • Light weight, high temperature thermoplastic base
  • 2-hole for 6 AWG to 250 MCM copper wire (for use with base 1, 2 and 3)
