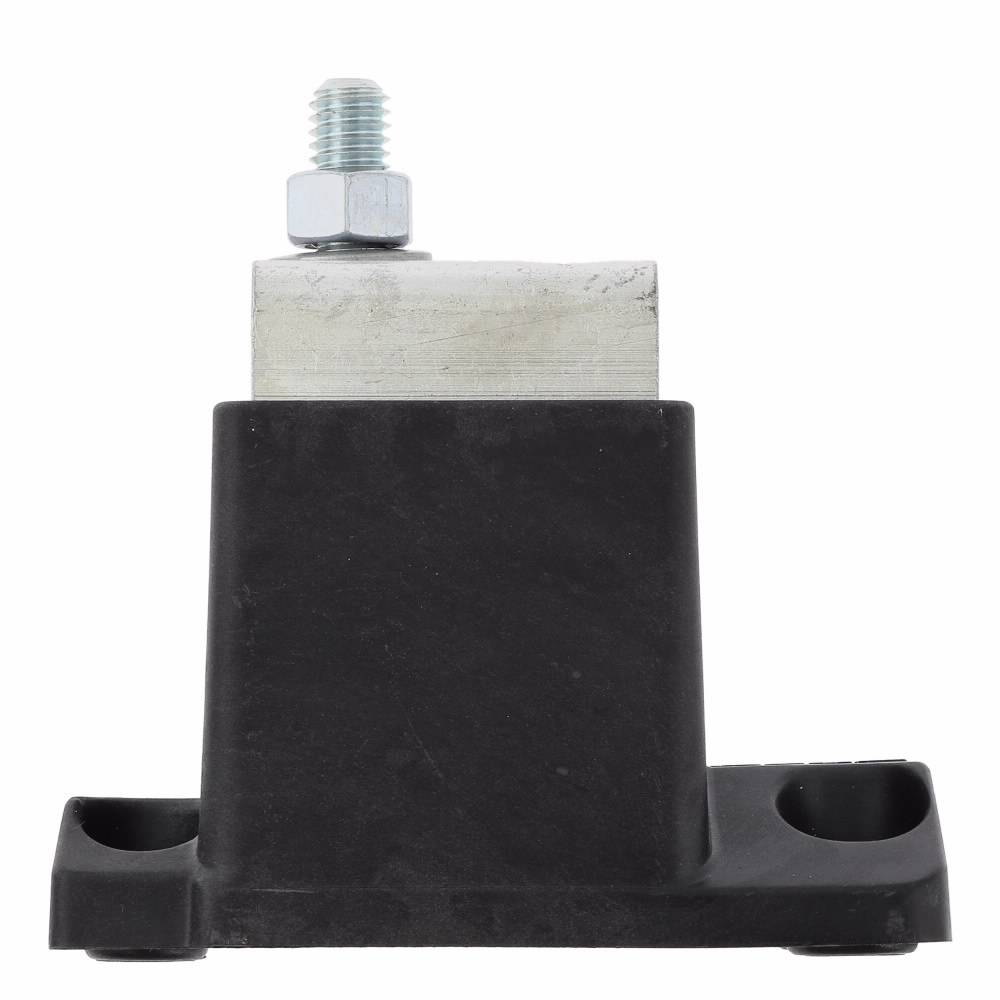

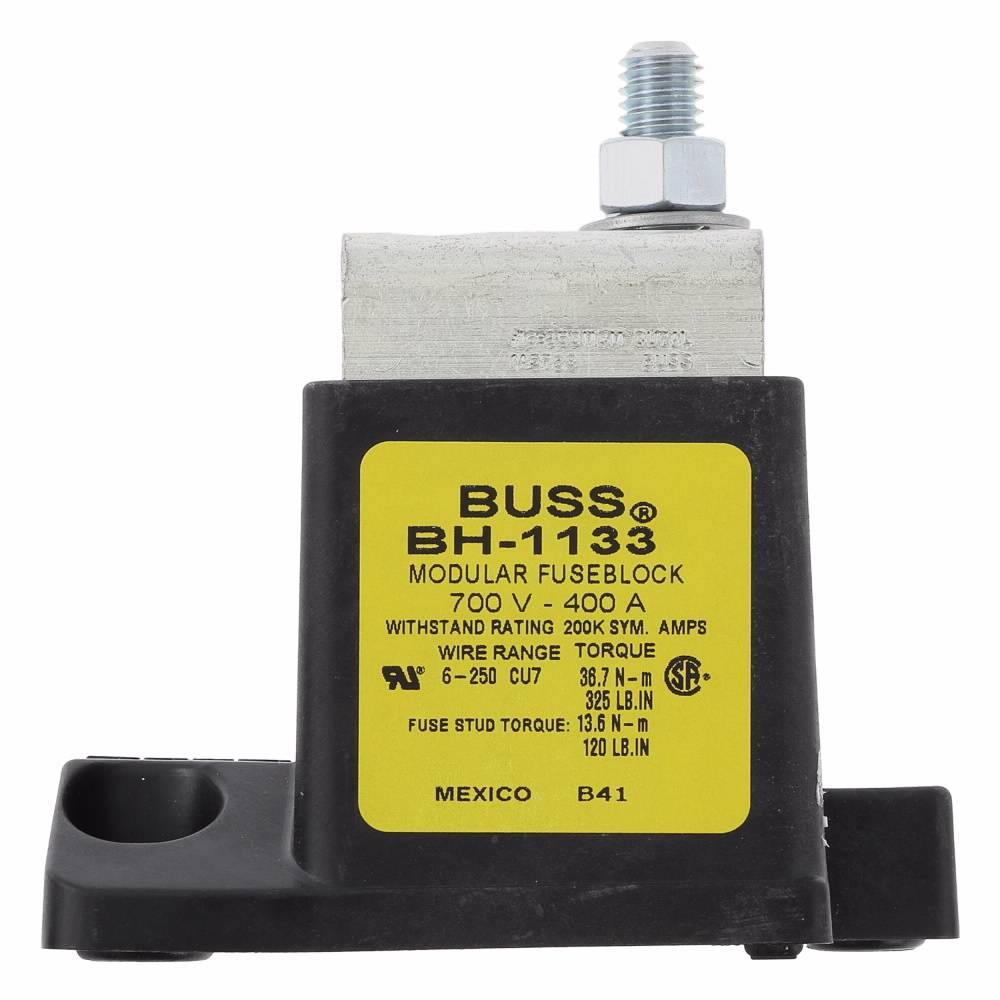

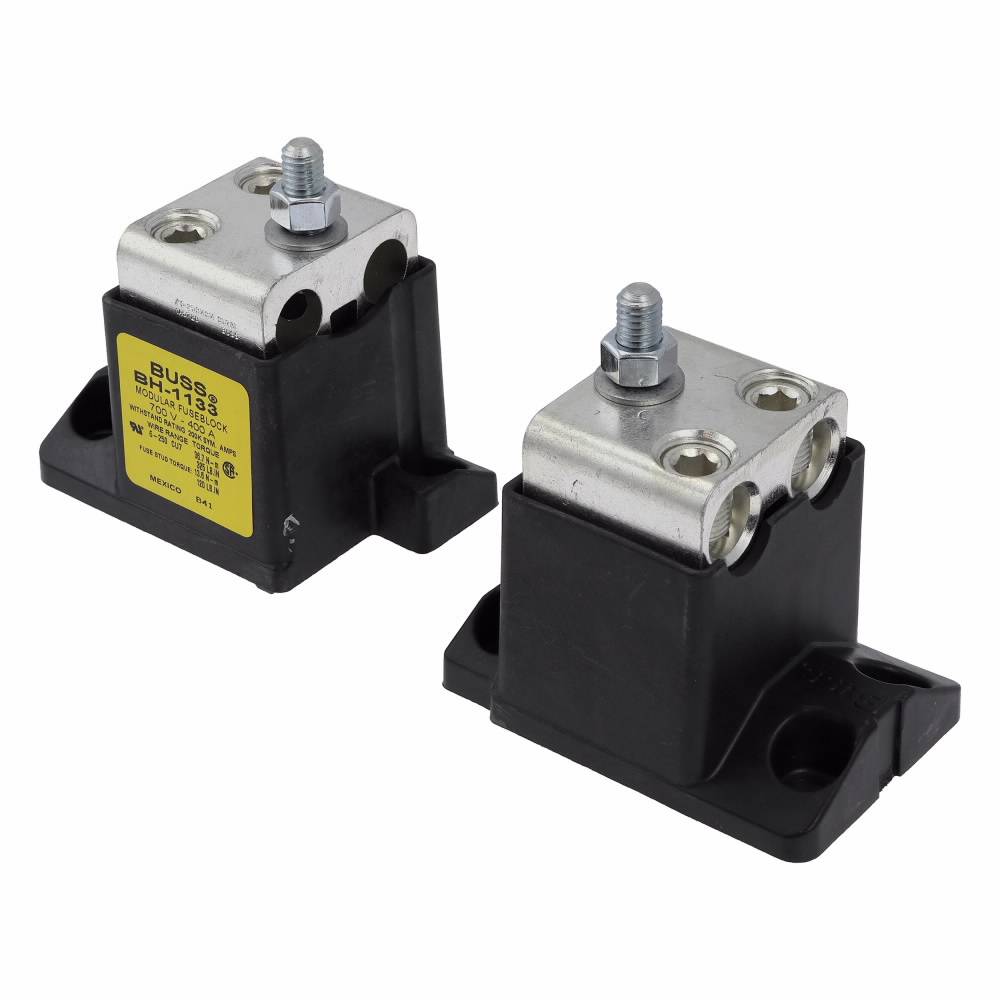

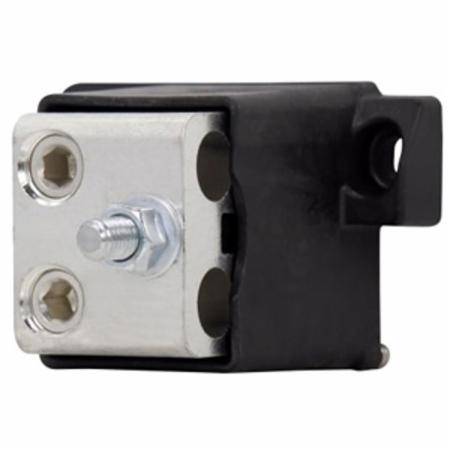

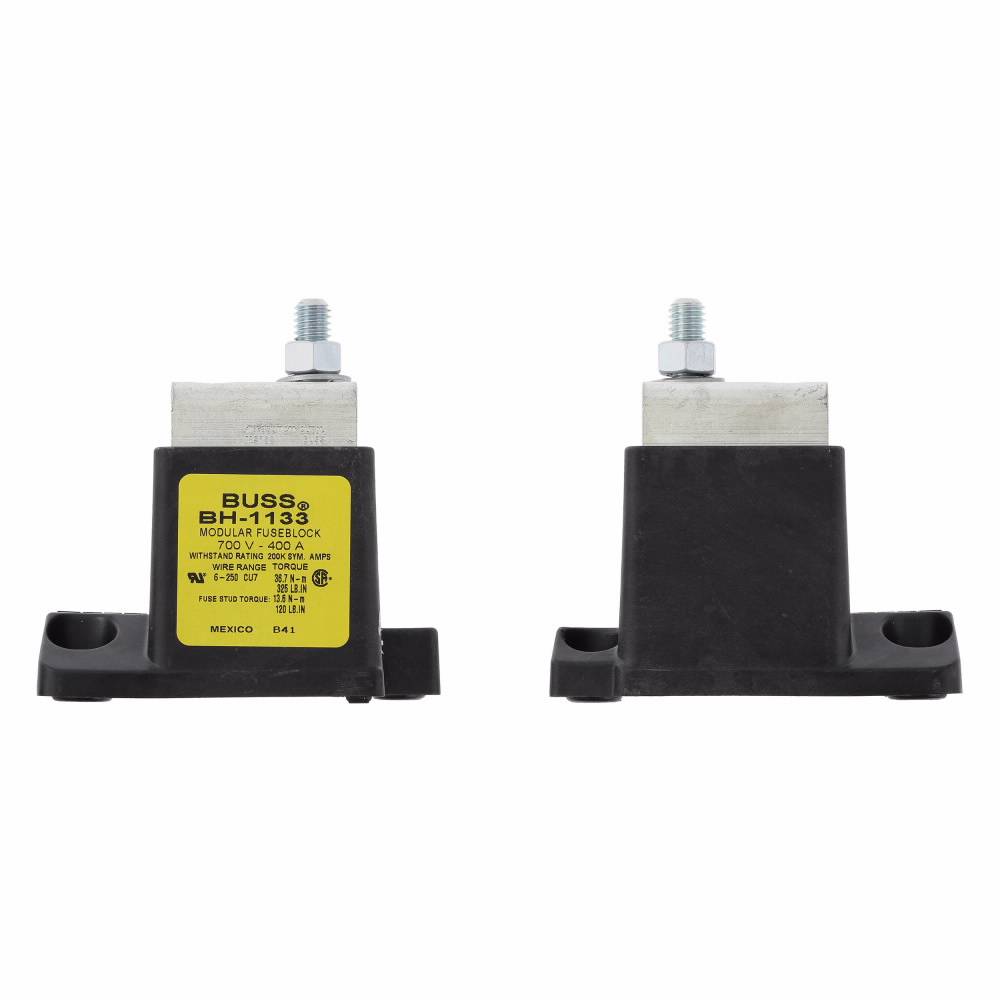

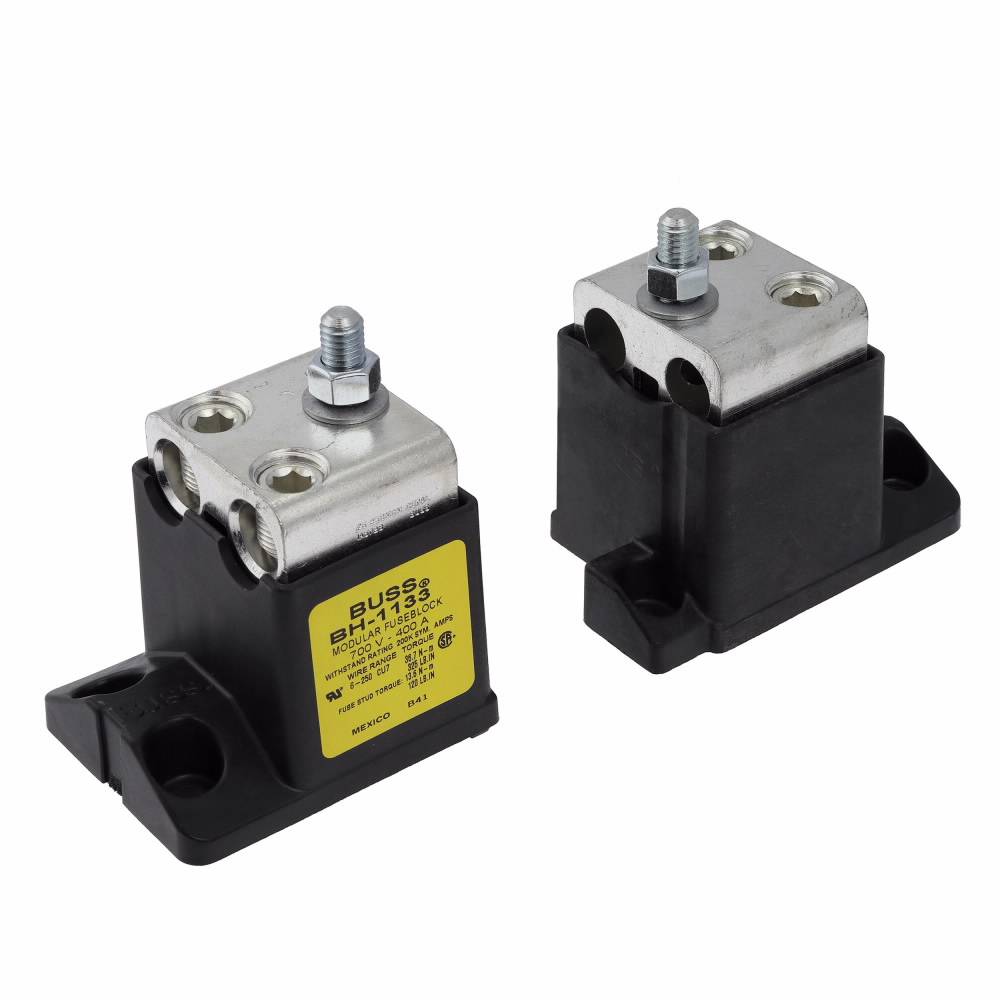

Edison BH-1133 High Speed Modular Fuse Block, 0 to 2500 VAC, 0 to 400 A, 6 AWG to 250 kcmil Wire, 1 Pole

Short Description

700 V, 400 A, Thermoplastic Base, Standard, Modular, Midget Fuse Block

Edison Fuse Block, High Speed Modular, Series: BH-1, 0 to 2500 VAC, 0 to 400 A, 1 Poles, 3/8-16 Stud, 6 AWG to 250 kcmil Wire, Chassis Mount, For Use With: Bussmann High Speed Fuse, Thermoplastic, 8.54 in L x 2.12 in W x 2.68 in H

MFG #: BH-1133

EECO #: BUBH1133

Brand: Edison
UPC #: 051712350464
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121624
Approval
UL, CSA, CE
Material
Thermoplastic
Wire Size
6 AWG to 250 kcmil
Application
Solid State Control Circuits, VFDs and UPS Systems
Body Material
Thermoplastic Base
Mounting Type
Chassis
Terminal Type
Stud
Voltage Rating
0 to 2500
Connection Type
3/8-16 Stud
Fuse Voltage Rating
700 Volt
Type
High Speed Modular
Series
BH-1
Fuse Type
Midget
Dimensions
8.54 in L x 2.12 in W x 2.68 in H
Amperage Rating
0 to 400
Fuse Current Rating
400 Amp
Suitable For Use With
Bussmann High Speed Fuse
Features
  • BH fuse blocks have a short circuit current rating of any installed fuse up to 200 kA rms symmetrical
