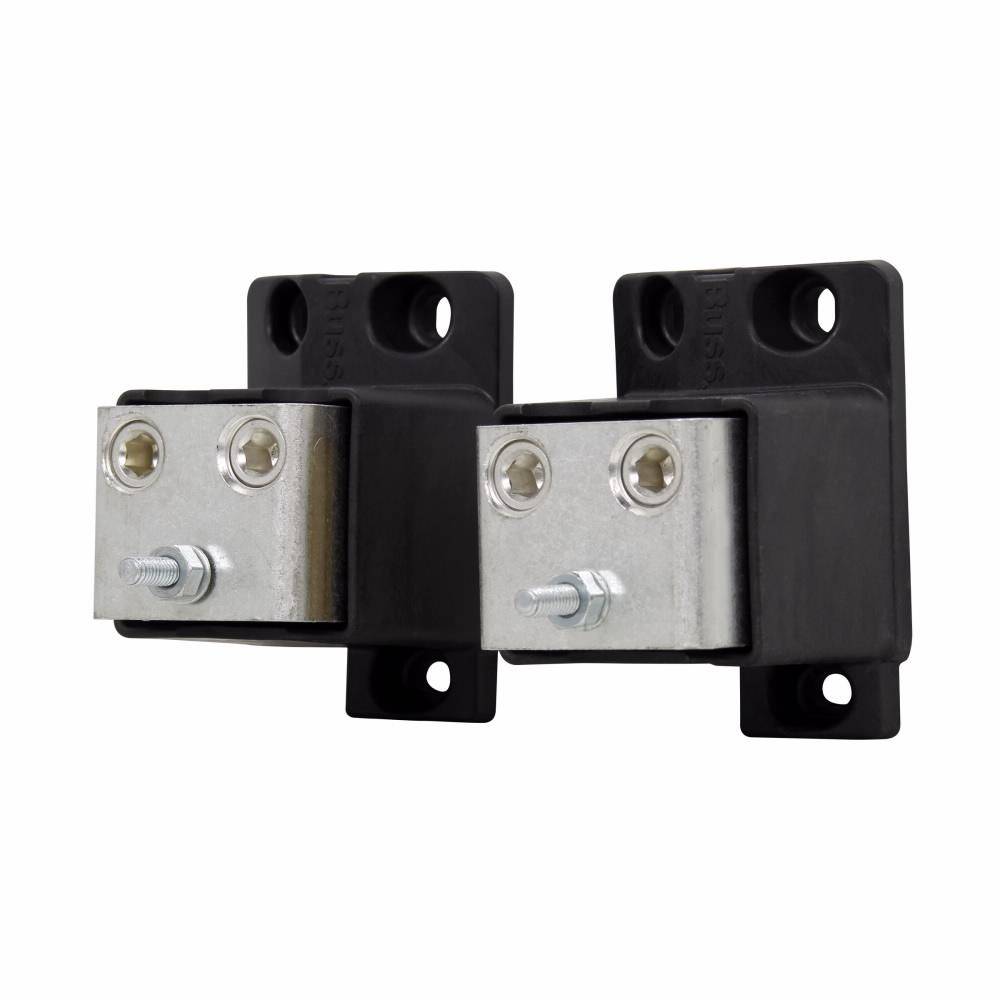

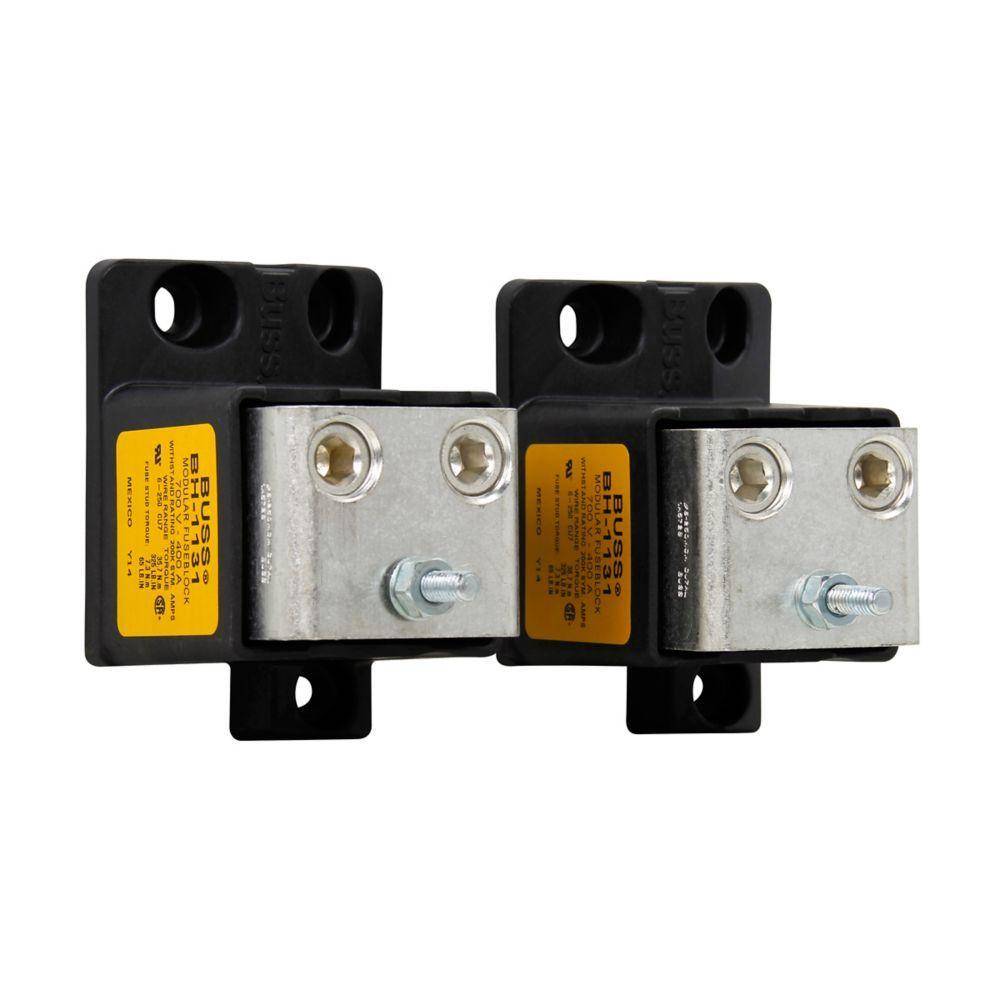

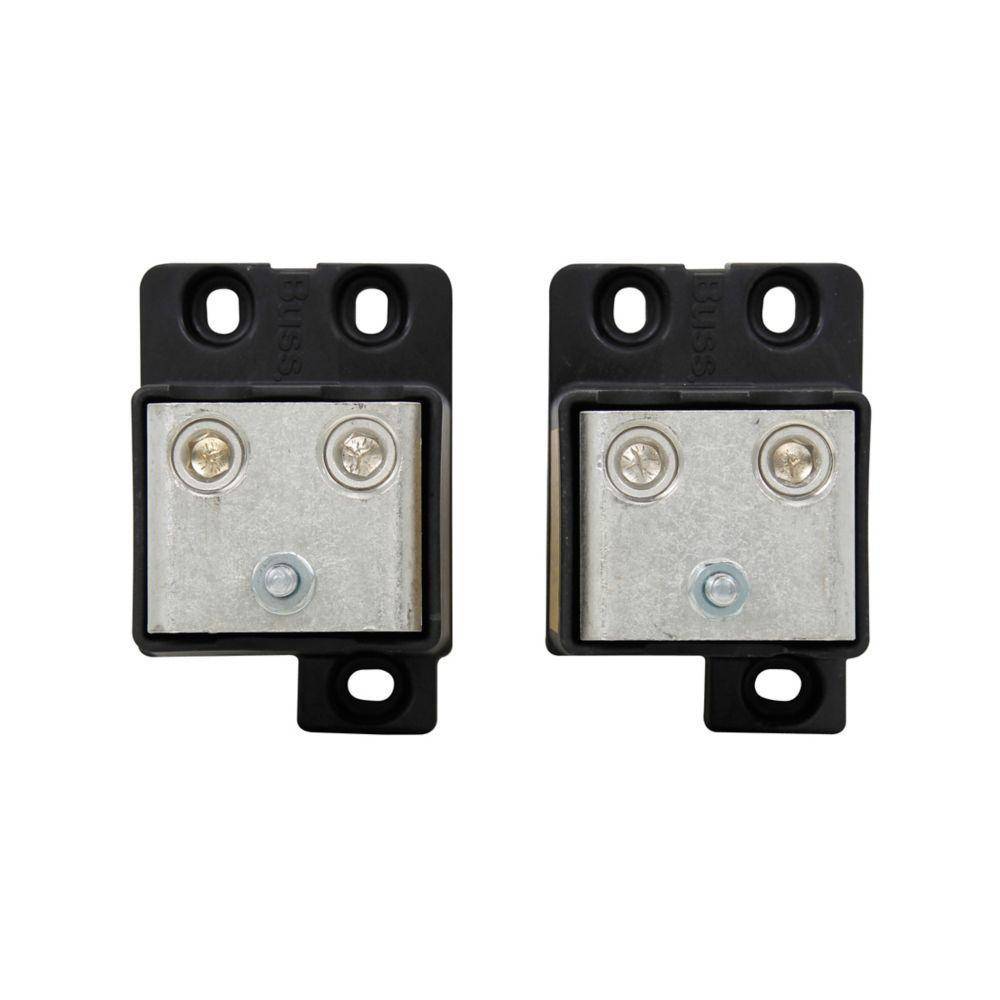

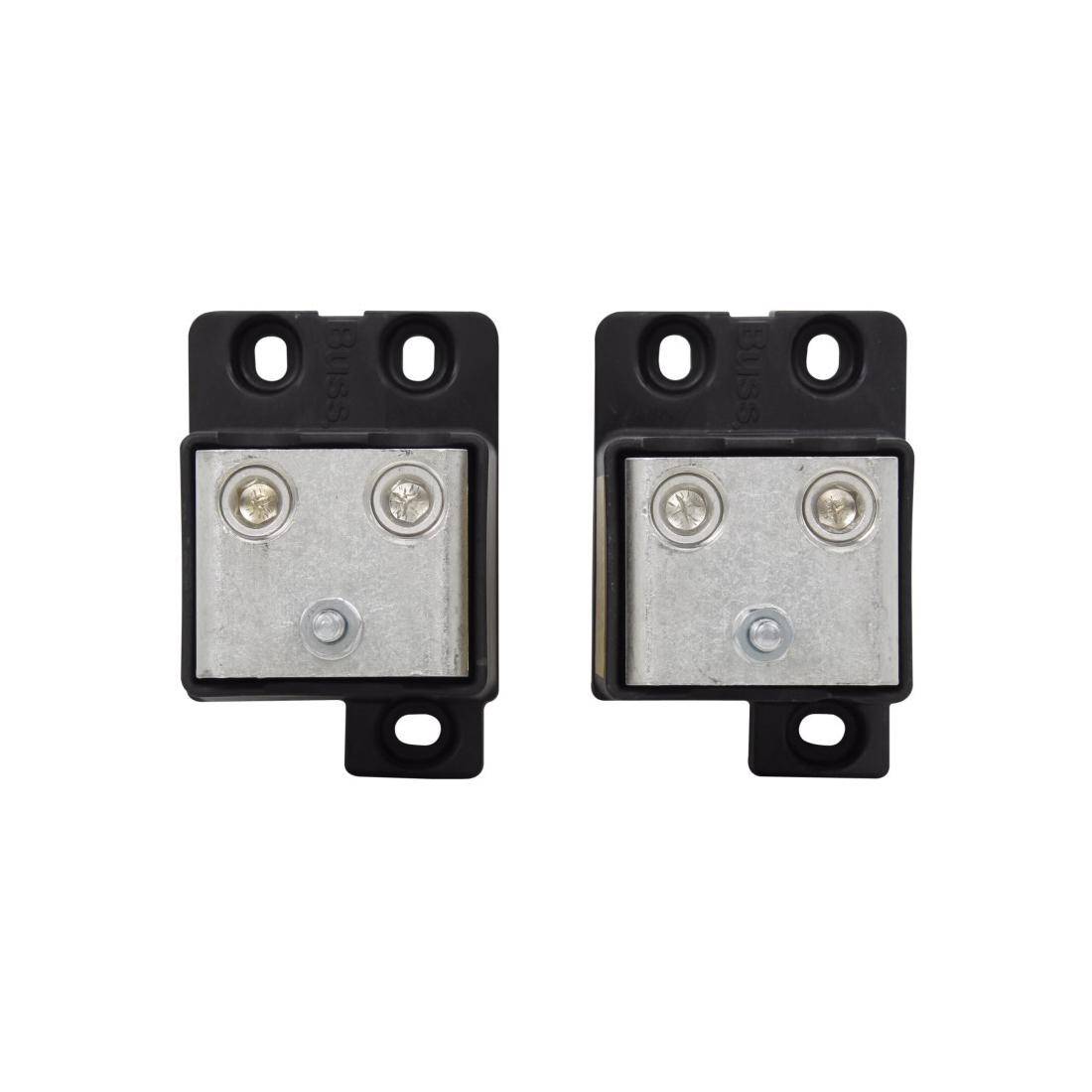

Edison BH-1131 High Speed Modular Fuse Block, 0 to 2500 VAC, 0 to 400 A, 6 AWG to 250 kcmil Wire, 1 Pole

Short Description

Enhance your electrical system with the Edison BH-1131 High Speed Modular Fuse Block, designed for superior performance and reliability. Capable of handling up to 2500 VAC and 400 A, this versatile fuse block accommodates a wide range of wire sizes from 6 AWG to 250 kcmil. Perfect for chassis mounting and compatible with Bussmann High Speed Fuses, it offers robust protection in a compact design.Enhanced by AI

Edison Fuse Block, High Speed Modular, Series: BH-1, 0 to 2500 VAC, 0 to 400 A, 1 Poles, 1/4-20 Stud, 6 AWG to 250 kcmil Wire, Chassis Mount, For Use With: Bussmann High Speed Fuse, Thermoplastic, 7.477 in L x 2.12 in W x 2.68 in H

MFG #: BH-1131

EECO #: BUBH1131

Brand: Edison
UPC #: 051712350457
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121624
Material
Thermoplastic
Wire Size
6 AWG to 250 kcmil
Application
Solid State Control Circuits, VFDs and UPS Systems
Mounting Type
Chassis
Voltage Rating
0 to 2500
Connection Type
1/4-20 Stud
Type
High Speed Modular
Series
BH-1
Dimensions
7.477 in L x 2.12 in W x 2.68 in H
Amperage Rating
0 to 400
Suitable For Use With
Bussmann High Speed Fuse
Features
  • BH fuse blocks have a short circuit current rating of any installed fuse up to 200 kA rms symmetrical
