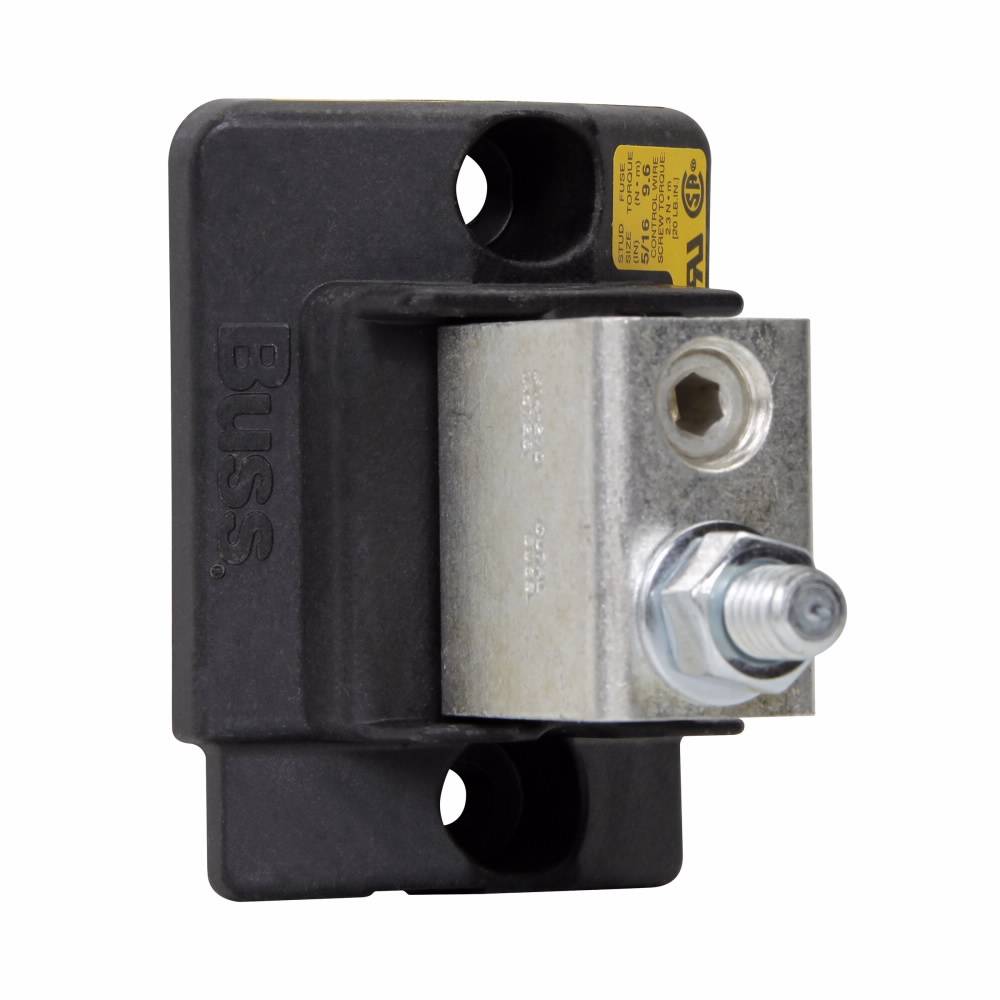

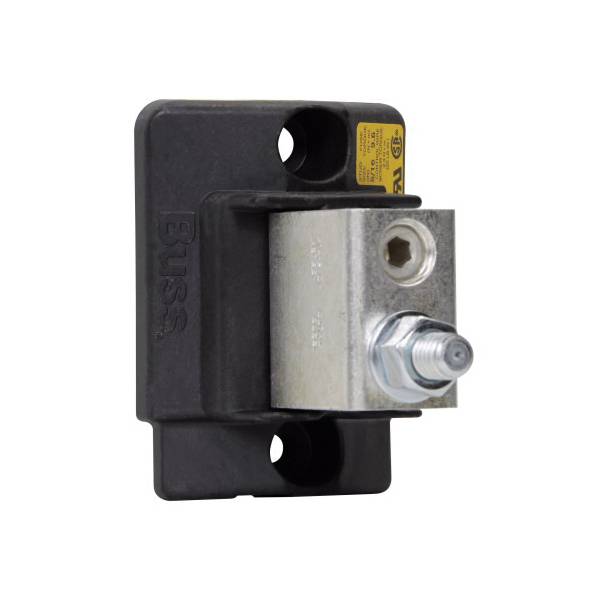

Edison BH-0111 High Speed Modular Fuse Block, 0 to 700 VAC, 0 to 100 A, 14 to 2/0 AWG Wire, 1 Pole

Short Description

700 V, 100 A, Thermoplastic Base, Standard, Modular, Midget Fuse Block

Edison Fuse Block, High Speed Modular, Series: BH-0, 0 to 700 VAC, 0 to 100 A, 1 Poles, 1/4-20 Stud, 14 to 2/0 AWG Wire, Chassis Mount, For Use With: Bussmann High Speed Fuse, Thermoplastic, 6.412 in L x 2.12 in W x 2.68 in H

MFG #: BH-0111

EECO #: BUBH0111

Brand: Edison
UPC #: 051712350518
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121624
Approval
UL, CSA, CE
Material
Thermoplastic
Wire Size
14 to 2/0
Application
Solid State Control Circuits, VFDs and UPS Systems
Body Material
Thermoplastic Base
Mounting Type
Chassis
Terminal Type
Stud
Voltage Rating
0 to 700
Connection Type
1/4-20 Stud
Fuse Voltage Rating
700 Volt
Type
High Speed Modular
Series
BH-0
Fuse Type
Midget
Dimensions
6.412 in L x 2.12 in W x 2.68 in H
Amperage Rating
0 to 100
Fuse Current Rating
100 Amp
Suitable For Use With
Bussmann High Speed Fuse
Features
  • BH fuse blocks have a short circuit current rating of any installed fuse up to 200 kA rms symmetrical
