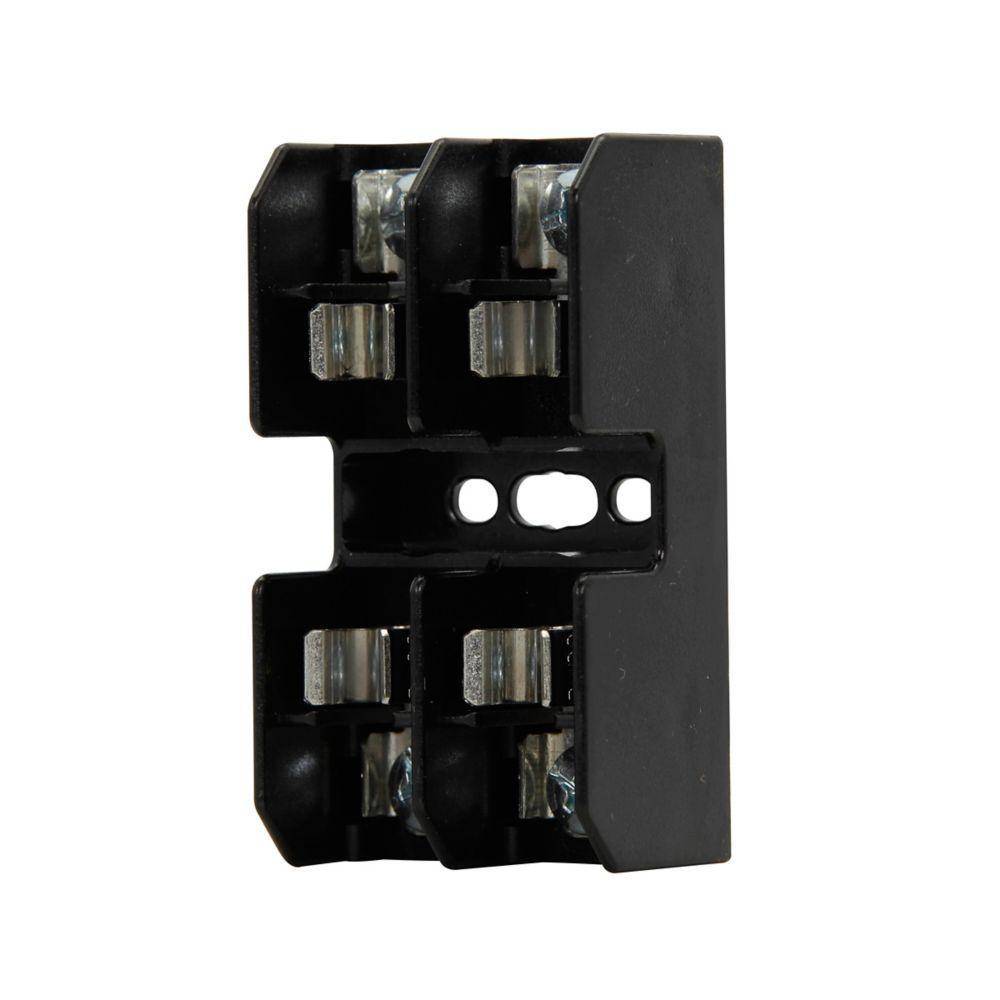

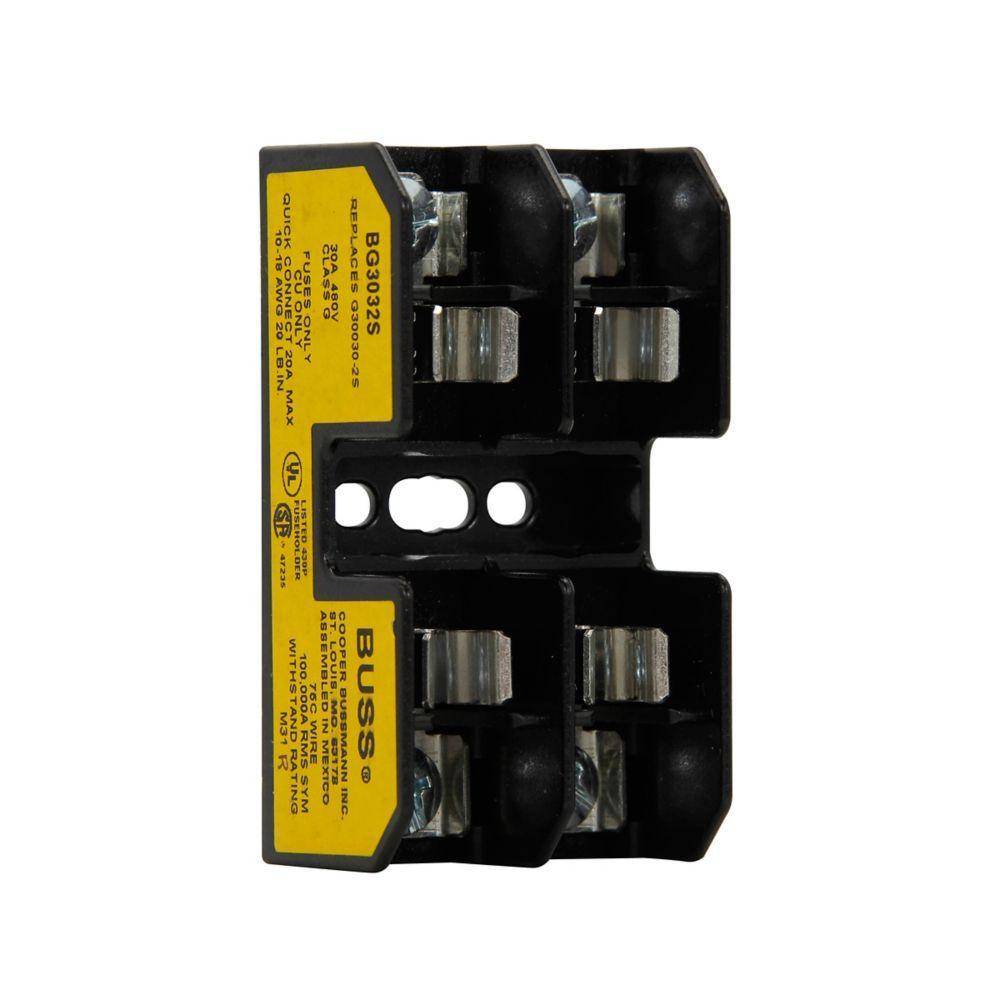

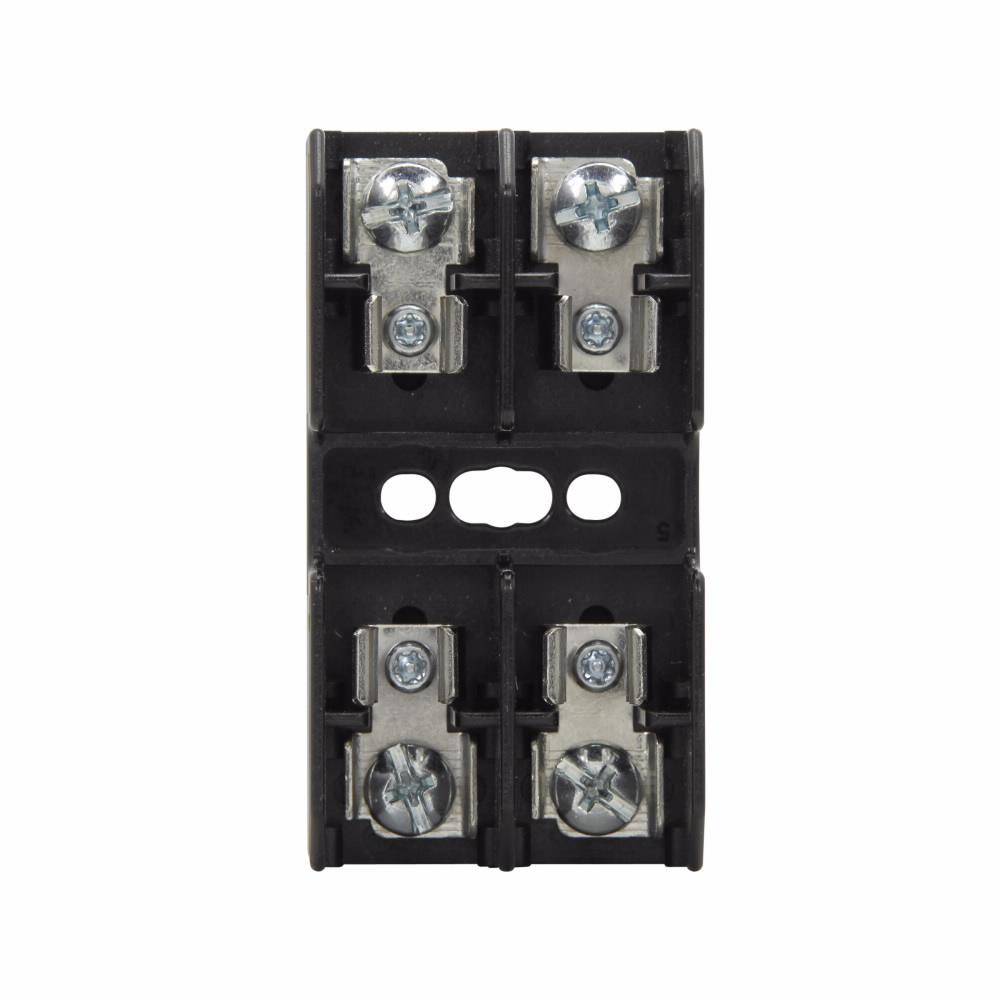

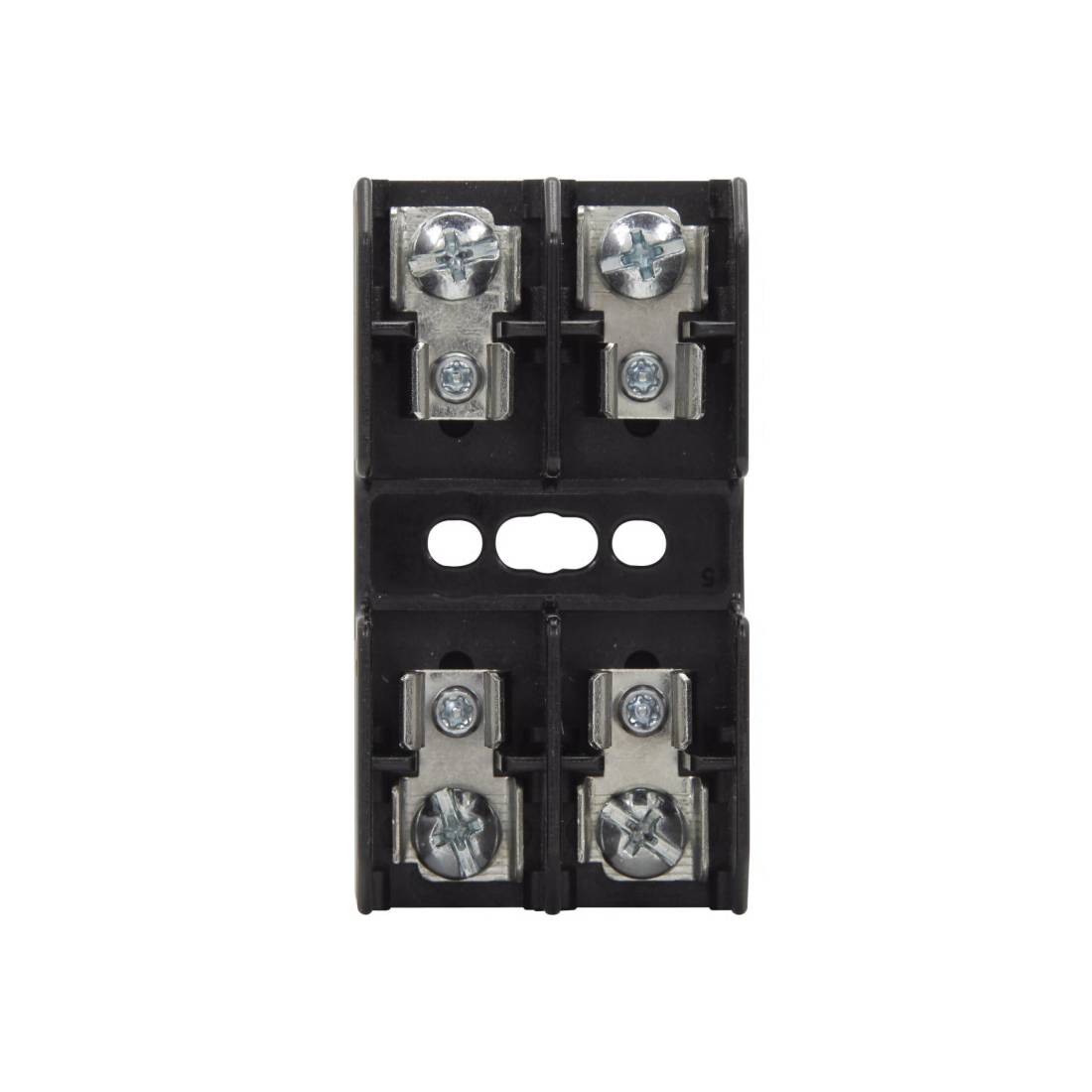

Edison BG3032S Open Style Fuse Block, 480 VAC/VDC, 30 A, Class: G, 14 to 10 AWG Wire, 2 Poles

Short Description

Eaton's Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option

Edison Fuse Block, Open Style, Series: BG Series, 480 VAC/VDC, 30 A, 2 Pole, Class: G, Screw, 14 to 10 AWG Wire, DIN Rail Mount, 1.639 in Fuse Length, 13/32 in Fuse Dia, 130 deg C, For Use With: Bussmann SC Series Class G Fuse, Thermoplastic, Black, 3 in L x 1.63 in W x 1.22 in H
MFG #: BG3032S

EECO #: BUBG3032S

Brand: Edison
UPC #: 051712736640
Attributes
Features
Documents
Product Information
Attributes
Class
G
Color
Black
UNSPSC
39121624
Material
Thermoplastic
Wire Size
14 to 10
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
DIN Rail
Voltage Rating
480
Connection Type
Screw
Temperature Rating
130
Type
Open Style
Series
BG Series
Dimensions
3 in L x 1.63 in W x 1.22 in H
Amperage Rating
30
Suitable For Use With
Bussmann SC Series Class G Fuse
Features
  • Model: Edison BG3032S
  • Type: Open Style Fuse Block
  • Voltage Rating: 480 VAC/VDC
  • Current Rating: 30 A
  • Class: G
  • Wire Size Compatibility: 14 to 10 AWG
  • Number of Poles: 2
  • Fuse Length: 1.639 inches
  • Fuse Diameter: 13/32 inches
  • Operating Temperature: Up to 130°C
  • Mounting Type: DIN Rail Mount
  • Material: Thermoplastic
  • Color: Black
  • Dimensions: 3 in L x 1.63 in W x 1.22 in H
  • Compatible Fuse Series: Bussmann SC Series Class G Fuse
