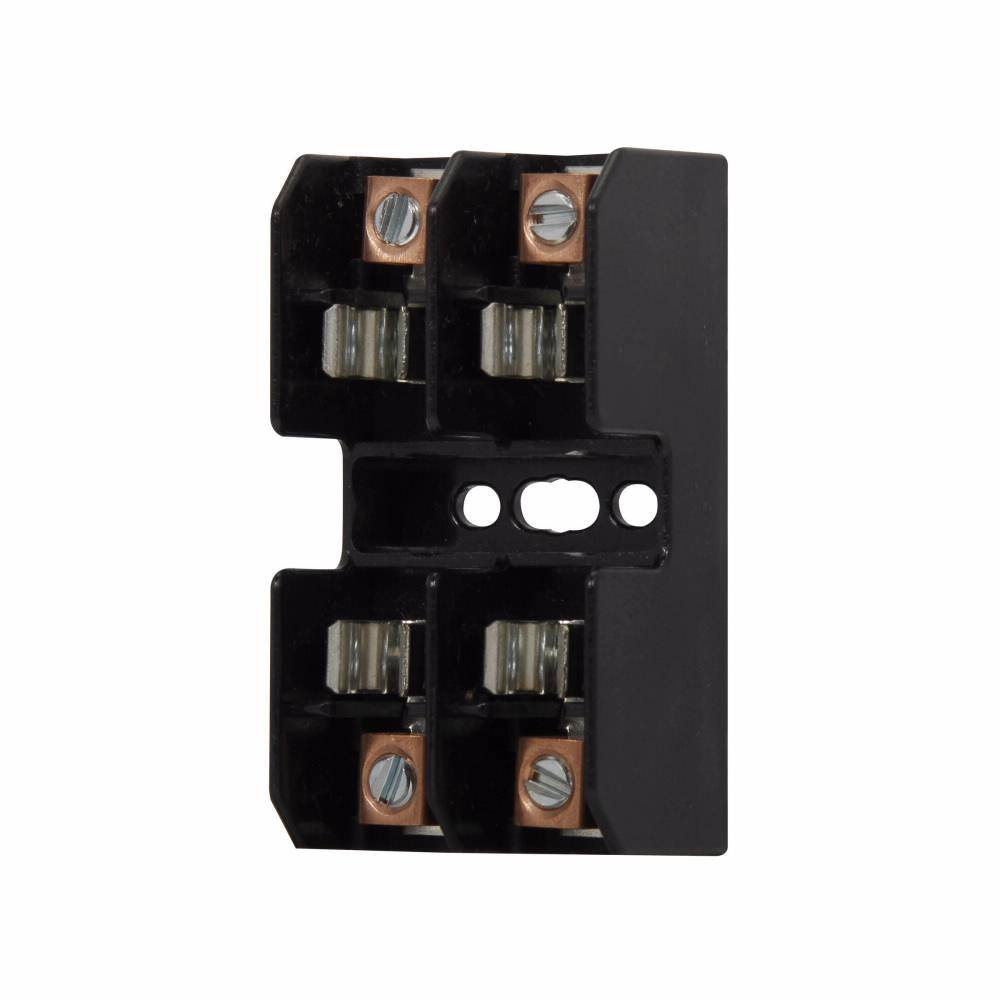

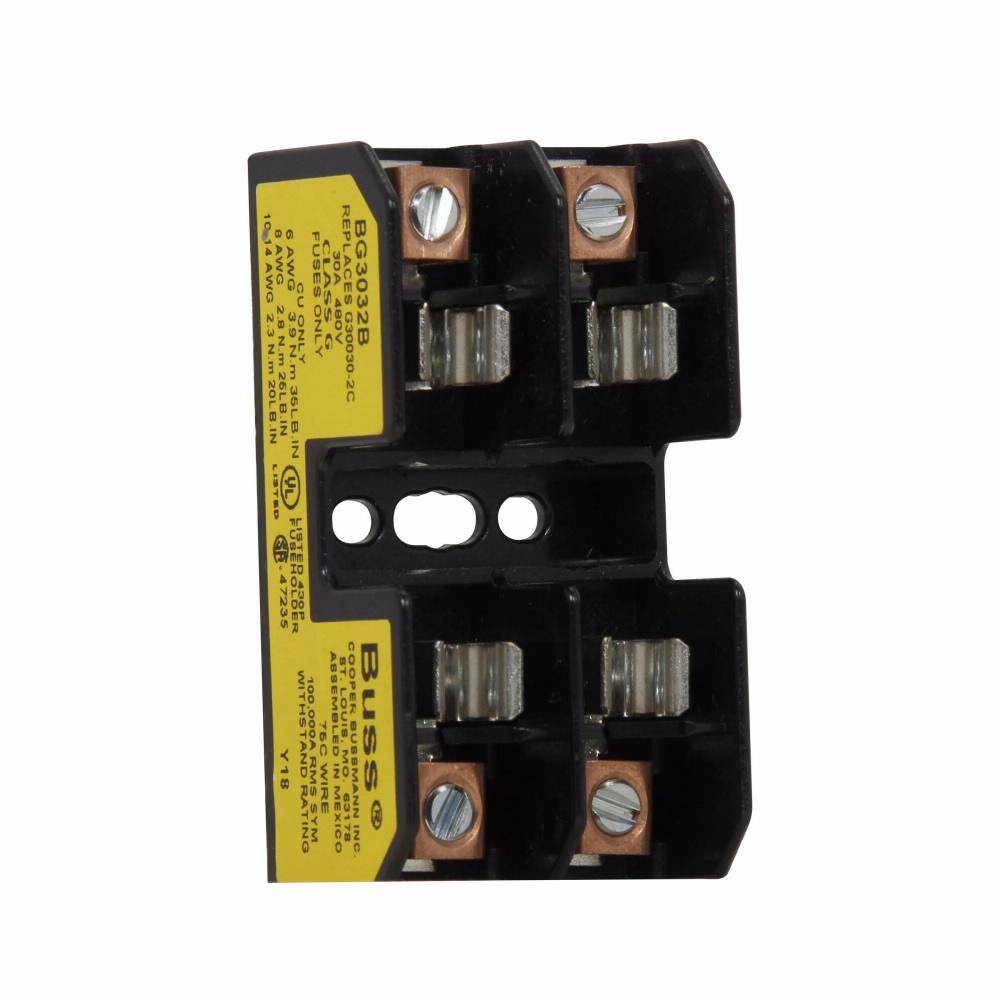

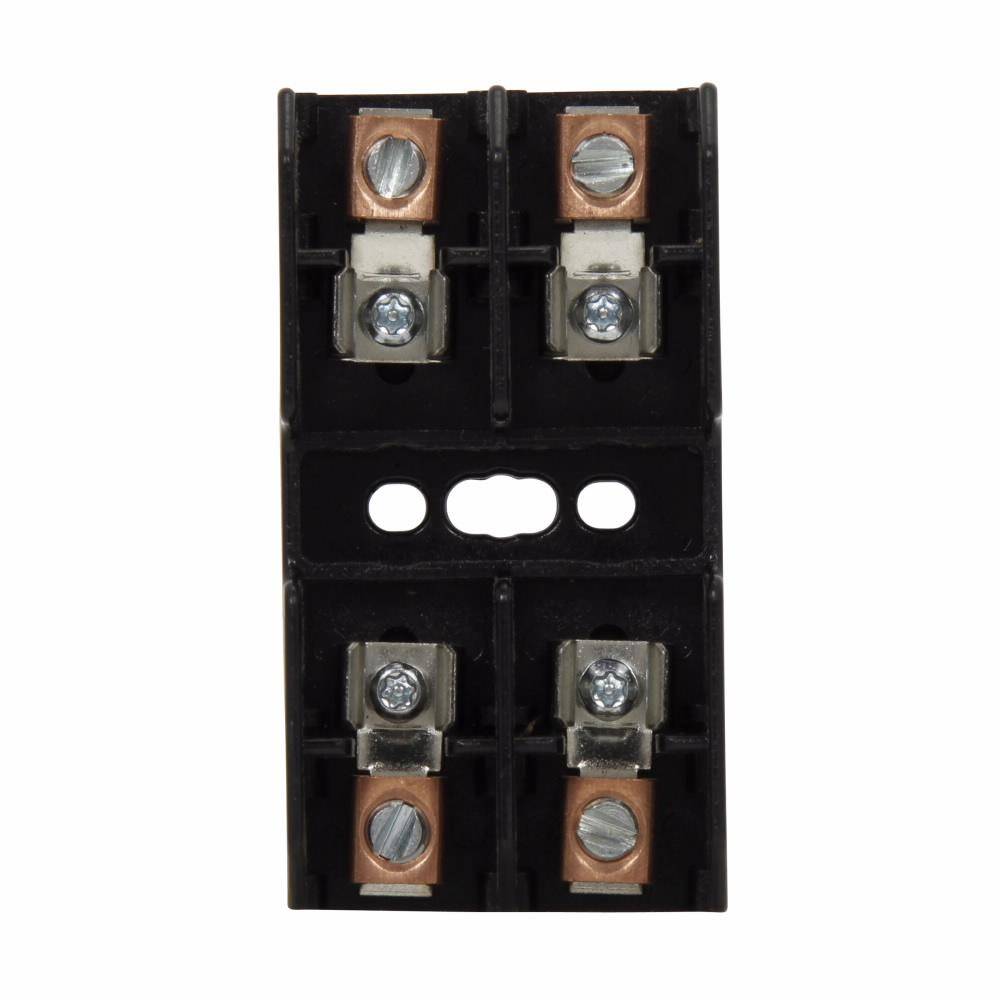

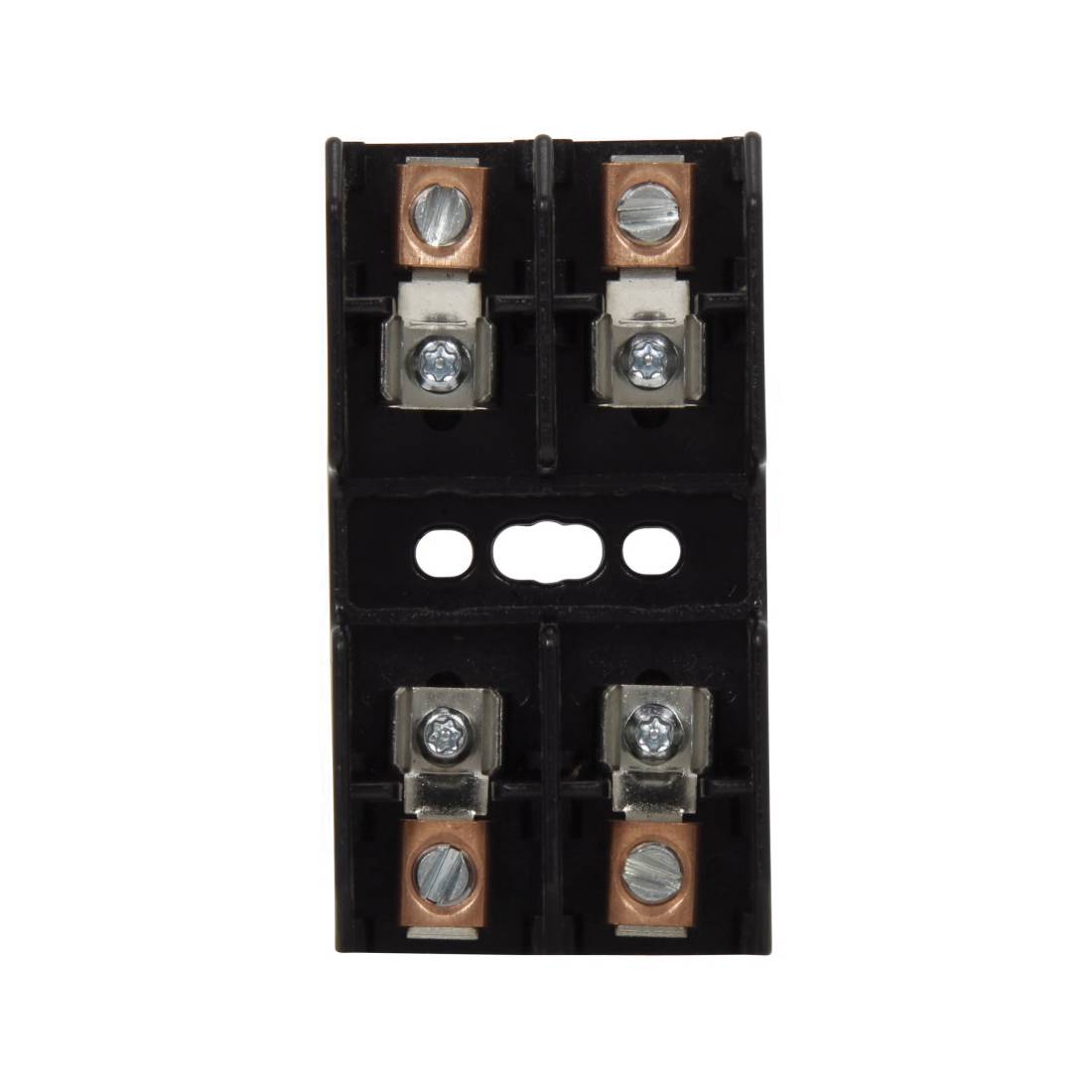

Edison BG3032B Open Style Fuse Block, 480 VAC/VDC, 25 to 30 A, Class: G, 14 to 6 AWG Wire, 2 Poles

Short Description

Eaton's Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option

Edison Fuse Block, Open Style, Series: BG Series, 480 VAC/VDC, 25 to 30 A, 2 Pole, Class: G, Box Lug, 14 to 6 AWG Wire, DIN Rail Mount, 1.639 in Fuse Length, 13/32 in Fuse Dia, 130 deg C, For Use With: Bussmann SC Series Class G Fuse, Thermoplastic, Black, 3 in L x 1.63 in W x 1.22 in H
MFG #: BG3032B

EECO #: BUBG3032B

Brand: Edison
UPC #: 051712736589
Attributes
Features
Documents
Product Information
Attributes
Class
G
Color
Black
UNSPSC
39121624
Material
Thermoplastic
Wire Size
14 to 6
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
DIN Rail
Voltage Rating
480
Connection Type
Box Lug
Temperature Rating
130
Type
Open Style
Series
BG Series
Dimensions
3 in L x 1.63 in W x 1.22 in H
Amperage Rating
25 to 30
Suitable For Use With
Bussmann SC Series Class G Fuse
Features
  • Product Name: Edison BG3032B Open Style Fuse Block
  • Voltage Rating: 480 VAC/VDC
  • Current Rating: 25 to 30 A
  • Class: G
  • Wire Compatibility: 14 to 6 AWG
  • Poles: 2 Pole
  • Fuse Length: 1.639 inches
  • Fuse Diameter: 13/32 inches
  • Temperature Rating: 130°C
  • Mounting Type: DIN Rail Mount
  • Material: Thermoplastic
  • Color: Black
  • Dimensions: 3 in L x 1.63 in W x 1.22 in H
  • Compatible Fuse: Bussmann SC Series Class G Fuse
